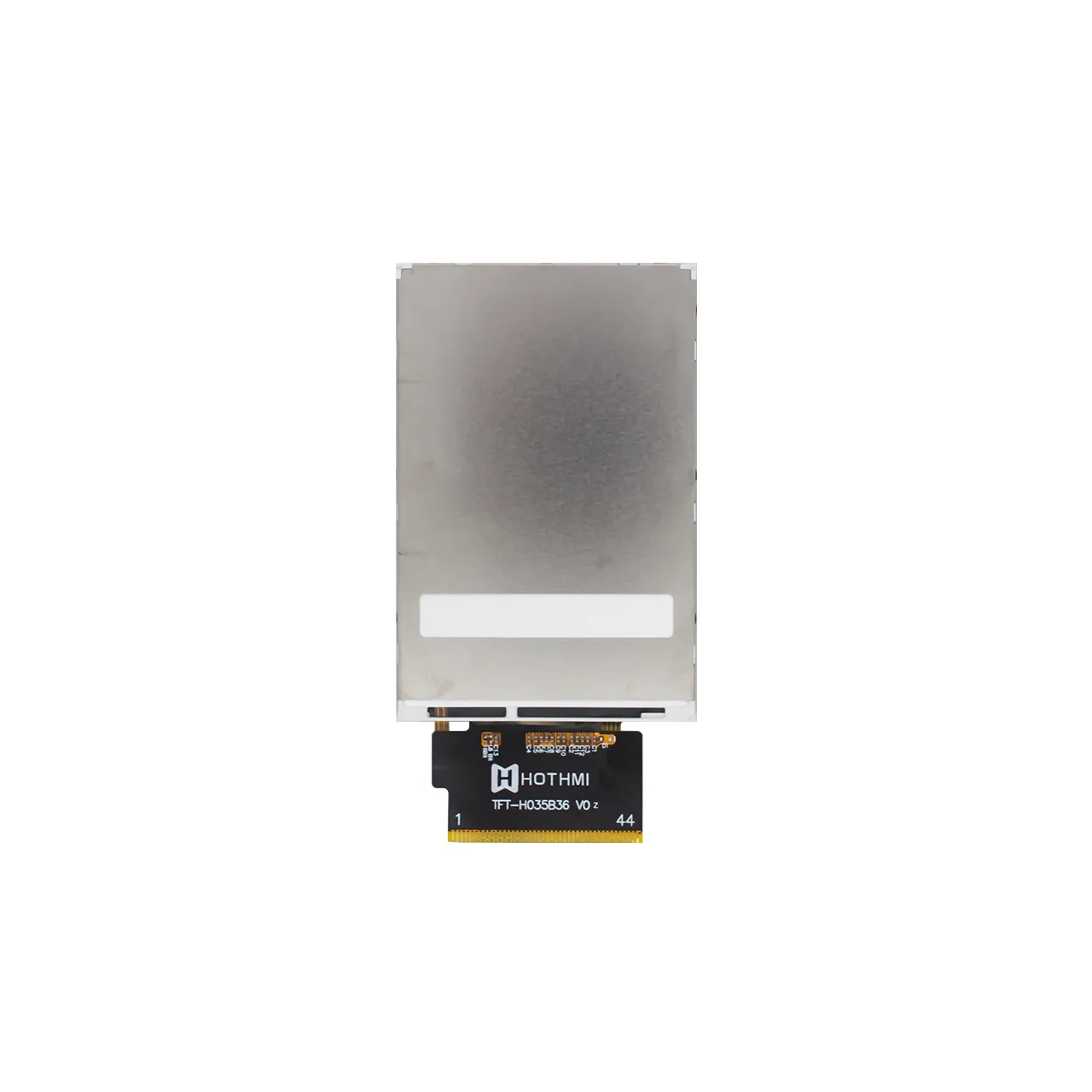

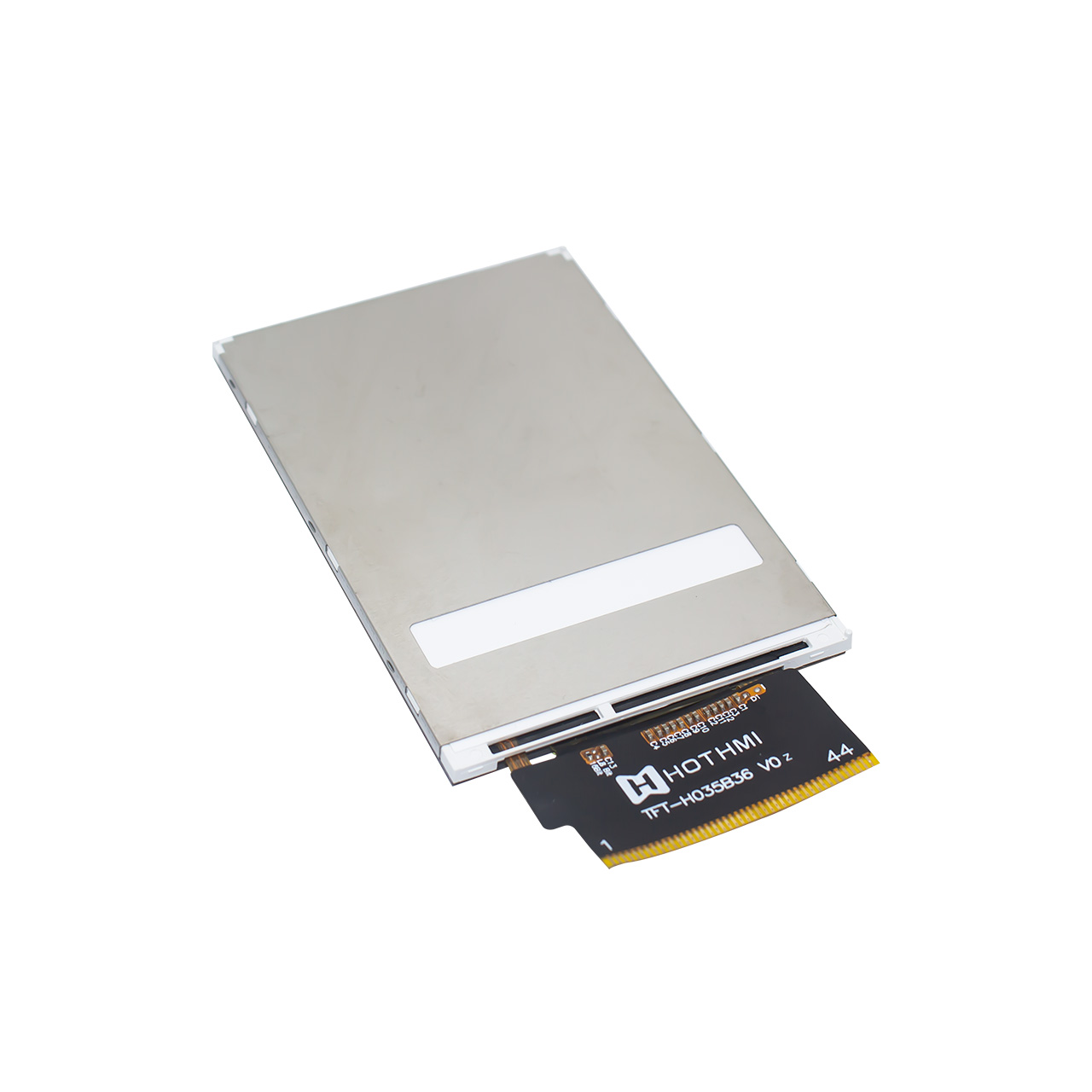

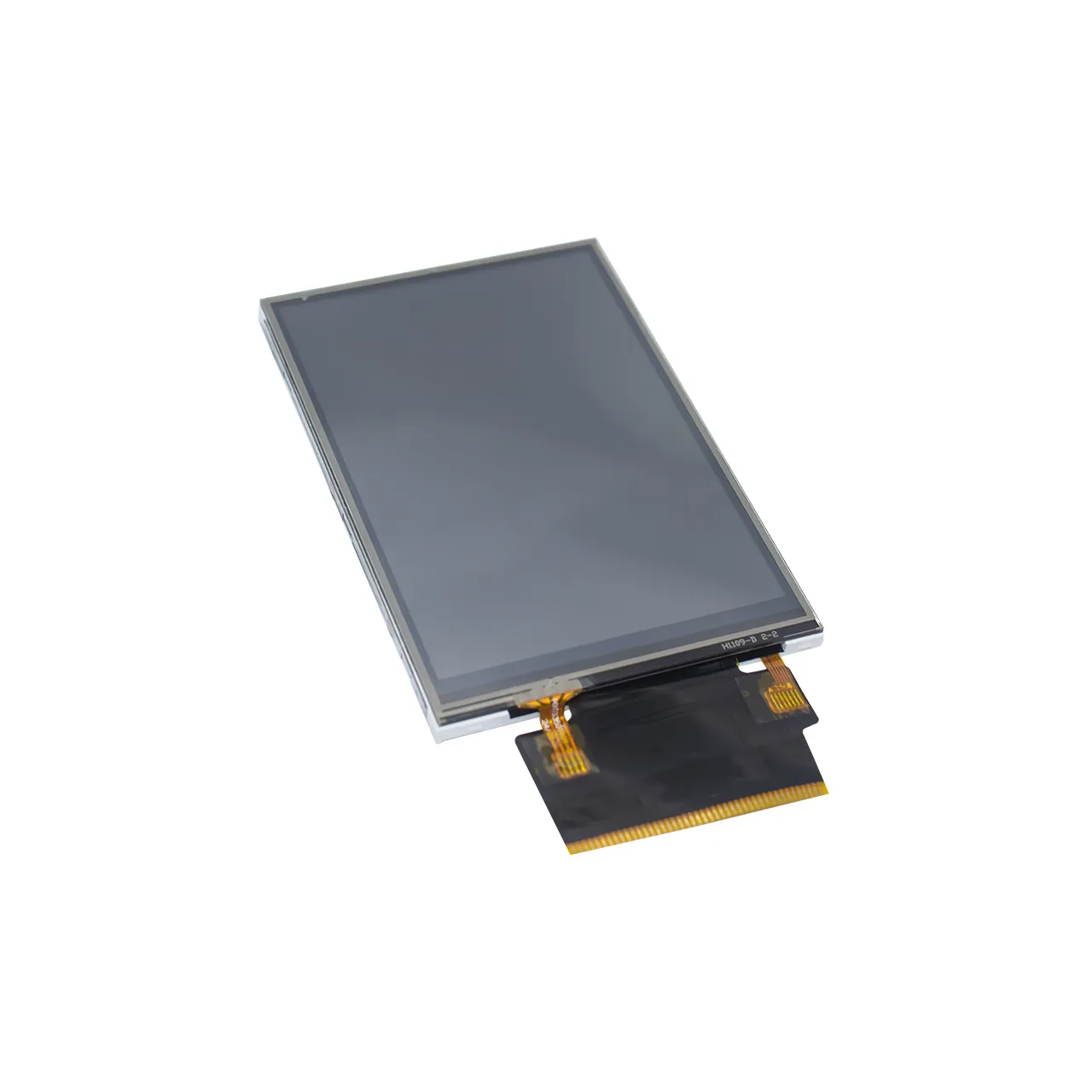

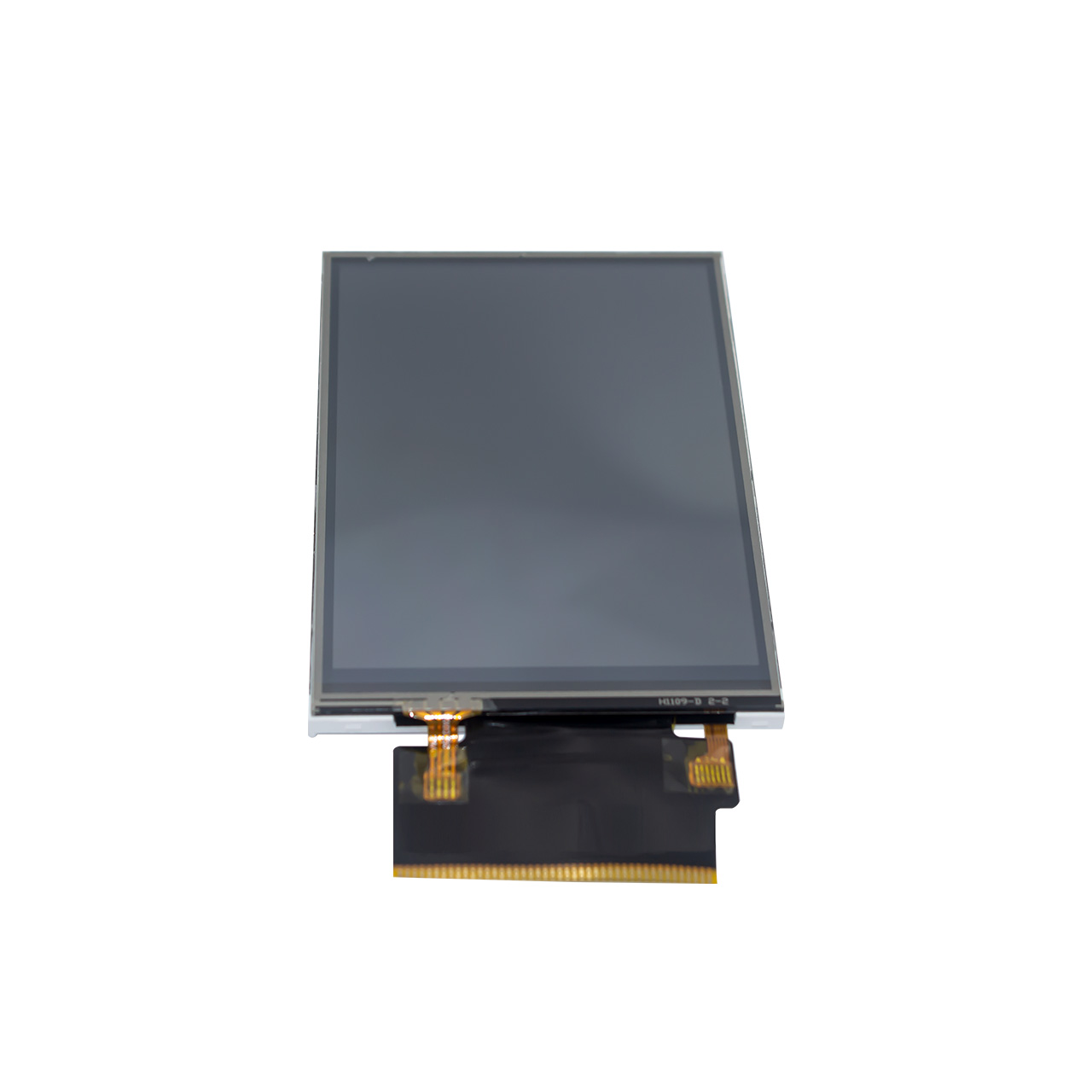

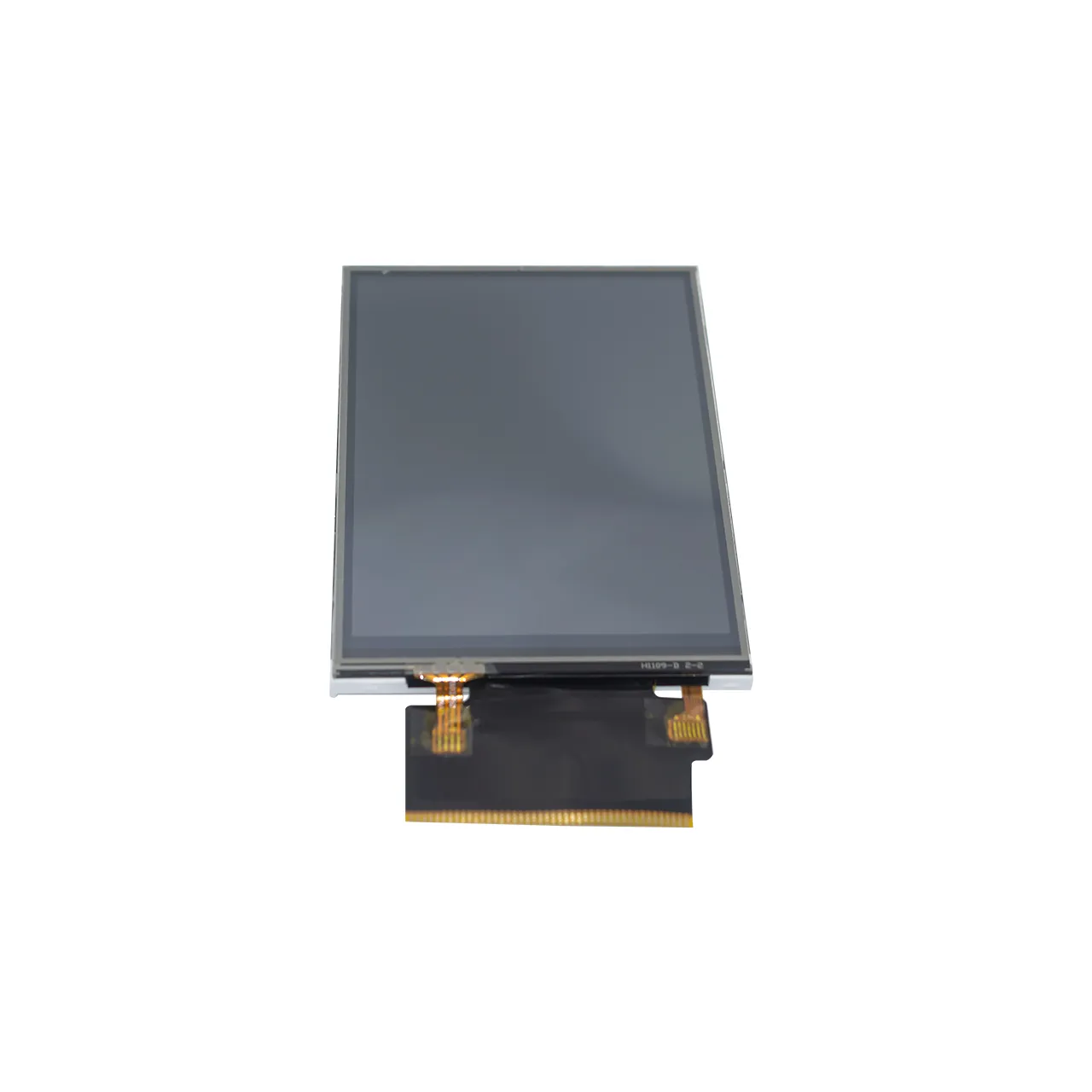

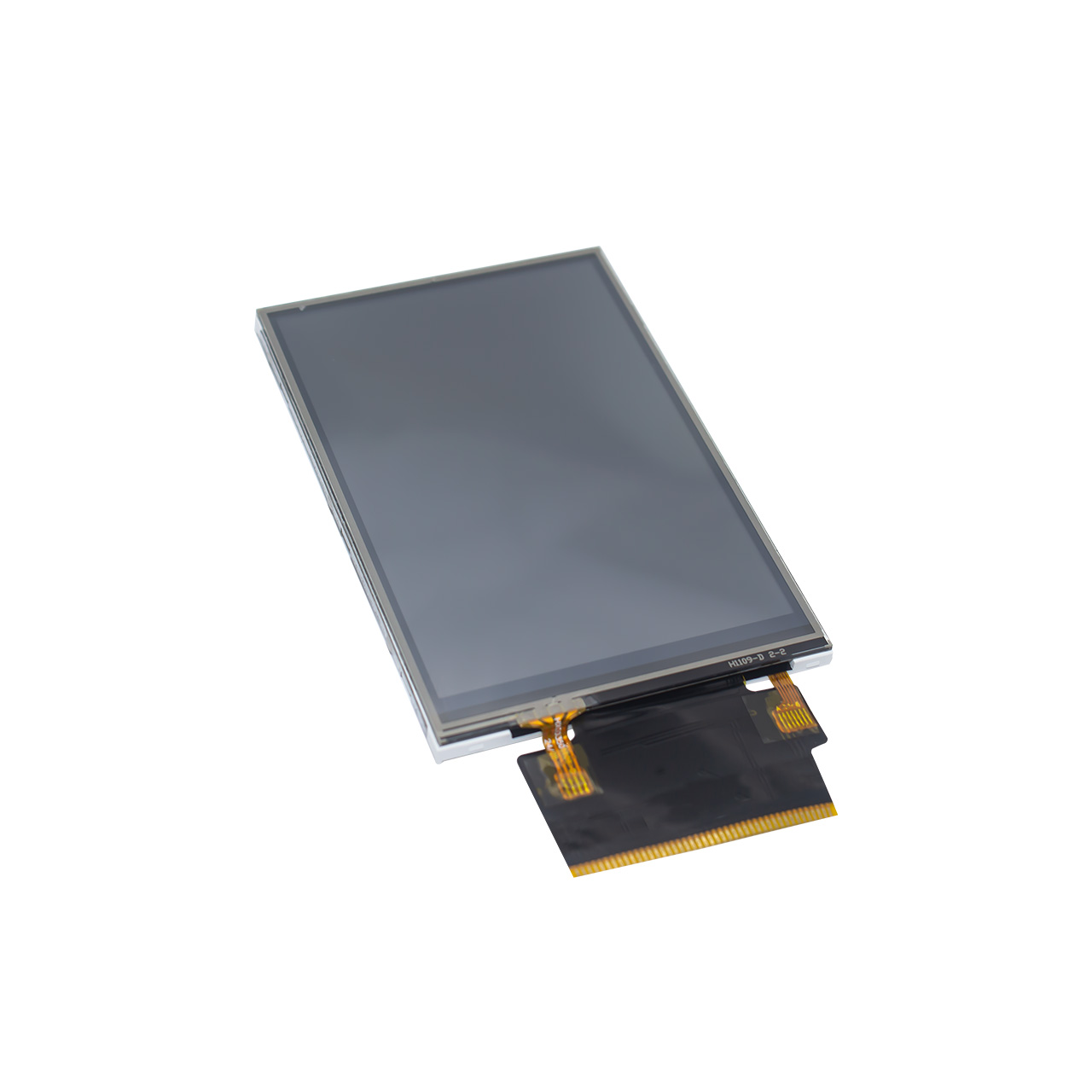

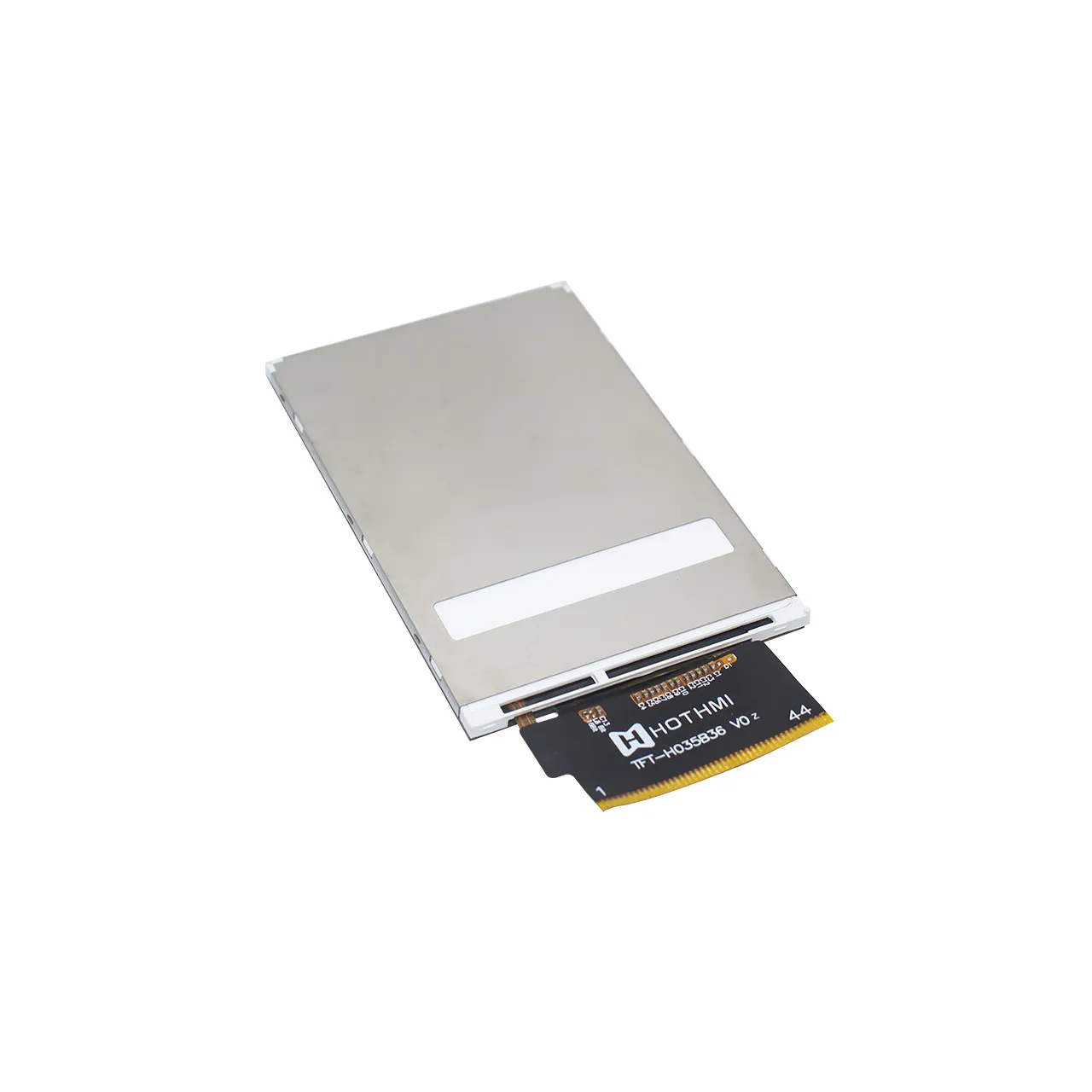

3.5 inch Resisitive Touch TFT LCD Display With ST7265 Controller

▶ Model: TFT-H035B36HVTIL2R44

▶ Type: Standard TFT Display
▶ Display Pixels: 320x480
▶ Dimensions: 55.9x85.36x3.9mm
▶ AA Size (mm): 48.96x73.44mm
▶ Display Inches: 3.5"
▶ Applications: Instrumentation, Portable Electronic Devices
▶ Viewing Angle: IPS Full Viewing Angle
▶ Backlight/Brightness: 300cd/m²
▶ Pinout: FPC-44 pin
▶ Interface: MCU
▶ Special Instructions: ESD 8kV
▶ Operating Temperature: -20°C to 70°C
▶ Supply Voltage: 3.3V
▶ Driver IC: ST7265

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Product Description
Customized Services
Attributes

TFT-H035B36HVTIL2R44 | 3.5 inch Resisitive Touch TFT LCD Display With ST7265 Controller
This 3.5-inch Resistive TFT LCD Display is a high-performance TFT LCD module designed for seamless integration with Arduino and other microcontroller platforms. With a sharp resolution of 320x480 pixels and an IPS wide viewing angle, this display delivers clear, vibrant visuals from every direction. The integrated resistive touchscreen offers precise and reliable input control, making it ideal for interactive projects.

Engineered for durability and versatility, this Resistive TFT LCD Display supports a 3.3V power supply and uses an MCU interface with a 44-pin FPC connector, ensuring easy connection and stable communication. It features high brightness (300 cd/m²), robust ESD protection up to 8KV, and an operating temperature range of -20°C to 70°C, making it suitable for use in instruments, portable devices, and industrial applications.

As a user-friendly Resistive TFT LCD Display, it is backed by professional manufacturer support and is compatible with popular controllers like the ST7265. Whether for prototyping or commercial use, this module offers an excellent balance of performance and affordability.

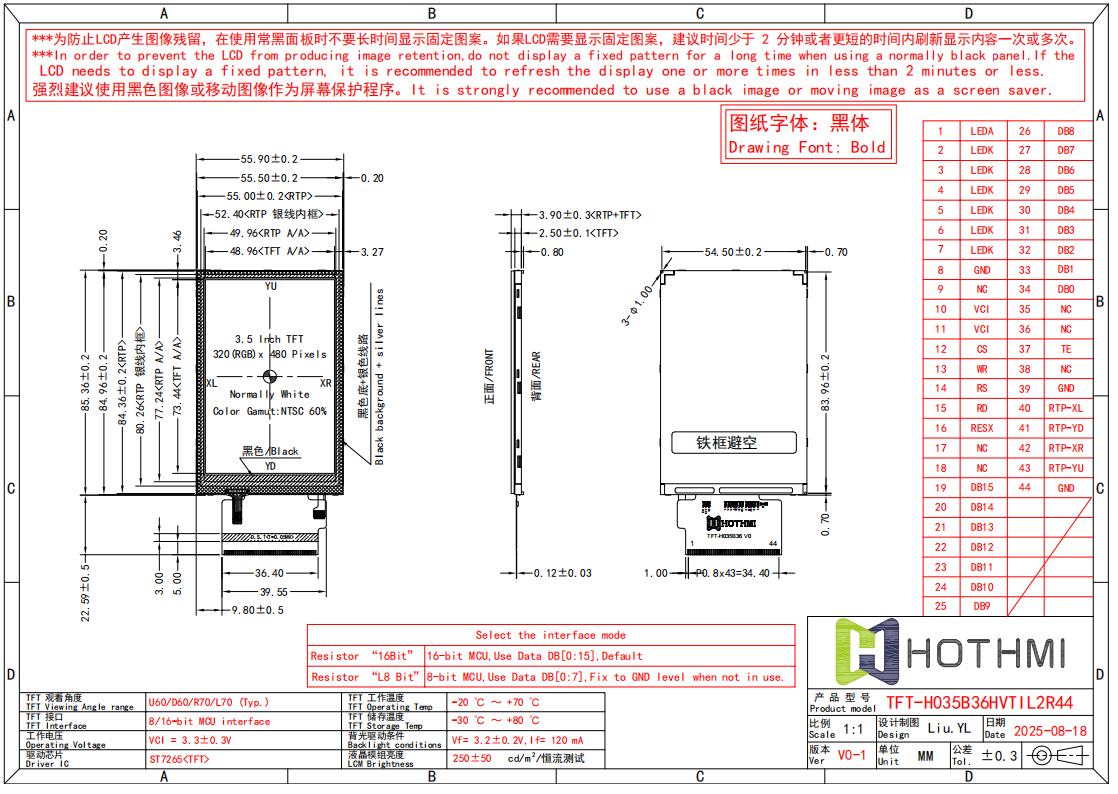

Datasheet for Touch Panel,Controller↓

Name	Date	Size
TFT-H035B36HVTIL2R44	September 09, 2025	116.82KB

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection).

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H035B36HVTIL2R44
Diagonal size	3.5”	Inch
Resolution	320x480	Dot
Dimensions	55.9x85.36x3.9	mm
Active area (AA)	48.96x73.44	mm
LCD type	3.5” TFT Module	mm
Display viewing angle	Full View
Aspect ratio	2：3
Backlight type	LED white
TFT driver IC	ST7265
Brightness	300cd/m2	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
