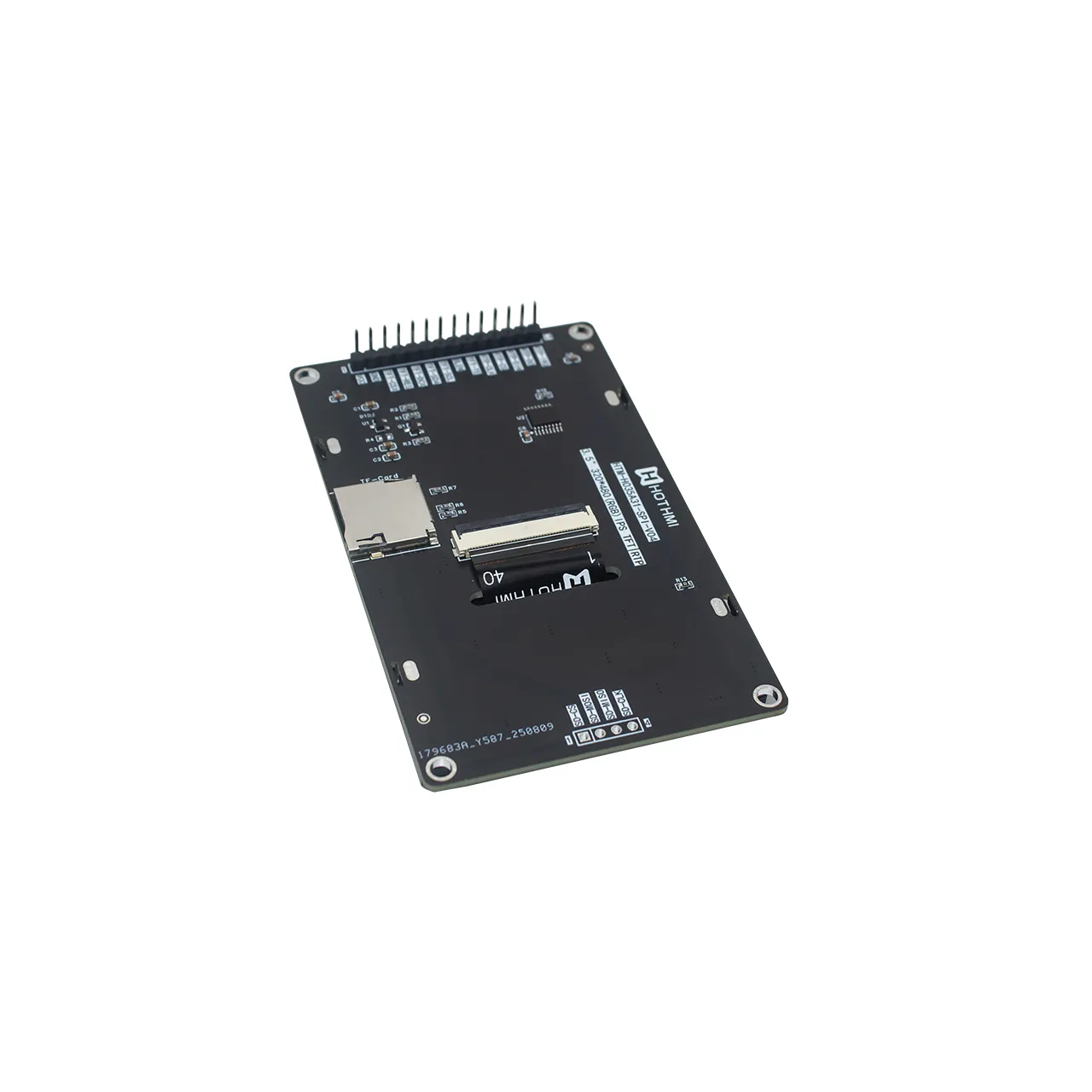

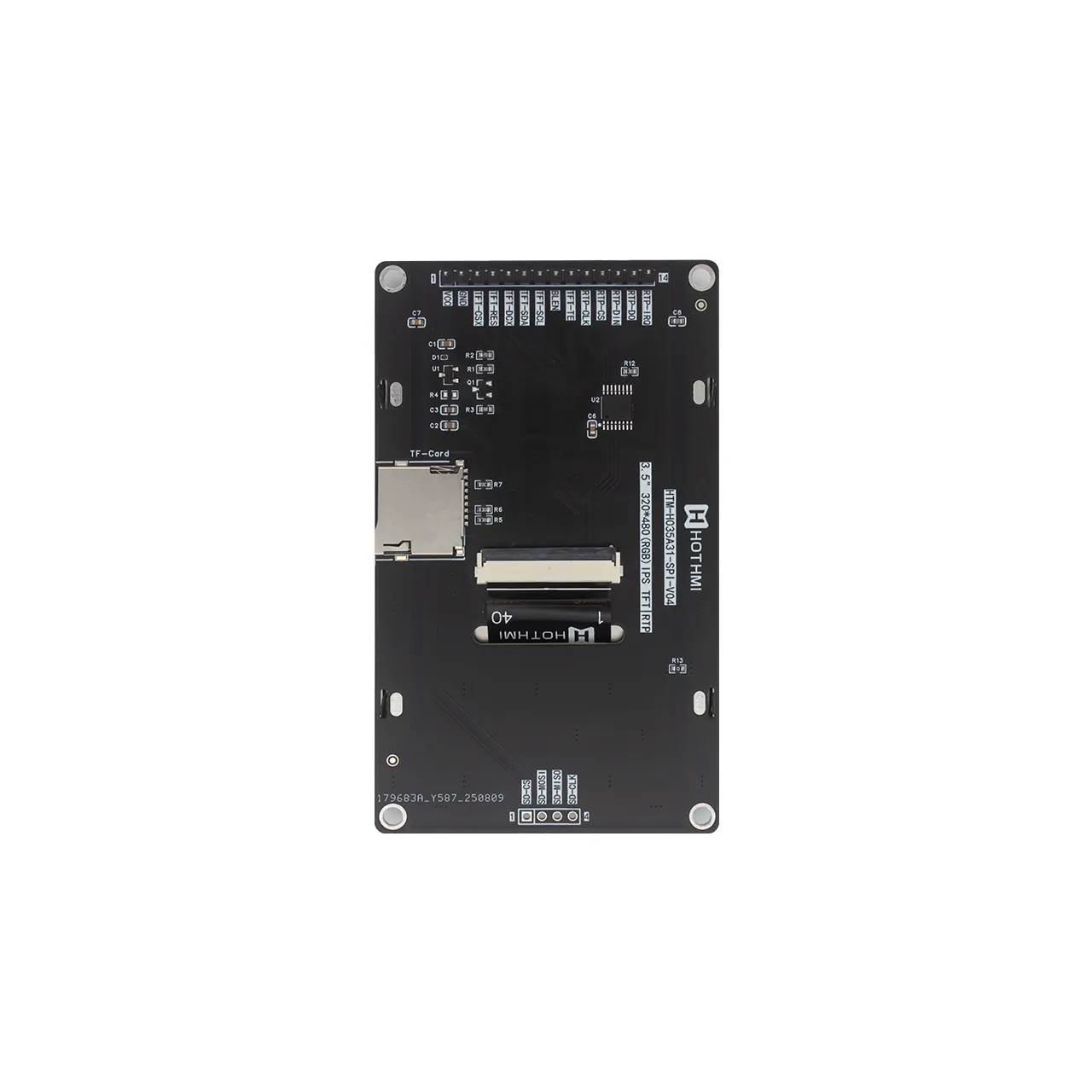

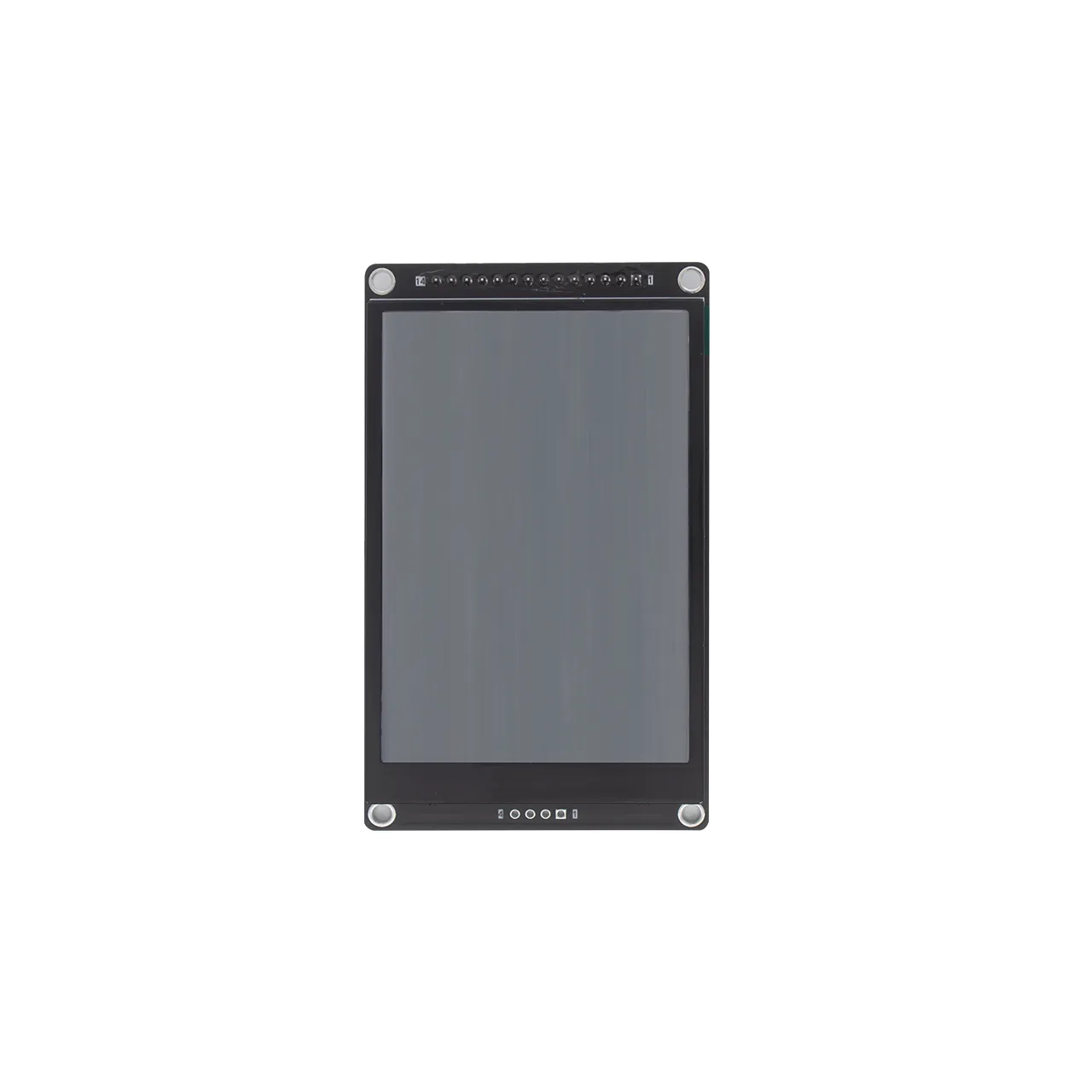

3.5 Inch SPI TFT LCD Display Module-320x480 Display With ILI9488 Controller

▶ Model: HTM-H035A31-SPI-V04

▶ Type: 3.5-inch TFT LCD Module
▶ Display Pixels: 320x480
▶ Dimensions (mm): 57.2x95.8x4.2
▶ Active Dimensions (mm): 48.96x73.44
▶ Display Size: 3.5-inch
▶ Applications: C8051/Arduino/STM32
▶ Viewing Angle: IPS
▶ Brightness: 400cd/m²
▶ Special Notes: ESD 8kV
▶ Operating Temperature: -20°C to 70°C
▶ Supply Voltage: 3.3V
▶ Driver IC: ILI9488

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Product Description
Customized Services
Attributes

HTM-H035A31- SPI-V04 | 3.5 Inch SPI TFT LCD Display Module-320x480 Display With ILI9488 Controller
HOTDISPLAY introduces a high-performance 3.5-inch SPI TFT LCD Display with a sharp resolution of 320x480 pixels. This compact SPI TFT LCD Display, features an IPS panel for wide viewing angles and a high brightness of 400cd/m² for excellent readability.

Driven by the ILI9488 controller and operating at 3.3V, this robust SPI TFT LCD Display is designed for easy integration with popular platforms like Arduino, STM32, and C8051. Its industrial-grade credentials are confirmed by an 8kV ESD protection and an operating temperature range of -20°C to 70°C. This reliable SPI TFT LCD Display is ideal for a wide range of applications requiring a durable and clear interface.

For your next project, choose this versatile SPI TFT LCD Display for a perfect blend of quality and performance.

Datasheet for Touch Panel,Controller↓

Name	Date	Size
HTM-H035A31- SPI-V04	September 09, 2025	101.79KB

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection).

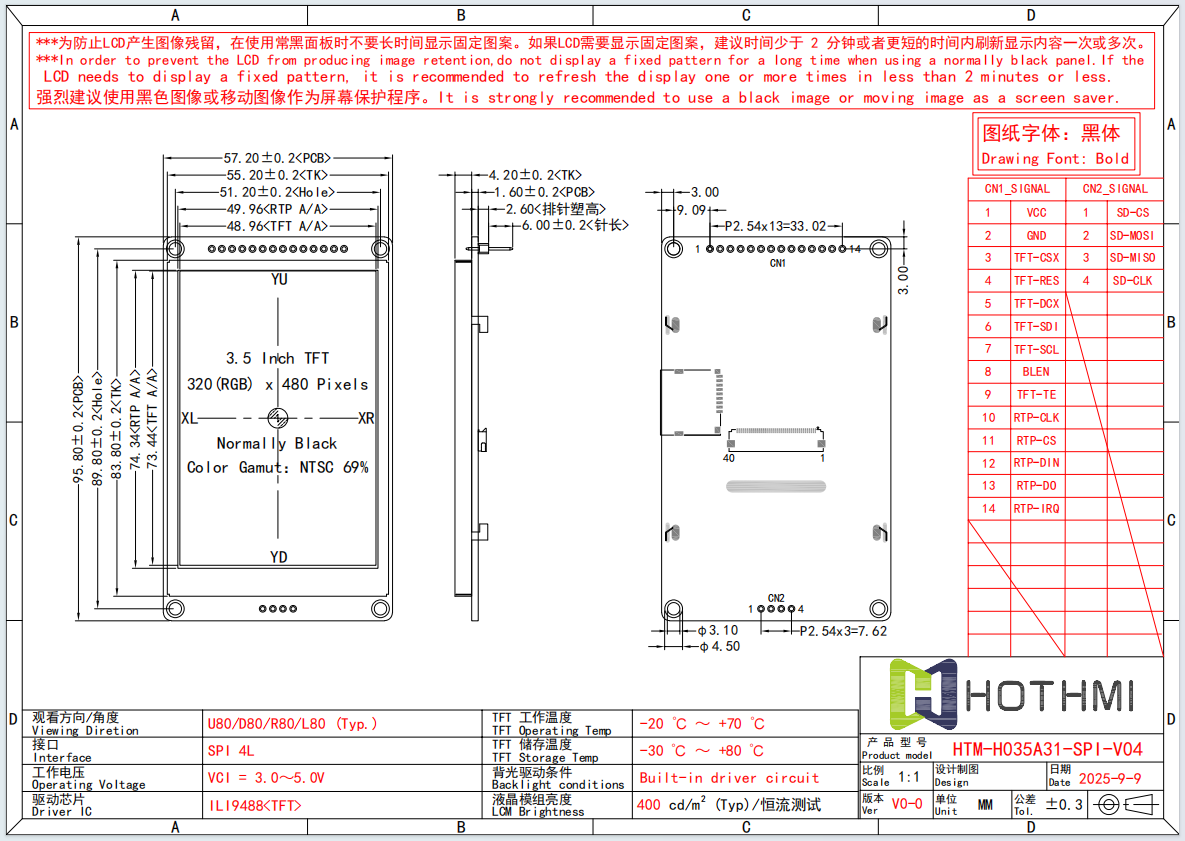

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	HTM-H035A31- SPI-V04
Diagonal size	3.5”	Inch
Resolution	320x480	Dot
Dimensions	57.2x95.8x4.2	mm
Active area (AA)	48.96x73.44	mm
LCD type	3.5” TFT Module	mm
Display viewing angle	Full View
Aspect ratio	2：3
Backlight type	LED white
TFT driver IC	ILI9488
Brightness	400cd/m2	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
