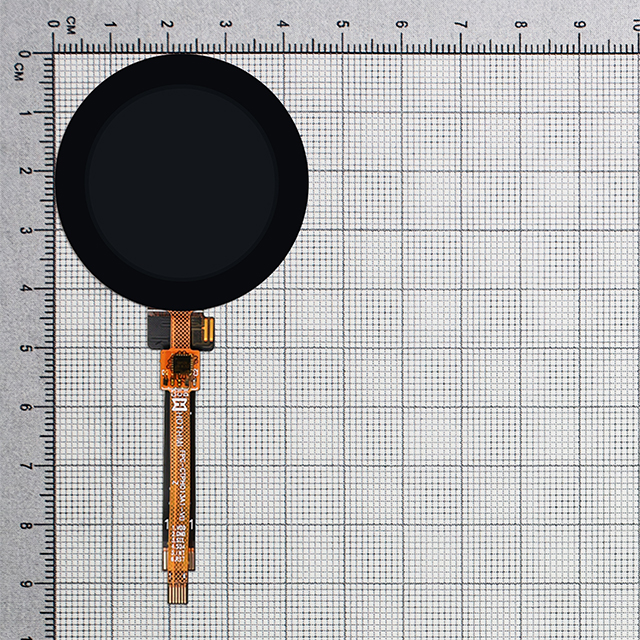

1.3 Inch Round Capacitive Touch Function TFT LCD Display

TFT-H013A6QQIGC4C10 | 1.3 Inch Round Capacitive Touch Function TFT LCD Display

The 1.3 Inch Round Capacitive Touch Function TFT LCD Display represents a paradigm shift in compact visual interface design, merging aesthetic circular form factors with robust interactive capabilities. This premium display module is engineered specifically for next-generation smart wearable devices, portable medical instruments, and industrial control panels where space is at a premium but performance cannot be compromised. At the heart of this module lies a vibrant 240x240 pixel resolution panel, delivering crisp, detailed imagery that makes every notification, dial face, and data visualization pop with exceptional clarity.

Leveraging IPS (In-Plane Switching) technology, this round capacitive touch function TFT LCD display offers full viewing angles with consistent color reproduction across 178 degrees, ensuring that content remains legible and vivid even when viewed from extreme side angles. The 400 cd/m² backlight brightness provides excellent sunlight readability while maintaining optimal power efficiency, making it an ideal choice for outdoor and mobile applications. The display incorporates the industry-standard GC9A01 driver chip, which ensures seamless compatibility with mainstream microcontrollers and simplifies the development cycle for engineers.

What truly sets this display apart is its integrated capacitive touch sensing layer, which supports multi-touch gestures and delivers instantaneous response times. The touch function is factory-calibrated to minimize false triggers while maximizing sensitivity, even through protective covers or gloves. The module features a compact FPC-10 pin connector with SPI interface, enabling high-speed data transmission with minimal pin count, which is crucial for space-constrained PCB layouts. The round capacitive touch function TFT LCD display operates on a 3.3V supply voltage, making it directly compatible with most low-power embedded systems without requiring additional level shifters. With an extended operating temperature range of -20°C to 70°C, this display reliably performs under diverse environmental conditions, from freezing outdoor installations to heated industrial interiors. The product also boasts an anti-static ESD protection rating of 8KV, providing robust defense against electrostatic discharge events that commonly occur during assembly and field operation.

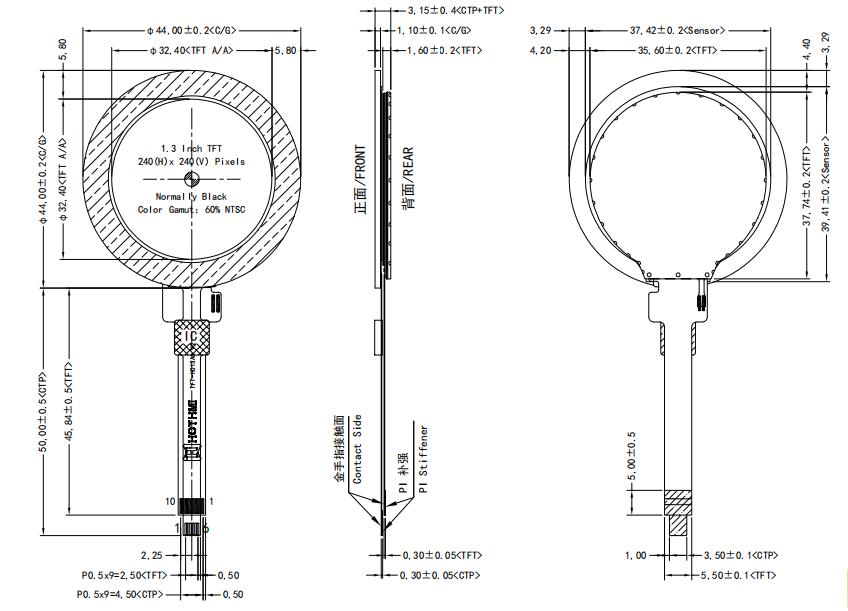

Specification of the 1.3 Inch Round Capacitive Touch Function TFT LCD Display

Features & Advantages

• Integrated Capacitive Touch Technology

Unlike resistive touch panels that rely on pressure, this round capacitive touch function TFT LCD display employs projected capacitive sensing, enabling intuitive swipe, pinch, and tap gestures with exceptional accuracy. The touch layer supports up to 5 simultaneous touch points, facilitating complex user interactions for advanced GUI applications. The capacitive touch function is optimized for low latency (˂15ms), delivering a responsive experience that rivals smartphone-grade displays.

• Optical Bonding Process

The display module features premium optical bonding between the cover lens and the touch sensor, eliminating the air gap that plagues conventional touch displays. This advanced lamination technique provides four significant advantages: (1) Superior optical clarity with enhanced transmittance reaching 92%, (2) Drastic reduction in internal reflections and glare, improving outdoor visibility, (3) Prevention of condensation and dust ingress, ensuring long-term reliability in humid environments, and (4) Increased mechanical strength and shock resistance, making the round capacitive touch function TFT LCD display more durable for portable applications.

• IPS All-Viewing Angle Performance

Delivering true 178°/178° viewing angles, this display ensures that users can read critical information from any orientation without color shifting or contrast degradation. This feature is particularly valuable for smartwatches, where the screen is frequently viewed at oblique angles, and for dashboard applications where multiple operators need to view the same display simultaneously.

• Robust ESD Protection

Rated at 8KV ESD protection, this display exceeds industry standards for electrostatic discharge resistance, providing peace of mind for manufacturing processes and real-world usage scenarios where static electricity is prevalent.

Application Recommendations

The versatility of the 1.3 inch round capacitive touch function TFT LCD display makes it an outstanding solution for a wide array of applications. Its primary target is the smart watch market, where the circular form factor perfectly mimics traditional timepieces while delivering modern smart functionality. The high-resolution 240x240 panel renders watch faces with breathtaking detail, while the responsive touch function allows intuitive navigation through fitness metrics, notifications, and music controls.

Beyond wearable technology, this round capacitive touch function TFT LCD display excels in medical monitoring devices such as portable pulse oximeters, glucose meters, and drug infusion pumps, where the combination of clarity, touch interactivity, and reliable -20°C to 70°C operation ensures patient safety and caregiver convenience. The optical bonding feature maintains crystal-clear visibility even after repeated sanitization procedures.

Industrial human-machine interface (HMI) systems benefit significantly from this display's durability and touch precision. Machine operators can use it as a smart knob display for CNC equipment, providing real-time feedback on tool positions and operational status. The 8KV ESD protection makes it ideal for factory environments where static discharge is common. Additionally, the SPI interface simplifies integration with existing PLC systems.

Consumer electronics designers will find this round capacitive touch function TFT LCD display perfect for smart home controllers, offering a sleek circular interface for managing lighting, climate, and security systems. Its compact footprint allows seamless integration into wall-mounted panels or portable remote controls. For the automotive aftermarket, this display serves as an elegant upgrade for car climate control modules or digital rearview mirror displays, with the IPS technology ensuring clear visibility from any seating position.
