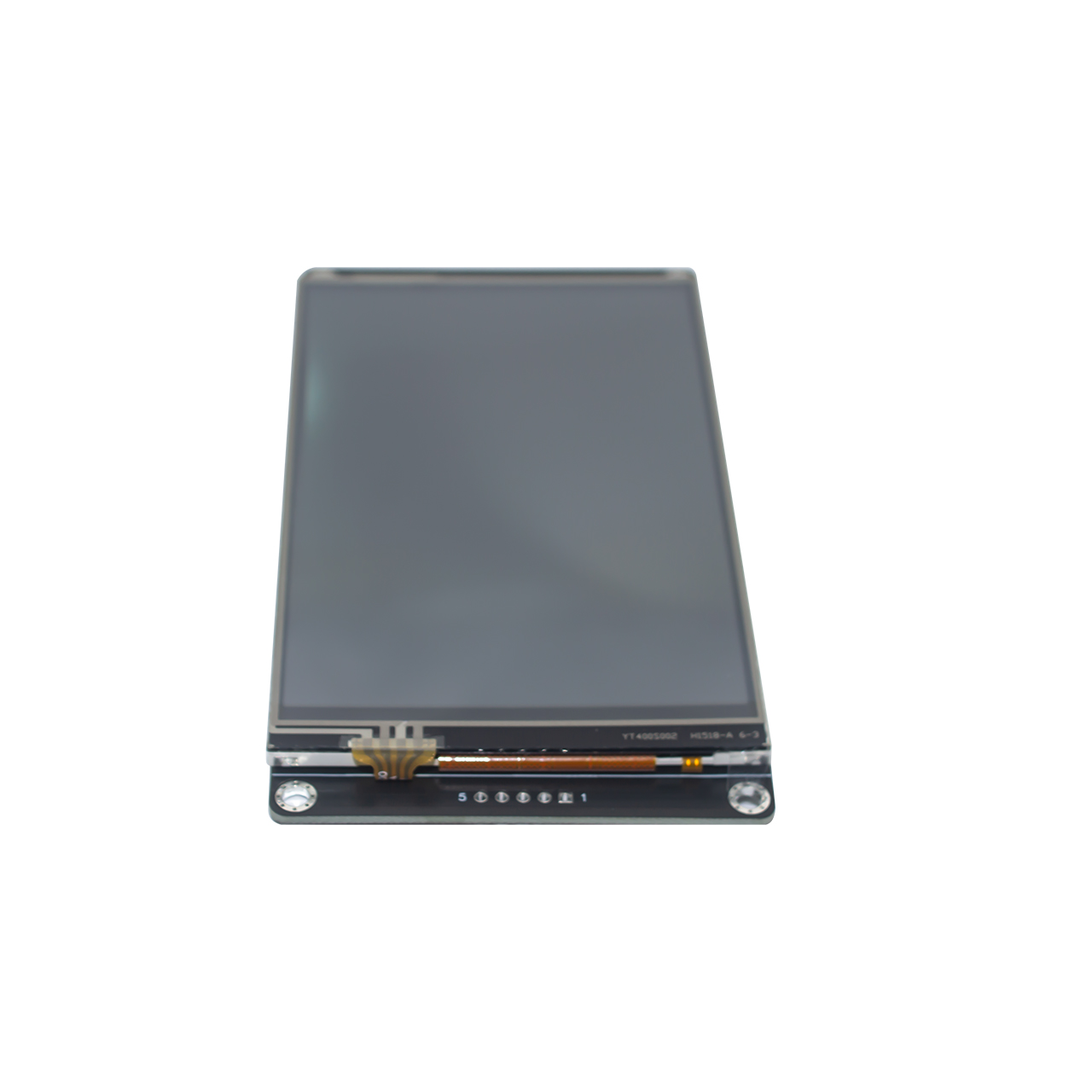

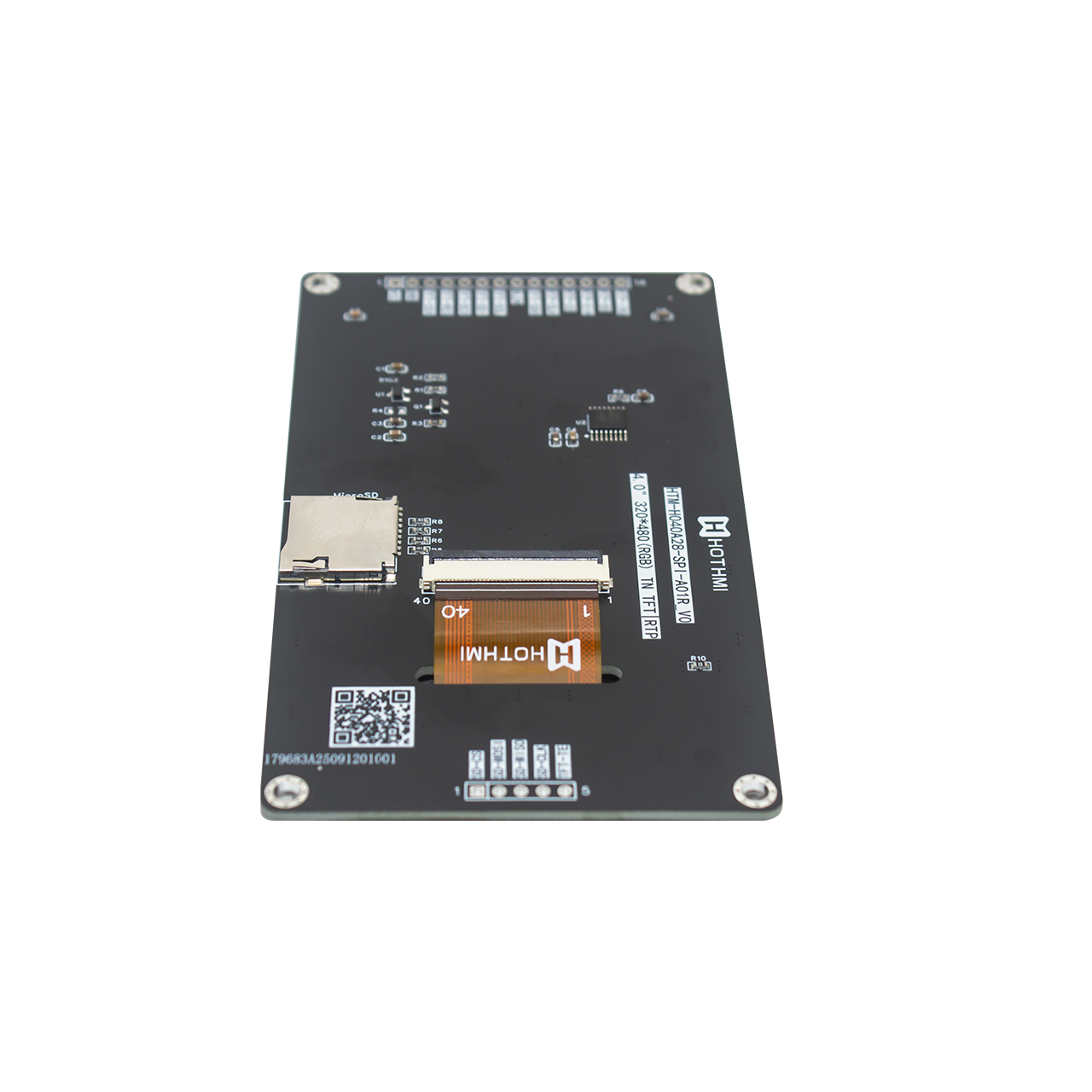

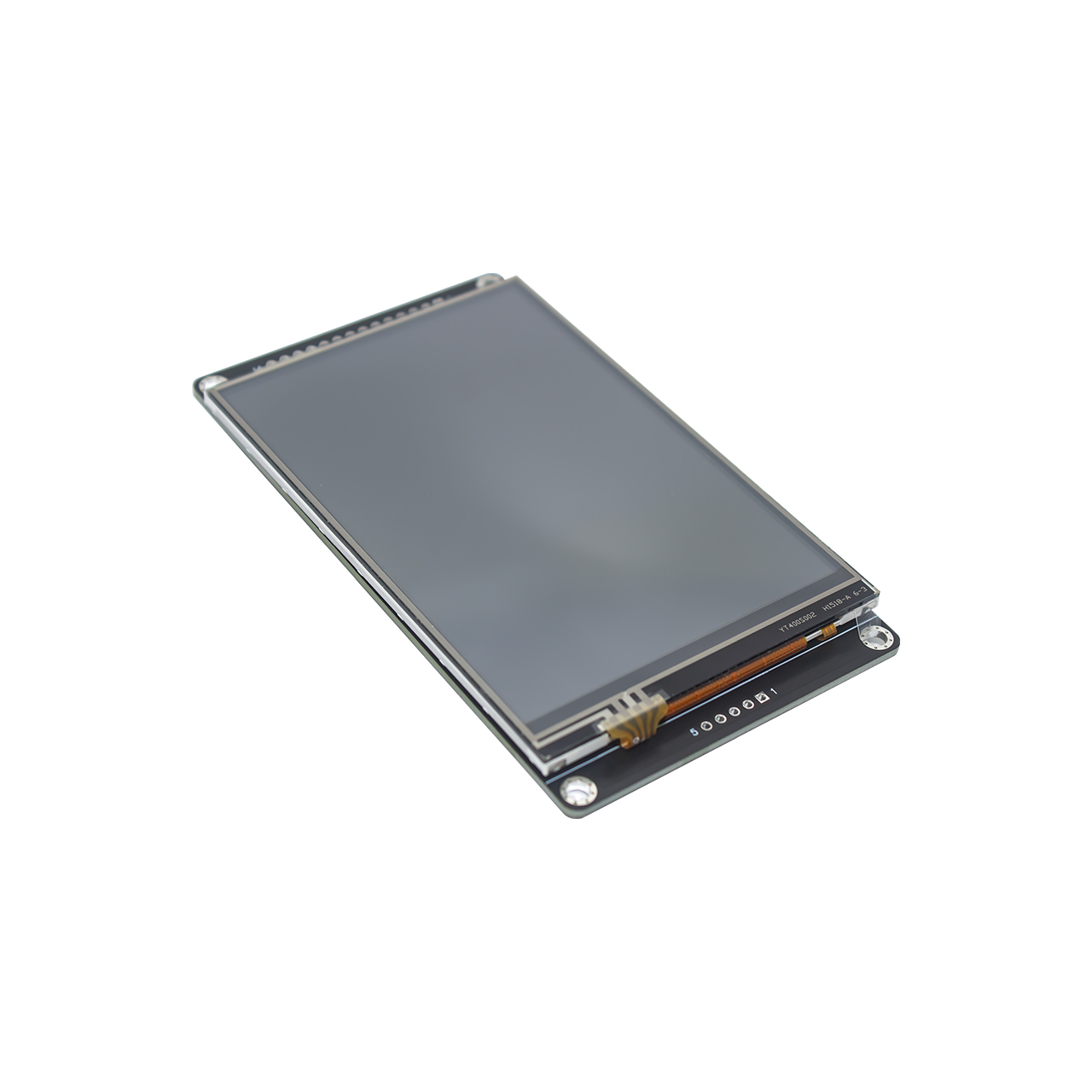

4 inch SPI Display Module With 320x480 Resolution ST7365 Controller

▶ Model: HTM-H040A28-SPI-A01

▶ Type: 4.0-inch IPS TFT LCD display module
▶ Display pixels: 320x480
▶ Dimensions (mm): 61.0x108.0x2.5mm
▶ Active area (mm): 55.68x83.52mm
▶ Display size: 4.0-inch
▶ Applications: C8051/Arduino/STM32
▶ Viewing angle: IPS
▶ Brightness: 400cd/m²
▶ Special precautions: ESD 8kV
▶ Operating temperature: -20°C to 70°C
▶ Supply voltage: 3.3V
▶ Driver chip: ST7365

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

No Back Next

Related Accessories

STM32F103RET6 Development Board - Suitable for MCU or SPI TFT Displays
EZUI-H serial port driver board-SPI interface universal
EZUI-Let driver board/MCU/SPI (general purpose below 480*320)

Product Description
Customized Services
Attributes

HTM-H040A28-SPI-A01 | SPI Display Module-4 inch TFT LCD Display-ST7365 Controller TFT-TFT LCD Module
This 4.0-inch IPS SPI TFT LCD Module is a high-performance display solution designed for a wide range of embedded systems. With a sharp resolution of 320x480 pixels, it delivers vibrant colors and exceptional clarity from all angles thanks to its advanced IPS technology. The compact physical dimensions of 61.0x108.0x2.5mm house an effective viewing area of 55.68x83.52mm, making excellent use of the 4.0-inch screen.
Driven by the robust ST7365 controller, this versatile SPI TFT LCD Module is perfectly suited for development with popular platforms like C8051, Arduino, and STM32. Its high brightness of 400 cd/m² ensures excellent readability even under direct sunlight. Built for demanding environments, this SPI TFT LCD Module features strong durability with 8KV ESD protection and a wide operating temperature range of -30°C to 80°C. Operating on a 3.3V power supply, it simplifies power design while the SPI interface drastically reduces the number of required GPIO pins. For your projects requiring a reliable and vivid display, this SPI TFT LCD Module offers an ideal balance of performance and ease of integration.

Datasheet for Touch Panel,Controller↓

Name	Date	Size
HTM-H040A28-SPI-A01	September 09, 2025	75.36KB

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection).

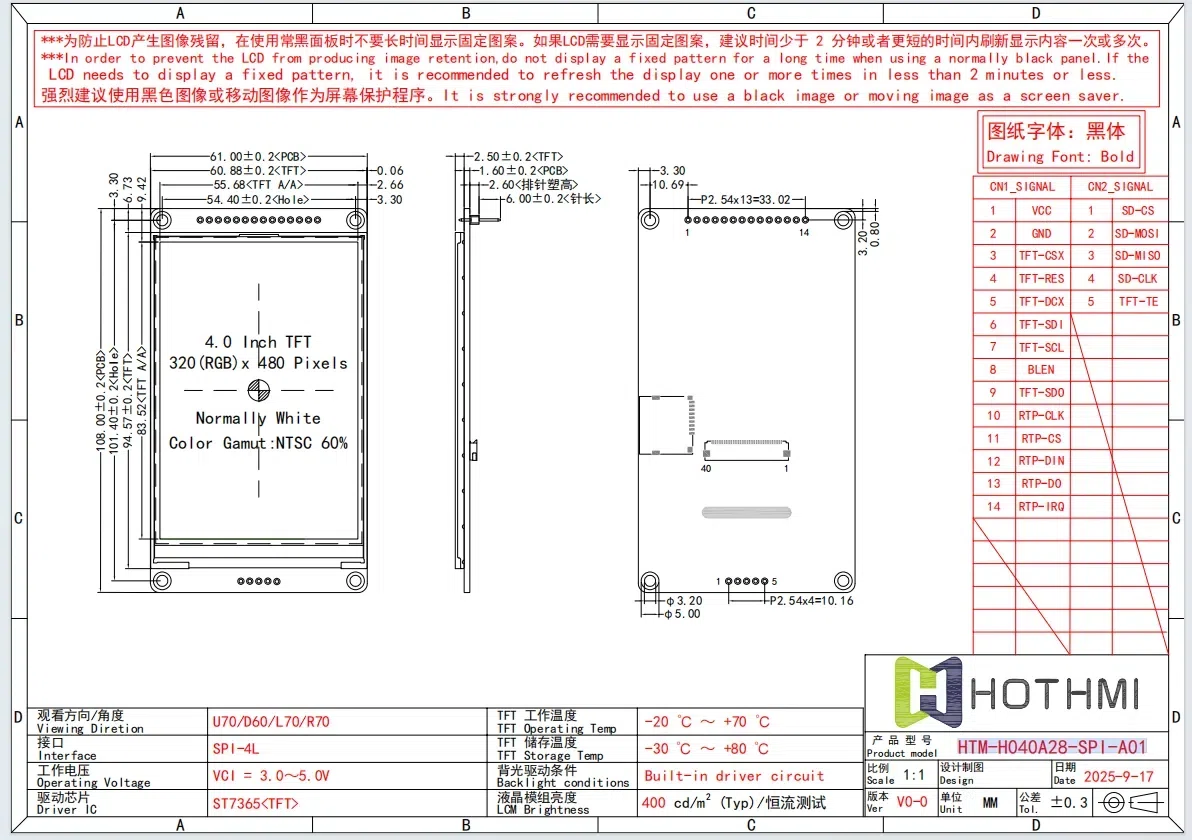

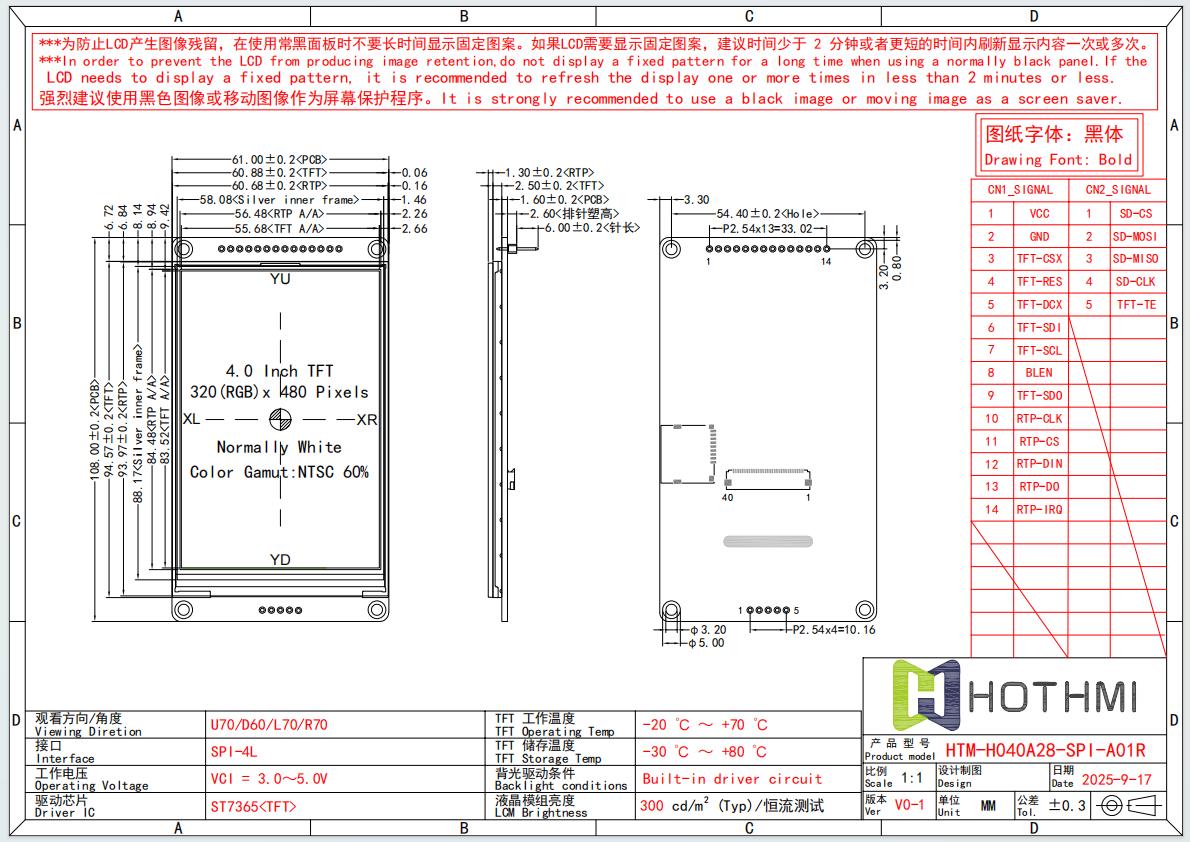

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	HTM-H040A28-SPI-A01
Diagonal size	4.0”	Inch
Resolution	320x480	Dot
Dimensions	61.0x108.0x2.5	mm
Active area (AA)	55.68x83.52	mm
LCD type	4.0” TFT Module	mm
Display viewing angle	Full View
Aspect ratio	2：3
Backlight type	LED white
TFT driver IC	ST7365
Brightness	400cd/m2	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
