HTM-H024B25-MCU-V1 | 2.4 Inch Resistive Touchscreen TFT LCD Module With MCU Interface

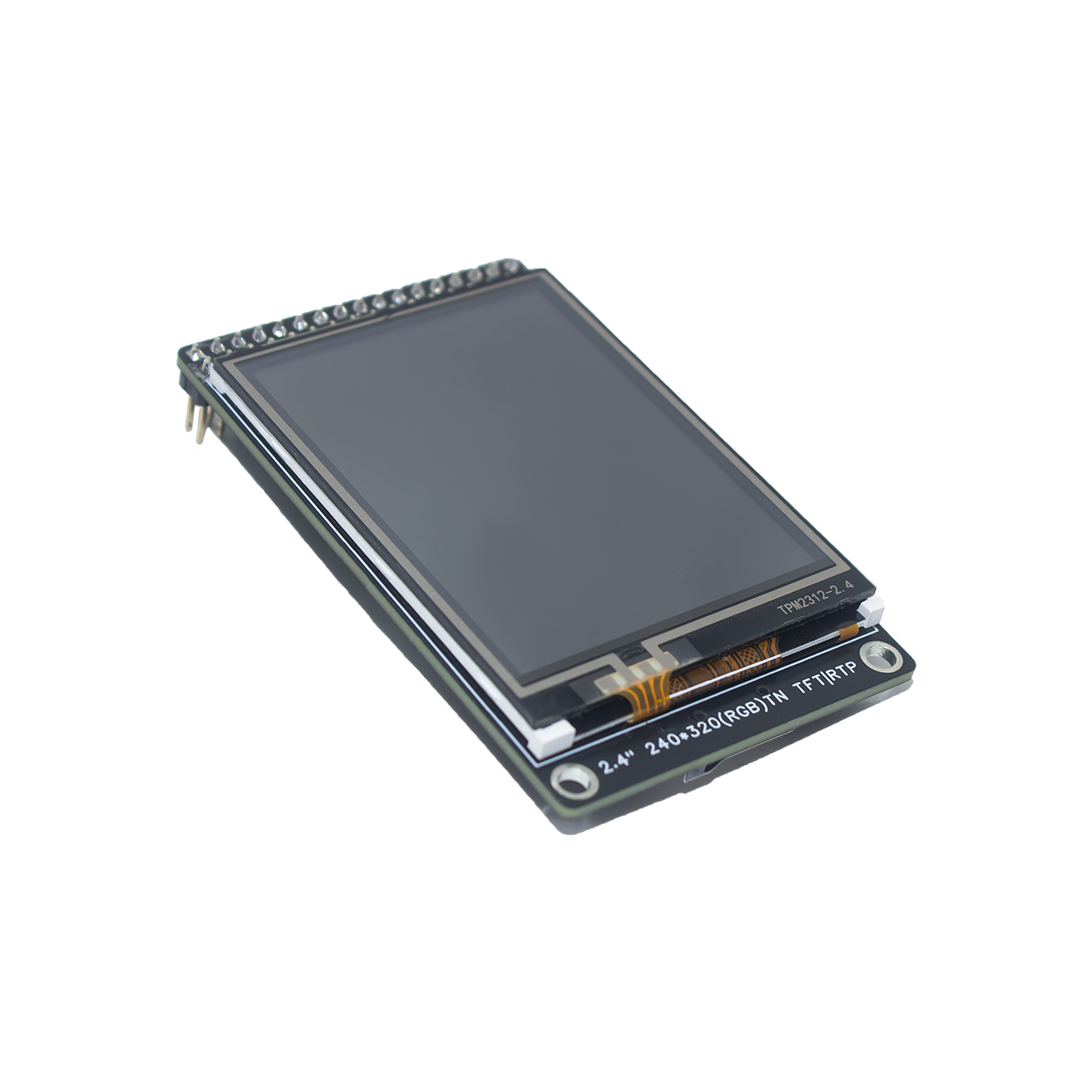

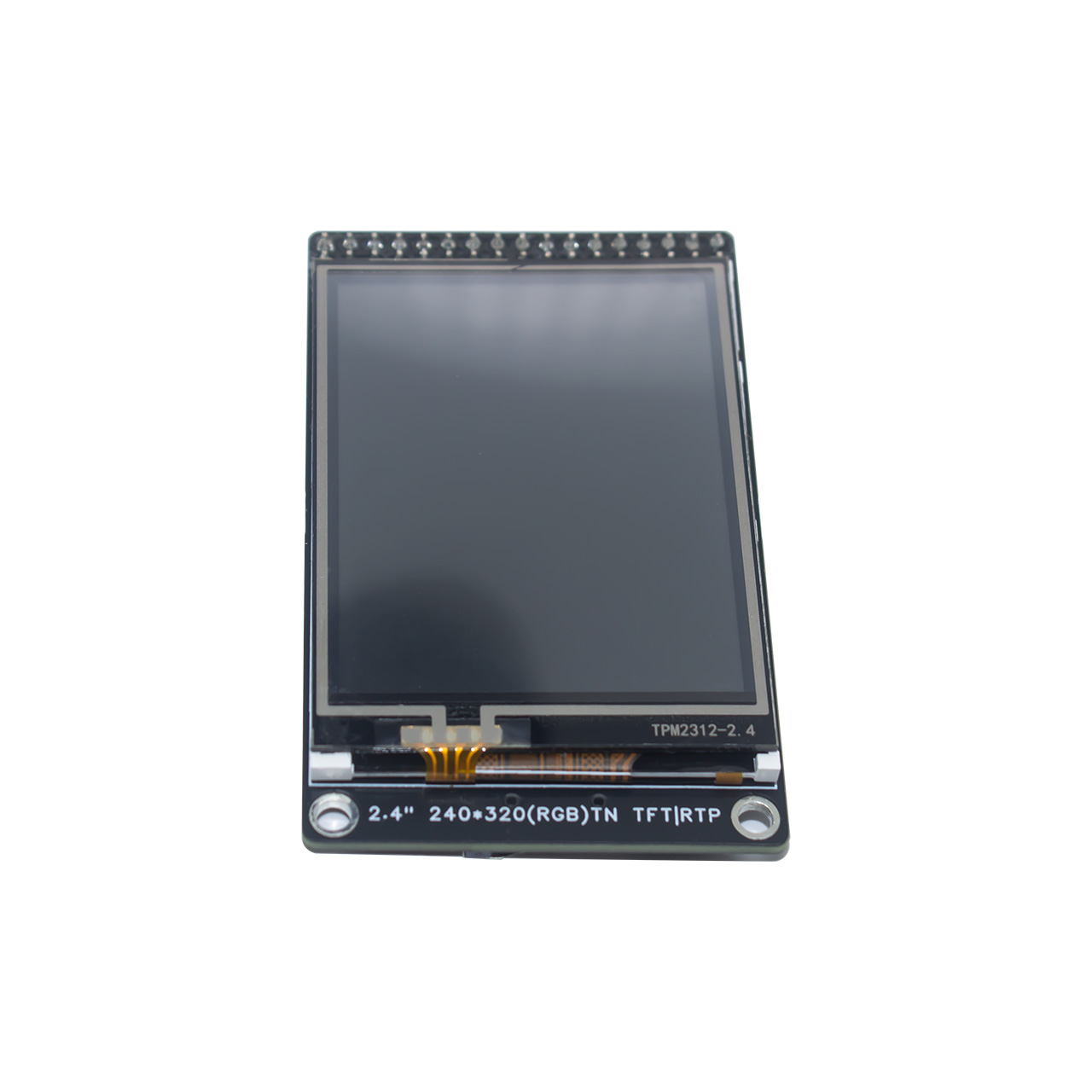

When you need a stable and reliable display solution, this 2.4-inch TFT LCD module is worth your attention. It presents delicate picture quality with a high resolution of 240x320 and a balanced brightness of 400cd/m². IPS technology ensures clear readability at all viewing angles - no matter from which direction you look, the content is always clear and sharp. The core driver IC ST7789 ensures smooth operation, This version has an electronic touch function. The touch mechanism operates through the pressure of the fingertips. It is not afraid of touching with gloves and has strong stability.combined with wide voltage compatibility and wide temperature tolerance from -20℃ to 70℃, it can easily handle harsh scenes such as industrial control equipment, portable terminals and outdoor displays.

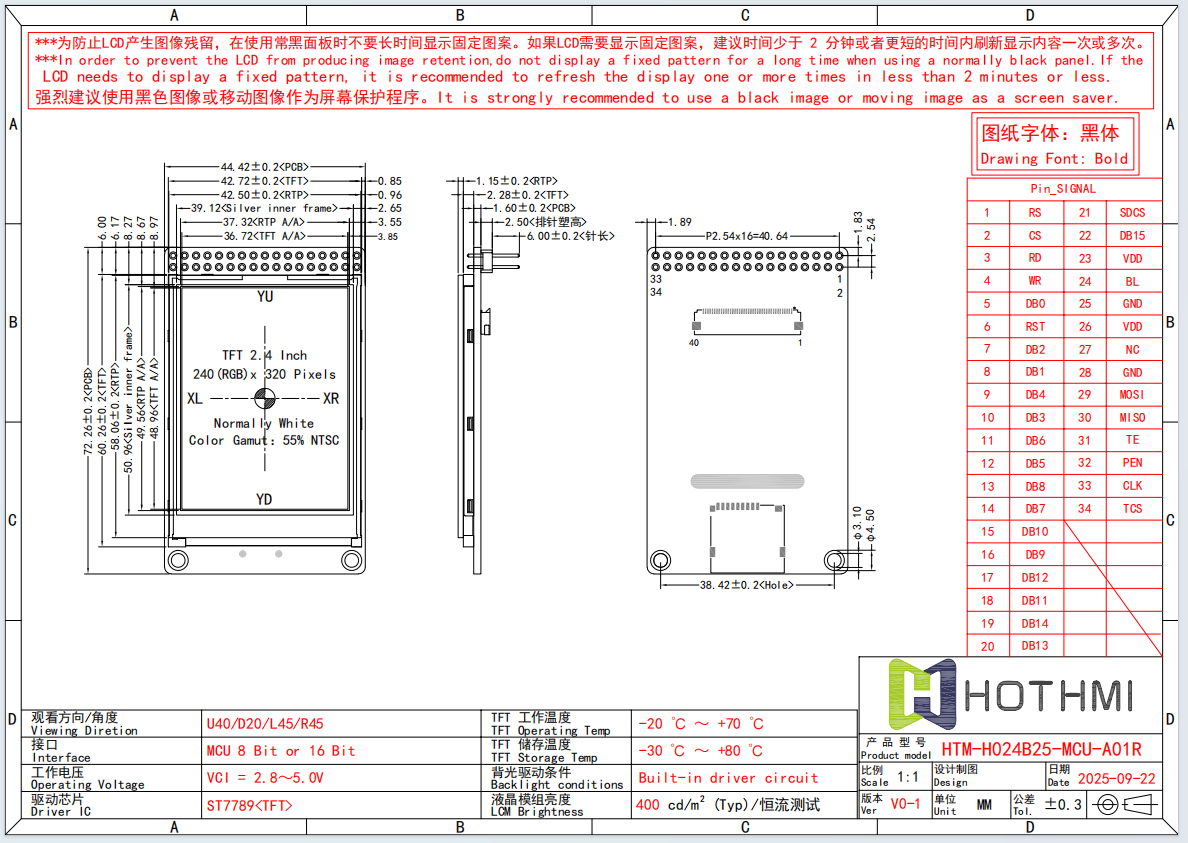

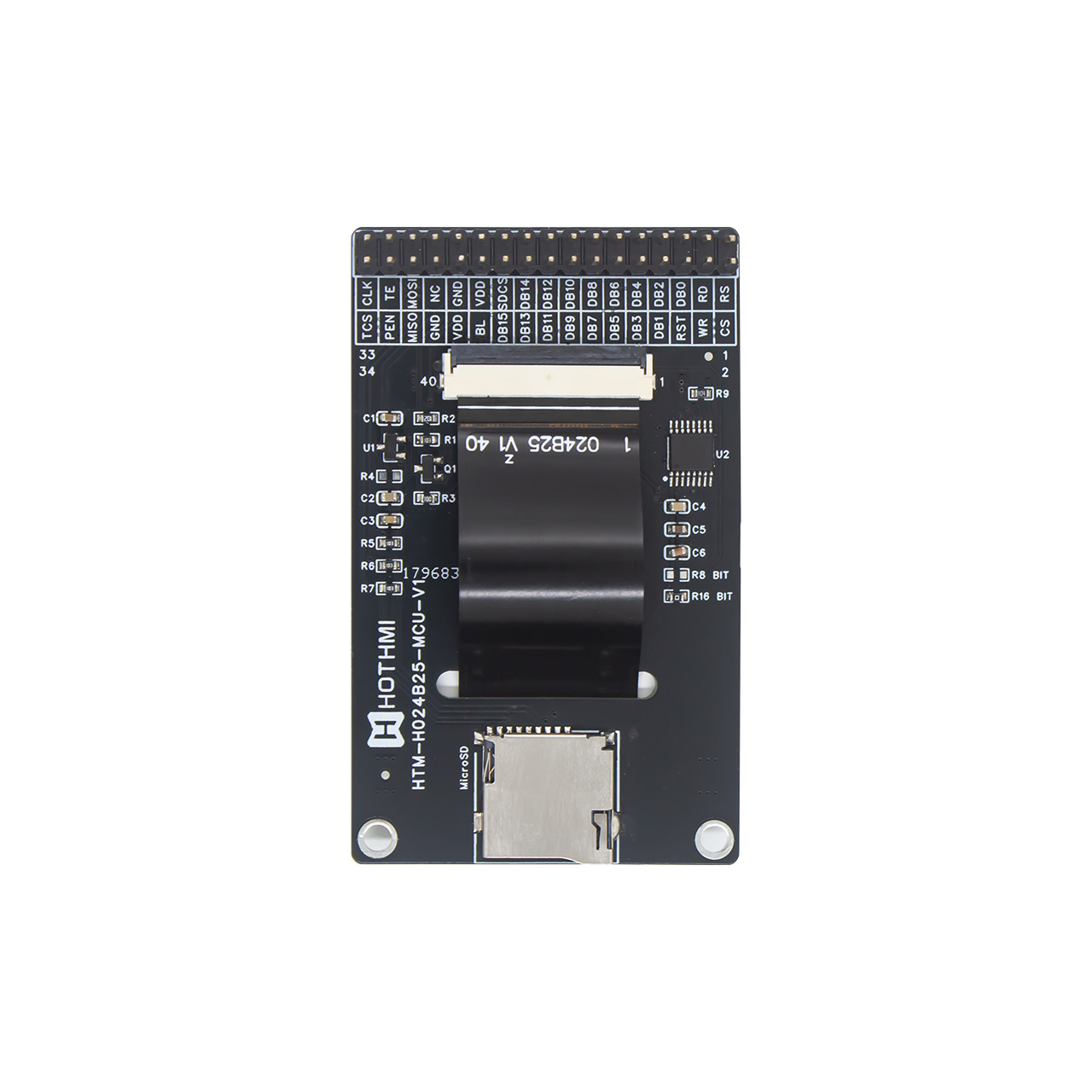

The physical structure design also focuses on practicality and durability. The slim body is equipped with a metal PIN pin interface, which has outstanding advantages over traditional welding or soft wiring solutions: plug-and-play avoids welding risks, and repeated plugging and unplugging are not easy to damage, which is particularly suitable for the needs of frequent module replacement during development and debugging. The matching 4 positioning holes support screw tightening to ensure that the module is firmly installed in the product. The driver board and the display use precision-matched connectors, and users can easily achieve accurate docking and repeated disassembly and assembly of the two, giving the design a high degree of flexibility.
To meet the diversified development needs, engineers can also choose to develop the driver board independently with the matching FPC cable display (model TFT-H024B25QVTST4N40). It doesn't matter if the user does not have the development ability. We carefully provide you with the 2.4-inch smart display HTM-H024B25-UART-A01 with the main control board. The product line also includes other 2.4-inch TFT LCDs of the same size. We support in-depth customization services, covering cover plate shape, FPC cable specifications, touch solutions, communication interfaces and AG/AR/AF and other surface treatment processes. All products comply with ROHS environmental protection standards and provide you with a full range of display solutions.
