2.4" TFT LCD Display | 240x320 Resolution MCU Interface

2.4" TFT LCD Display | 240x320 Resolution MCU Interface

▶ Model：
TFT-H024B25QVTST4N40

▶ Type: 240x320 TFT LCD display
▶ Display pixels: 240x320

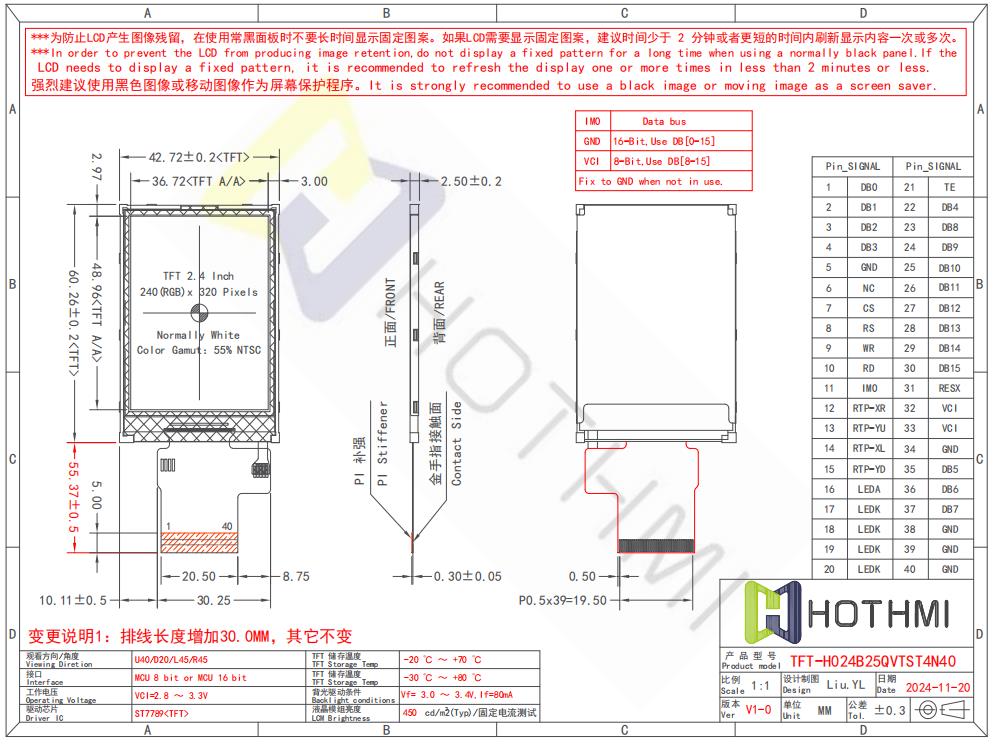

▶ Dimensions (mm): 42.72.0x60.26x2.3
▶ Display inches: 2.4"
▶ AA size (mm): 36.72x48.96
▶ Application: Handheld devices
▶ Viewing angle: full viewing angle
▶ Backlight/brightness: 400cd/m2
▶ Pin: FPC-40 pin
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 3.3V
▶ Driver IC: ST7789
Product ConsultationDatasheets Download
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

EZUI-Let driver board/MCU/SPI (general purpose below 480*320)
EZUI-Let adapter board/MCU/40PIN
typ-c data cable T-port charging data cable/COB adapter board/COG adapter board
USB data cable T-port charging data cable/serial screen/adapter board
EZUI-H Main Control Board-RGB/MCU (Universal for 800*480 and below)
Full-function test development PCB-Bluetooth-WIFI-UART-CAN-LVGL-RS485
STM32F407 Motherboard For SPI Display

Product Description
Customized Services
Attributes

240x320 TFT LCD display / 2.4 inch full-color/ wide temperature tft lcd / IPS full viewing angle / MCU
240x320 TFT LCD display/ 2.4” full-color TFT / wide temperature tft lcd / IPS full viewing angle / MCU interface / C8051 / Arduino / STM32 controller
Model TFT-H024B25QVTST4N40 is an IPS full viewing angle display with high picture quality, high contrast and wide color gamut. It has a resolution of 240x320, built-in ST7789 controller, optional touch screen, support MCU interface, 65K/262K true color, FPC connection (optional connector), 3.3V voltage. Hot Display's display has a wide operating temperature range, and the operating temperature range of this product is -20 ℃ ~ +70 ℃. All materials meet environmental protection requirements and RoHS standards. This module is widely used in various instruments, smart devices, etc., and is suitable for systems such as Arduino.

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H024B25QVTST4N40
Diagonal size	2.4”	Inch
Resolution	240X320	Dot
Dimensions	42.72.0x60.26x2.3	mm
Active area (AA)	36.72x48.96	mm
LCD type	TFT LCD Display	mm
Display viewing angle	Full View(U70/D70/R70/L70)
Aspect ratio	5:13
Backlight type	LED white
TFT driver IC	ST7789
Brightness	400	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
