3.2 Inch TFT LCD Module | MCU Interface With ST7789 Driver IC With resistive touch

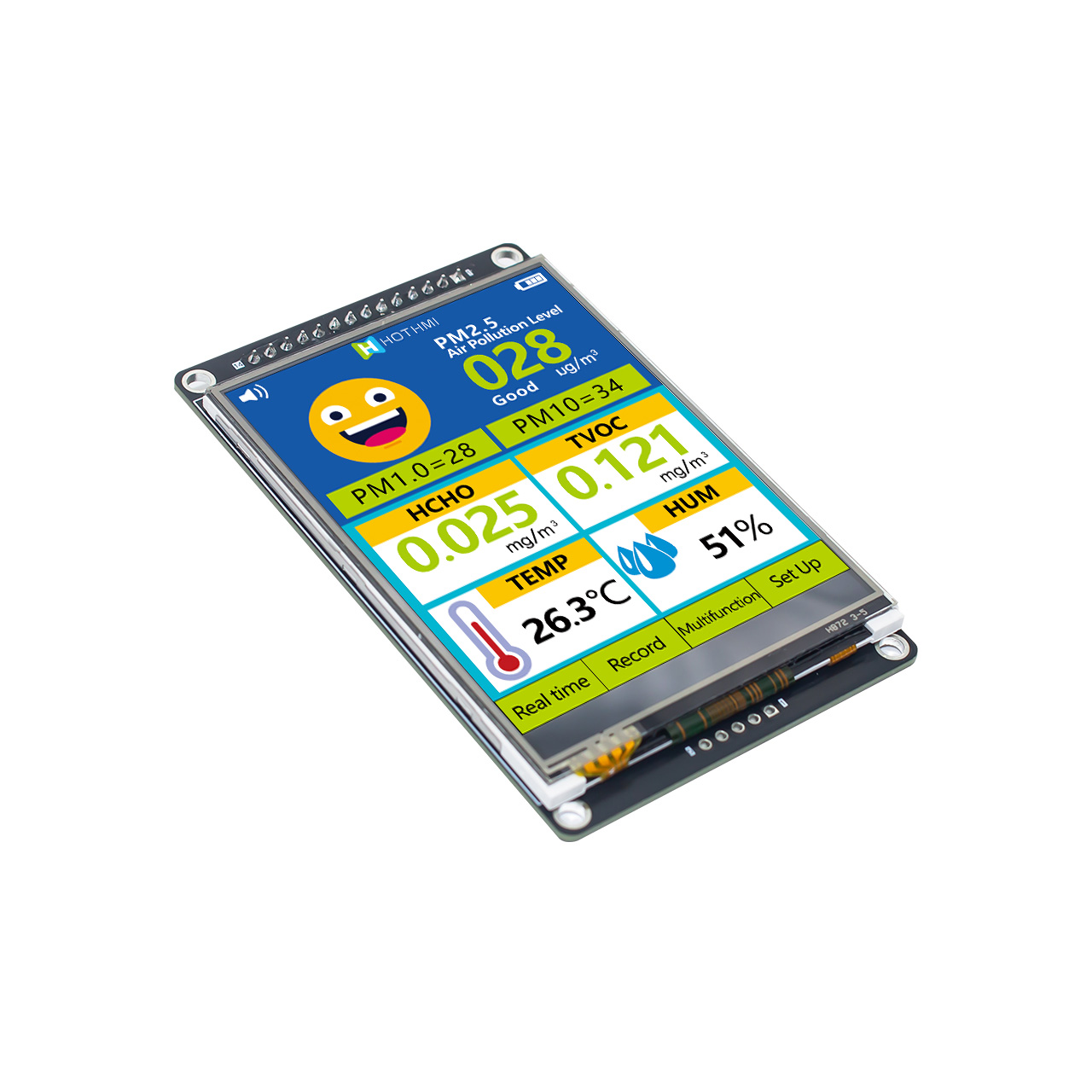

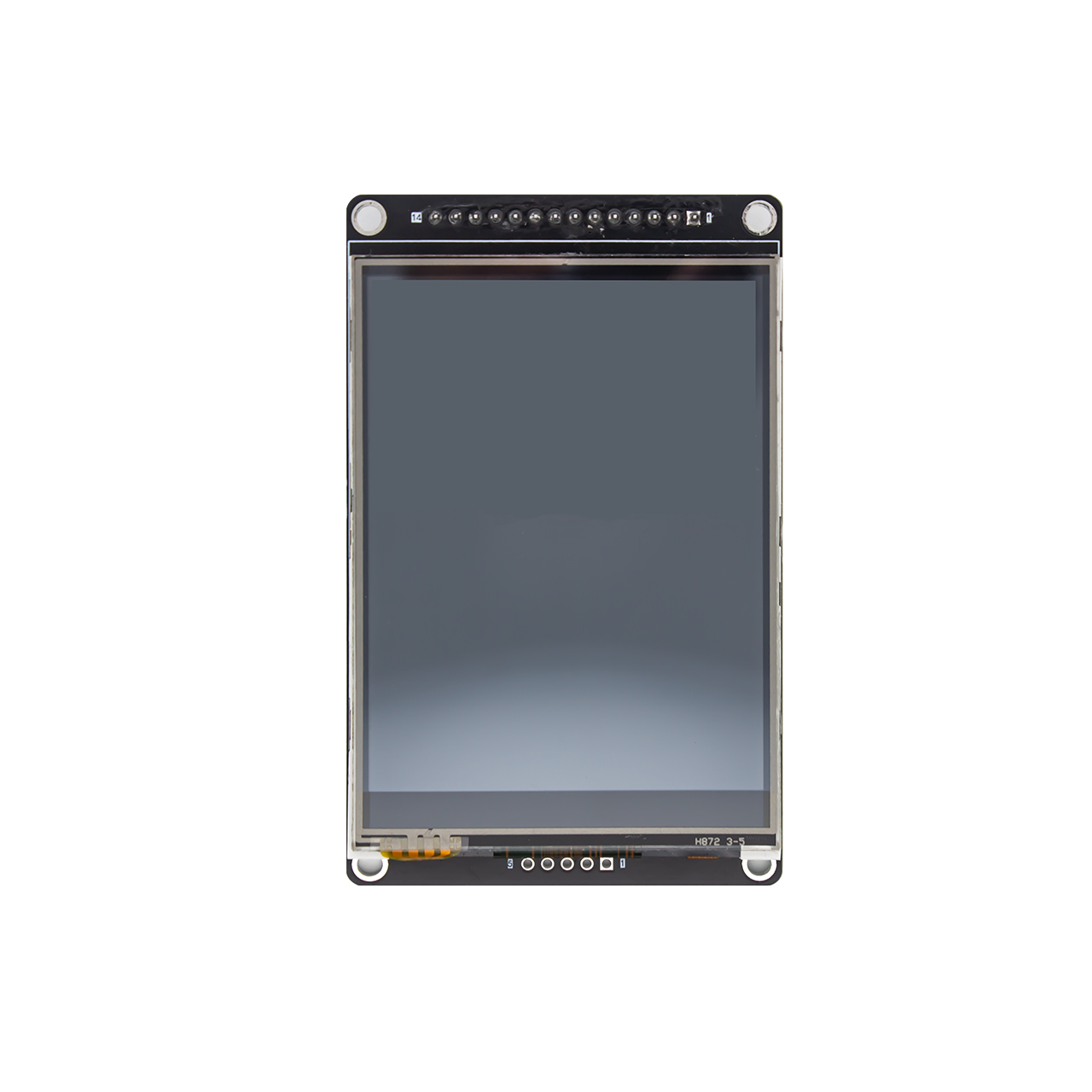

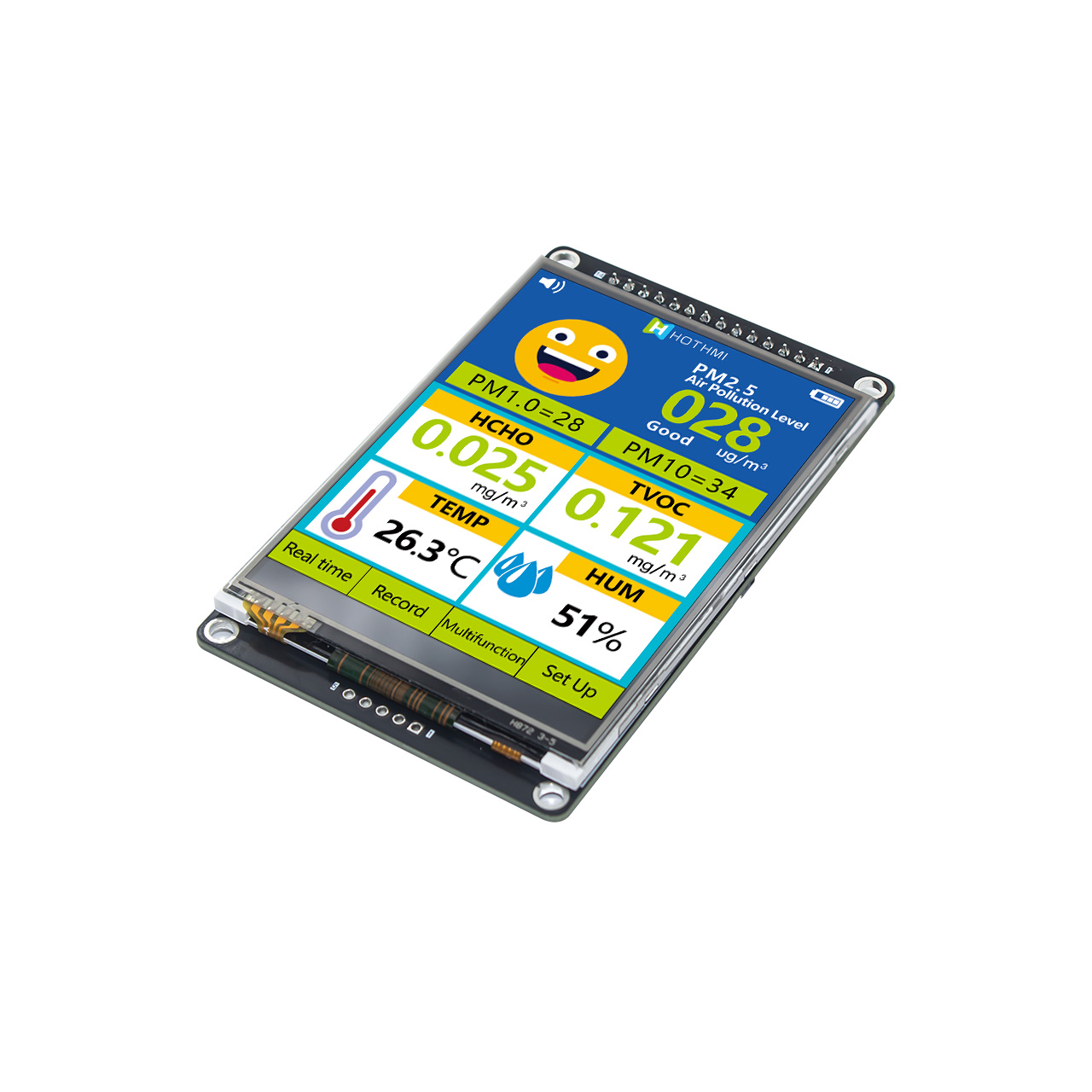

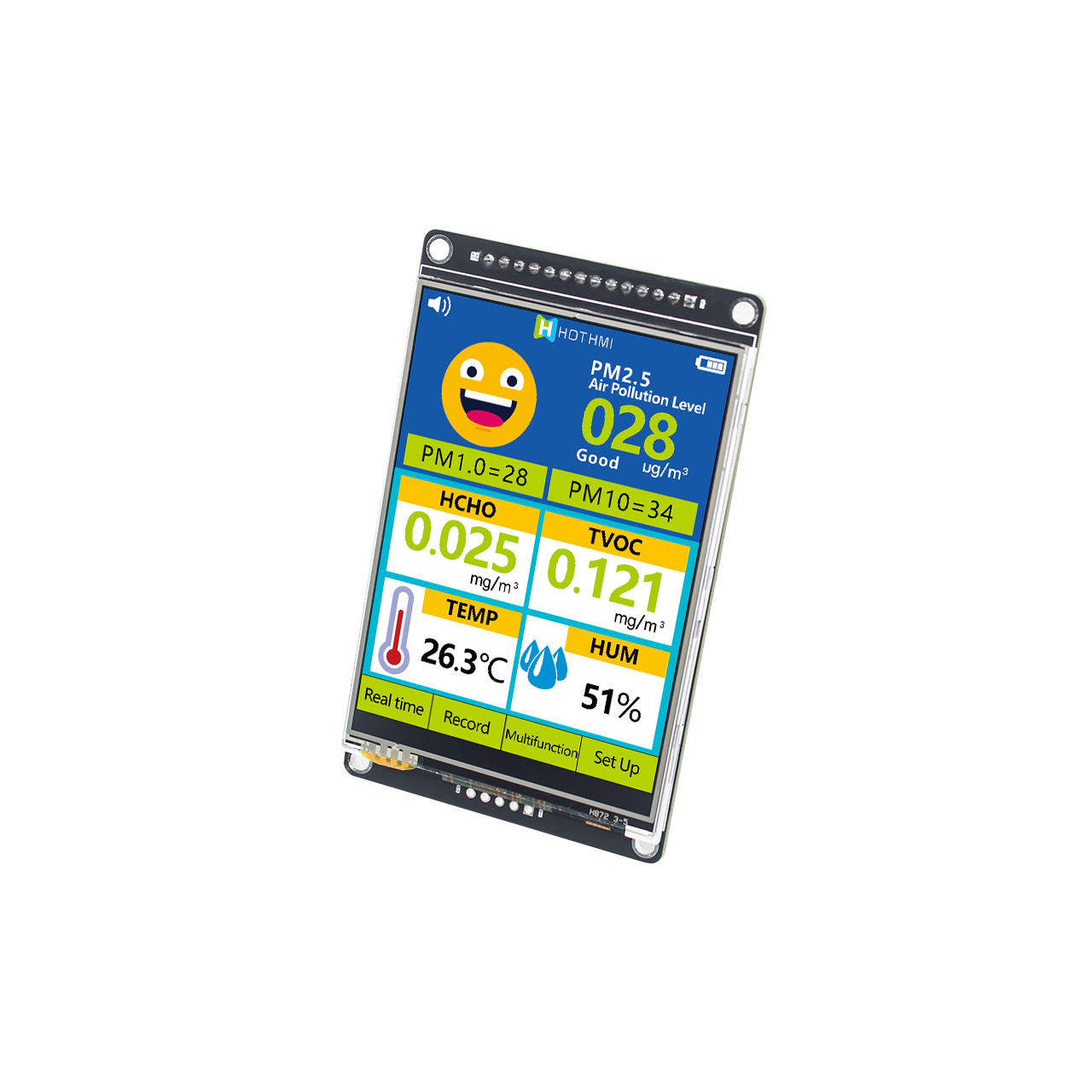

This is a 3.2-inch TFT LCD display module. The display resolution is 240x320 and the brightness is 450cd/m2. The high resolution combined with uniform and moderate brightness presents a high-quality picture to the viewer. The viewing angle of IPS allows you to read the display content clearly no matter which direction you look from. The configured ST7789 ensures smooth operation, and the wide voltage support easily adapts to the mainstream MCU platform. Combined with the wide temperature working capacity of -30℃ to +80℃, it can be used in industrial control, portable devices and even outdoor display scenes.

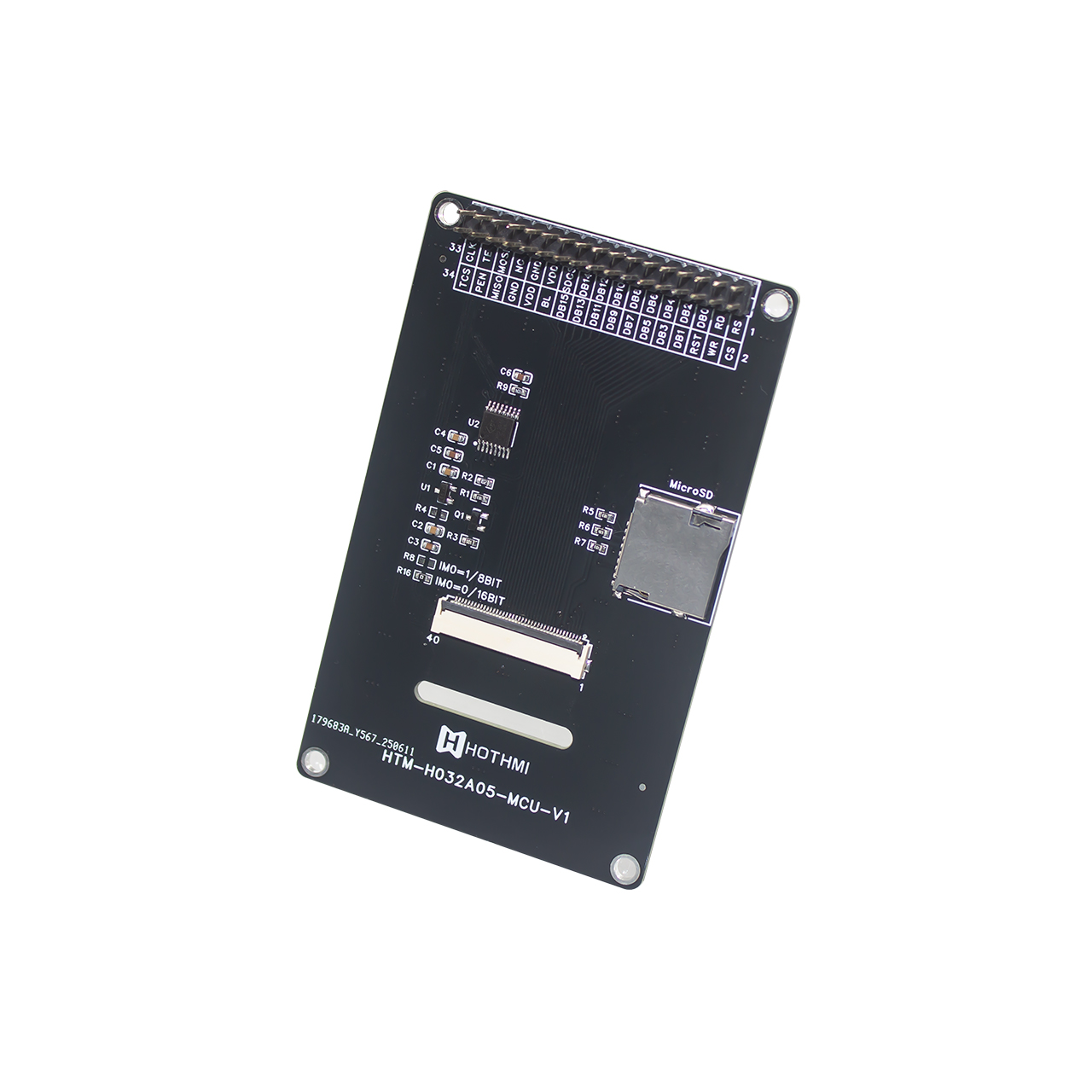

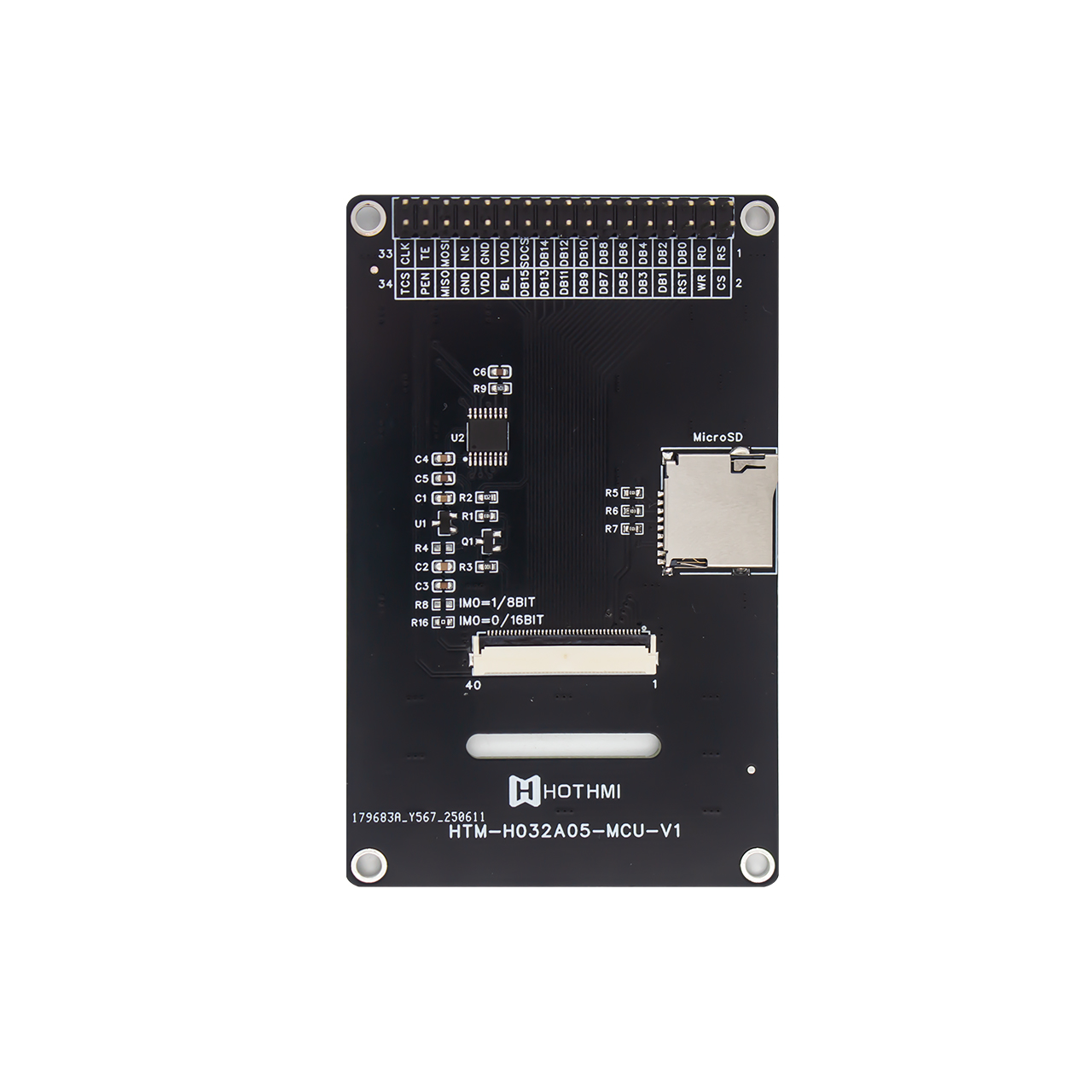

The slim body is equipped with metal PIN pins. This design has obvious advantages over welding or soft cable connection: plug and play to avoid welding errors, and repeated plugging and unplugging is not easy to damage, which is particularly suitable for development scenarios that require frequent replacement of display modules. The slim body and stable connection bring users a reliable and stable experience. In addition, we designed 4 positioning holes on the development board, and the module can be fixed to the product with screws, providing users with a stable and reliable assembly mode. The driver board has a connector that is compatible with the TFT display. Users can easily and accurately disassemble and assemble the display and the driver board repeatedly, which is flexible and controllable.
If the MCU interface is not your best choice, we provide the SPI interface version of the same series. Engineers can also choose the TFT display with FPC cable corresponding to this module to develop a suitable driver board by themselves, TFT-H032A05QVIST6N40. The same size product series also includes the 3.2-inch resistive touch display TFT-H032A3QVTST3R40. We provide customized services. Users can customize the cover, customized FPC cable, customized touch solution, customized communication interface, and surface treatment method (AG/AR/AF). A variety of solutions are available. All our products comply with ROHS standards.
