6.8-inch Capacitive Touchscreen With GT911 Driver chip

▶ Model: CTPH068B06-v0-2

▶ Type: 6.8-inch Capacitive Touchscreen

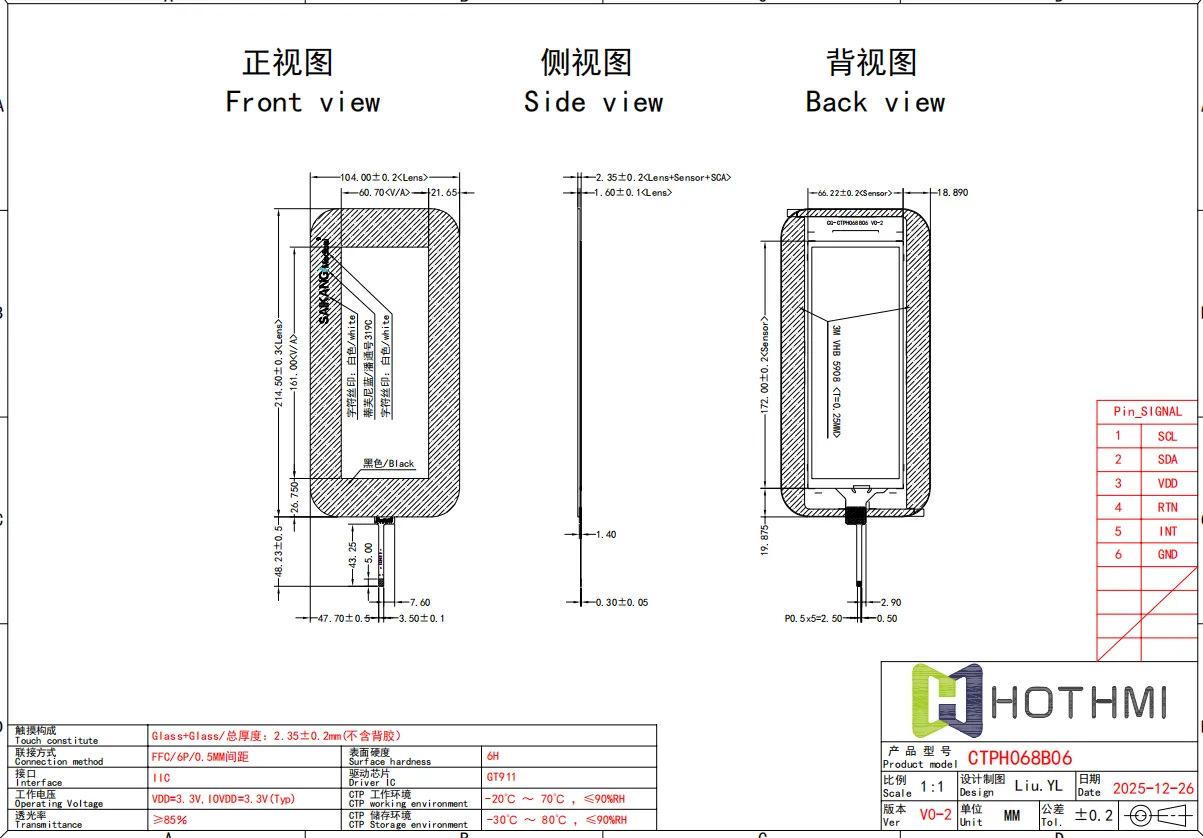

▶ Outline Dimensions (mm): 104.0 x 214.5 x 2.35
▶ Viewing Area (mm): 60.7 x 161.0
▶ Diagonal Size: 6.8 inches
▶ Number of Touch Points: 5-point multi-touch
▶ Control Chip: GT911
▶ Interface: I2C
▶ Connection Type: 6-pin FFC connector
▶ Process Structure: G+G (Glass + Glass)
▶ Cover Glass Shape: Customized Cover Glass
▶ Hardness: 6H
▶ Transmittance: ≥85%

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

No Back Next

Product Description
Customized Services
Attributes

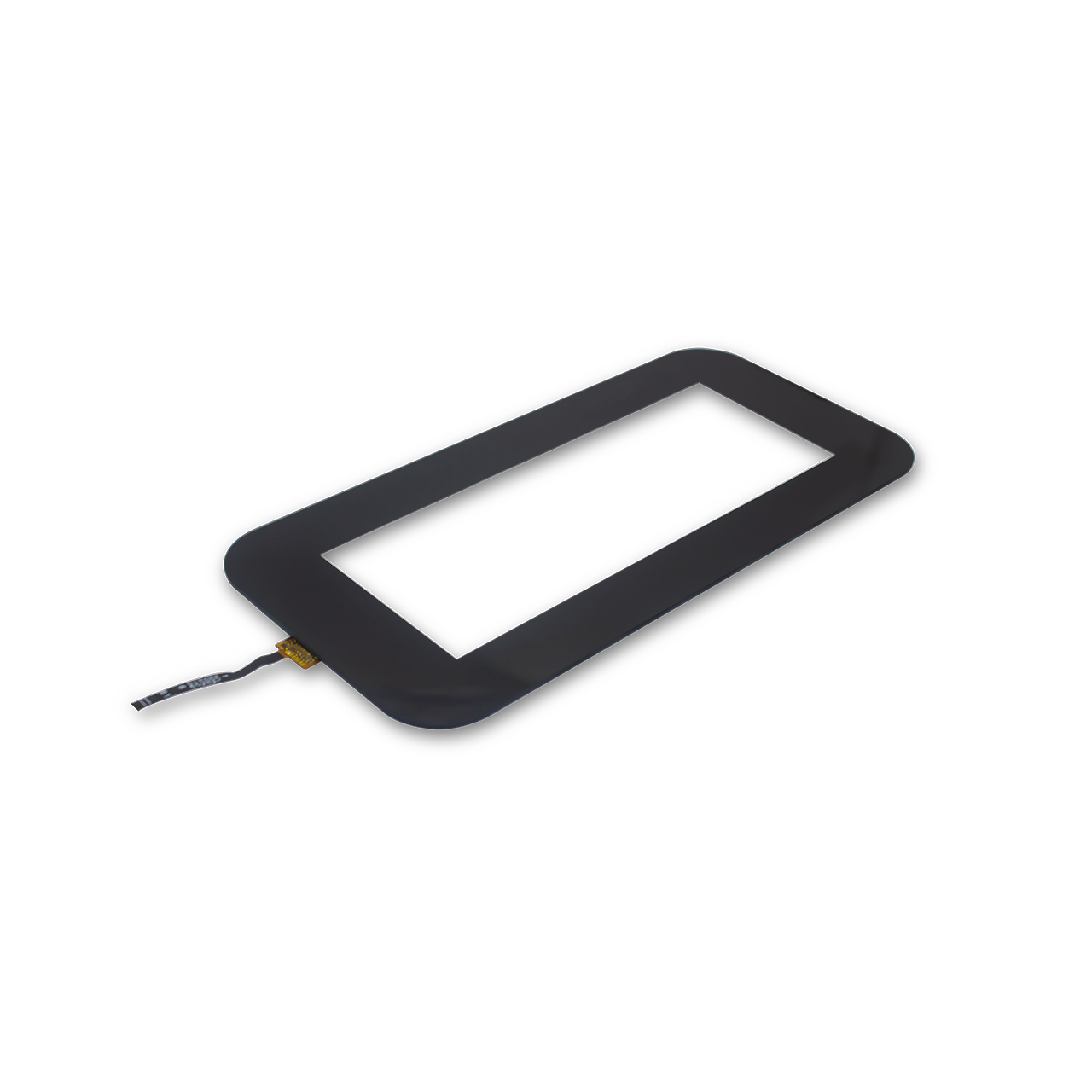

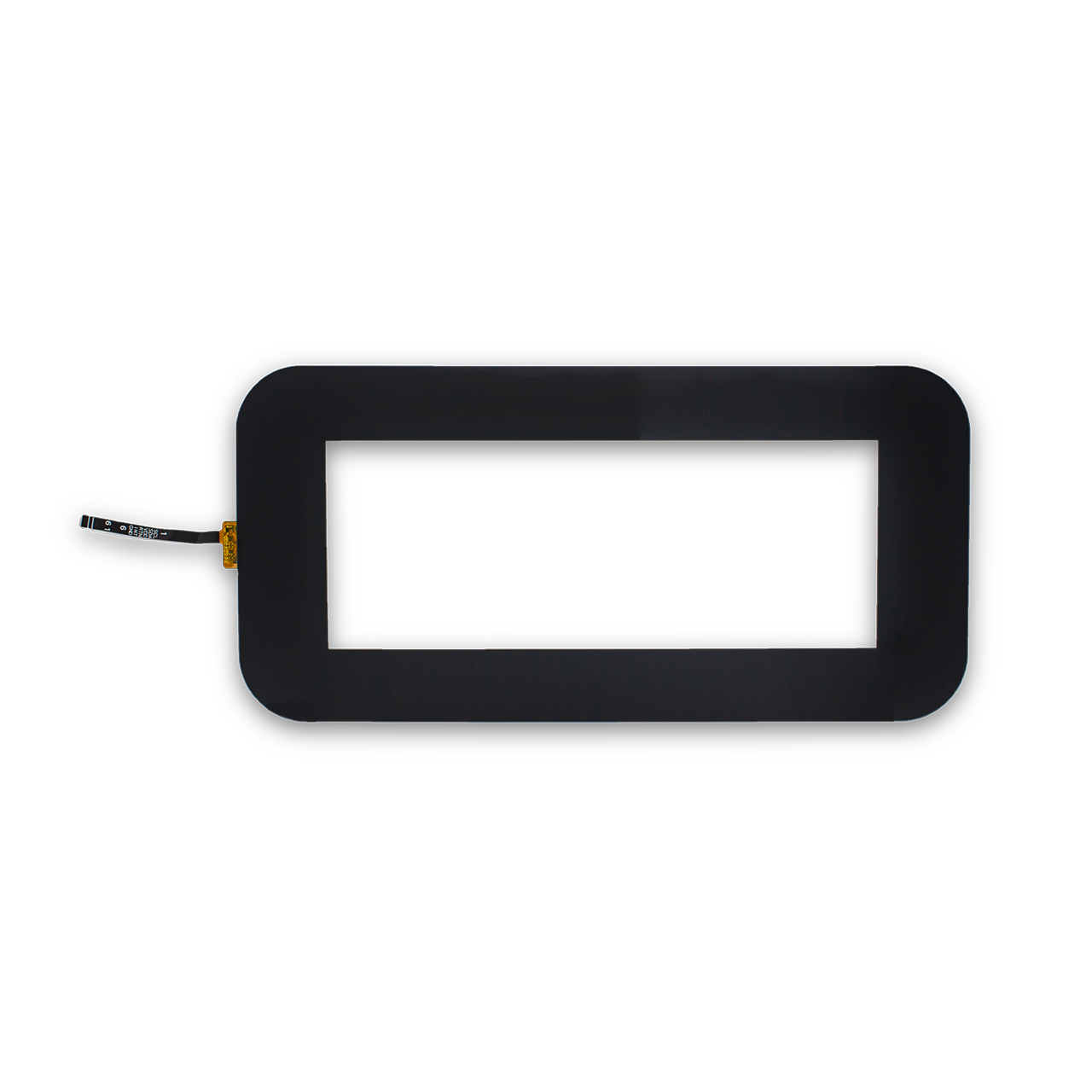

6.8-inch Capacitive Touchscreen With GT911 Driver chip
This 6.8-inch Capacitive Touchscreen is a high-performance interactive component, delivering a premium touch experience. Engineered with a robust G+G (Glass + Glass) process structure, this 6.8-inch Capacitive Touchscreen features a cover glass with 6H hardness, ensuring excellent resistance to scratches and daily wear. The high transmittance of ≥85% guarantees vibrant visual clarity and true color representation for the underlying display.
Driven by the reliable GT911 control chip, this unit supports smooth and accurate 5-point multi-touch functionality via an I2C interface. The connection is established through a dedicated 6-pin FFC connector, facilitating stable integration. Designed for versatility, it accommodates a customized cover glass shape to meet specific design requirements. For applications demanding a balanced size and responsive interaction, this 6.8-inch Capacitive Touchscreen offers an optimal solution. Its compact profile and generous viewing area make it an ideal choice for various embedded systems and interactive devices, highlighting the practical advantages of a modern 6.8-inch Capacitive Touchscreen.
