1.5 inch round TFT module | 360x360 resolution IPS TFT LCD module | with ST77916 controller | sunlight readable display

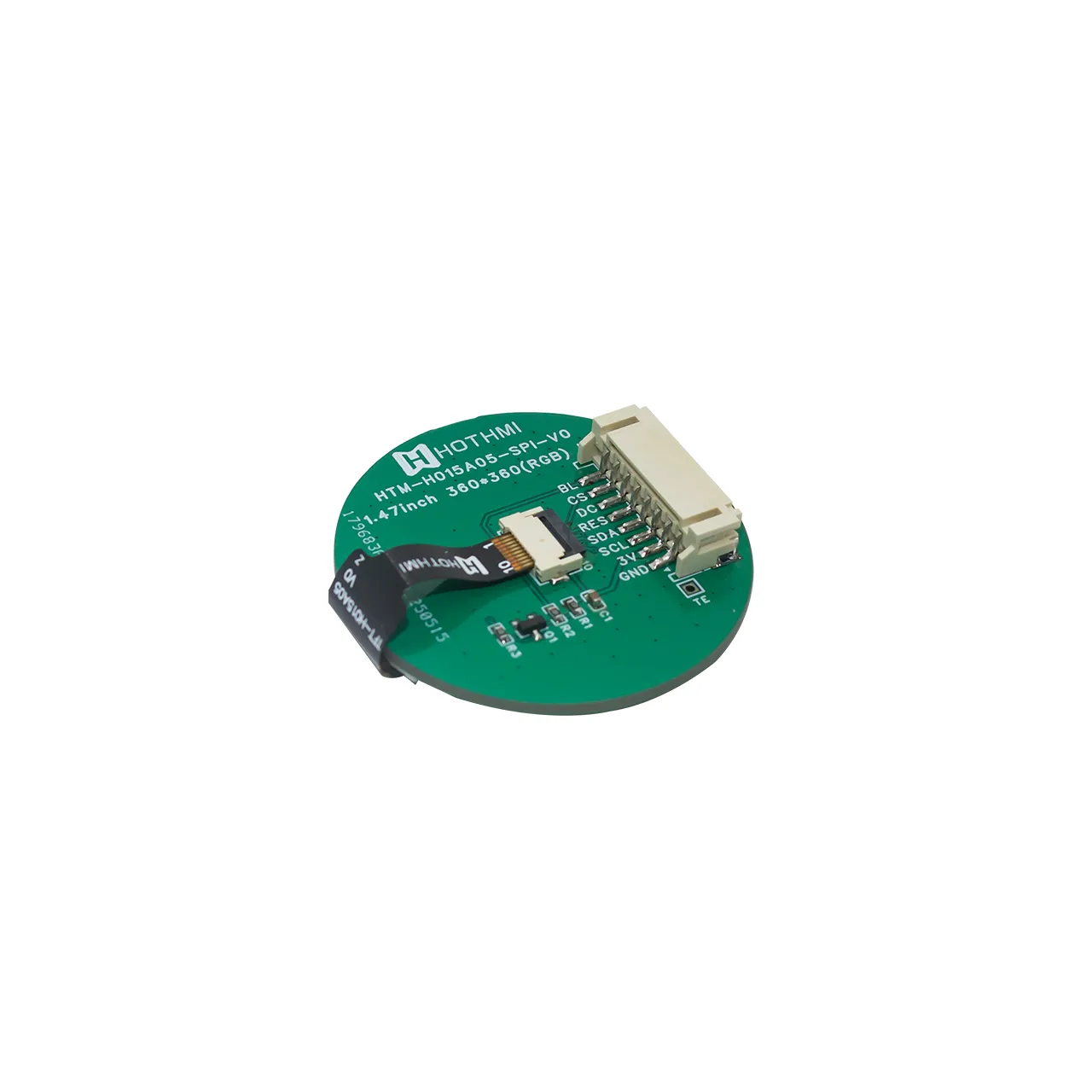

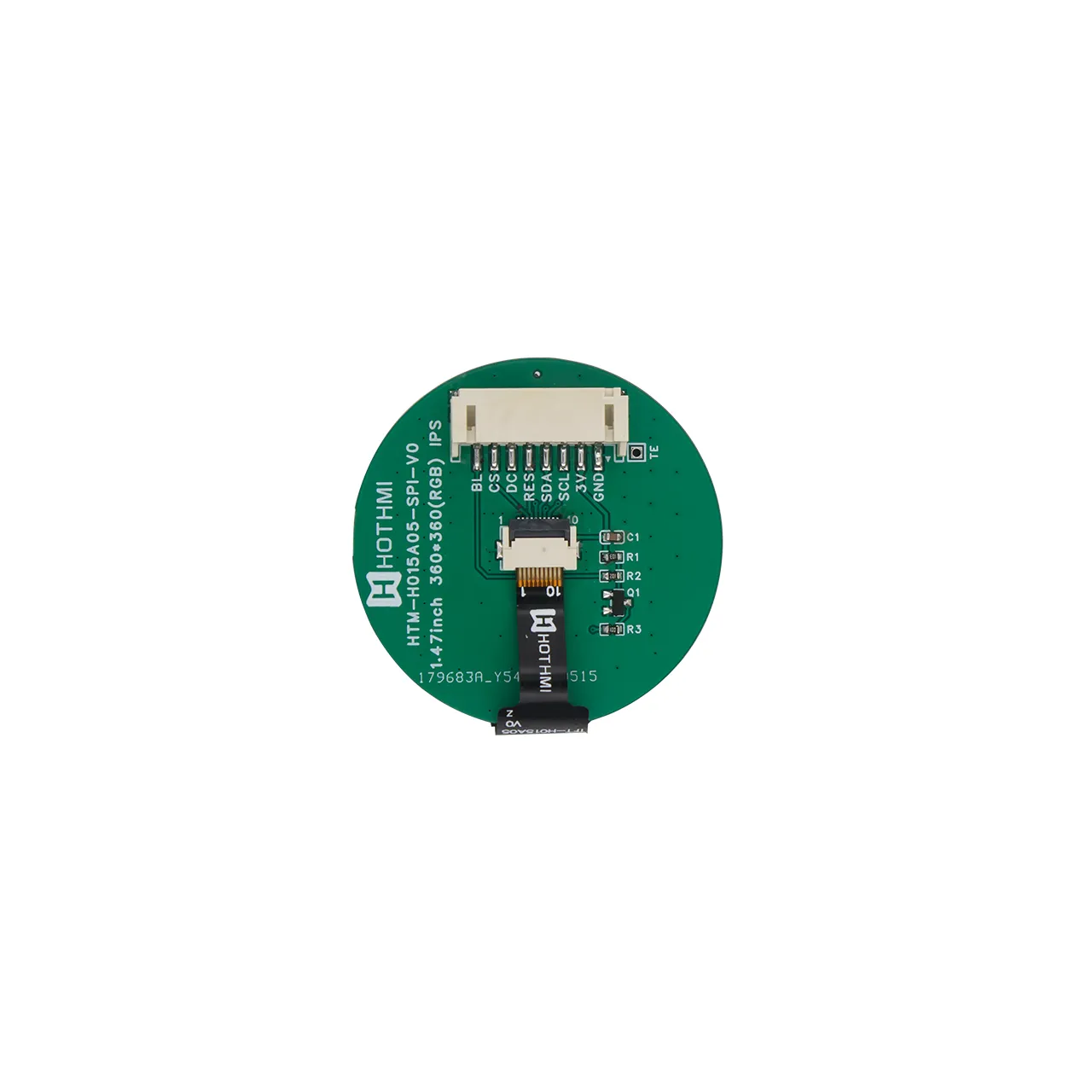

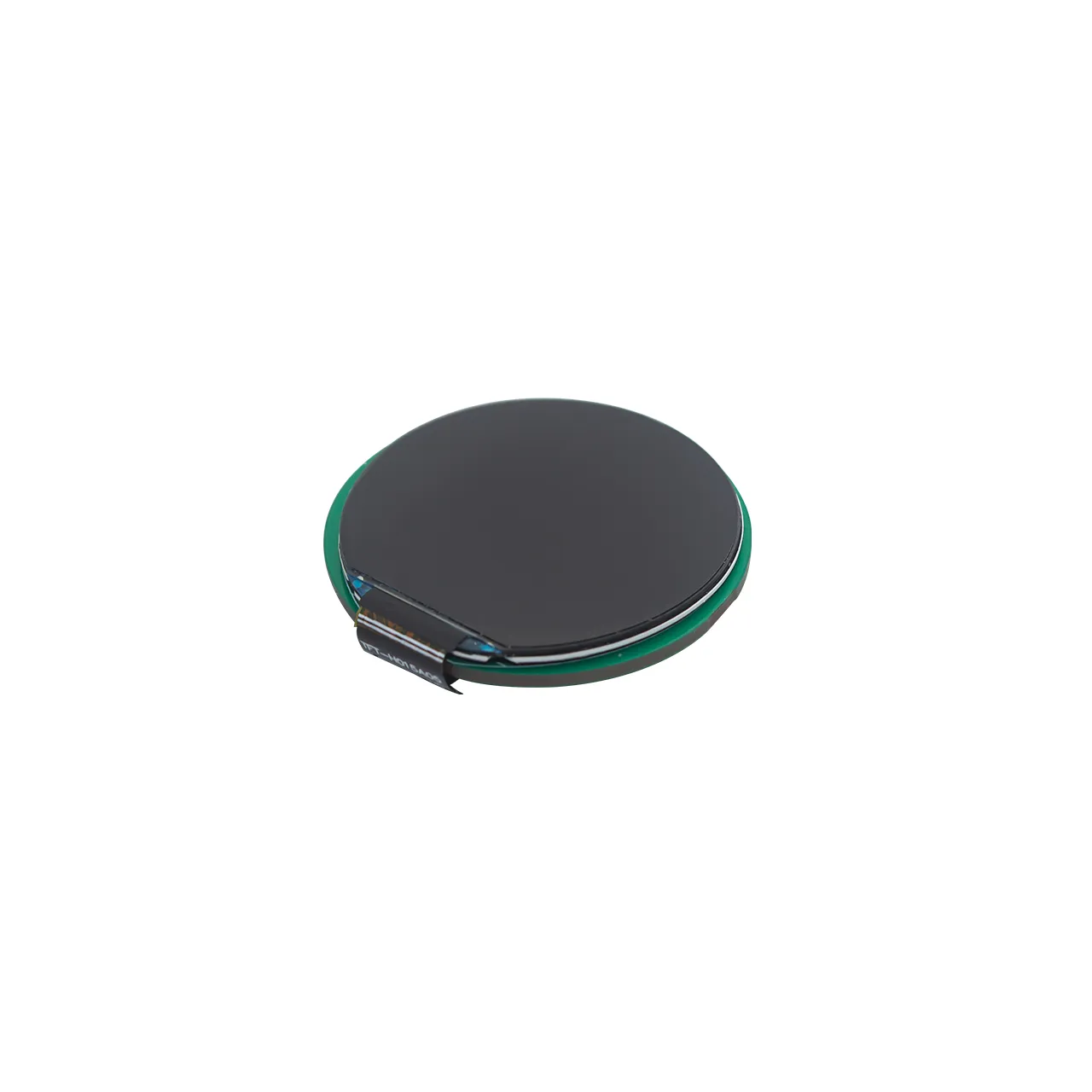

This 1.5 inch round TFT module HTM-H015A05-SPI-V0 empowers your visual experience with its exquisite industrial design. This 1.5-inch TFT LCD module, equipped with ST77916 high-performance driver chip, presents 360*360 high-definition resolution and NTSC 70% wide color gamut, with delicate and full pictures, vivid colors, and IPS full viewing angle. No matter from which angle the viewer watches, it reflects the high-quality display effect. The module adopts a normally black panel design, supports a wide operating voltage of 3.0~3.3V, and has a built-in drive circuit, and achieves efficient integration through a simple 4-line 8bit serial interface (4-line 8bit serial I/F).
The excellent industrial reliability of this 1.5 inch round TFT module is impressive: the operating temperature spans -20℃ to +70℃, and the storage temperature can withstand harsh environments of -30℃ to +80℃. The typical brightness of up to 500 cd/m² (constant current test) ensures that the picture is still clear and sharp in strong light environments. The module is specially optimized for dynamic display performance. It is recommended to use it with black or dynamic screen savers to avoid fixed patterns staying for more than 2 minutes for a long time, effectively preventing image retention and extending the life of the screen.

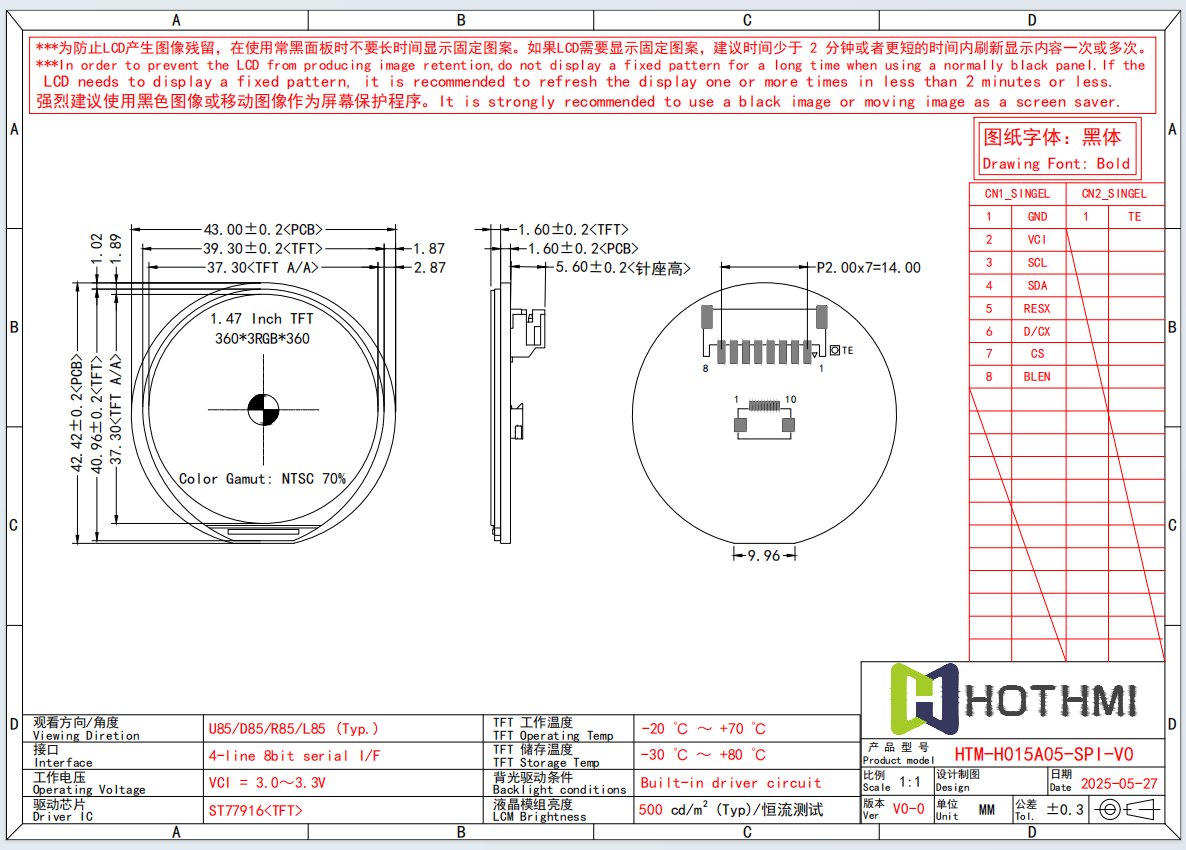

The precise structural design ensures stable assembly, and the key dimensional tolerance is strictly controlled at ±0.2mm (such as 43.00±0.2mm panel size), combined with 5.60±0.2mm pin seat height, providing a solid hardware foundation for embedded applications. This 1.5-inch circular TFT module combines high-quality, toughness and intelligent protection display solutions, and is an ideal choice for industrial control, portable devices and other fields.
The display model related to this 1.5 inch round TFT module is TFT-H015A05ZNIST3N10, which can be flexibly applied by users to develop products.
