4.3-inch wide-temperature industrial TFT LCD display

4.3-inch wide-temperature industrial TFT LCD Operating temperature -30℃~85℃, a highly reliable display solution suitable for harsh environments.

In demanding application scenarios such as industrial control, medical equipment, and automotive front-mount systems, the choice of display module often defines the reliability limits of the entire system. Standard consumer-grade LCD panels may suffer from response lag, image smearing, or even complete blackout under extreme temperatures, while their content becomes nearly illegible under bright ambient light—these seemingly minor display failures can escalate into serious safety hazards or operational incidents in mission-critical systems. This is precisely where a 4.3-inch wide-temperature industrial TFT LCD display proves its value, delivering stable performance across a broad temperature range and ensuring clear visibility even in high-brightness environments, thereby providing the robust foundation that professional-grade applications demand.

产品详情：TFT-H043A34SVIGH6N40

产品视频链接：TFT-H043A34SVIGH6N40

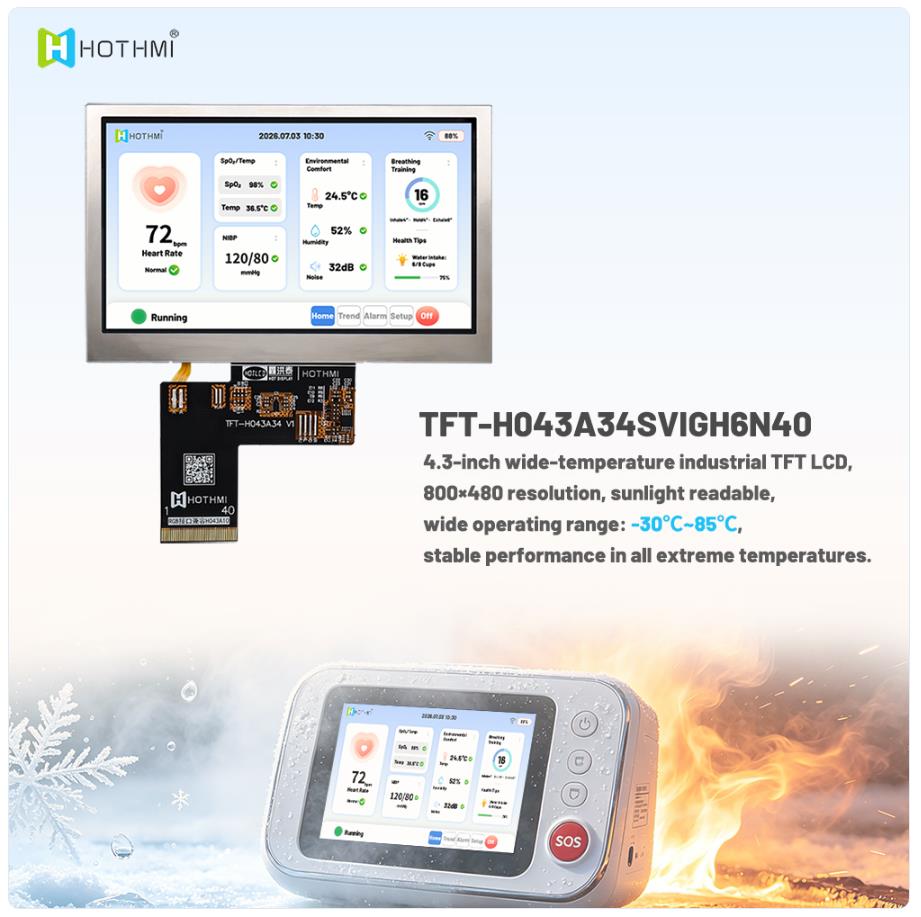

The TFT-H043A34SVIGH6N40 is a 4.3-inch wide-temperature industrial TFT LCD display specifically engineered for the demanding environments described above. Delivering 800×480 pixel resolution, IPS full-viewing-angle technology, 600 cd/m² high brightness, domestically manufactured chips, and an ultra-wide operating temperature range from −30°C to +85°C, this module offers a display solution that combines reliability, visual performance, and ease of integration for industrial and automotive applications.

Industrial-grade wide temperature range: -30°C to +85°C

Temperature adaptability is a core metric that distinguishes industrial-grade display modules from consumer-grade ones. Ordinary LCD panels typically have an operating temperature range of only 0°C to 50°C or 60°C. At low temperatures, the response time of liquid crystals slows down significantly, resulting in severe motion blur; at high temperatures, conventional liquid crystal materials may undergo phase transitions, leading to contrast degradation or even display anomalies.

The 4.3-inch wide-temperature industrial TFT LCD display model TFT-H043A34SVIGH6N40 offers an operating temperature range of −30°C to +85°C, far exceeding that of consumer-grade products. This performance is achieved through multiple industrial-grade enhancements: the use of specially formulated high-purity wide-temperature liquid crystal materials ensures that the phase transition point of the liquid crystal molecules remains well above 85°C, preventing blackouts at high temperatures; low-viscosity LC formulations maintain reasonable response speeds even at low temperatures; and the polarizer, FPC materials, and ITO conductive glass processes are all reinforced for heat and cold resistance.

In terms of reliability validation, wide-temperature industrial displays must undergo far more rigorous temperature cycling tests than ordinary screens. In accordance with international standards such as IEC 60068-2-14 or MIL-STD-810, wide-temperature industrial display modules are typically subjected to temperature cycling, high/low temperature operation, and other reliability tests to verify long-term operational stability—all while powered on, with continuous monitoring of brightness decay, color shift, dead pixels, and other metrics. Ordinary consumer-grade screens often skip these tests altogether or only undergo mild room-temperature verification. It is precisely by passing this series of "brutal" tests that the TFT-H043A34SVIGH6N40 delivers consistently reliable performance in extreme scenarios—whether in cold storage facilities or factory workshops adjacent to high-temperature machinery.

600 cd/m²：sunlight readable

In outdoor or high-ambient-light industrial environments, screen readability is directly tied to operational efficiency and safety. Ambient light reflection can significantly degrade display visibility under such conditions. By boosting backlight brightness and combining optimized polarizer structures with advanced optical design, high-brightness TFT LCD displays can effectively enhance information recognition in strong-light settings. Only when the screen's own luminance exceeds the intensity of reflected light can content truly appear sharp and legible.

The 4.3-inch wide-temperature industrial TFT LCD display model TFT-H043A34SVIGH6N40 achieves a central luminance of 600 cd/m²—sufficient to effectively counteract interference from ambient stray light and maintain clear data visibility under direct sunlight. It is worth noting that 600 cd/m² is not an arbitrary pursuit of extreme brightness, but rather a carefully balanced value: bright enough for sunlight readability, yet not so intense as to distract operators in nighttime or low-light conditions. Paired with an automatic backlight adjustment function, it delivers a comfortable viewing experience around the clock.

IPS full-viewing-angle technology: No color shift when viewed from multiple angles.

Conventional TN panels suffer from a noticeable "viewing-angle blind zone"—when operators view the screen from below or from the side, they may encounter color inversion, dimming, or even illegible content, which poses safety risks in industrial and medical applications.

The 4.3-inch wide-temperature industrial TFT LCD display model TFT-H043A34SVIGH6N40 adopts IPS full-viewing-angle technology, delivering over 80° visibility in both horizontal and vertical directions. Unlike the liquid-crystal alignment found in TN panels, IPS technology ensures that colors and contrast remain consistent from any viewing angle. In medical monitoring scenarios, this allows doctors to quickly read patient data from the side; in industrial HMI applications, operators can accurately assess equipment status without needing to face the screen directly—significantly reducing the risk of misoperation caused by viewing-angle limitations.

Ultra-thin structure and standard interfaces: Design for system integration

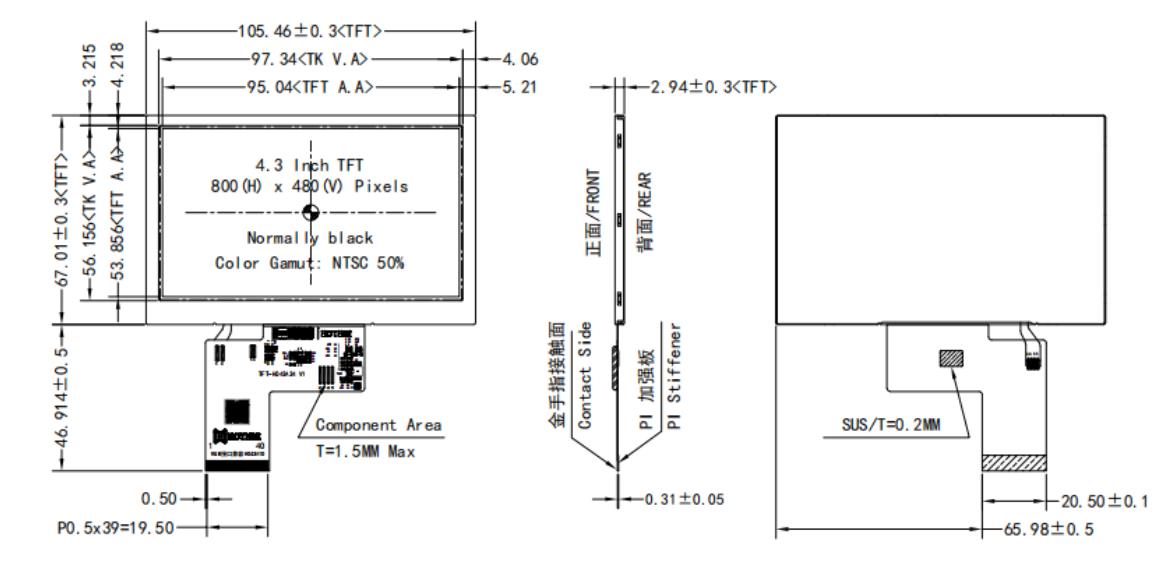

The TFT-H043A34SVIGH6N40 module is only 2.94mm thick, approximately 0.5mm thinner than a standard 4.3-inch screen. For applications where internal space is highly critical, such as automotive central control systems, portable medical devices, and handheld terminals, this thickness advantage means more space can be allocated to batteries, heat dissipation structures, or other functional modules.

In terms of interfaces and electrical systems, the module uses a standard RGB 24-bit parallel interface and a 40-pin 0.5mm pitch FPC connector configuration, allowing for easy integration into existing system designs. With an operating voltage (VCI) of 3.3±0.3V, its low power consumption is particularly important for portable and embedded devices. Furthermore, the module incorporates up to 8KV of electrostatic discharge (ESD) protection, effectively resisting common electrostatic shocks in industrial environments and protecting sensitive electronic components.

The core display driver solution of the module uses mature and stable domestically produced chips. This not only represents a reliable technical choice but also signifies a deep consideration for supply chain security and long-term resilience. Against the backdrop of frequent fluctuations in global semiconductor supply, domestic solutions have given products stronger resilience: on the one hand, they ensure stable and controllable delivery times for key materials, eliminating the risk of supply disruptions from the source; on the other hand, they provide long-term and sustainable supply guarantees for the entire product lifecycle management, effectively avoiding the passive situation caused by the shutdown or quota restrictions of imported chips, and helping customers build a truly independent and controllable supply chain system.

Typical application scenarios

The TFT-H043A34SVIGH6N40's wide operating temperature range, sunlight readability, all-viewing angle, and industrial-grade reliability make it widely applicable in the following fields:

• Automotive Instruments and Control Panels: 4.3 inches is the golden size for automotive auxiliary screens—in scenarios such as air conditioning control panels and commercial vehicle dashboards, the screens are exposed to sunlight year-round, with summer interior temperatures reaching over 70°C. This module's 85°C heat resistance ensures stable display even after prolonged exposure to sunlight.

• Industrial Human-Machine Interfaces (HMIs): Scenarios such as industrial automation control cabinets, PLC touch control integrated equipment, and CNC machine tool operation panels require stable operation of the display module under high temperature, vibration, and prolonged power-on conditions.

• Outdoor Handheld Terminals: Devices such as inspection instruments, logistics PDAs, and outdoor surveying equipment that frequently switch between direct sunlight and indoor environments benefit from 600 cd/m² brightness combined with automatic backlight adjustment, eliminating the need for manual brightness adjustment by the user; the 2.94mm ultra-thin design reduces overall weight, making it suitable for extended handheld operation.

Medical equipment and testing instruments: Portable multi-parameter monitors, blood analyzers, ventilator control screens, and other equipment require medical personnel to clearly read data from different angles—IPS full-view technology plays a key role in this.

Product Core Parameters

The TFT-H043A34SVIGH6N40 is more than just a display module; it's a core component of critical systems that cannot tolerate downtime or visual malfunctions. With an ultra-wide operating temperature range of −30°C to +85°C, sunlight-readable brightness of 600 cd/m², IPS full-viewing-angle technology, a 2.9mm ultra-thin structure, domestically produced display driver, and 8KV ESD protection, it provides a reliable, visible, and easily integrated display solution for automotive pre-installation, industrial control, medical equipment, and outdoor terminals. When engineers design next-generation industrial and medical equipment, this 4.3-inch wide-temperature industrial TFT LCD module is undoubtedly a choice worthy of serious evaluation.
