The Art and Science of Round LCD Display Manufacturing

The creation of a round LCD display is significantly more complex than cutting a standard rectangular screen into a circle. It requires a complete rethinking of the display architecture to maintain durability and visual performance.

The Manufacturing Challenge

Unlike rectangular displays that can be easily scribed and broken along straight lines, a round LCD display demands precision cutting. The process typically begins with a standard TFT (Thin-Film Transistor) substrate. Advanced photolithography techniques deposit conductive materials onto the glass, forming the pixel control circuitry. After the TFT and color filter layers are bonded and filled with liquid crystal, the assembly must be cut into a circular shape.

Manufacturers employ high-precision laser or mechanical dicing to trim the rectangular mother panel into a perfect circle . This step is critical; the cut must be exceptionally accurate to avoid damaging the pixel array along the edges and to ensure the glass integrity is maintained. However, the complexity doesn't end with cutting the glass. A true challenge lies in the module assembly. As noted by industry experts, connecting the driver ICs to a perfectly round piece of glass is difficult because standard connection methods like metal pins or zebra strips cannot be easily installed on a curved edge. To solve this, many round LCD display designs incorporate a small flat edge or a "D-shaped" cut at the bottom of the glass to provide a parallel surface for attaching the conductive connectors .

Common Resolutions of Round LCD Display and Application

Despite its circular shape, the pixel grid inside a round LCD display is still fundamentally a rectangle. The circular viewable area is essentially a crop of this grid, with the corners hidden or blacked out. The resolution, therefore, refers to the pixel dimensions of this full rectangular grid (e.g., width x height) .

The choice of resolution for a round LCD display depends heavily on the application"s need for detail, the viewing distance, and the processing power available.

240×240 Pixels: The Wearable Standard

This is the most ubiquitous resolution for small round LCD display modules, typically found in the 1.28-inch to 1.3-inch size range. It strikes a perfect balance between power consumption and visual clarity .

Driver IC: Often paired with the GC9A01 or similar.

Applications: Smartwatches, fitness trackers, and health monitoring devices . Its low power draw is ideal for devices that run on small batteries. For example, the Waveshare 1.28" round LCD display and the TouchEye dual display modules utilize this resolution .

480×480 Pixels: The Clarity Standard

As the demand for sharper interfaces grows, the 480×480 resolution has become prevalent in 2.1-inch to 2.8-inch round LCD display models. This resolution offers a significant pixel density increase, allowing for smoother fonts and more detailed icons .

Driver IC: Often utilizes the ST7701 for SPI+RGB interfaces.

Applications: Automotive instrument clusters for motorcycles and E-bikes, industrial control panels, and higher-end smart home devices like smart thermostats and door locks .

720×720 Pixels & Above: The Premium Segment

For larger round LCD display applications, typically 4 inches and above, resolutions like 720×720 and even 800×800 are available . These displays are designed for applications where the user interface is the primary feature of the product.

Driver IC: High-speed interfaces like MIPI DSI are used here (e.g., ILI9881C, FL7703) to handle the massive amount of pixel data .

Applications: High-end automotive dashboards, marine equipment, and industrial HMIs where a wealth of information needs to be displayed with premium clarity.

Summary of Common Round LCD Display Resolutions

The Round LCD Display of difference Resolution

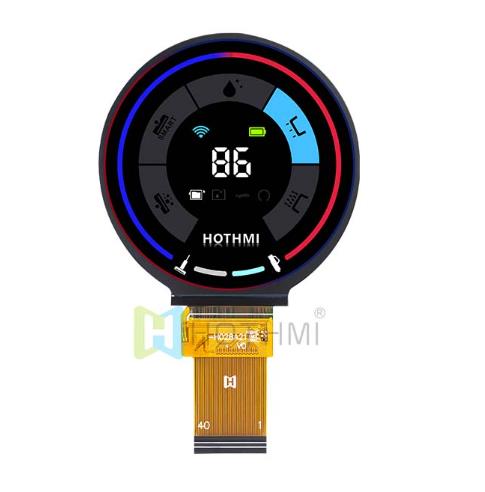

TFT-H013A6QQIGC5N10 1.3 Inch Round  LCD Display 240x240 Resolution GC9A01 Driver  More	TFT-H015A05ZNIST3N10 1.5 Inch Round LCD Display 360x360 Resolution With ST77916 Controller   More	TFT-H028A21ZHIST3N40  2.8 inch Round LCD Display With ST7701S  More

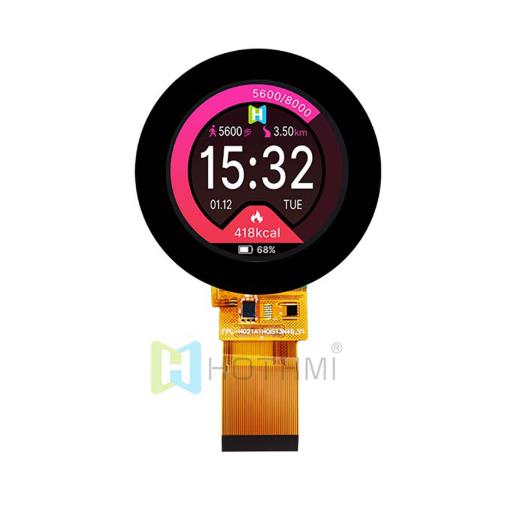

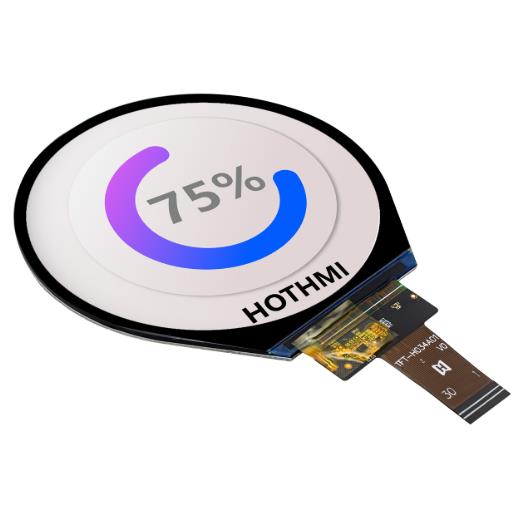

TFT-H021A1HQIST4C40  2.1 Inch Round LCD Display With Capacitive Touchscreen More	TFT-H034A01ZJINV4C30  3.4 inch Round  LCD Display With Capacitive Touchscreen MIPI DSI More	TFT-H034A01ZJINV5N30  3.4 Inch Round  LCD Display With MIPI DSI Interface More
