Industrial-grade 2.8-inch SPI TFT LCD display module

Why choose the 2.8-inch SPI TFT module TFT-H028A26QVTST3N14?

In lightweight smart terminals, industrial human-machine interaction, portable detection equipment, small medical instruments, and other niche sectors, small-size color display modules are the core hardware for enabling data visualization and human-machine interaction. Constrained by MCU pin resources, internal device space, harsh high/low-temperature operating conditions, electromagnetic interference, and other limitations, parallel-interface large-screen solutions often fail to meet the requirements for device miniaturization, high reliability, and low-cost development.

The Hotdisplay TFT-H028A26QVTST3N14 2.8-inch TFT module is built precisely for such scenarios! This small-size color display module features the dedicated ST7789 driver IC, adopts a 4-wire SPI serial communication architecture, and incorporates multiple rugged design elements—including industrial-grade wide-temperature operation, 8kV ESD protection, high-brightness visibility, an ultra-slim compact structure, and reinforced FPC cabling. It balances development convenience, environmental tolerance, and long-term operational stability, making it a cost-effective display solution for lightweight, small-scale systems under resource-constrained conditions.

Click on the product video for a more intuitive understanding of this product: 2.8-inch SPI TFT Module

Basic hardware specifications and core display parameters of this 2.8-inch TFT module product

• Basic Hardware Dimensions and Structure

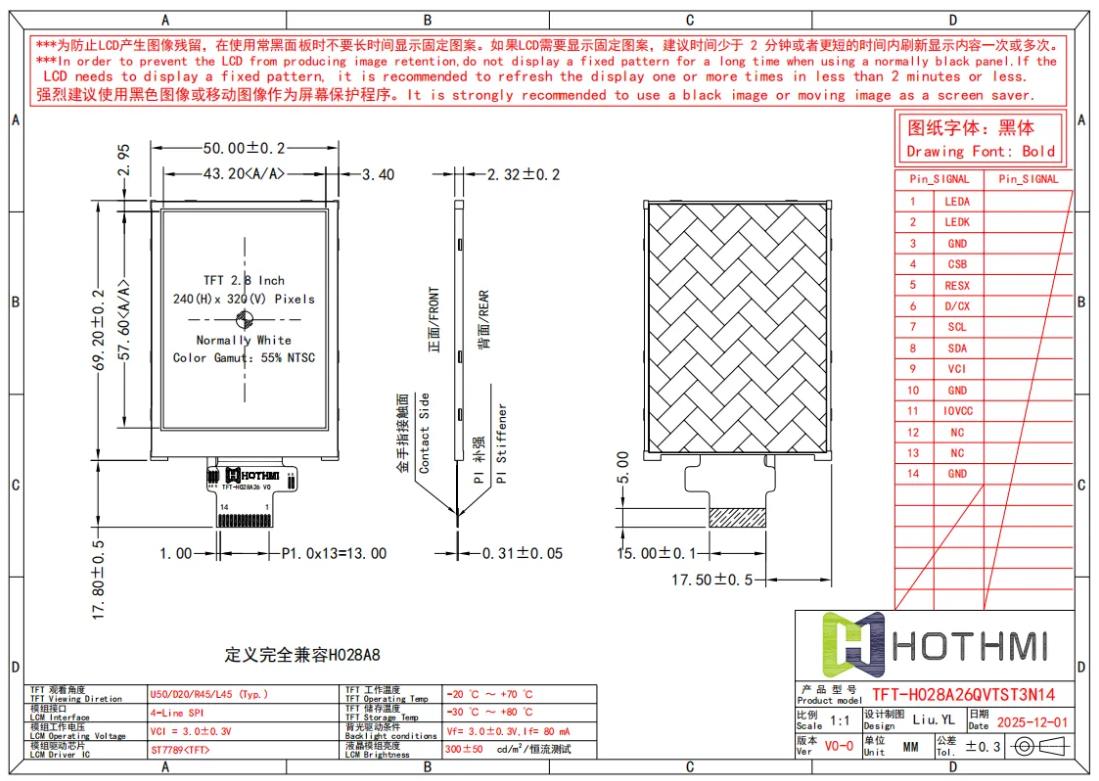

This module is an integrated active-matrix TFT color LCD module, with overall dimensions of 50mm × 69.2mm and a total thickness of only 2.32mm. Its ultra-slim structure greatly frees up internal battery and component placement space in portable devices and compact instruments. The effective display area measures 43.2mm × 57.6mm, fitting the standard 2.8-inch human-machine interface window size.

The signal interface is equipped with a 14-pin, 1.0mm-pitch flexible flat cable (FPC), featuring PI-reinforced gold finger contacts with a reinforced layer thickness controlled at 0.31mm. This significantly enhances the cable's tensile strength and flex resistance, effectively preventing gold finger fracture and poor contact issues during mass assembly, plug-in, and debug processes, thereby reducing the overall product return rate.

• Panel and Optical Display Parameters

Panel Technology: TN (Twisted Nematic) liquid crystal panel, normally white display mode, with color saturation reaching 55% NTSC, delivering rich and uniform color reproduction, and clear layering of text, icons, and curve data.

Standard Resolution: 240(H) × 320(V) vertical pixel arrangement, capable of fully accommodating complex interfaces such as industrial parameters, waveform charts, multi-level operation menus, and equipment status indicators.

Backlight Brightness: LED constant-current backlight system, with operating voltage Vf = 3.0±0.3V, backlight current If = 80mA, and typical brightness range of 300 cd/m². The optimized light-guide plate structure reduces ambient light reflection interference, ensuring excellent text readability in indoor and semi-outdoor lighting conditions.

Viewing Angle: Typical viewing angles of U50 / D20 / R45 / L45, compatible with the conventional viewing perspectives of handheld devices and wall-mounted small controllers.

Power Supply: Standard operating voltage of 3.0±0.3V for the entire module; single-voltage power supply simplifies power circuit design and is well-suited for lithium battery and low-voltage DC industrial control power systems.

• Driver and Communication Core Configuration

The module incorporates the industry-mature ST7789 dedicated TFT display driver IC, natively supporting high-speed four-wire SPI serial bus communication. It abandons the traditional 8/16-bit parallel interface design with multiple data lines, relying only on four signal lines—clock SCL, data SDA, chip select CS, and data/command switching—to complete image command and pixel data transmission, making hardware wiring extremely simple.

Core advantages of SPI serial interface architecture

Compared to traditional display interfaces such as MCU parallel ports and RGB parallel interfaces, the four-wire SPI solution is the optimal communication solution for small and medium-sized displays, and it is also a major advantage of the TFT-H028A26QVTST3N14, covering four dimensions: hardware, software development, power consumption, and system expansion.

• Hardware level: Saves pins and simplifies PCB design

A parallel interface screen requires 8 to 16 data lines along with multiple control pins, which heavily consumes the MCU’s general-purpose I/O resources. In contrast, a 4-wire SPI interface uses only 4 GPIO pins, significantly freeing up the host controller’s pins for peripheral expansion such as sensors, buttons, and communication modules. At the same time, the reduction in signal lines directly simplifies PCB routing, shortens trace lengths, reduces line crosstalk, and decreases the overall board area—making it an ideal fit for space-constrained handheld terminals and compact smart panels. Fewer cables also lower costs for raw materials and SMT assembly, facilitating cost control in mass production, especially for a 2.8-inch TFT module.

• Development level: Standardized protocols, low development threshold

SPI is a universal synchronous serial bus protocol. Mainstream platforms such as STM32, ESP32, 51 MCU, Arduino, and FPGA all natively integrate SPI peripherals. With the mature ST7789 open-source driver library readily available, no complex low-level timing development is required, resulting in a short software porting cycle. For small-to-medium resolution screens at 240×320, a 4-wire SPI interface delivers stable screen refresh and smooth UI transitions, fully meeting the常规 graphical interface requirements for industrial parameter scrolling, real-time equipment status updates, and touch interaction—making it an ideal fit for a 2.8-inch TFT module.

• Power consumption and battery life adaptation: Adapted for battery-powered portable devices

The SPI bus supports on-demand wake-up communication. When no screen update is required, bus transmission can be cut off. Combined with the ST7789 driver’s built-in sleep mode and backlight grading adjustment, the 2.8-inch TFT module achieves extremely low static power consumption. For battery-powered handheld detectors and portable medical devices, this significantly extends single-charge battery life, effectively addressing the endurance pain points of portable equipment.

• 2.4 Bus Scalability: One-Stop Integration of Multiple Peripherals

The SPI bus natively supports a master-multiple-slave topology. On the same bus, this display module can be paralleled with SPI Flash storage, SPI touch controllers, ADC modules, and other peripherals without the need for additional dedicated I/O pins. This enhances overall hardware integration and simplifies the control system design for multi-peripheral coordinated operation.

Industrial-grade high-reliability core performance highlights

Ultra-Wide Temperature Range for Global Stable Operation

The 2.8-inch TFT module adopts industrial-grade LCD raw materials, wide-temperature backlight components, and thermally resilient packaging processes. Its operating temperature range covers –20°C to +70°C, enabling reliable 24/7 operation in severely fluctuating thermal environments such as low-temperature outdoor sites, high-temperature server rooms, and industrial control cabinets on production lines. With a storage temperature range extended from –30°C to +80°C, the 2.8-inch TFT module ensures that neither the LCD panel nor the driving circuitry is damaged by extreme cold or heat during warehousing and long-distance transportation. This makes the 2.8-inch TFT module well-suited for equipment storage and field deployment across diverse global regions.

• 8kV ESD Protection – Stable Anti-Interference in Harsh Electromagnetic Environments

Industrial workshops, handheld devices, and power monitoring scenarios are commonly subject to electrostatic discharge and pulsed electromagnetic interference, which can easily cause screen flickering, black screens, or driver chip damage. The 2.8-inch TFT module integrates an ESD protection circuit rated up to 8kV, paired with a stable 3.3V drive circuit, effectively resisting electrostatic shocks generated by human contact and equipment friction. It is well-suited for industrial control, power systems, IoT, and other high-interference operating conditions, significantly reducing the probability of on-site failures.

• 300 cd/m² Backlight – Strong Visibility Under Complex Lighting Conditions

The 2.8-inch TFT module features a standard 300 cd/m² high-brightness backlight combined with an optimized optical light-guide structure, effectively mitigating glare from indoor strong lighting and window-side natural light reflection. Under workshop ceiling lights or partially shaded outdoor conditions, on-screen digits, alarm indicators, and waveform curves remain clearly legible without the need for additional light-shielding structures, thereby simplifying the overall enclosure design.

• PI-Reinforced FPC Cable – Optimized for Mass Production Assembly

Conventional FPC cables have thin gold fingers that are prone to bending and breakage, resulting in high failure rates during batch production processes such as soldering, assembly, and system integration testing. The 2.8-inch TFT module comes standard with a 14-pin PI-reinforced FPC cable, featuring a thickened gold-finger protective layer with significantly improved tensile strength and flex endurance. It is compatible with both automated SMT and manual assembly processes, reducing production losses and post-sale contact-related failures.

Comprehensive Industry-Typical Application Scenarios

Leveraging its ultra-thin structure, minimalist SPI wiring, wide-temperature range, anti-static protection, and low-power features, the 2.8-inch TFT module (model TFT-H028A26QVTST3N14) is well-suited for four major application sectors: industrial, portable detection, smart home, and medical equipment.

• Industrial Intelligent Control Terminals

Ideal for HMI control panels on automated production lines, power monitoring instruments, environmental monitoring control cabinets, and small inverter operator panels. With a wide operating temperature range of –20°C to +70°C and 8kV electrostatic discharge protection, the 2.8-inch TFT module perfectly withstands harsh workshop conditions involving high temperatures, dust, and frequent static discharges, delivering stable 24/7 display of equipment operating parameters and fault alarm codes.

• Handheld Portable Detection Devices

Suitable for handheld infrared thermometers, portable gas analyzers, barcode collection PDAs, and rapid water quality testers. Despite its ultra-slim 2.32mm profile, the 2.8-inch TFT module leaves ample space for large-capacity lithium battery integration. Its SPI low-pin-count design simplifies wiring on small main control boards, while its low-power characteristics extend battery life during field inspections and on-site patrols.

• Smart Home and IoT Gateways

Applicable to smart wall switch control panels, indoor temperature and humidity monitoring displays, small appliance operator interfaces, and IoT data collection terminals. The 2.8-inch TFT module features a standardized SPI driver that enables rapid interfacing with various IoT MCUs. Its sleek, slim form factor facilitates convenient installation in home decor, and its wide-temperature design adapts to both room-temperature and fluctuating indoor environments.

• Portable Medical Assistance Devices

Designed for electronic blood pressure monitors, fingertip pulse oximeters, and small in-vitro diagnostic analyzers. The 2.8-inch TFT module employs a normally white TN panel with excellent contrast, rendering patient vital-sign readings and measurement curves with clarity and visual comfort. Its low-voltage, low-power design is fully compatible with portable battery-operated medical devices, meeting the stringent requirements for lightweight construction and high stability in medical applications.

Frequently Asked Technical Questions

Q1: Can this 2.8-inch TFT module be used in industrial and semi-outdoor scenarios?

A: It is fully suitable for industrial and light outdoor use. The module features three core industrial attributes: an industrial-grade wide operating temperature range of -20°C to +70°C, 8kV ESD protection, and 300 cd/m² high-brightness backlight. It operates reliably in harsh environments such as factory production lines, power equipment rooms, and handheld outdoor inspection devices, making it a standardized selection solution for small industrial displays. For all-day, high-intensity outdoor scenarios, anti-glare AG panels and custom versions with higher brightness backlights are available.

Q2: Is the four-wire SPI interface more difficult to develop compared to parallel interfaces?

A: On the contrary, it is easier. The ST7789 driver chip has open-source driver code available across all major platforms. The four-wire SPI timing logic is straightforward, and the MCU's hardware SPI peripheral can automatically handle clock synchronization, eliminating the need for software-emulated parallel timing. Fewer wiring connections also reduce the probability of soldering and debugging errors, thereby shortening the overall software and hardware development cycle.

Q3: Does the ultra-thin 2.32mm thickness compromise the structural reliability of the screen?

A: No. The liquid crystal layer and backlight module are integrated with reinforced packaging, and the FPC flexible cable is PI-reinforced. The complete assembly has passed bending and drop reliability tests. The ultra-thin design is merely a form-factor advantage, while the core display components maintain industrial-grade protection standards, achieving both slimness and durability.
