9-inch IPS TFT LCD display

In application fields such as industrial automation, intelligent medical care, in-vehicle equipment, and outdoor terminals, display screens are required not only to deliver clear and detailed images but also to cope with challenges posed by complex environments, including intense light exposure, temperature variations, electromagnetic interference, and long-term operational stability.

Ordinary consumer-grade displays often fall short of meeting the reliability and environmental adaptability requirements of industrial equipment. Therefore, industrial-grade TFT display modules featuring high brightness, wide-temperature operation, and flexible interface designs have become the preferred choice for an increasing number of equipment manufacturers.

The TFT-H090A02WSIGH7N40 9-inch IPS TFT LCD Display launched by HOTDISPLAY is specifically designed for industrial control, portable devices, and smart terminal applications. Integrating IPS full-viewing-angle technology, high-brightness backlight, wide-temperature design, and multi-interface compatibility, it delivers a stable and reliable solution for display needs in harsh environments.

Product Overview: 9-inch IPS TFT display module, balancing image quality and industrial reliability

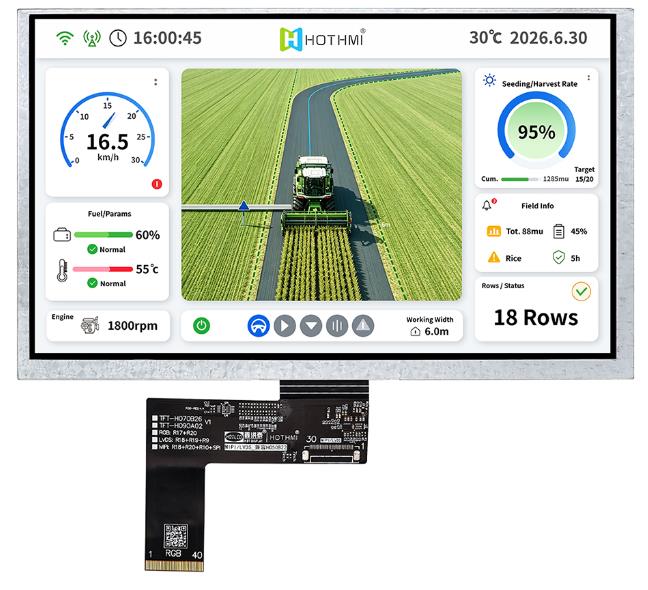

The TFT-H090A02WSIGH7N40 is a high-performance 9-inch LCD IPS TFT display module with a 1024×600 resolution. It features advanced IPS panel technology, providing more stable color performance and a wide viewing angle.

This display module employs a constant black display mode, coupled with 50% NTSC color gamut coverage, resulting in better contrast and color gradation. Even when displaying complex industrial graphics, instrument data, or dynamic user interfaces, it maintains a clear and accurate visual effect.

Furthermore, this module supports LVDS, MIPI DSI, and RGB interface expansion solutions, meeting the hardware requirements of different main control platforms and significantly improving product design flexibility.

Product Advantages of the 9-inch IPS TFT LCD display

Key Advantage 1: 700cd/m² high brightness display, clearly visible even in complex lighting environments

In environments with strong industrial lighting, outdoor sunlight, vehicle backlighting, and brightly lit medical rooms, screen glare can easily cause illegible images and washed-out displays. To address these complex high-glare conditions, this product is equipped with a high-performance constant-current backlight drive system.

Under a constant current of 240mA, the screen can stably output a high brightness of 700 cd/㎡. The high-brightness backlight, combined with the IPS panel and always-black display mode, effectively improves image readability and strongly resists ambient light interference.

Even in environments with:

• strong lighting in industrial workshops

• sunlight on outdoor equipment

• changing lighting conditions in car cabins

• complex visual requirements of medical equipment

it can still maintain a clear and stable image display. For human-machine interface devices that need to operate around the clock, high brightness not only improves the viewing experience but also reduces the risk of operational errors.

Core Advantage Two: IPS full-viewing-angle technology, achieving a consistent display experience from multiple angles

Traditional TN-type TFT displays are prone to the following issues when viewed from an angle away from the front:

Color shift

• Decreased brightness

• Reduced contrast

• Image distortion

The TFT-H090A02WSIGH7N40 utilizes IPS technology and optimizes the liquid crystal molecule arrangement, significantly improving viewing angle performance compared to traditional TN screens which suffer from issues like whitening at angles and severe color shift.

This module achieves full-viewing angle display (U85/D85/R85/L85). Whether viewed from the side, by multiple people at various angles, or at an angle, the following characteristics are maintained:

✔ Consistent Color

✔ Clear Image

✔ Low Viewing Angle Deviation

✔ High Visual Comfort

Therefore, it is particularly suitable for: industrial control panels, medical monitoring equipment, smart home central control screens, in-vehicle entertainment systems, and scenarios requiring multiple viewers.

TN vs VA vs IPS LCD Panel Technology Performance Comparison

This table compares the differences in key performance and characteristics of TN, VA, and IPS TFT LCD technologies.

Core Advantage 3: LVDS / MIPI DSI / RGB Multi‑Interface Design for Enhanced System Compatibility

In the development of industrial equipment and embedded terminals, the long‑standing pain points have always been single‑interface constraints, poor platform compatibility, and high hardware modification costs.

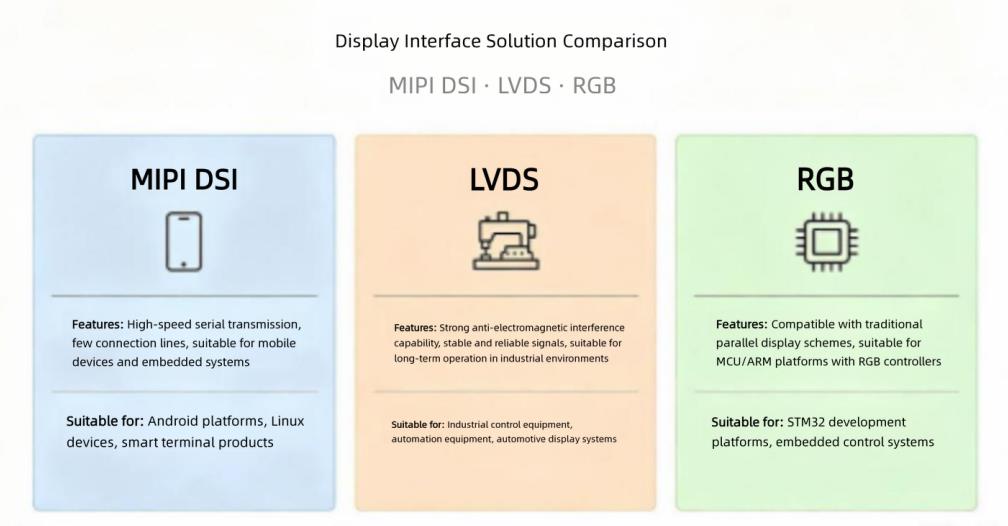

To address these challenges, the TFT‑H090A02WSIGH7N40 9‑inch IPS TFT LCD Display is equipped with a fully compatible solution that integrates three mainstream interfaces: LVDS, MIPI DSI, and 40‑pin RGB.

As a rare industrial‑grade display on the market that allows free switching among these three interfaces, this product eliminates the need for model changes or re‑tooling of PCB layouts. By simply fine‑tuning the resistance values of SMD resistors on the back of the FPC cable, the transmission mode can be quickly switched to adapt to different main controllers and hardware architectures. This effectively boosts design flexibility and significantly reduces costs in R&D, board re‑spinning, and mass production.

• MIPI DSI

Features: High-speed serial transmission, fewer connection cables, suitable for mobile devices and embedded systems

Suitable for: Android platform, Linux devices, smart terminal products

• LVDS

Features: Strong resistance to electromagnetic interference, stable and reliable signal, suitable for long-term operation in industrial environments

Applications: Industrial control equipment, automation equipment, vehicle display systems

• RGB

Features: Compatible with traditional parallel display solutions;

suitable for MCU/ARM platforms with RGB controllers. Applications: STM32 development platforms, embedded control systems.

By adjusting the FPC circuit configuration, the same display structure can be adapted to different hardware architectures, facilitating product upgrades and platform migrations. The flexible switching design of three interfaces completely breaks the limitations of single-interface screens, ensuring compatibility with all mainstream software and hardware platforms.

Customers can rely on the same screen hardware to adapt to multiple different device models, effectively shortening the R&D cycle and reducing modification costs and inventory pressure. It also facilitates product iteration and cross-platform project migration, making it an excellent supporting solution for the universal and lightweight design of industrial equipment.

Core Advantage Four: Industrial-Grade Wide Temperature Range Design, Adaptable to Long-Term Operation in Complex Environments

Industrial equipment typically faces challenges such as temperature variations, continuous operation, and the influence of complex environmental factors.

The TFT-H090A02WSIGH7N40 supports a complete wide operating temperature range, with the following parameters:

• Operating Temperature: -20℃ ～ +70℃

• Storage Temperature: -20℃ ～ +80℃

•


Compared to ordinary consumer-grade display modules, this product uses industrial-grade materials and manufacturing processes, improving its environmental adaptability.

Hardware features multiple stabilization structures:

• SUS stainless steel backplate structure

• Stable backlight design

• Precision structural control

• High-reliability component selection

Effectively resists industrial vibration, electrostatic interference, and temperature and humidity fluctuations, supporting 24/7 uninterrupted stable operation and extremely high industrial reliability.

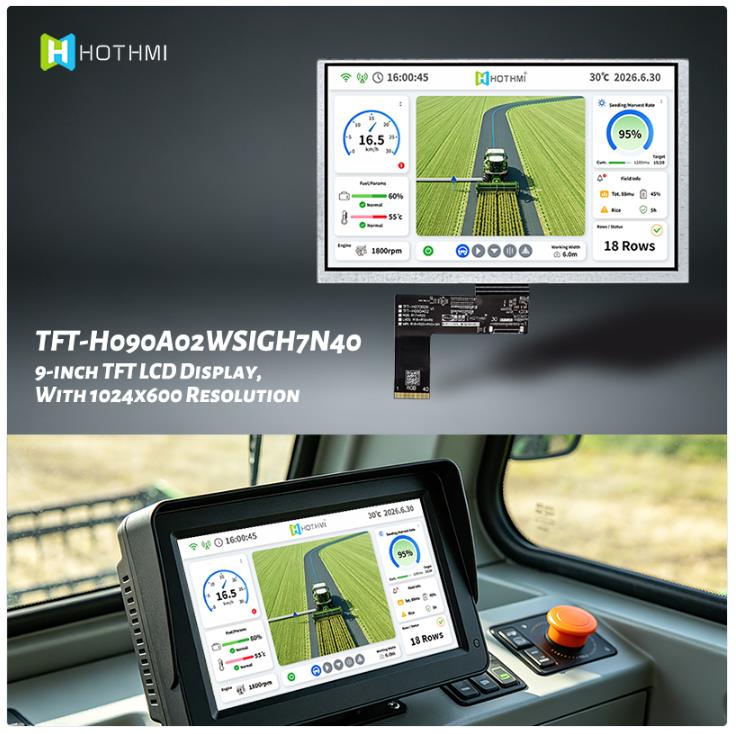

Full-Scenario Empowerment, Covering High-End Hardcore Application Fields

Leveraging its four core advantages—700 cd/㎡ industrial high brightness, IPS full-viewing angles, wide-temperature stable operation, and multi-interface compatibility—this display breaks through the limitations of ordinary screens in diverse scenarios.

It perfectly adapts to various complex working conditions and high-end intelligent equipment, with broad applications across four core sectors: industrial, medical, automotive, and commercial self-service. It comprehensively meets the demands for multi-scenario, all-weather stable operation.

1. Smart Industrial Human-Machine Interface (HMI)

Applications: Automated production line control cabinets, industrial robot operation terminals, PLC control equipment, smart manufacturing devices

With high-definition visuals and wide viewing angles, it delivers real-time display of parameter data, equipment status, and graphical control interfaces.

2. Medical Diagnostic Equipment

Applications: Hematology analyzers, ultrasound devices, medical monitoring terminals

The IPS full-viewing-angle technology ensures that medical staff can accurately identify waveforms, data, and image information from different viewing positions.

3. Smart Automotive and Transportation Equipment

Applications: Commercial vehicle central control displays, GPS navigation devices, EV charging station display terminals

The wide-temperature design ensures stable operation under cold environments and varying temperature conditions.

4. Instrumentation and Meters

Applications: Power meters, thermostat panels, measurement device displays, data acquisition terminals

High resolution clearly presents parameters, curves, and data, while multi-interface compatibility allows seamless adaptation to various main control platforms.

Specification of the 9-inch IPS TFT LCD Display

For more product details, please click the link:TFT-H090A02WSIGH7N40

Video for this 9-inch IPS TFT LCD Display：Video

With the development of industrial intelligence and equipment digitalization, display modules have become not only information output windows but also crucial entry points for human-device interaction.

The HOTDISPLAY TFT-H090A02WSIGH7N40 9-inch IPS TFT LCD screen boasts:

✔ 700cd/m² industrial-grade high brightness

✔ IPS full-viewing-angle display technology

✔ LVDS/MIPI/RGB multi-interface compatibility

✔ -20℃~+70℃ wide operating temperature range

✔ Stable and reliable industrial structural design

This achieves a comprehensive upgrade in image quality, performance, adaptability, and stability. It is widely adaptable to high-end scenarios such as industrial intelligence, medical precision equipment, automotive intelligent terminals, and commercial self-service equipment, effectively solving the pain points of traditional screens such as weak adaptability, poor image quality, and inability to withstand complex environments. No need for multiple models in stock or complex hardware modifications; it provides one-stop adaptation to multiple scenarios and platform development needs, making it a high-performance, high-reliability display solution for industrial equipment upgrades and intelligent terminal development.
