New Product：18.5 inch FHD industrial monitor

When sunlight becomes the "enemy," can your monitor still display a clear image?

In modern industrial control, outdoor self-service kiosks, and harsh marine and vehicle-mounted environments, standard displays frequently suffer from screen reflection, image blur, and illegible content due to excessive ambient light. Conventional industrial monitors typically offer brightness levels of only 250 to 300 cd/m². When direct sunlight strikes the screen, the intensity of reflected ambient light far exceeds the display's backlight, causing the screen to wash out completely and become unreadable. This issue proves particularly critical in outdoor charging piles, smart gas stations, open-air medical rescue stations, and similar scenarios—if operators cannot clearly see the screen, they cannot complete their tasks, which directly undermines equipment operational efficiency and human-machine interaction safety, and may even trigger safety incidents.

To address the fundamental display and interaction requirements under extreme working conditions, the HOT-DS185VH 18.5 inch FHD industrial monitor has been precisely developed through iterative R&D, purpose-built for industrial-grade scenarios demanding high reliability in outdoor strong-light environments and wide-temperature fluctuations. Featuring an ultra-high-brightness optical solution, customized optical cover glass, wide-temperature hardware architecture, and high-precision capacitive touch system, this 18.5 inch FHD industrial monitor effectively resolves display and interaction challenges under intense outdoor lighting. Moreover, the 18.5 inch FHD industrial monitor delivers comprehensive, all-weather, highly stable visual interaction solutions across diverse application scenarios. For system integrators and equipment manufacturers seeking a dependable HMI, this 18.5 inch FHD industrial monitor represents the optimal balance of performance and durability. Ultimately, the 18.5 inch FHD industrial monitor ensures that critical operational data remains clearly visible regardless of environmental conditions, empowering frontline workers with reliable visual feedback at all times.

Click the link to learn more about the product's specifications: HOT-DS185VH

Product video explanation:18.5-Inch Monitor

Five core highlights redefine for the 18.5 Inch Industrial Touchscreen Monitor

• Highlight 1: Core Display Performance – Clear Visibility in High-Brightness Environments, Eliminating Viewing Blind Spots




Equipped with a 1000 cd/m² industrial-grade ultra-high brightness backlight module, this 18.5 inch FHD industrial monitor delivers over 3× the brightness of conventional 250–300 cd/m² displays. This massive luminance advantage effectively overcomes direct sunlight and ambient strong-light interference, fundamentally solving the industry-wide problems of screen washout and unreadable content in outdoor settings. Additionally, the integrated wide-temperature backlight management system prevents LCD panel "anchor shift" under high-temperature, high-brightness conditions, eliminating structural defects such as hot spots, color darkening, and brightness degradation, thereby ensuring long-term display consistency.

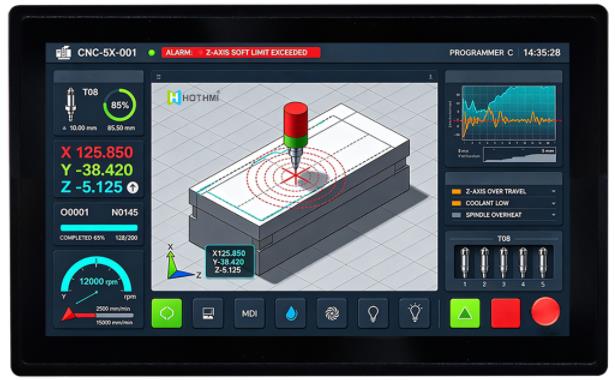

Featuring a 1920×1080 Full HD resolution and 85°/85°/85°/85° ultra-wide viewing angles (CR≥10), this 18.5 inch FHD industrial monitor delivers distortion-free, high-clarity visuals from all directions. Unlike standard displays that suffer from color shift, sudden brightness drops, and image distortion at wide angles, our device supports operators viewing from high, low, and side positions, maintaining accurate color reproduction, sharp data presentation, and zero image warping. It is fully optimized for multi-angle operational scenarios including industrial workstations, in-vehicle consoles, and outdoor kiosks.

Targeting the critical display and interaction demands of extreme working conditions, the HOT-DS185VH 18.5 inch FHD industrial monitor is purpose-built for high-reliability industrial environments featuring intense sunlight and wide temperature fluctuations. Through its ultra-high-brightness optical architecture, customized cover glass, wide-temperature hardware design, and precision capacitive touch system, this 18.5 inch FHD industrial monitor resolves the core challenges of outdoor visibility and interaction. The result is a comprehensive, all-weather, highly stable visual interaction solution — making this 18.5 inch FHD industrial monitor the definitive choice for mission-critical applications where standard displays fail.

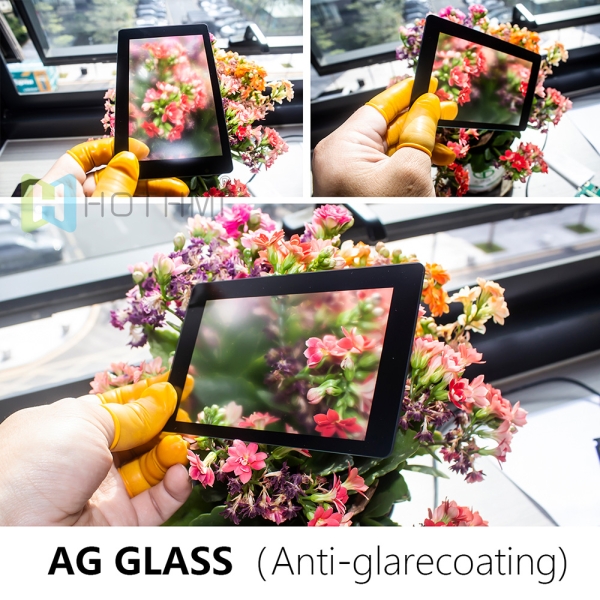

• Highlight 2: Customized Optical Cover Glass – AG+AR Dual Process for Optimized Outdoor Display Quality

This is the most differentiated technical highlight of the 18.5 inch FHD industrial monitor – HOT-DS185VH. To adapt to the most extreme outdoor lighting conditions, this 18.5 inch FHD industrial monitor is equipped with dual customized optical treatments: AG (Anti-Glare) + AR (Anti-Reflective). These two technologies work in synergy to comprehensively upgrade the screen's anti-interference capability and imaging quality.

The AG Anti-Glare process employs chemical etching, nano-spraying, or laser micro-texturing to create a micron-level matte microstructure on the glass surface. This diffuses harsh specular reflections into soft diffuse reflections, effectively reducing mirror-like glare caused by ambient light. As a result, the screen becomes "softer and more readable" under intense sunlight, significantly enhancing outdoor visibility for the 18.5 inch FHD industrial monitor.

The AR Anti-Reflective process involves depositing multiple layers of optical thin films on the glass surface. By leveraging destructive interference, it cancels out reflected light, reducing single-side reflectance to below 0.5% while achieving light transmittance of ≥97%. This delivers clearer and more vivid images. The combination of AG and AR greatly improves dynamic contrast ratio and color transparency. Even in rain, snow, intense sunlight, or complex lighting environments, this 18.5 inch FHD industrial monitor ensures high-definition presentation of images, data, and waveform graphics, effectively eliminating visual misjudgment.

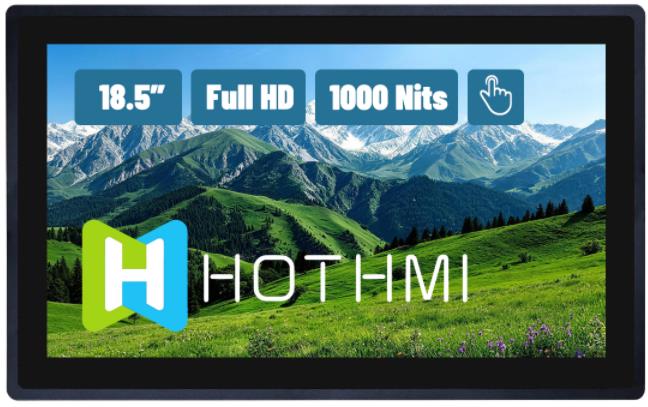

• Highlight Three: Industrial-Grade Touch System – Zero-Latency High-Precision Interaction for Complex Industrial Operations

The device integrates an industrial-grade high-sensitivity capacitive touch panel, paired with an optimized touch algorithm that delivers core interaction parameters meeting stringent industrial standards: touch accuracy ≤3mm and response time ≤2.5ms, enabling millisecond-level zero-latency control. This 18.5 inch FHD industrial monitor supports multi-touch, intelligent palm rejection, and glove-touch operation, making it perfectly suited for high-frequency, fine-grained, and continuous human-machine interaction demands in industrial environments. Whether you are navigating complex HMI interfaces, adjusting critical parameters, or controlling heavy machinery, this 18.5 inch FHD industrial monitor ensures stable, drift-free touch performance with zero perceived lag. Its robust touch system is engineered to withstand harsh shop-floor conditions, delivering reliable and precise operation even under vibration, dust, or temperature extremes. Designed specifically for demanding industrial use cases, this 18.5 inch FHD industrial monitor eliminates the frustration of delayed or inaccurate touch responses commonly found in consumer-grade displays. With its combination of rapid response, high accuracy, and rugged construction, the 18.5 inch FHD industrial monitor provides operators with a seamless, intuitive, and highly responsive control experience, significantly improving workflow efficiency and reducing operational errors in mission-critical industrial applications.

• Highlight 4: Wide-Temperature Rugged Structural Design – Full-Operating-Condition Tolerance for Long-Term Stable Performance

The entire unit features a CNC-machined precision aluminum alloy unibody housing, finished with high-temperature-resistant black baking paint. The 18.5 inch FHD industrial monitor boasts a rugged and compact structure with excellent vibration resistance, shock resistance, corrosion resistance, oil resistance, and dust proofing. It effectively withstands interference from shop floor chips, oil mist, mechanical vibration, and other harsh conditions, making this 18.5 inch FHD industrial monitor perfectly suited for demanding industrial environments.

On the hardware side, the architecture supports an ultra-wide operating and storage temperature range from -20°C to +70°C, breaking through the conventional temperature limitations of standard displays. Whether deployed in freezing outdoor sub-zero conditions or in high-temperature scenarios caused by summer sun exposure and equipment heat dissipation, this 18.5 inch FHD industrial monitor ensures stable startup and continuous operation. It eliminates common issues found in ordinary screens—such as touch failure at low temperatures, black-screen shutdown at high temperatures, and performance degradation—while meeting the requirements of 7×24 hours uninterrupted industrial operations. For mission-critical applications where reliability is non-negotiable, the 18.5 inch FHD industrial monitor delivers uncompromising durability and thermal stability across the full temperature spectrum.

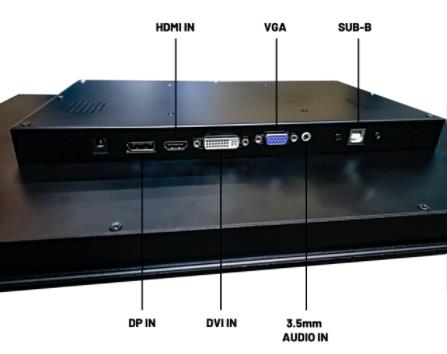

• Highlight 5: High-Compatibility Expansion Capability – Multi-Interface Adaptation for Rapid Integration with Various Systems

The unit comes standard with multiple video interfaces including DP, HDMI, DVI, and VGA, delivering exceptional compatibility. This 18.5 inch FHD industrial monitor seamlessly connects to Raspberry Pi embedded systems, a wide range of industrial host computers, PLC industrial control cabinets, and onboard vehicle terminals—without requiring additional adapter accessories. System integration and retrofitting can be completed quickly, making this 18.5 inch FHD industrial monitor an ideal choice for diverse deployment scenarios, including legacy industrial equipment upgrades, outdoor terminal customization, and special-purpose vehicle modifications.

Thanks to its versatile interface portfolio, the 18.5 inch FHD industrial monitor eliminates the hassle of signal conversion and driver conflicts, ensuring plug-and-play connectivity across different platforms. Whether you are modernizing an aging factory line or building a custom outdoor kiosk, this 18.5 inch FHD industrial monitor adapts effortlessly to your existing infrastructure, significantly reducing downtime and integration costs while future-proofing your investment.

Core Application Scenarios – Precisely Covering Harsh Industrial and Specialized Fields

• Scenario 1: Outdoor New Energy & Fuel Self-Service Terminals

Ideal for smart EV charging stations and self-service fuel dispensers, this 18.5 inch FHD industrial monitor withstands year-round direct sunlight, extreme day-night temperature swings, wind, frost, rain, and snow. It delivers precise touch response and crystal-clear imagery under both high and low temperature conditions, ensuring stable operation of unattended equipment. With its high-brightness screen, the 18.5 inch FHD industrial monitor allows vehicle owners to clearly view charging progress, payment information, and fault alerts even under the scorching midday sun.

• Scenario 2: Specialized Medical & Emergency Vehicle-Mounted Systems

Designed for embedded installation in ambulances, mobile medical shelters, and field rescue terminals, this 18.5 inch FHD industrial monitor presents critical medical data—including ECG readings and ultrasound images—with outstanding clarity under intense light and high-UV outdoor rescue conditions. The anti-glare design effectively prevents reflection-induced misinterpretation, ensuring precise and efficient life-saving operations.

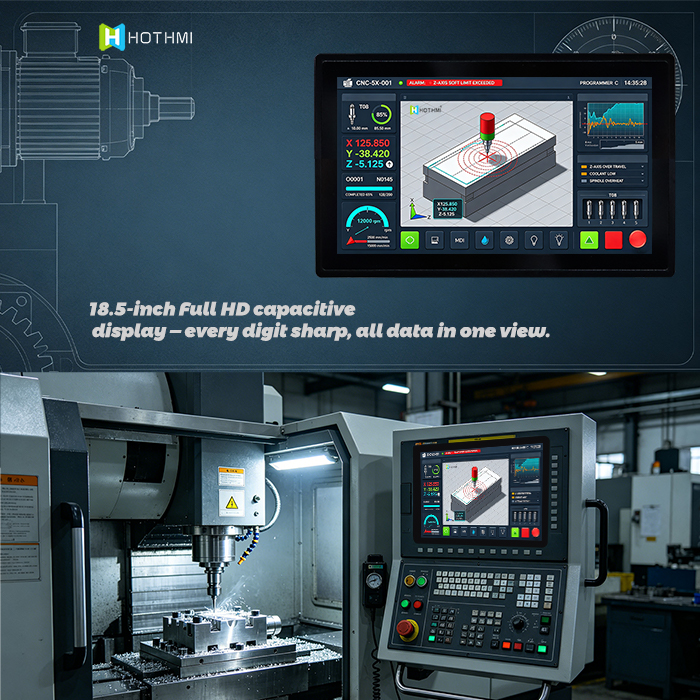

• Scenario 3: Factory Smart Automation Production Lines

With its rugged construction and exceptional anti-interference capabilities, the 18.5 inch FHD industrial monitor perfectly adapts to factory environments laden with dust, oil contamination, and vibration. Its versatile multi-interface design enables seamless integration with automation control cabinets, providing stable visual support for production line monitoring, parameter tuning, and equipment maintenance.

• Scenario 4: Vehicle, Marine & Outdoor Industrial Control Equipment

Leveraging its wide-temperature tolerance, high brightness, and vibration resistance, the 18.5 inch FHD industrial monitor is ideally suited for construction machinery, specialty vehicles, marine decks, and other mobile harsh-operation scenarios. It delivers long-lasting, reliable human-machine interaction across complex and demanding environments.

Why choose this 18.5-inch Full HD industrial monitor?

The HOT-DS185VH is more than just a monitor; it's your most reliable visual partner in extreme environments. Compared to ordinary industrial monitors, the HOT-DS185VH boasts five core advantages: ultra-bright optical display, AG+AR dual-process technology, wide-temperature industrial architecture, high-precision and stable touch control, and full-scene compatibility and expansion capabilities. These advantages specifically address various pain points of industrial displays in extreme environments. Whether in a blazing outdoor charging station or an industrial site in extreme heat or cold, it ensures that every image is clearly visible and every touch is accurate, making it the preferred industrial display terminal for various high-end and demanding scenarios.
