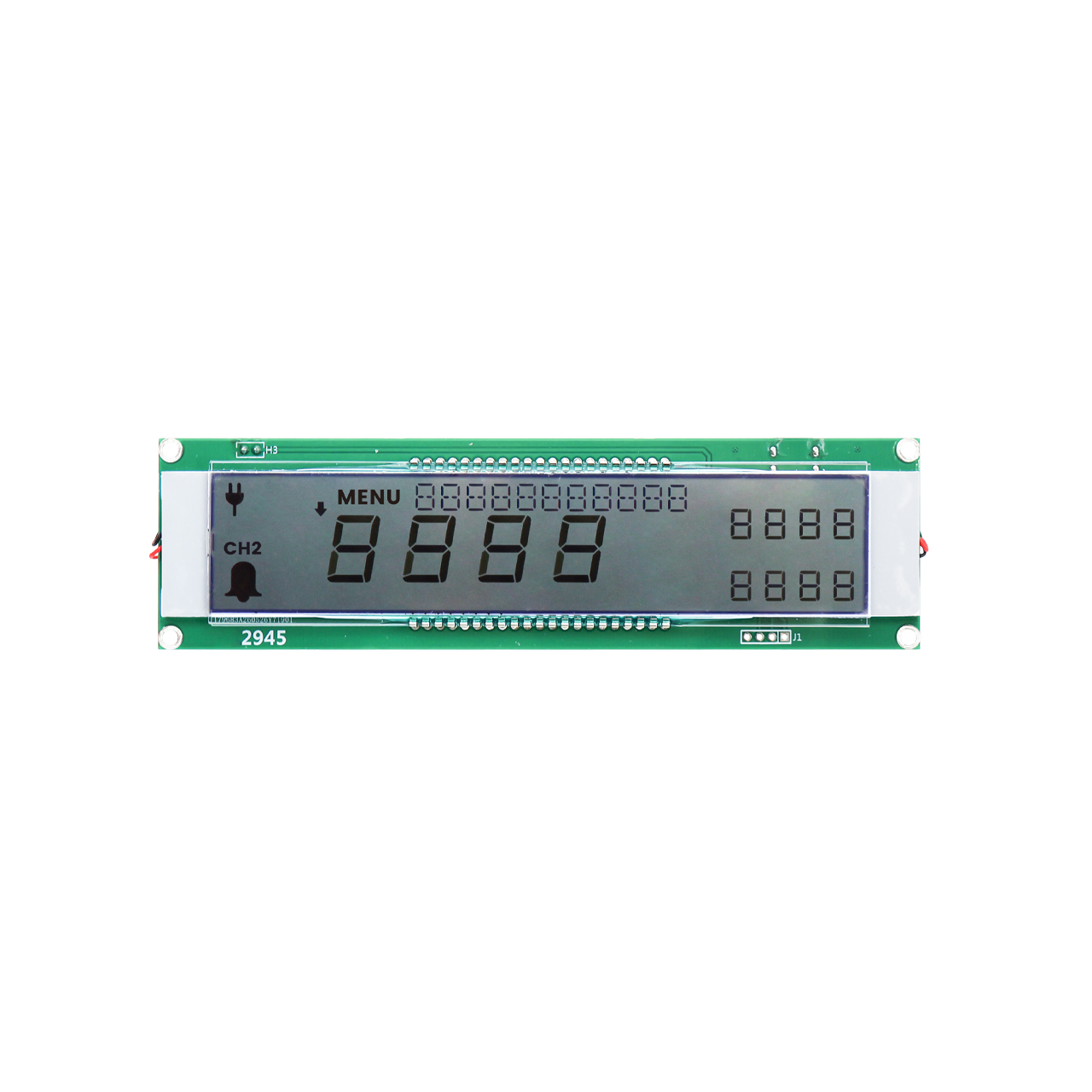

Custom Low-power LCD Segment FSTN Display for Meter Applications
When it comes to metering equipment, every microamp of current matters. Our Custom Low-power LCD Segment FSTN Display is engineered specifically for meter applications where reliability, readability, and energy efficiency are critical. As an experienced custom LCD manufacturer, we deliver fully tailored segment display solutions that match your exact mechanical, electrical, and optical requirements.

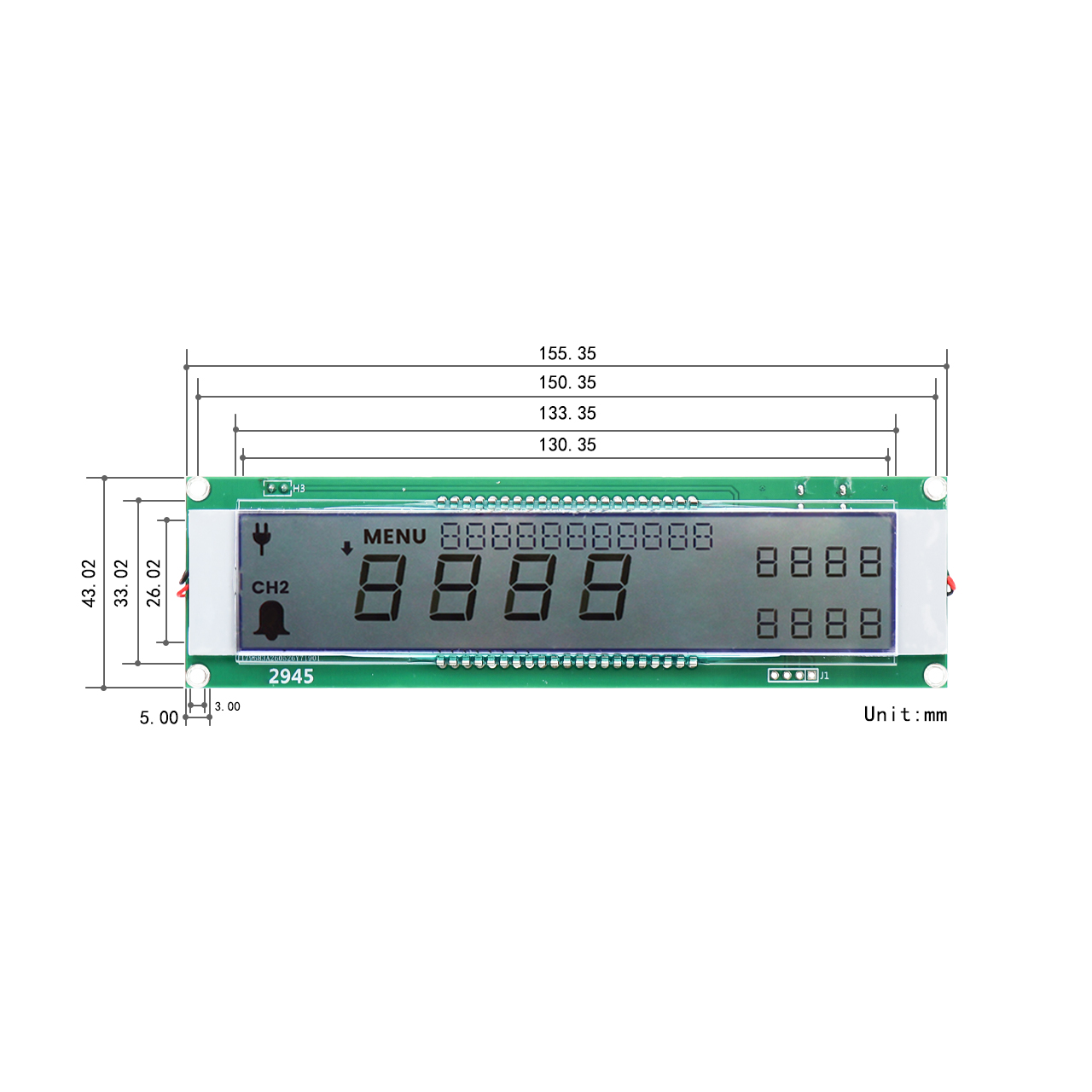

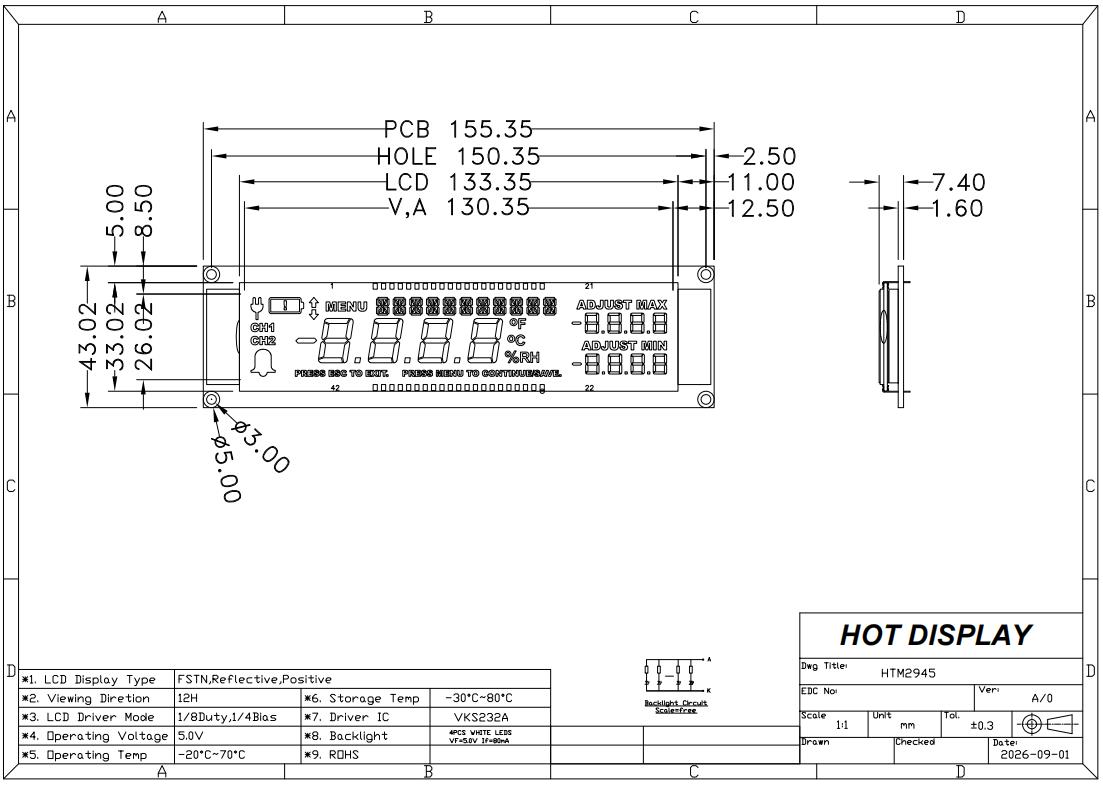

Specifications for the Low-power LCD
This custom segment LCD module is designed with the following core parameters:
Type: Custom Segment LCD
Viewing Angle: 12 o'clock
Driving Mode: 1/8 Duty; 1/4 Bias
Operating Temperature: -20°C to 70°C
Supply Voltage: 5.0V
Every parameter can be adjusted. Whether you need a different duty ratio, a wider temperature range, or a specific connector layout, our engineering team works directly with you to build the right Low-power LCD for your product.
Why FSTN Technology?
FSTN (Film Compensated Super Twisted Nematic) offers significantly better contrast and a wider viewing angle than standard TN displays, while remaining far more cost-effective than full graphic TFT solutions. For meter applications that display fixed icons, digits, and status indicators, a segment FSTN display is the ideal balance of performance, durability, and cost.
Combined with our Low-power LCD design approach, this display helps extend battery life in portable and battery-backed metering devices — a decisive advantage in smart meters, energy meters, water meters, and gas meters.
True Custom LCD Capability
Unlike off-the-shelf display suppliers, we specialize in custom segment LCD development. Our custom LCD capabilities include:
Custom segment patterns and icons — from simple 7-segment digits to complex multi-icon layouts
Custom glass size and shape — including round, square, and irregular form factors
Custom viewing angle and polarizer options — reflective, transflective, and transmissive modes
Custom backlight solutions — LED backlight in various colors
Custom pinout and connection methods — metal pins, zebra connectors, FPC, and heat seal
Custom driving voltage and duty/bias configuration
This means your Low-power LCD is not adapted from a catalog part — it is designed from the ground up for your meter.
Quality and Reliability
Our FSTN segment displays are manufactured under strict quality control, with wide temperature operation from -20°C to 70°C ensuring stable performance in demanding outdoor and industrial environments. Each Low-power LCD module undergoes 100% inspection for appearance, contrast, and electrical performance before shipment.
We support OEM and ODM projects of all volumes, from prototype samples to mass production, with short lead times and responsive technical support.
Applications
This custom Low-power LCD segment FSTN display is widely used in:
Smart electricity meters
Water and gas meters
Energy monitoring devices
Industrial control panels
Portable measurement instruments
