3.5 inch TFT Display Module | 320x240 Resolution MCU Interface

3.5 inch TFT Display Module | 320x240 Resolution MCU Interface

▶ Model: HTM-H035A1-MCU-C13

▶ Type: 3.5 inch TFT Display Module
▶ Display Pixels: 320x240
▶ Dimensions (mm): 92x83.1x5.6
▶ Active Area (mm): 70.08x52.56
▶ Display Inches: 3.5"
▶ Application: Microcontroller/Arduino
▶ Viewing Angle: IPS Full Viewing Angle
▶ Brightness: 400cd/m²
▶ Pins: 20 PIN
▶ Interface: MCU
▶ Special Note: ESD Protection 8KV
▶ Operating Temperature: -30~80℃
▶ Supply Voltage: 3.3V
▶ Driver IC: SSD1963
Product ConsultationDatasheets Download
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Product Description
Customized Services
Attributes

HTM-H035A1-MCU-C13 | 3.5 inch TFT Display Module | 320x240 MCU interface TFT display| TFT color display

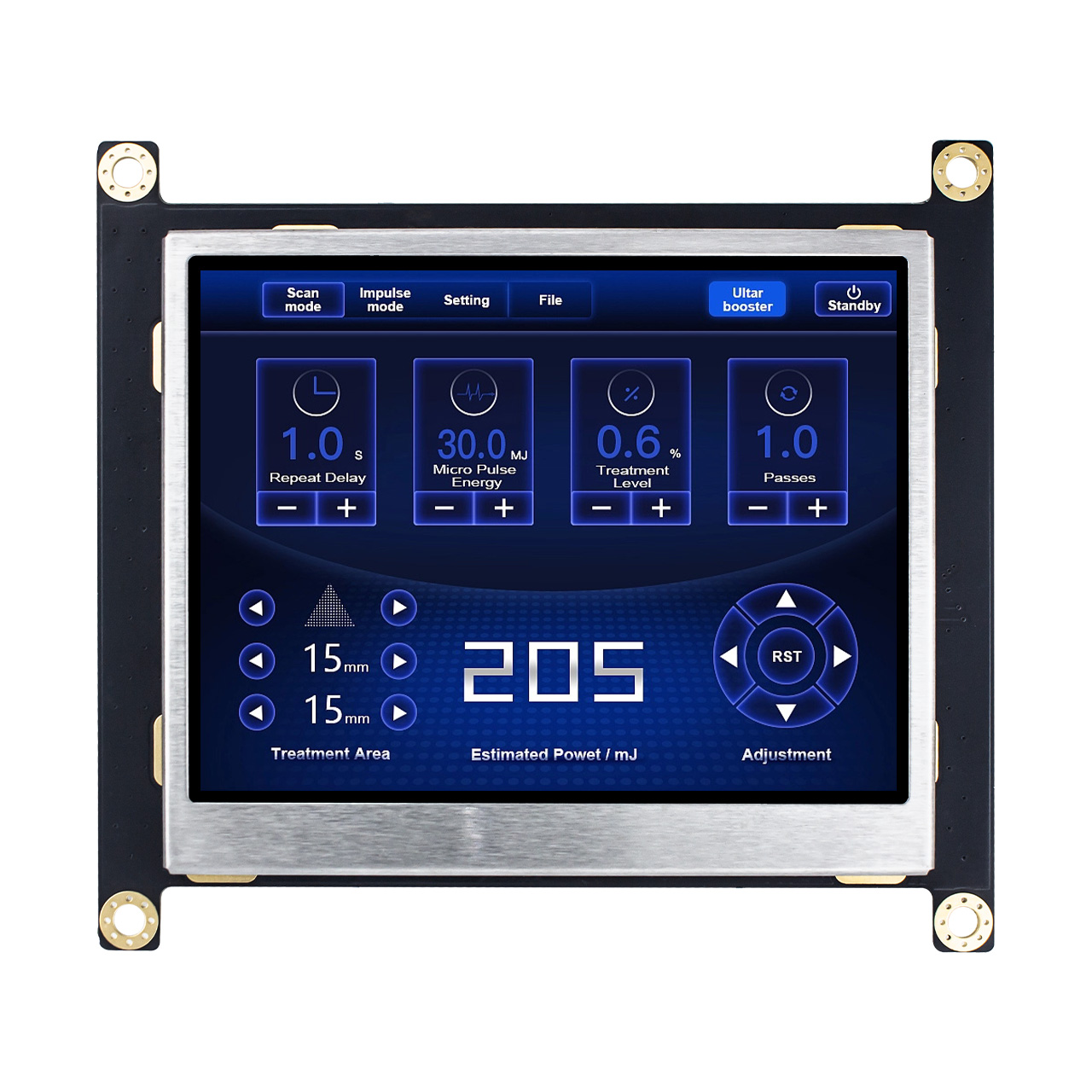

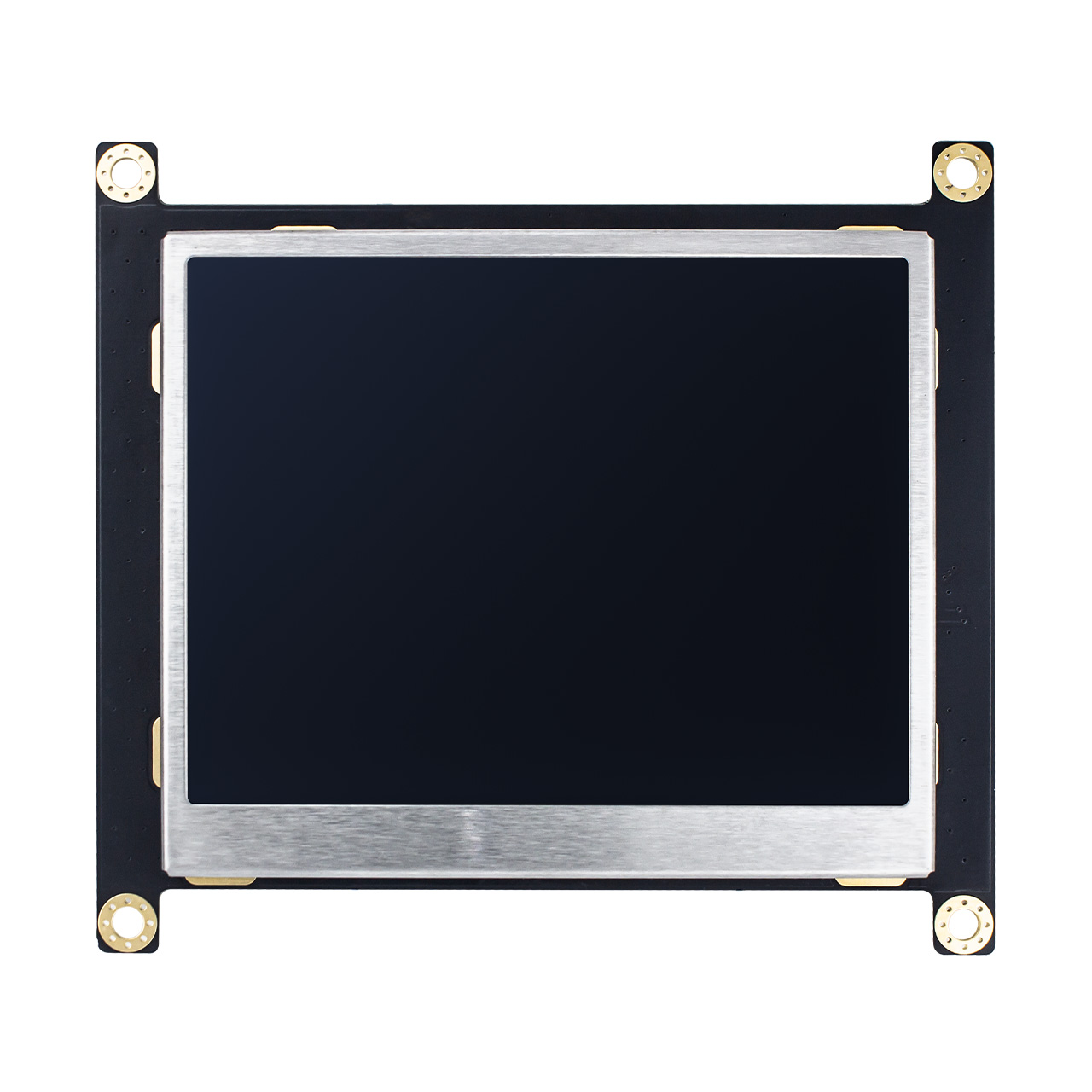

Introducing 3.5 inch TFT Display Module, a high-performance 3.5-inch TFT LCD module designed for a wide range of applications. With a resolution of 320(RGB) x 240 pixels and a normally black display, this module delivers vibrant colors with an NTSC 60% color gamut, ensuring sharp and clear visuals.

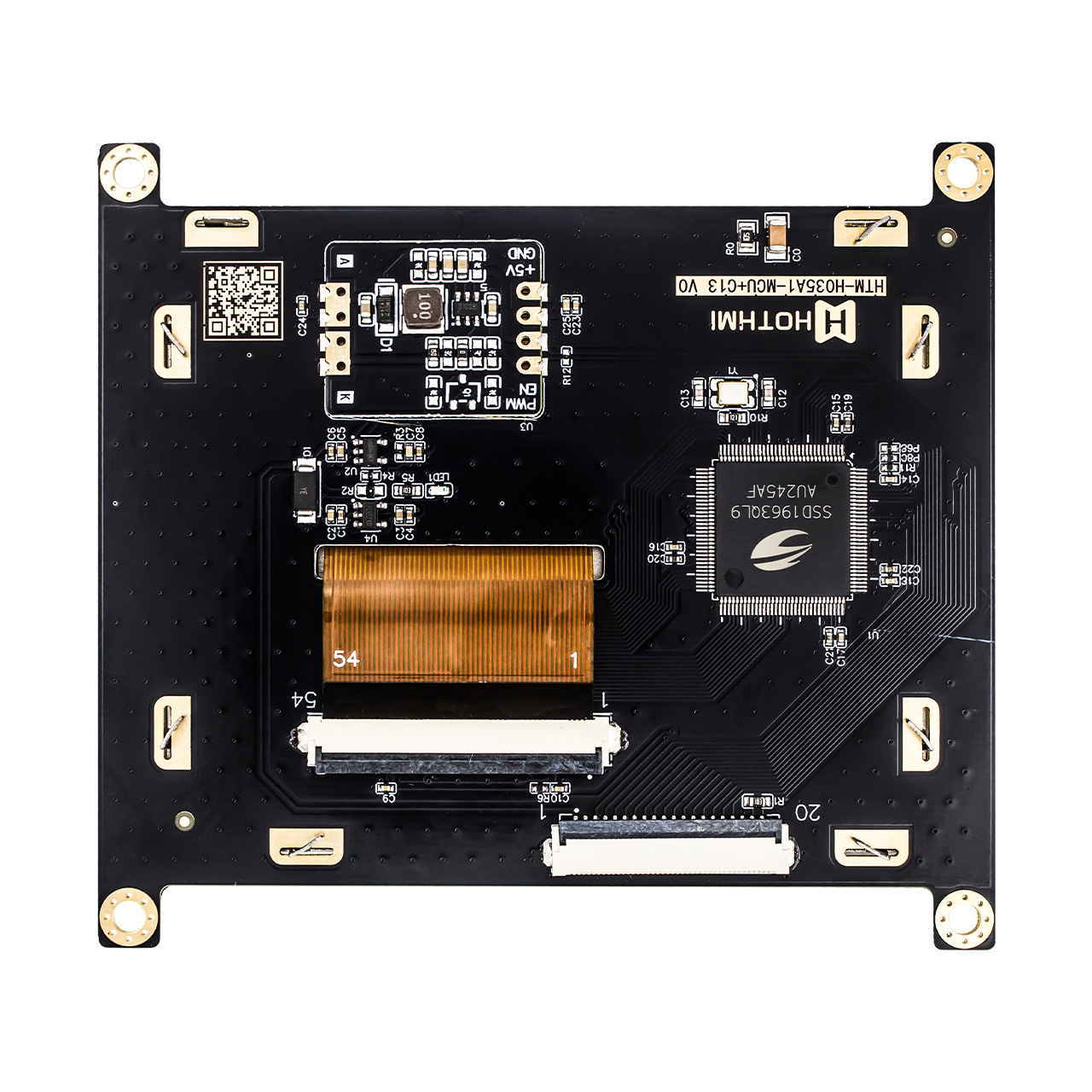

The 3.5 inch TFT Display Module HTM-H035A1-MCU-C13 features a parallel 8080-series MCU 8-bit interface, making it easy to integrate into various systems. It operates at a voltage of 3.3V ± 0.3V and is driven by the SSD1963 IC, offering reliable performance in temperatures ranging from -30°C to +80°C. The module also includes a bright backlight with a typical luminance of 400 cd/m², ensuring excellent visibility in different lighting conditions.

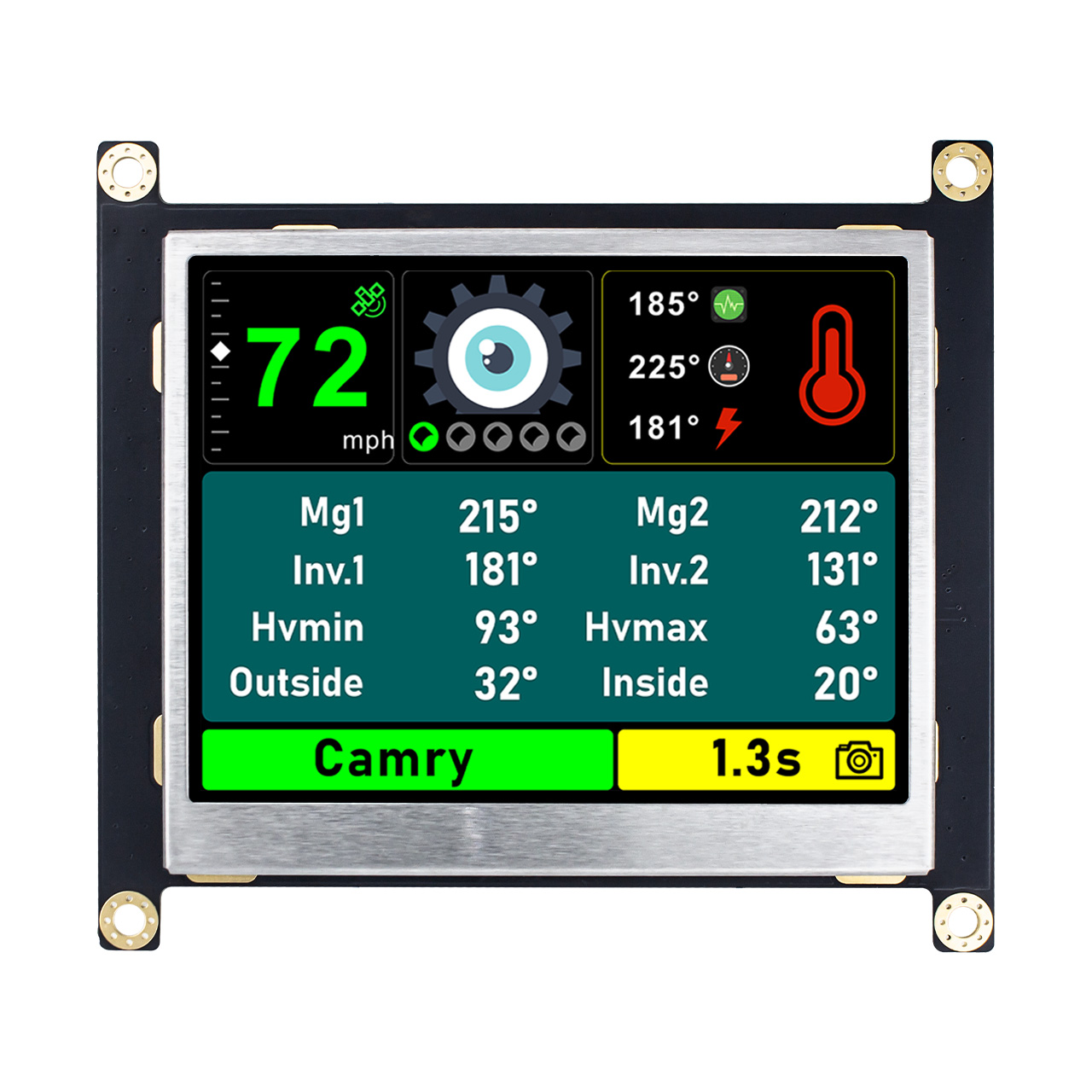

Ideal for industrial control panels, medical devices, and consumer electronics, this 3.5 inch TFT Display Module combines durability, versatility, and high-quality display performance. Upgrade your display solution with the HTM-H035A1-MCU-C13 for a seamless and visually stunning experience.

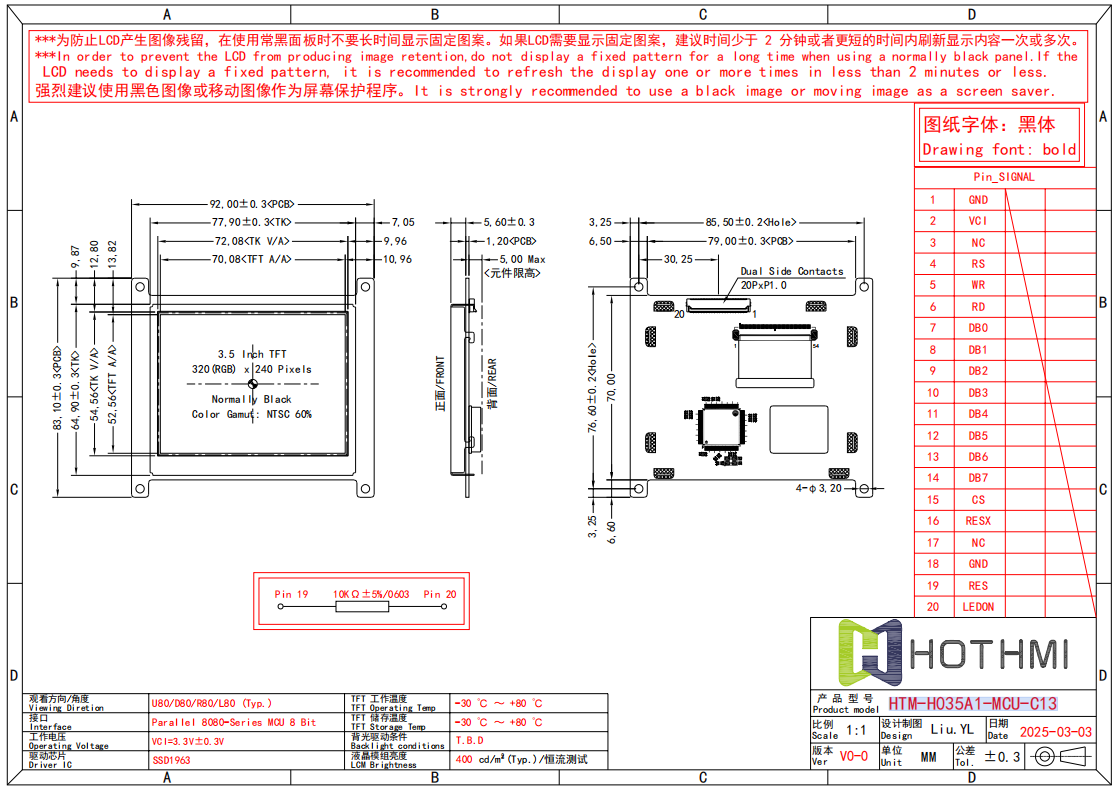

Datasheet for Touch Panel,Controller↓

Name	Date	Size
HTM-H035A1-MCU-C13	March 03, 2025	98.70KB

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	HTM-H035A1-MCU-C13
Diagonal size	3.5”	Inch
Resolution	320x240	Dot
Dimensions	92x83.1x5.6	mm
Active area (AA)	70.08x52.56	mm
LCD type	TFT LCD Display	mm
Display viewing angle	Full View
Aspect ratio	4：3
Backlight type	LED white
TFT driver IC	SSD1963
Brightness	400	cd/m2
Operating temperature	-30~80℃	℃
Storage temperature	-30~80℃	℃
