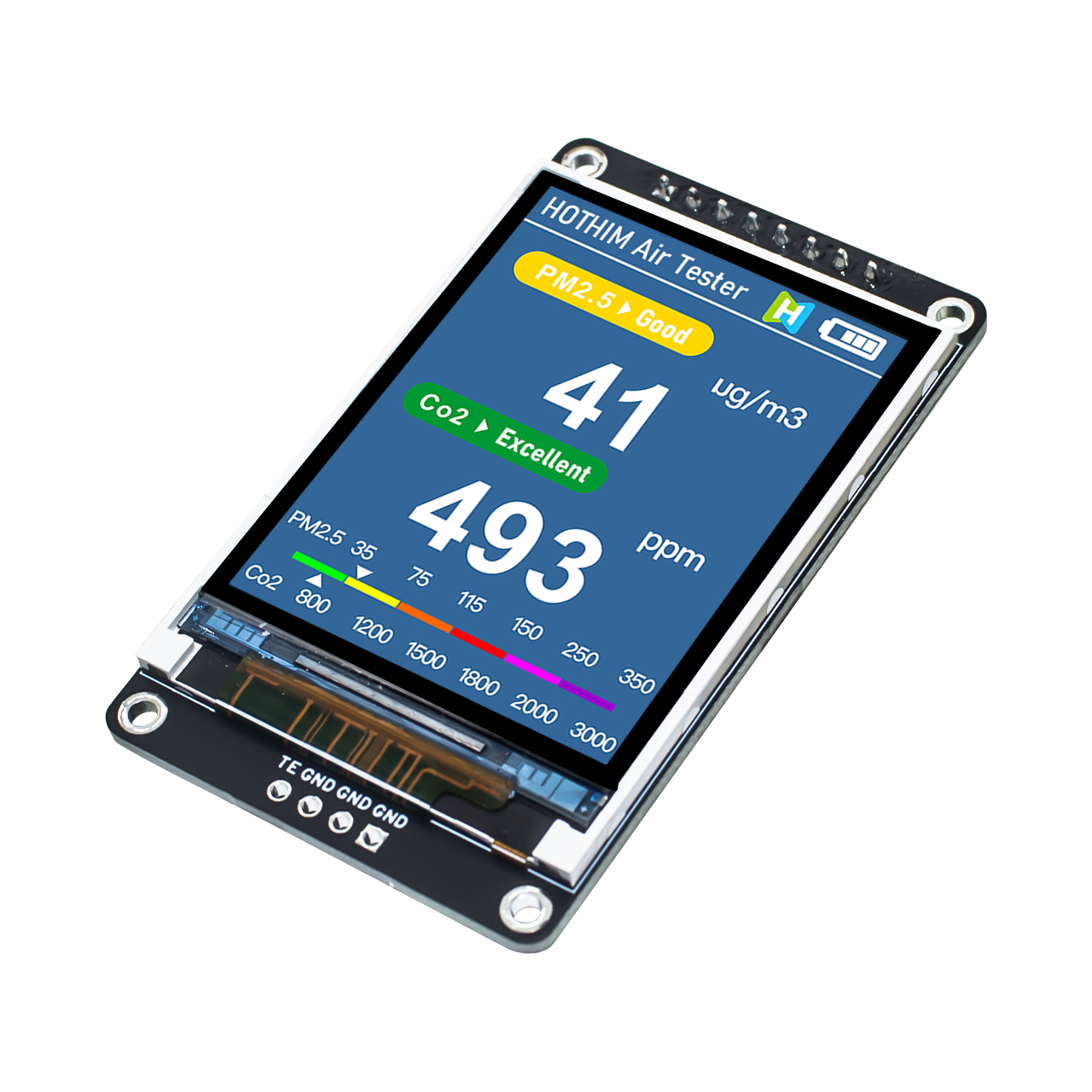

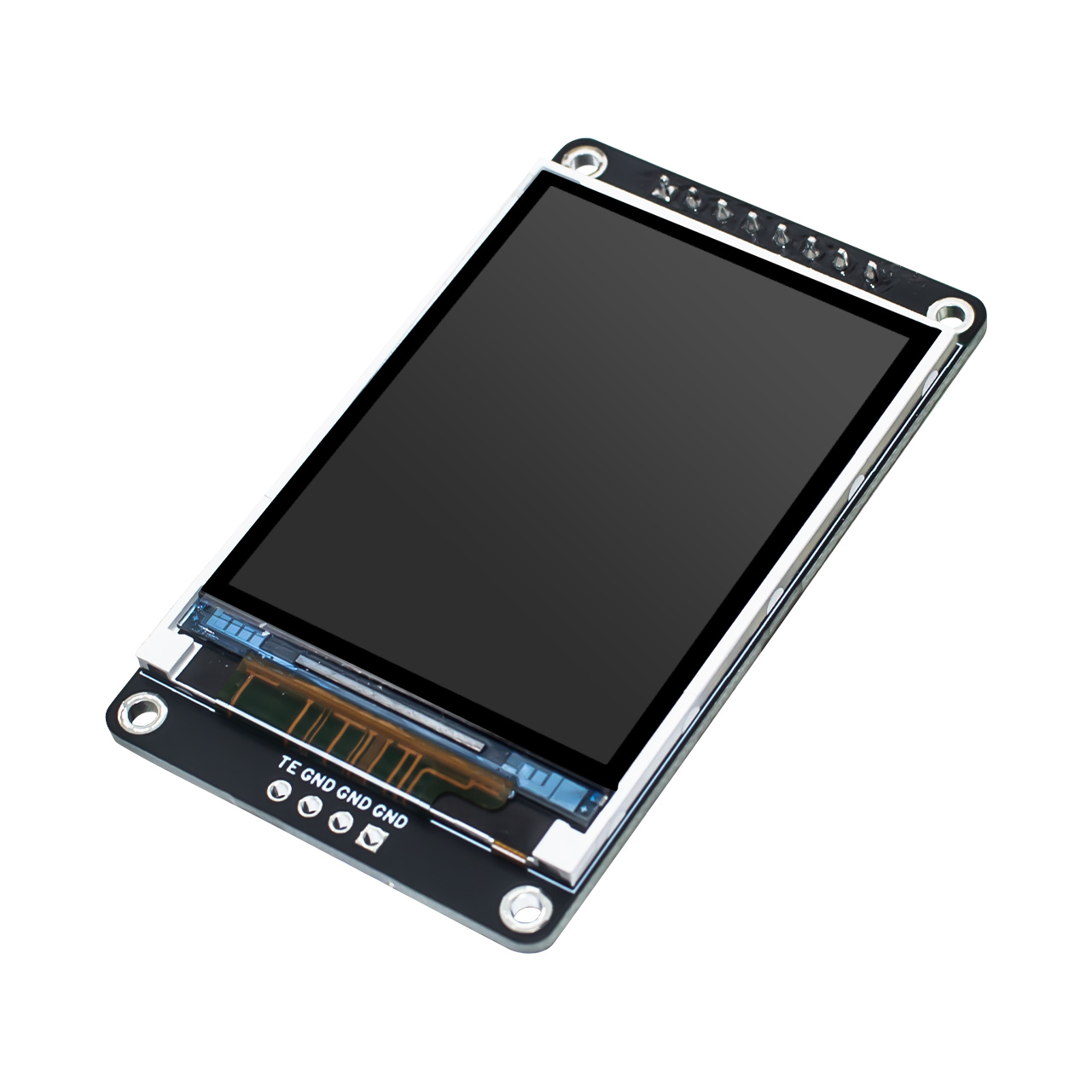

4 Inch IPS TFT LCD Display With ST7701S Controller

4 Inch IPS TFT LCD Display With ST7701S Controller

▶ Model: TFT-H040A19WVIST5N40

▶ Type: TFT display
▶ Display pixels: 480x800
▶ Dimensions (mm): 57.14x96.85x2.00
▶ Display inches: 4.0"
▶ AA size (mm): 51.84x86.4
▶ Application: Handheld devices
▶ Viewing angle: IPS full viewing angle
▶ Backlight/brightness: 500cd/m2
▶ Pin: FPC-40 pin
▶ Interface mode: RGB
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 3.3V
▶ Driver IC: ST7701S
Product ConsultationDatasheets Download
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

JX Demo Board-RGB Specified Model Main Control Board
ESP32-S3 main control board / RGB designated display
EZUI-H Main Control Board-RGB/MCU (Universal for 800*480 and below)
EZUI-C driver board/MIPI/LVDS/RGB (800*480 or above)
typ-c data cable T-port charging data cable/COB adapter board/COG adapter board
USB data cable T-port charging data cable/serial screen/adapter board
Full-function test development PCB-Bluetooth-WIFI-UART-CAN-LVGL-RS485
SPI/MCU-to-TTL Signal Conversion Module Adapter

Product Description
Customized Services
Attributes

4.0-inch 480x800 full-color TFT LCD/plug-in FPC/ST7701S controller/high brightness IPS full-viewing angle LCD display/STM32/RK series/RGB interface wide temperature TFT
4.0-inch 480x800 full-color TFT LCD/plug-in FPC/ST7701S controller/high brightness IPS full-viewing angle LCD display/STM32/RK series/RGB interface wide temperature TFT-H040A19WVIST5N40 is a 4.0-inch display with a resolution of 480x800. This display supports RGB interface and adopts IPS panel. It has the advantages of wide viewing angle of left: 80 / right: 80 / top: 80 / bottom: 80 degrees (typical value), contrast ratio of 800:1 (typical value), brightness of 500 nits (typical value), glare surface panel, and aspect ratio of 1:1.
This 4-inch RGB display integrates the driver IC ST7701S on the module, and the interface supply voltage is typically 3.3V. The TFT-H040A19WVIST5N40 can operate at temperatures between -20℃ and +70℃; its storage temperature range is -30℃ to +80℃.

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H040A19WVIST5N40
Diagonal size	4.0”	Inch
Resolution	480x800	Dot
Dimensions	57.14x96.85x2.00	mm
Active area (AA)	51.84x86.4	mm
LCD type	TFT LCD Display	mm
Display viewing angle	Full View(U80/D80/R80/L80)
Aspect ratio	1:2
Backlight type	LED white
TFT driver IC	ST7701S
Brightness	500	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
