3.4" 240X160 Graphic COG LCD | White on Black | DFSTN- | MCU | ST7529

3.4" 240X160 Graphic COG LCD | White on Black | DFSTN- | MCU | ST7529 | Arduino

▶ Model：
HTG240160C-47W

▶ Type: COG graphic lattice
▶ Display pixels: 240x160

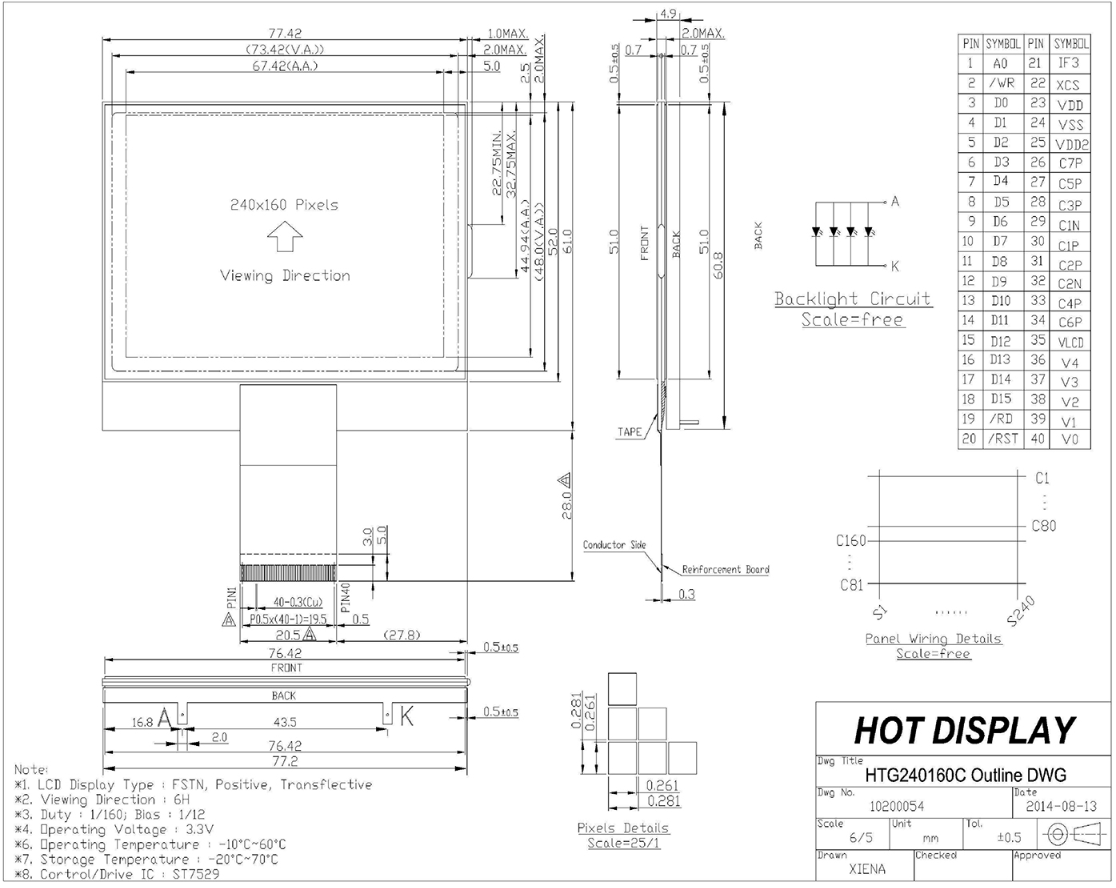

▶ Overall dimensions (mm): 79.82x63.4x4.2
▶ Display inches: 3.4"
▶ VA size (mm): 73.42x48.0
▶ AA size (mm): 67.42x44.94
▶ Point spacing (mm): 0.261x0.261
▶ Application: Industrial Control
▶ Viewing angle: 12H
▶ Backlight/brightness:white light
▶ Pin: FPC-40PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Supply voltage: 3.3v
▶ Driver chip: ST7529
Product ConsultationDatasheets Download
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
COG Adapter Board

Product Description
Customized Services
Attributes

3.4" 240X160 Graphic COG LCD | White on Black | DFSTN- | MCU | ST7529 | Arduino
This HOTDisplay 240x160 Graphic Chip on Glass (COG) LCD module displays white pixels on a black background. This transflective LCD display is engineered to provide optimal visibility in a variety of lighting conditions in many different environments. In bright sunlight, the display utilizes its reflective layer to reflect ambient light back to the viewer, making the screen easy to read. In darker environments, the LCD has a strong backlight built in to provide high contrast and display crisp graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions.
This Graphic LCD Display Module is fully compatible with Arduino/C8051 and can be seamlessly connected with other electronic systems for a variety of applications. The HTG240160C model is designed to withstand harsh operating conditions and operates abnormally when used in temperatures ranging from -20 to 70 degrees Celsius. The optimal viewing angle of this LCD is 12:00, operates at 3.3V, and is RoHS compliant.

Item	Parameter content	Unit
Name	HTG240160C-47W
Number of dots	240 x 160	dots
Module size	79.82（W） × 63.4 （H） × 4.2 （T）	mm
VA size	73.42 x 48.0	mm
AA size	67.42（W） ×44.94（H）	mm
Pixel pitch	0.261（W） × 0.261（H）mm	mm
IC	ST7529
Power supply voltage	3.3V	V
Backlight	White
Display mode	DFSTN(-)
Drive mode (Duty)	1/160 duty cycle
Type	Graphic LCD
Characteristics	Transmissive
