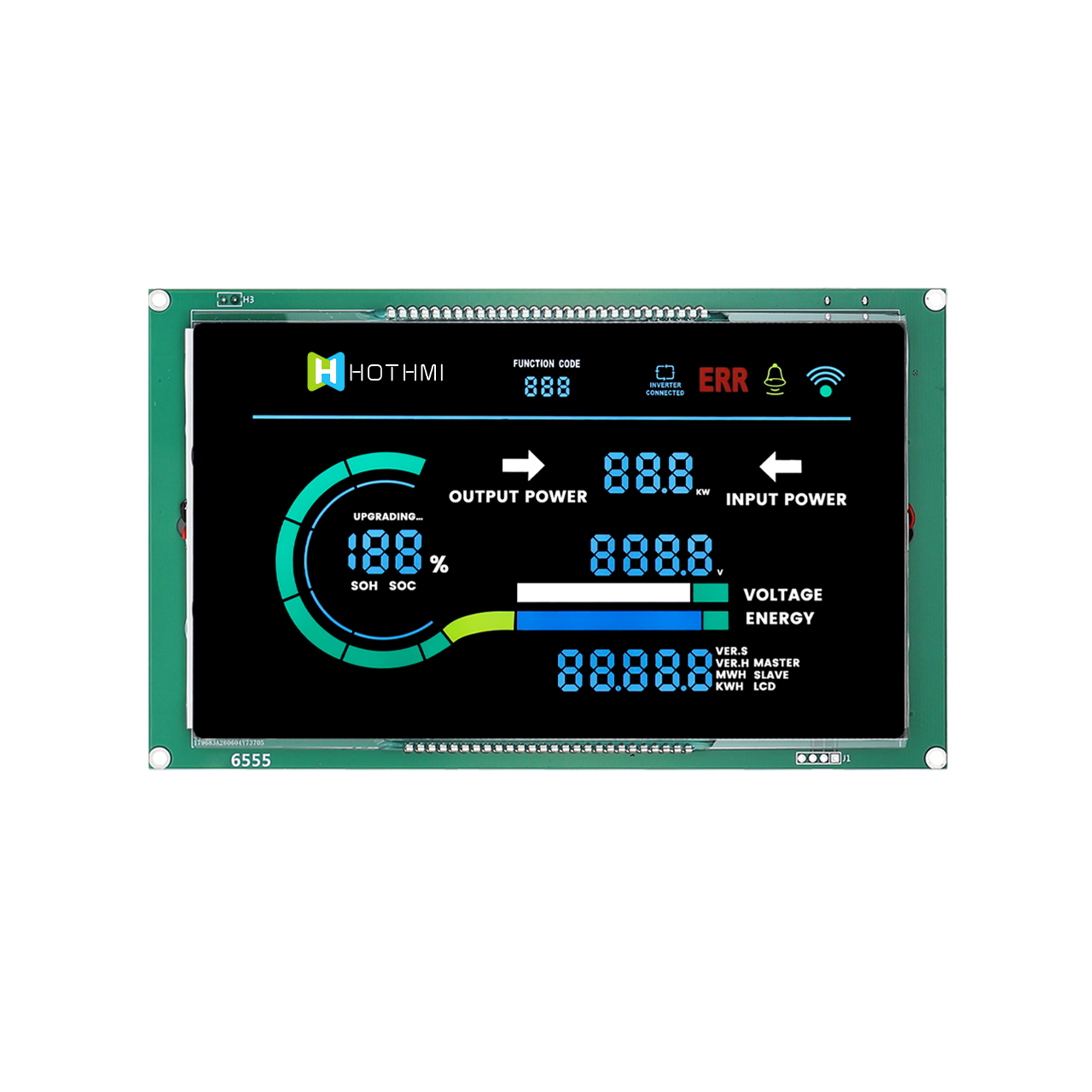

Custom VA LCD Display for Industrial Control – 6 O'Clock Viewing Angle, 1/4 Duty, 5.0V

Product Overview

This VA LCD Display is a custom-designed vertical alignment liquid crystal display engineered specifically for industrial control applications. Combining high contrast, reliable performance and flexible customization, this VA LCD Display delivers clear, stable visual output for control panels, instruments, meters and automation equipment. With a 6 o'clock viewing angle, 1/4 duty driving mode and a standard 5.0V supply voltage, this VA LCD Display is an ideal display solution for engineers seeking a dependable, cost-effective industrial display.

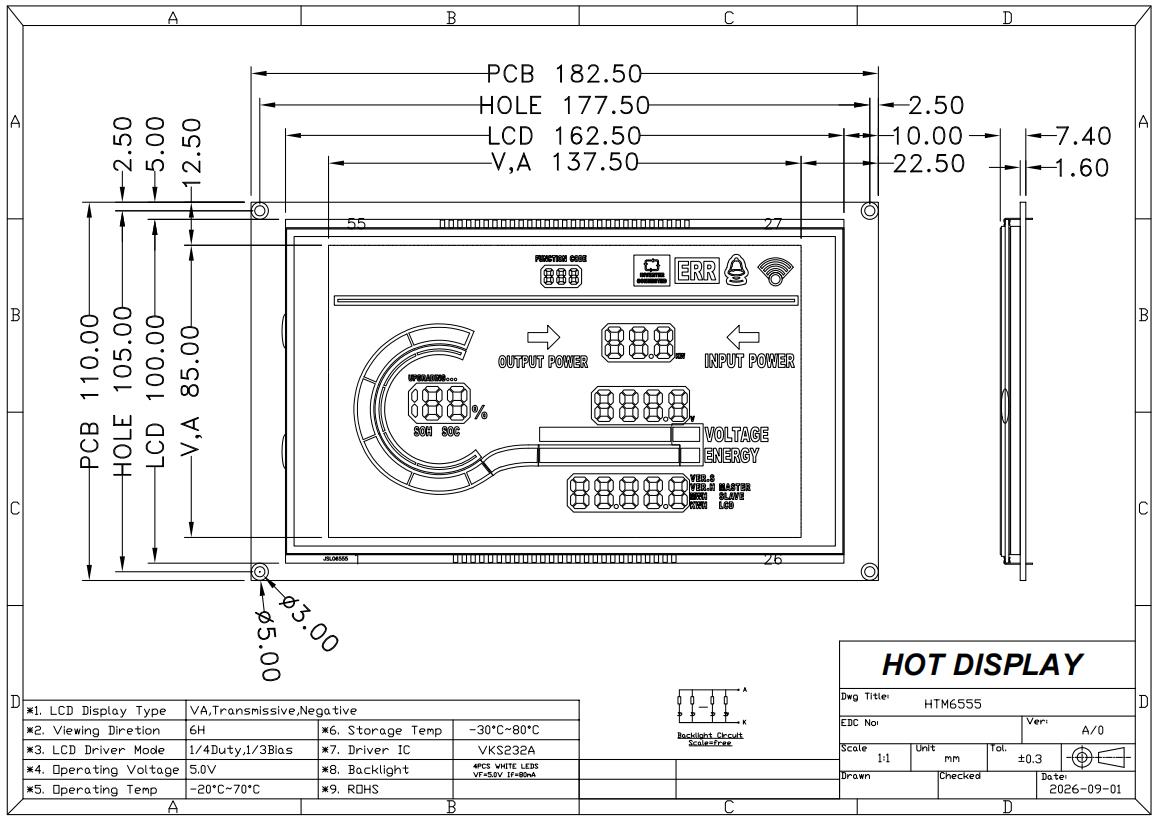

Key Specifications

• Type: VA LCD Display

• Viewing Angle: 6 o'clock

• Driving Mode: 1/4 Duty; 1/3 Bias

• Operating Temperature: -20°C to 70°C

• Supply Voltage: 5.0V

Each parameter is carefully selected to ensure this VA LCD Display performs consistently in demanding industrial environments. The 6 o'clock viewing direction makes this VA LCD Display particularly suitable for panel-mounted equipment viewed from below or at a slight upward angle, which is common in industrial control cabinets and benchtop instruments.

Why Choose a VA LCD Display?

Vertical Alignment technology offers significantly higher contrast than traditional TN displays. This VA LCD Display provides deeper blacks and brighter whites, ensuring that digits, icons and segment patterns remain highly legible even in challenging lighting conditions. Compared with FSTN or HTN displays, this VA LCD Display delivers superior optical performance, making it a preferred choice for industrial control interfaces where clarity and reliability are critical.

Driving Mode and Electrical Performance

The 1/4 duty, 1/3 bias driving configuration allows this VA LCD Display to support multiple segment or icon zones while maintaining stable contrast across all active areas. Powered by a standard 5.0V supply, this VA LCD Display integrates easily with common microcontrollers and driver ICs used in industrial control systems. The combination of 1/4 duty and 1/3 bias ensures this VA LCD Display achieves optimal contrast without excessive power consumption, extending the operating life of battery-powered or energy-efficient equipment.

Operating Temperature Range

With an operating temperature range of -20°C to 70°C, this VA LCD Display is built to withstand the temperature fluctuations typically found in industrial environments. Whether used in factory automation equipment, power meters, testing instruments or HVAC controllers, this VA LCD Display maintains reliable performance across a wide thermal window. For customers requiring extended temperature ranges, this VA LCD Display can be further customized to meet specific project requirements.

Customization Options

As a custom display solution, this VA LCD Display can be tailored to your exact application. Available customization options include:

• Custom segment, icon and dot matrix patterns

• Positive or negative display mode

• Transmissive, transflective or reflective polarizer

• LED backlight color and brightness

• Pin, FPC or zebra connector options

• Custom glass size and thickness

• Wide temperature version (-30°C to 80°C)

Every VA LCD Display we produce is designed according to your drawings, specifications and application requirements, ensuring a perfect fit for your industrial control product.

Applications

This VA LCD Display is widely used in:

• Industrial control panels

• Digital meters and energy meters

• Temperature and process controllers

• Medical and testing instruments

• HVAC and building automation

• Power supply and inverter displays

• Smart home control panels
