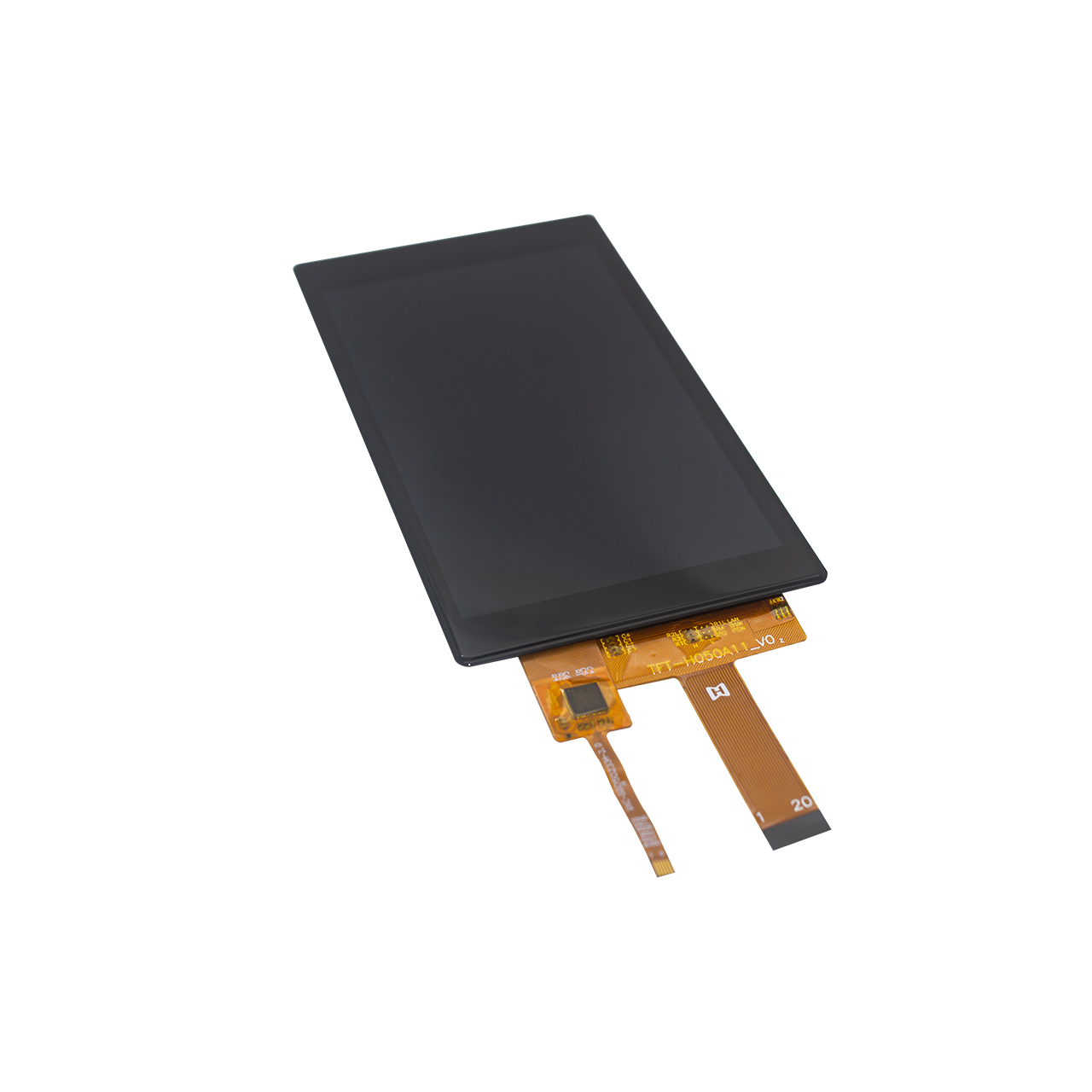

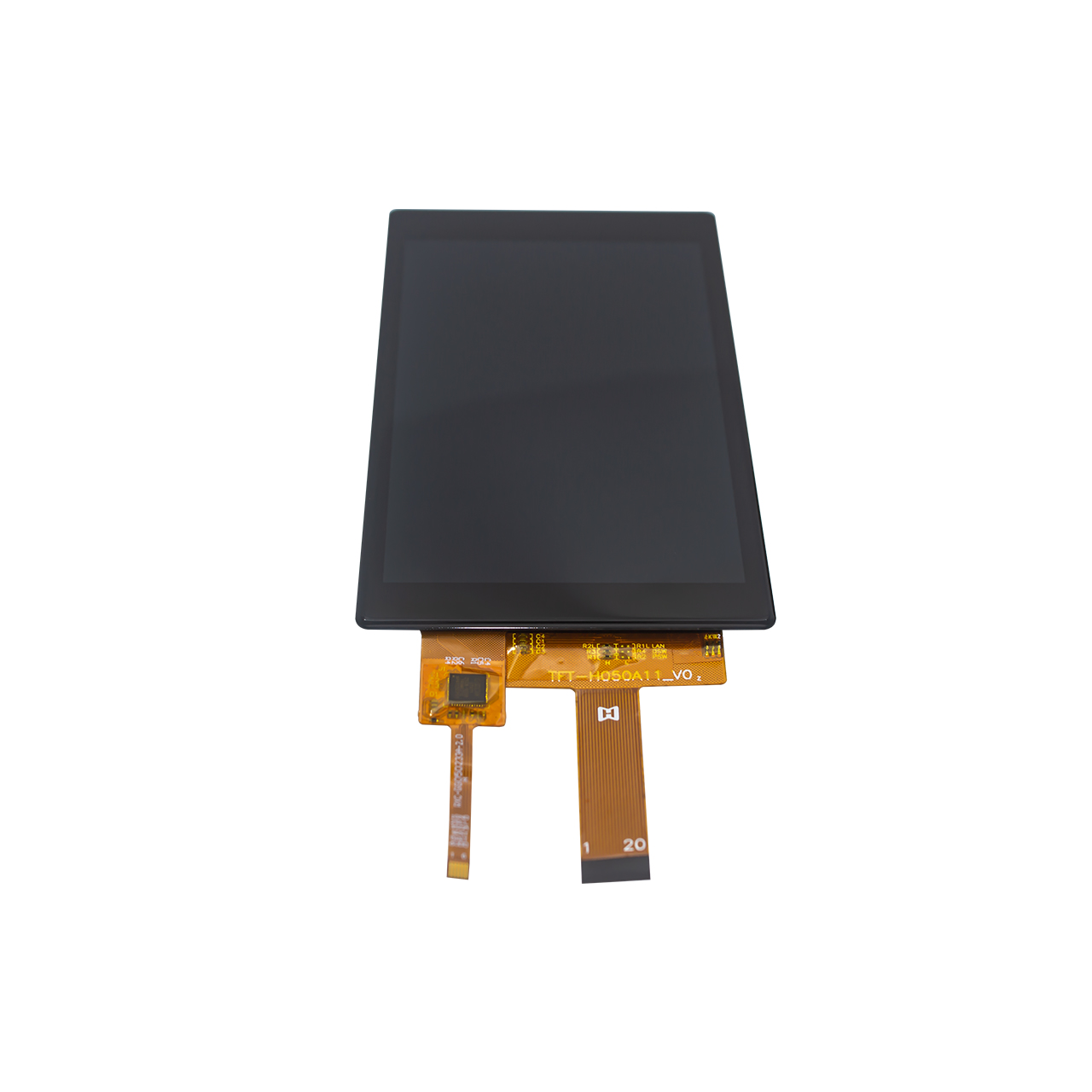

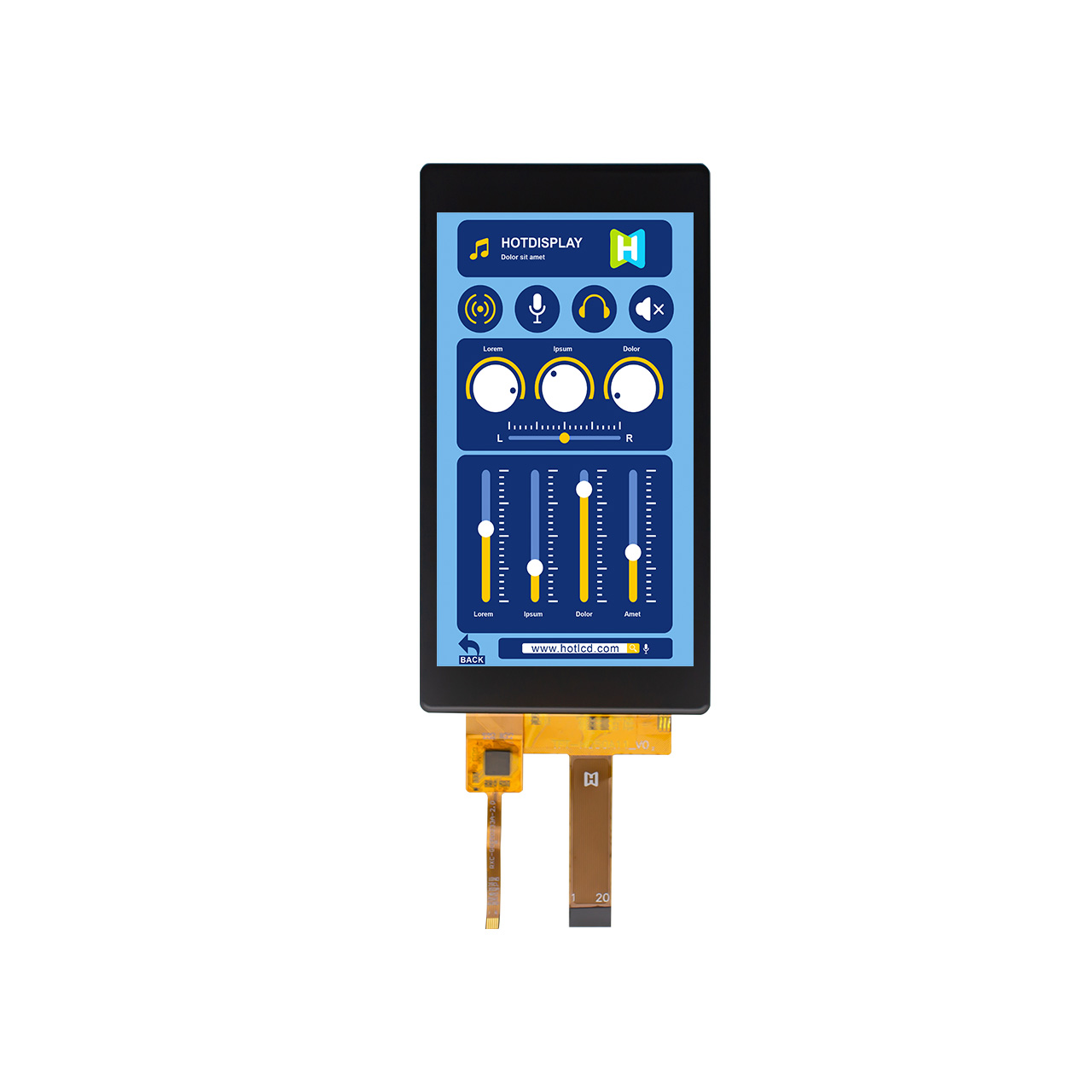

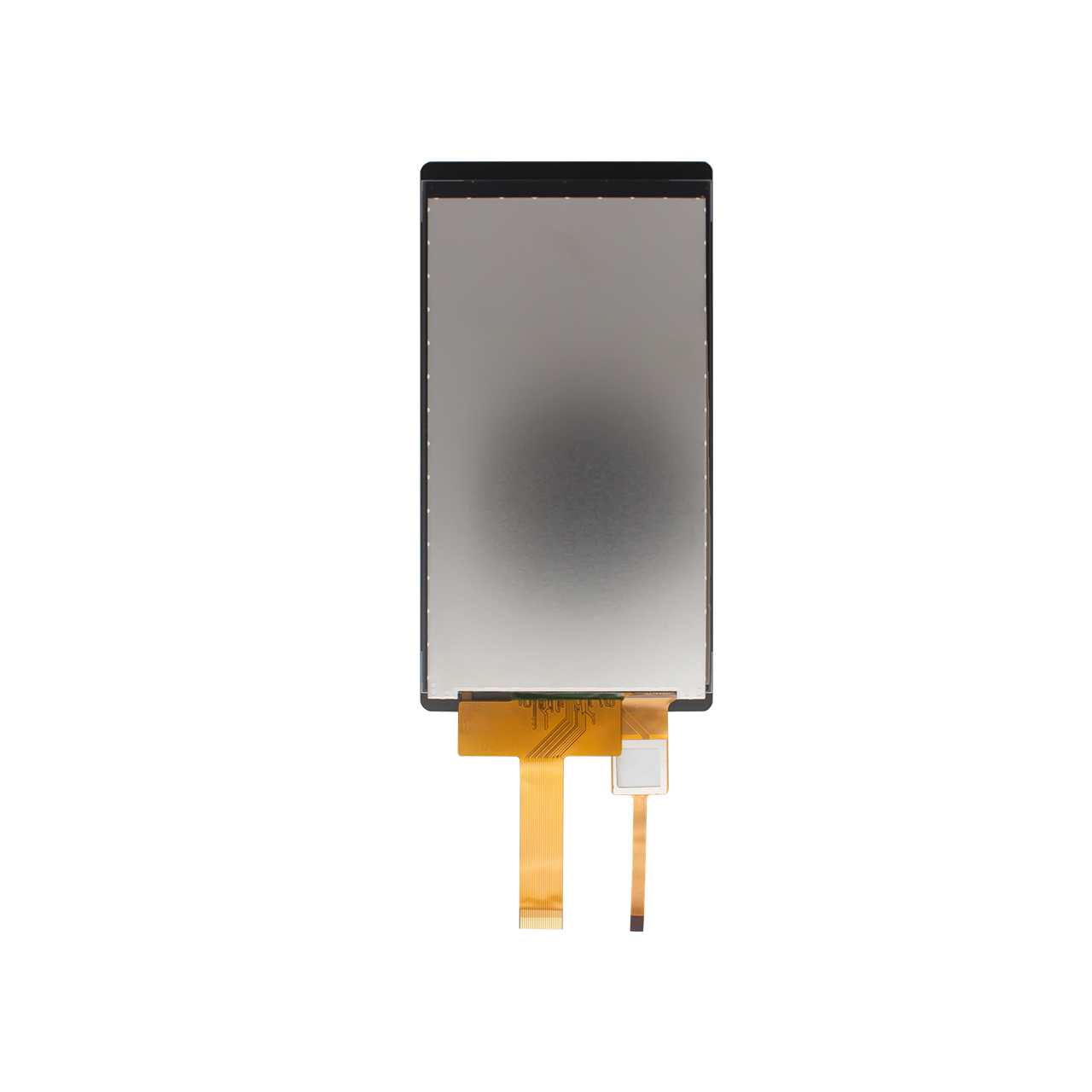

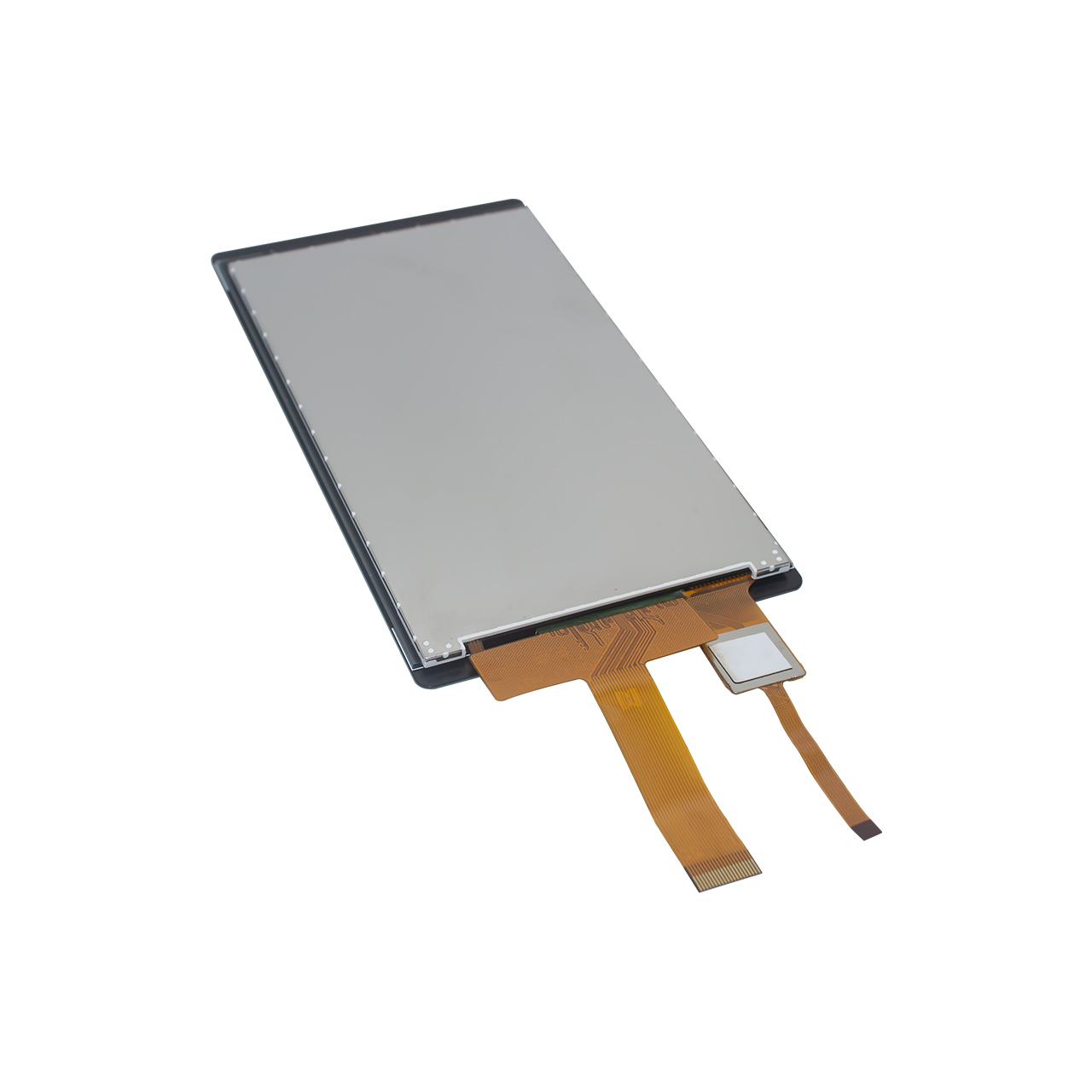

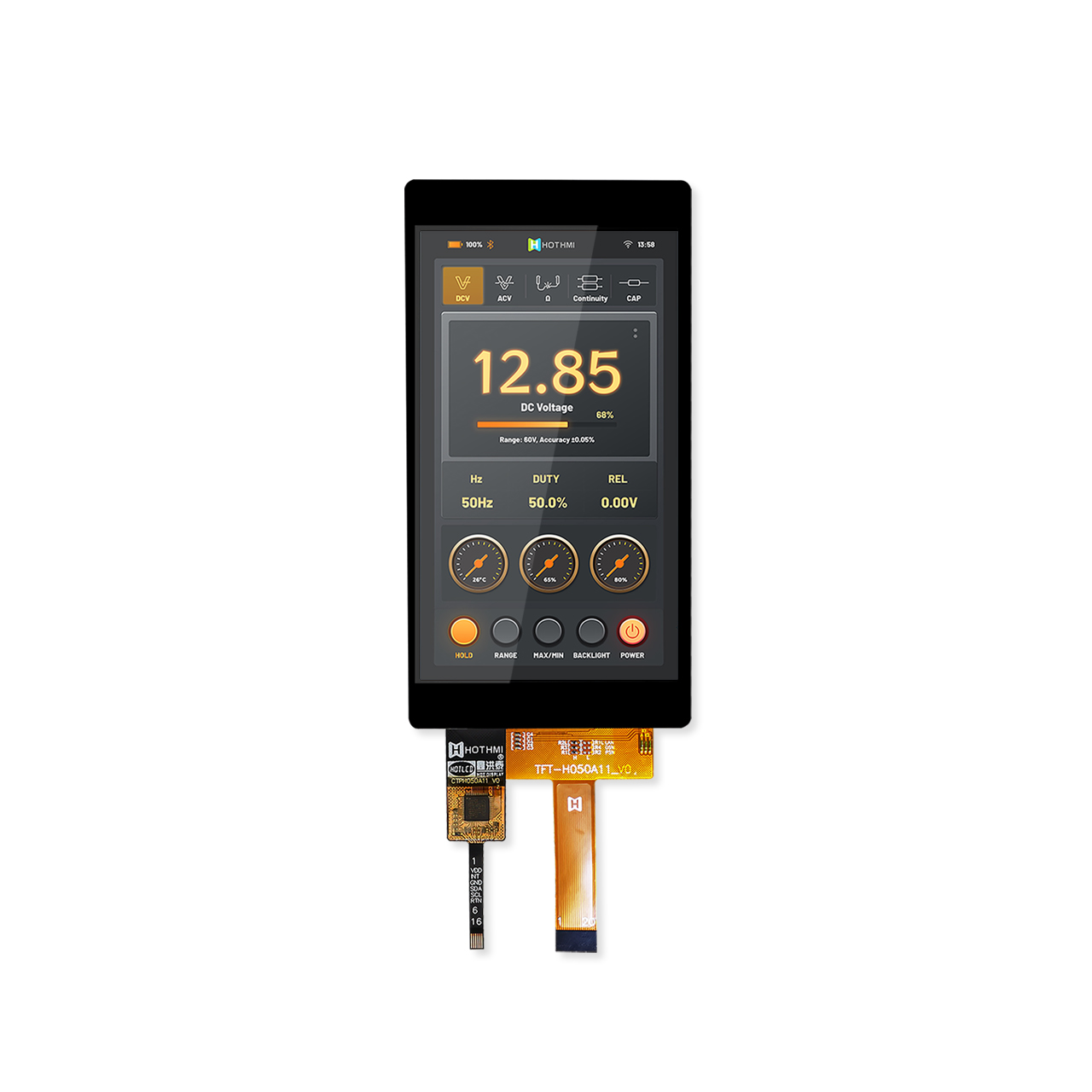

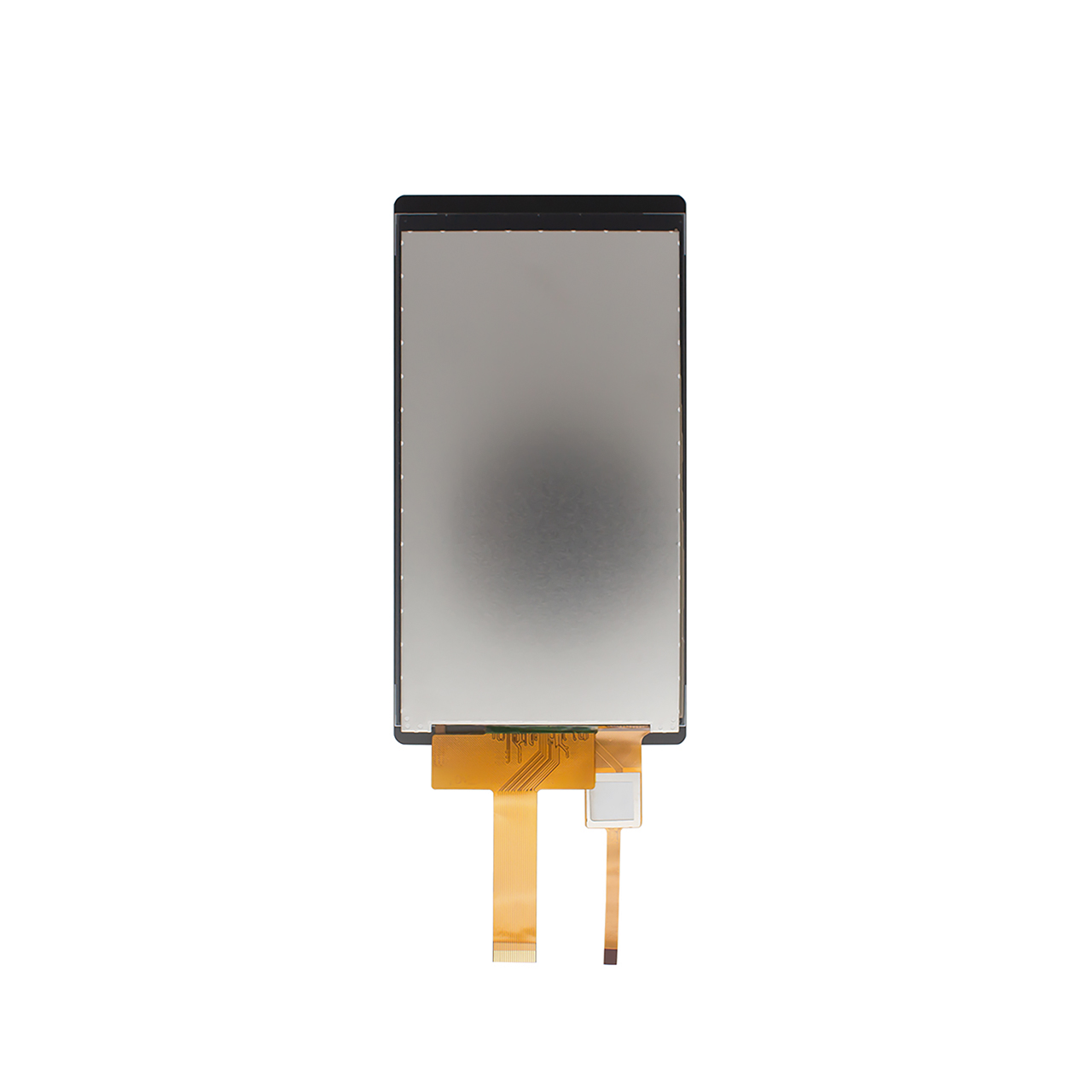

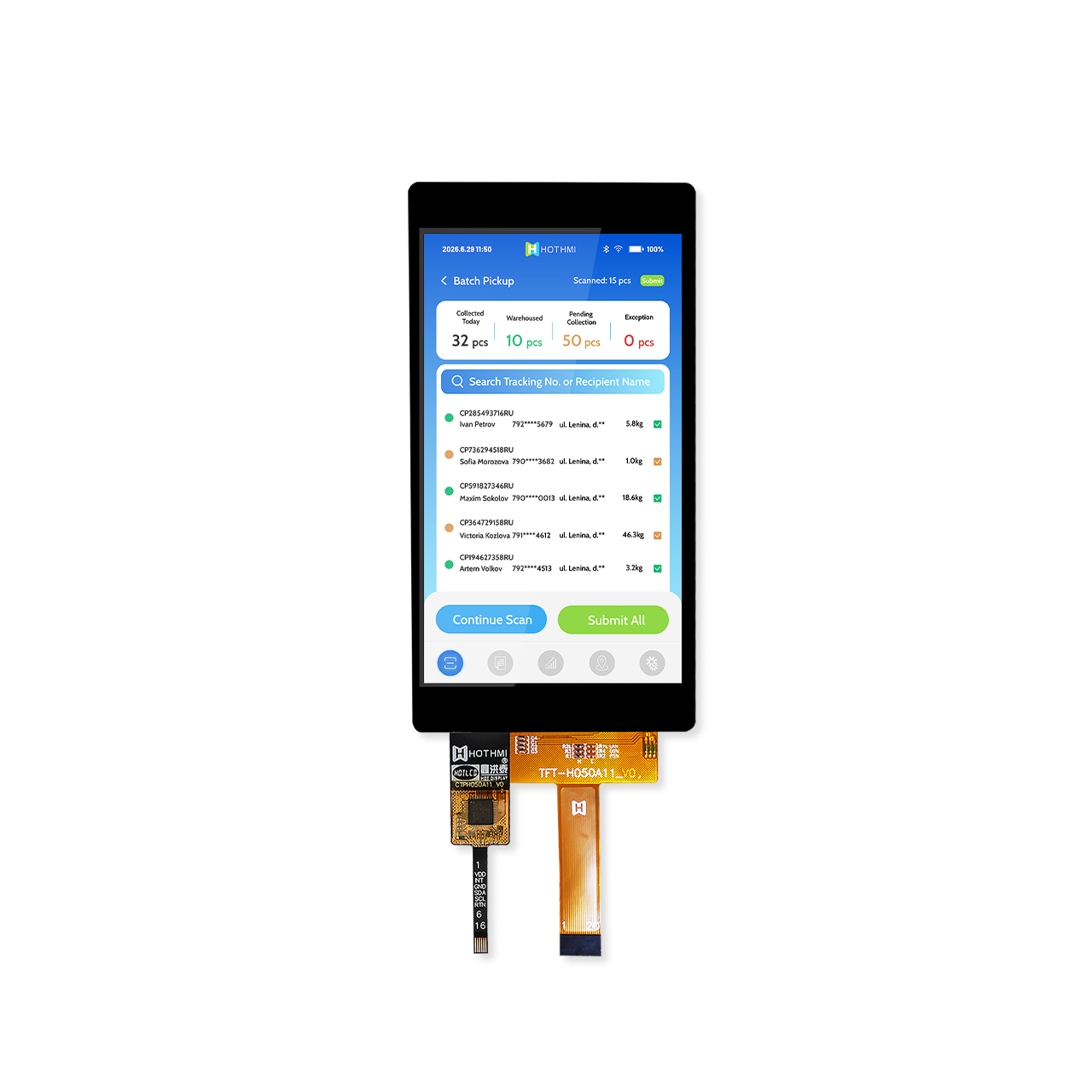

5.0 inch TFT LCD With Capacitive Touch Panel

▶ Model: TFT-H050A11FWIST5C20-V0-3

▶ Type: Standard TFT Display
▶ Display Pixels: 480x854

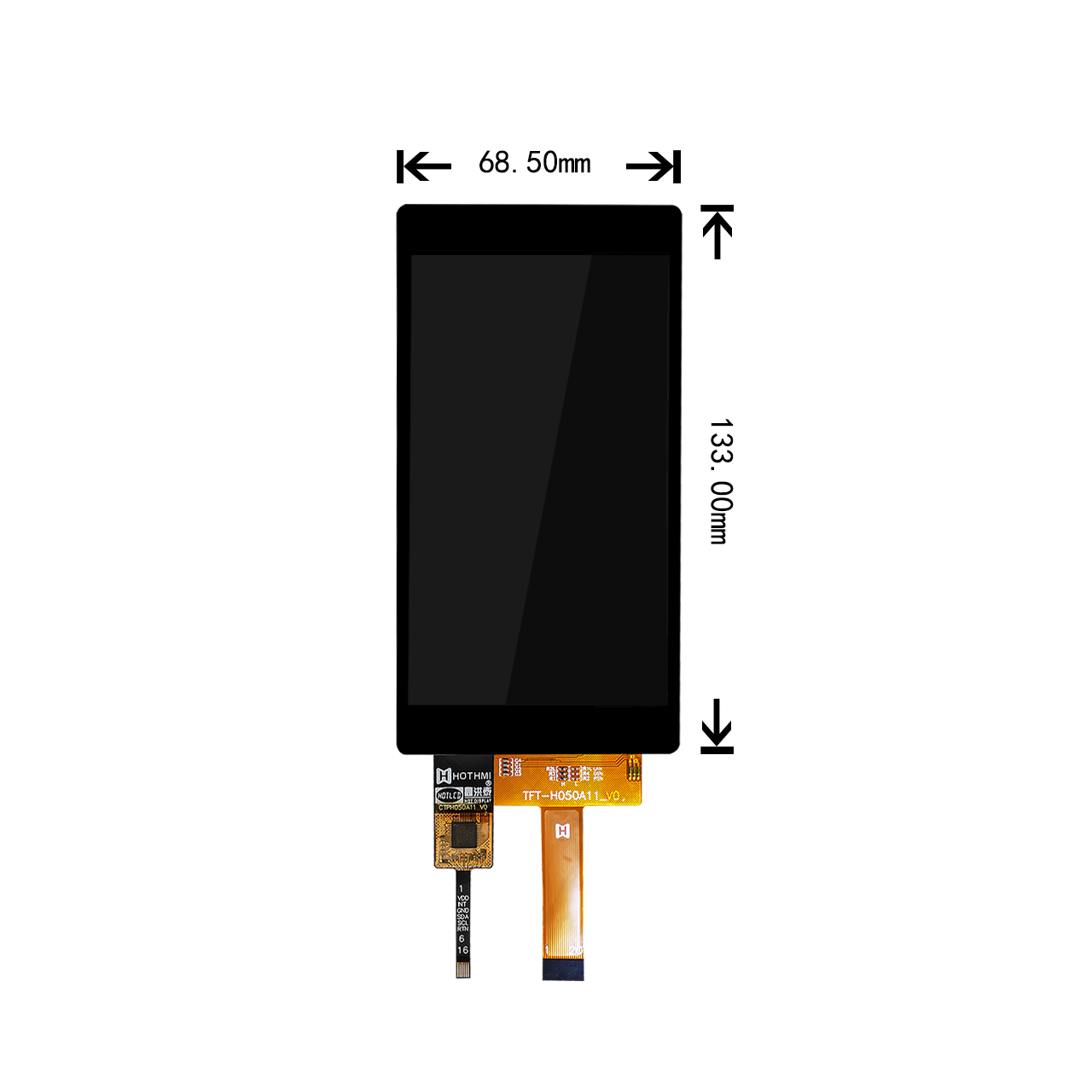

▶ Dimensions: 68.5x133.0x4.2mm
▶ Battery Dimensions (mm): 61.63x109.65mm
▶ Display Size: 5.0 inches
▶ Applications: Instrumentation, Portable Electronic Devices
▶ Viewing Angle: IPS Full Viewing Angle
▶ Backlight/Brightness: 500cd/m²
▶ Pin Arrangement: FPC-20 Pins
▶ Interface: MIPI
▶ Special Notes: ESD 8kV
▶ Operating Temperature: -20°C to 70°C
▶ Supply Voltage: 3.3V
▶ Driver IC: ST7701S

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
COG Adapter Board

Product Description
Customized Services
Attributes

TFT-H050A11FWIST5C20 | 5.0-inch TFT LCD display with capacitive touch panel | 5-inch optically bonded capacitive touchscreen display
Harness the power and clarity of this 5.0-inch TFT LCD for your next-generation instrumentation and portable electronic devices. While our other models feature higher resolutions, this robust 5.0-inch TFT LCD delivers reliable performance with a 320x480 (HVGA) pixel array, driven by an ST7365P IC and a versatile MCU interface. The display's exceptional 500 cd/m² brightness and IPS full viewing angle technology ensure a clear, vibrant image from any perspective, even in challenging lighting conditions.
Engineered for durability, this 5.0-inch TFT LCD is built to withstand an operating temperature range of -20°C to +70°C and features ESD protection up to 8kV. It coupled with a 40-pin FPC connection and a low 3.3V supply voltage, make it an ideal, space-saving solution. For projects demanding a proven and resilient display, this specific 5.0-inch TFT LCD offers outstanding value and performance. Discover the ideal blend of durability and visual quality with this versatile 5.0-inch TFT LCD.

Datasheet for Touch Panel,Controller↓

Name	Date	Size
TFT-H050A11FWIST5C20	October 10, 2025	118.08KB

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection).

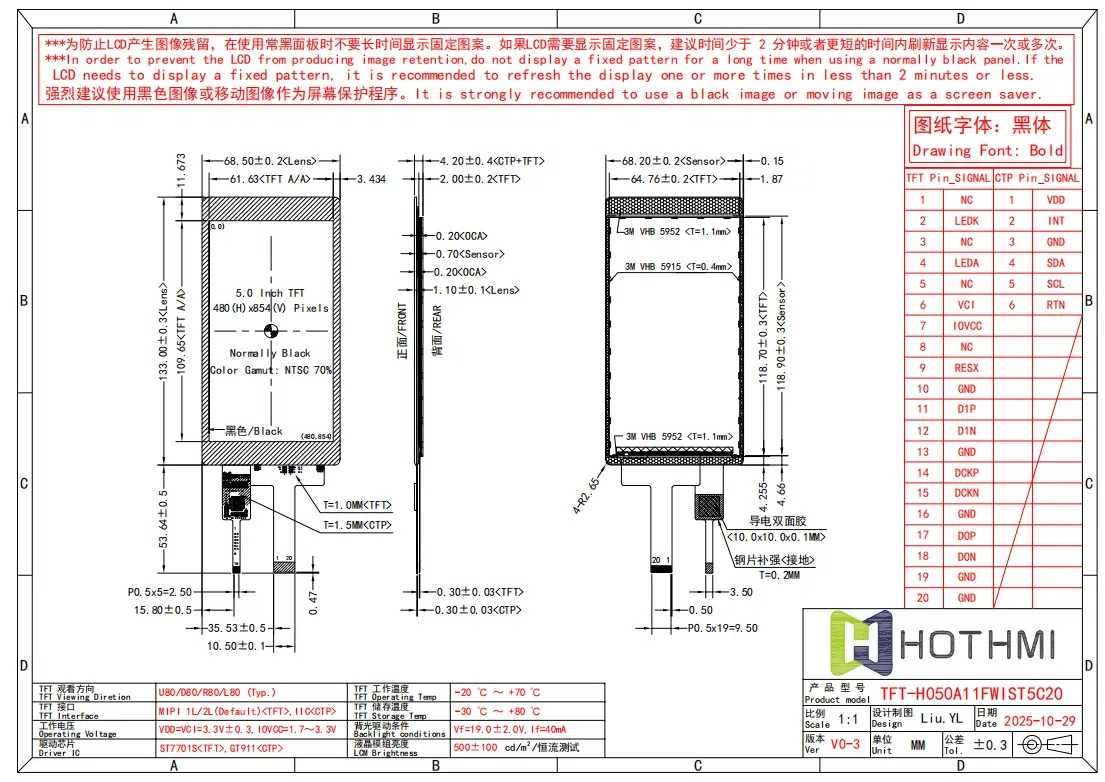

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H050A11FWIST5C20
Diagonal size	5.0”	Inch
Resolution	480x854	Dot
Dimensions	68.5x133.0x4.2	mm
Active area (AA)	61.63x109.65	mm
LCD type	5.0” TFT Module	mm
Display viewing angle	Full View
Aspect ratio	1：2
Backlight type	LED white
TFT driver IC	ST7701S
Brightness	500cd/m2	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
