128x64 COG monochrome LCD display | FSTN+ high contrast

128x64 COG Monochrome LCD FSTN+ Display ST7567

▶ Model: HTG12864-141-31W-10C10-V01

▶ Type: 128x64 COG LCD
▶ Display Pixels: 128x64

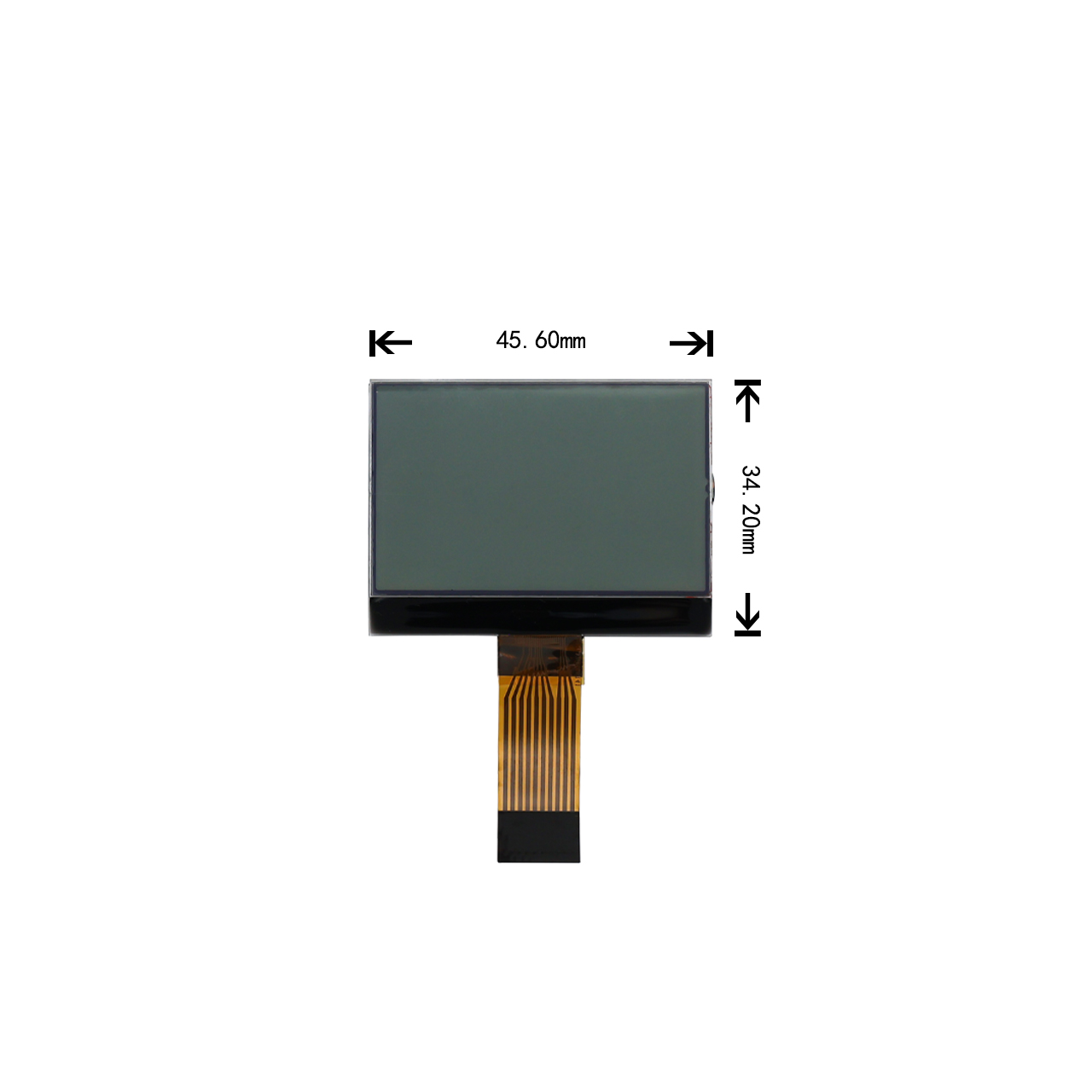

▶ Dimensions (mm): 45.6x34.2x4.3
▶ VA Dimensions (mm): 43.1x26.7
▶ AA Dimensions (mm): 40.94x24.62
▶ Dot Pitch (mm): 0.30x0.365
▶ Application: Instrumentation
▶ Viewing Angle: 6H
▶ Backlight/Brightness: White Light
▶ Pins: 10PIN
▶ Interface: SPI
▶ Special Notes: ESD Protection 8KV
▶ Operating Temperature: -20℃~+70℃
▶ Supply Voltage: 3.3V
▶ Driver Chip: ST7567
Product ConsultationDatasheets Download
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

No Back Next

Product Description
Customized Services
Attributes

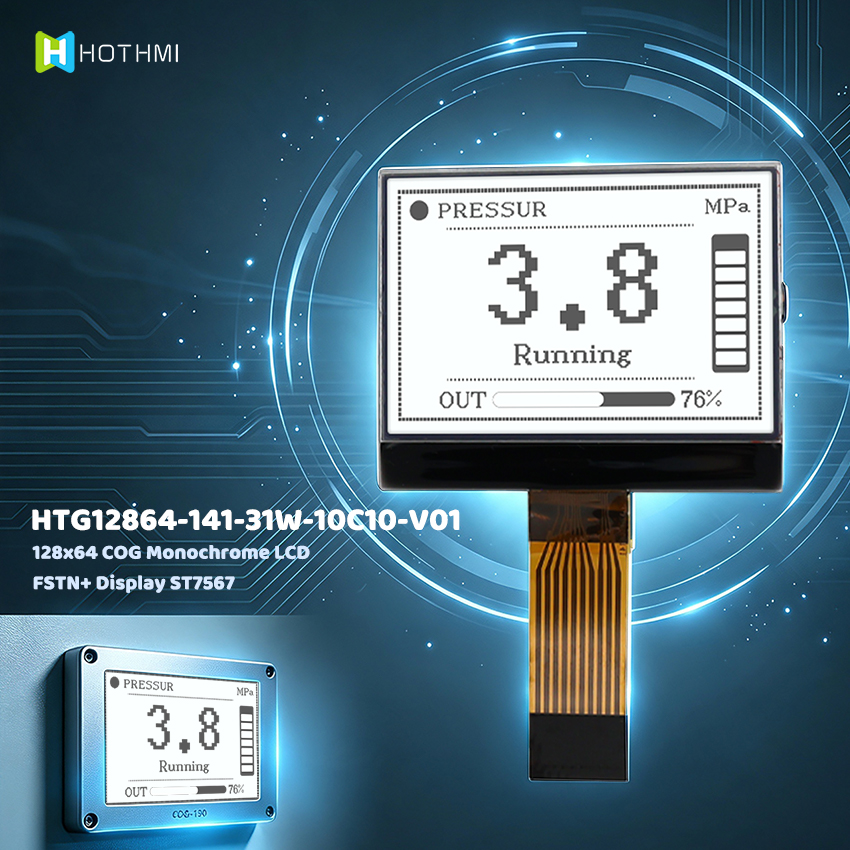

HTG12864-141-31W-10C10-V01 | 128x64 COG Monochrome LCD FSTN+ Display ST7567
The 128x64 COG Monochrome LCD is a high-contrast, energy-efficient display module designed for professional instrumentation and industrial control systems. Built around the reliable ST7567 driver chip, this 128x64 COG Monochrome LCD delivers sharp monochrome graphics and text with FSTN+ positive mode technology, ensuring excellent readability under both natural and artificial lighting.

With active area dimensions , this 128x64 COG Monochrome LCD fits seamlessly into space-constrained applications.The 6H viewing angle provides consistent legibility from typical vertical viewing positions, ideal for panel-mounted devices.

This 128x64 COG Monochrome LCD features a white LED backlight and a simple 10‑pin SPI interface, allowing easy integration with most microcontrollers. It operates at 3.3V supply voltage and supports a wide temperature range from -20°C to +70°C. Notably, the module includes ESD protection up to 8KV, enhancing durability in electrically noisy environments.

Whether you’re designing medical equipment, handheld meters, or automotive dashboards, this 128x64 COG Monochrome LCD combines compact mechanics, robust ESD tolerance, and the proven ST7567 controller. Choose the 128x64 COG Monochrome LCD for your next industrial project where reliability and optical performance are non‑negotiable.

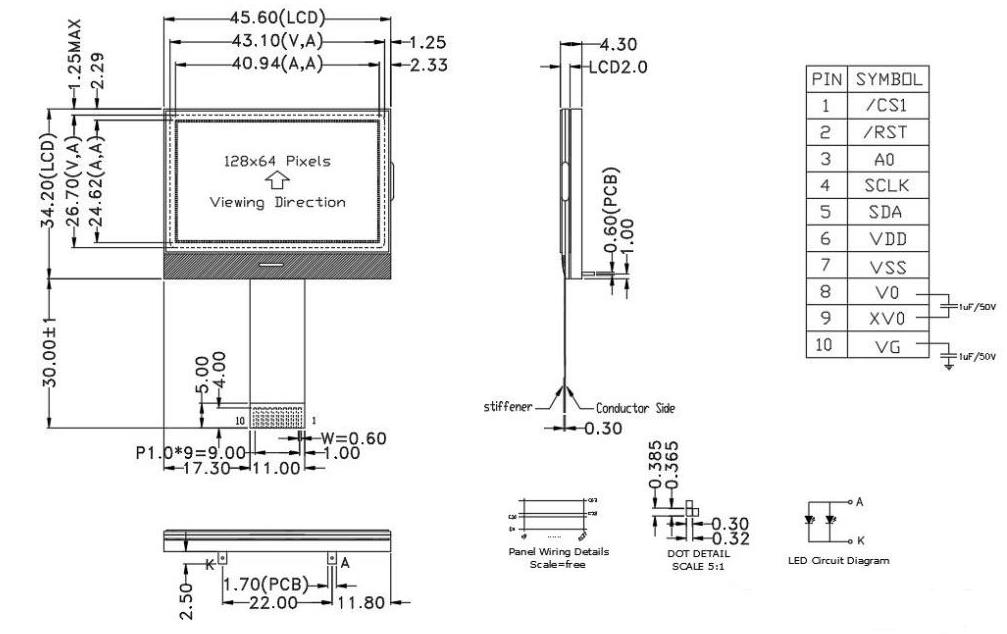

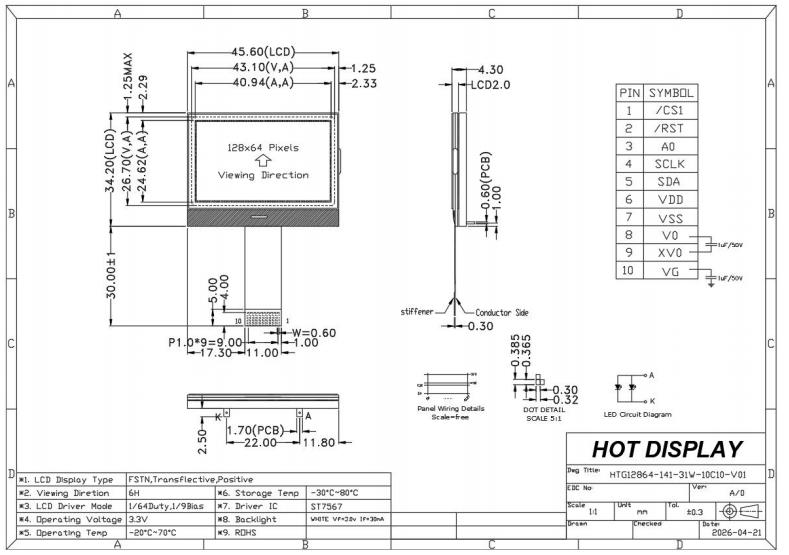

Specification

Datasheet for Touch Panel,Controller↓

Name	Date	Size
HTG12864-141-31W-10C10-V01	May 05, 2026	820.78KB

Connector customization: Easily modify any connector on the display to meet your application requirements. Our engineers can solder pin headers, box headers, right-angle connectors, and any other connectors your display may require.

PCB modification: Choose from a variety of changes to the PCB shape, size, pinout, and component layout to perfectly fit your application.

Backlight color customization: The module backlight has a variety of combinations to choose from, including no backlight or yellow-green/blue/white/amber/red/RGB backlight options, with up to 48 effects to choose from. Click on the customization page for reference.

Font Customization: A variety of font libraries are available, including English/Japanese, Western European, Eastern European, Scandinavian European, Cyrillic (Russian), Hebrew/Arabic, and more.

Cable Customization: Adjust cable length, position, and pinout, or add additional connectors. Get a precisely designed cable solution that streamlines and secures your connections.

Shape Customization: Supports customization of specific Graphic LCD display dimensions.

Function Customization: Integrate specific graphic LCD display ICs, sensors, or develop dedicated communication protocols.

ITEM	parameter	Unit
Name	HTG12864-141-31W-10C10-V01
Number of dots	128x64	dots
Module size	45.6x34.2x4.3	mm
VA size	43.1x26.7	mm
AA size	40.94x24.62	mm
Pixel pitch	0.30x0.365	mm
IC	ST7567
Power supply voltage	3.3V	V
Backlight	White
Display mode	FSTN+
Drive mode (Duty)	1/64 duty cycle
Type	COG LCD
Features	Transflective
