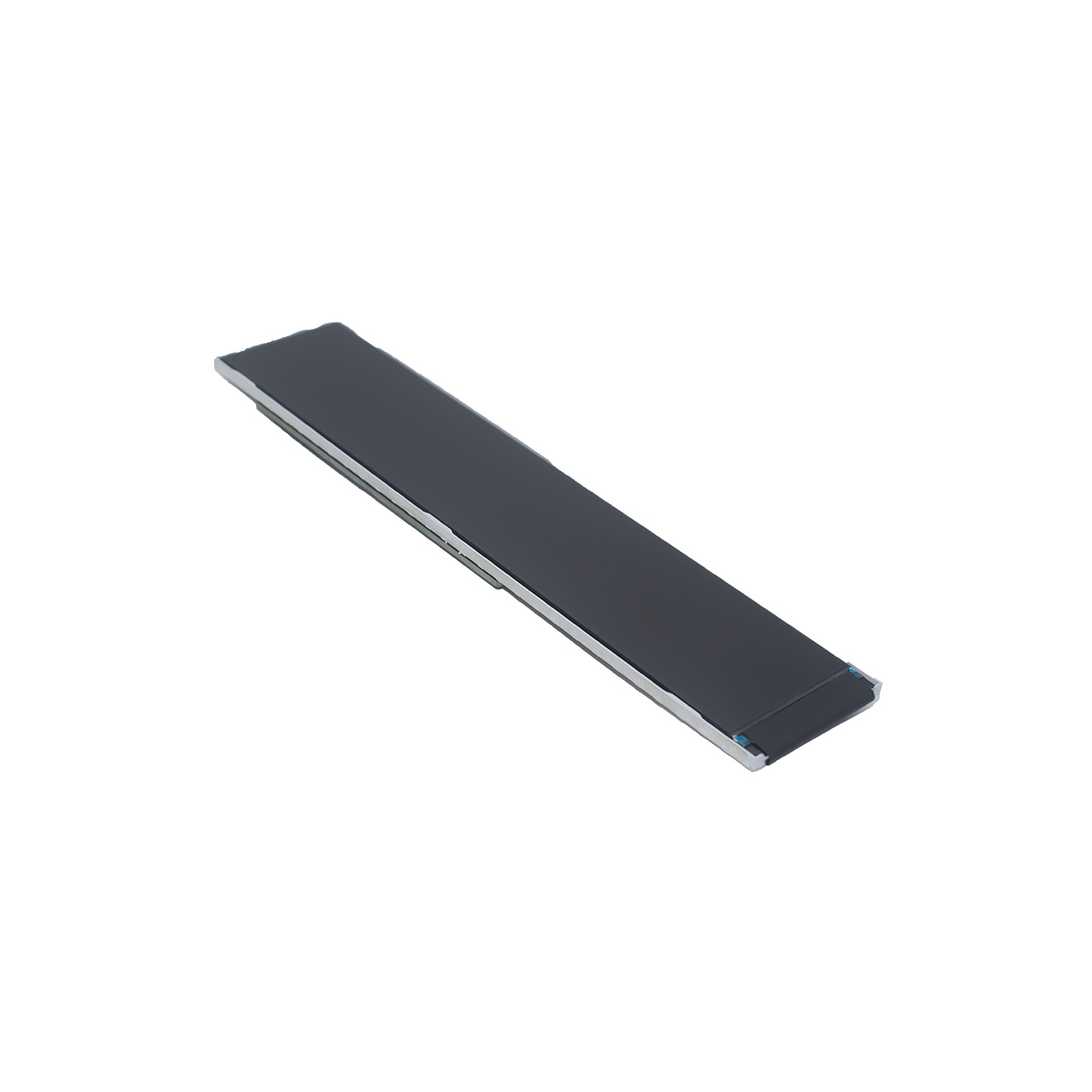

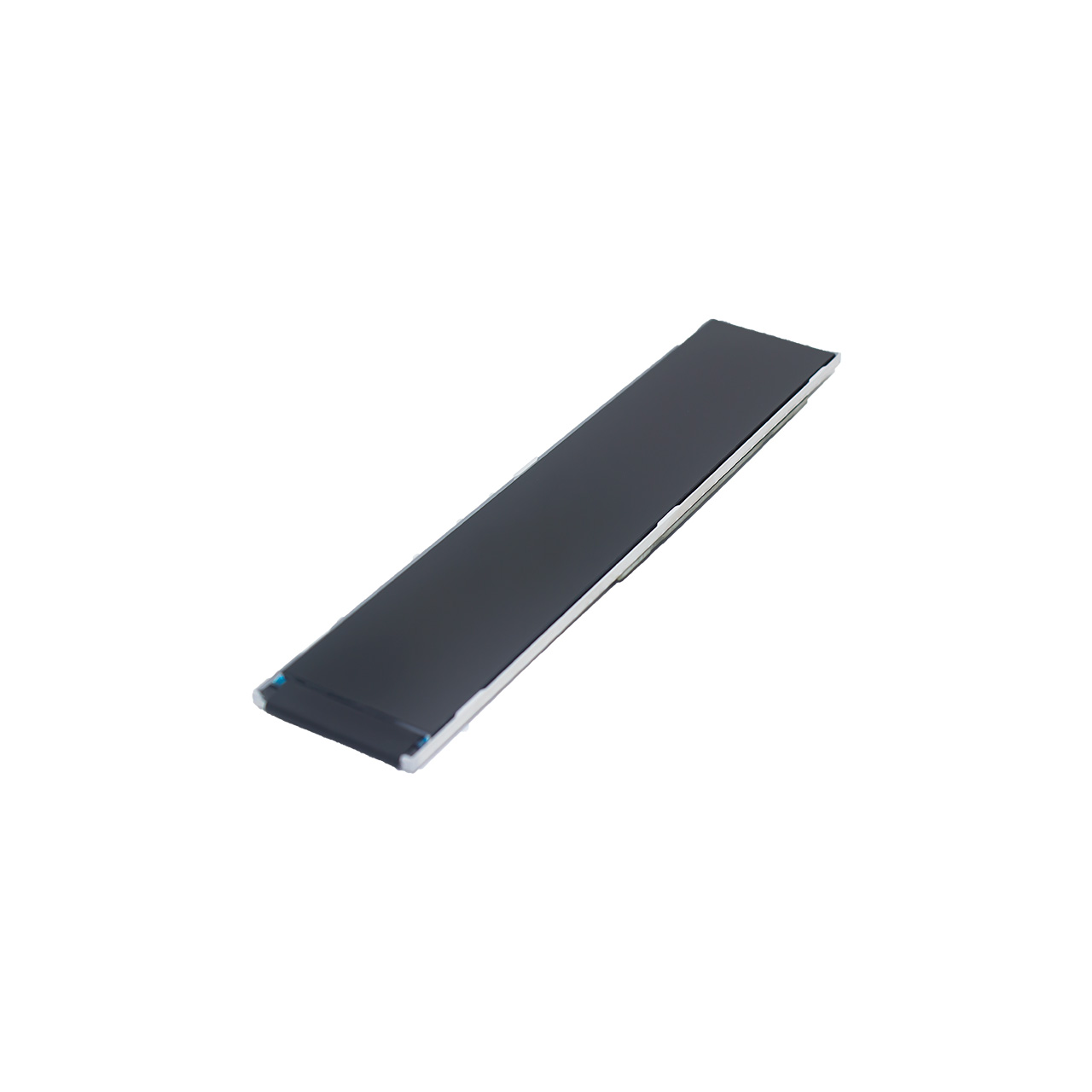

7.0-inch TFT LCD Display Module With LVDS Interface

▶ Model: HTM-H070A21-LVDS-A02

▶ Type: TFT standard display module
▶ Display pixels: 1424x280
▶ Dimensions: 182.47x38.2x9.6 mm
▶ AA size (mm): 170.88x33.6 mm
▶ Display inches: 7.0”
▶ Application: Central control system
▶ Viewing angle: IPS full viewing angle
▶ Backlight/brightness: 700 cd/m²
▶ Pin configuration: FPC-30 pin
▶ Interface: LVDS
▶ Special notes: ESD protection 8KV
▶ Operating temperature: -30~80℃
▶ Power supply voltage: 3.3V

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

No Back Next

Product Description
Customized Services
Attributes

HTM-H070A21-LVDS-A02 | 7.0-inch TFT LCD Display Module With LVDS Interface
Elevate your central control systems with our cutting-edge 7.0-inch TFT LCD Display Module. Engineered for superior performance in demanding environments, this module is the ideal solution for applications requiring excellent readability, robust construction, and reliable signal transmission.
This 7.0-inch TFT LCD Display Module boasts a high-brightness IPS panel with 700 cd/m², ensuring clear and vivid visuals even under direct sunlight or in bright indoor settings. With a resolution of 1424 x 280 pixels and a wide IPS viewing angle, critical information is displayed flawlessly from any perspective. The compact dimensions of 182.47 x 38.2 x 9.6 mm make it a perfect fit for sleek, modern dashboard and console designs.

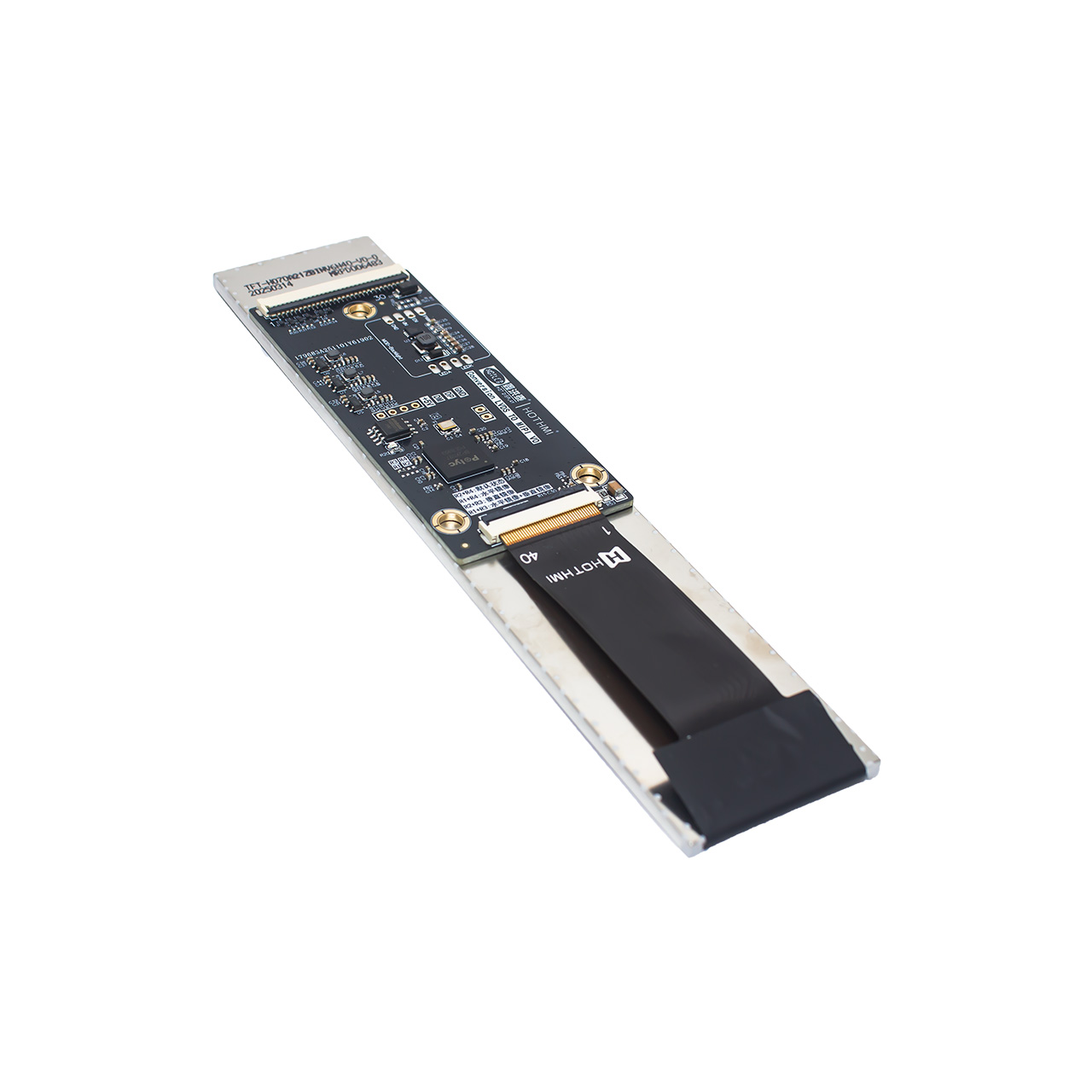

A key feature of this 7.0-inch TFT LCD Display Module is its LVDS interface. This stable digital interface ensures high-speed, low-noise data transmission, delivering crisp image quality and exceptional reliability for your mission-critical control applications. Paired with a 30-pin FPC connector, the LVDS interface provides a robust connection that is built to last.
Built to withstand harsh conditions, this module offers an impressive operating temperature range from -30°C to 80°C and features 8KV ESD protection, guaranteeing stable operation in industrial settings. The 3.3V power supply further enhances its efficiency. Choose our versatile and durable 7.0-inch TFT LCD Display Module as the cornerstone of your next-generation control interface.

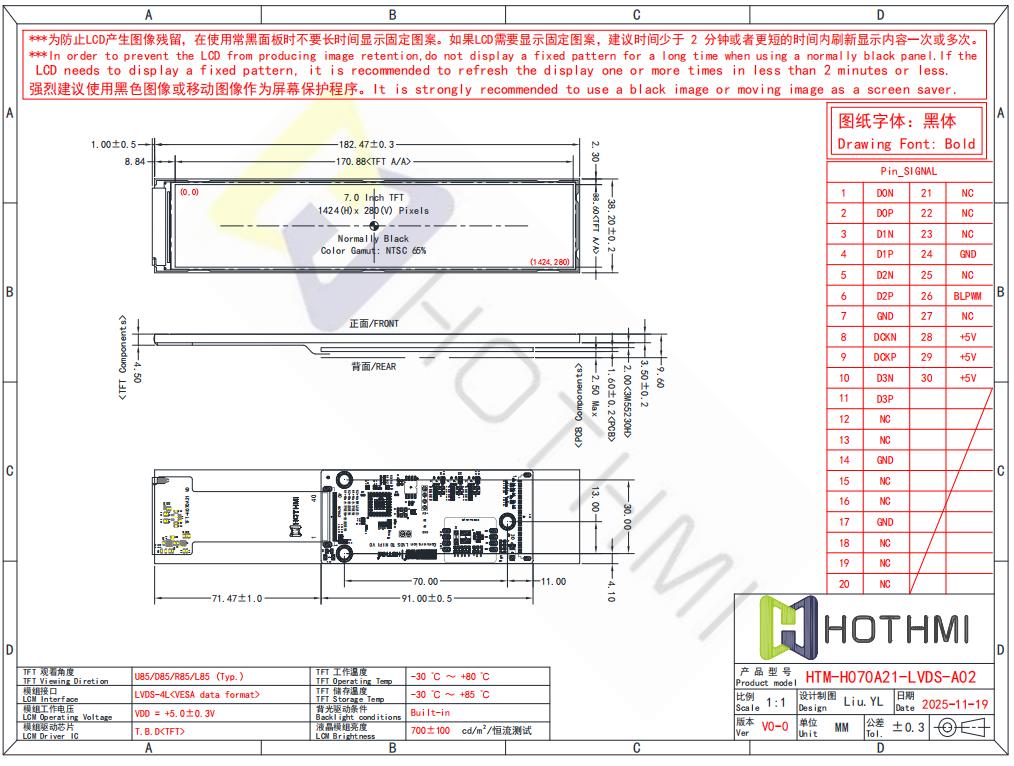

The Specification of the 7.0-inch TFT LCD Display Module

Datasheet for Touch Panel,Controller↓

Name	Date	Size
HTM-H070A21-LVDS-A02	January 01, 2026	1.38MB

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection).

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	HTM-H070A21-LVDS-A02
Diagonal size	7.0”	Inch
Resolution	1424x280	Dot
Dimensions	182.47x38.2x9.6	mm
Active area (AA)	170.88x33.6	mm
LCD type	7.0” TFT Module	mm
Display viewing angle	Full View
Aspect ratio	——
Backlight type	LED white
TFT driver IC	——
Brightness	700cd/m2	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
