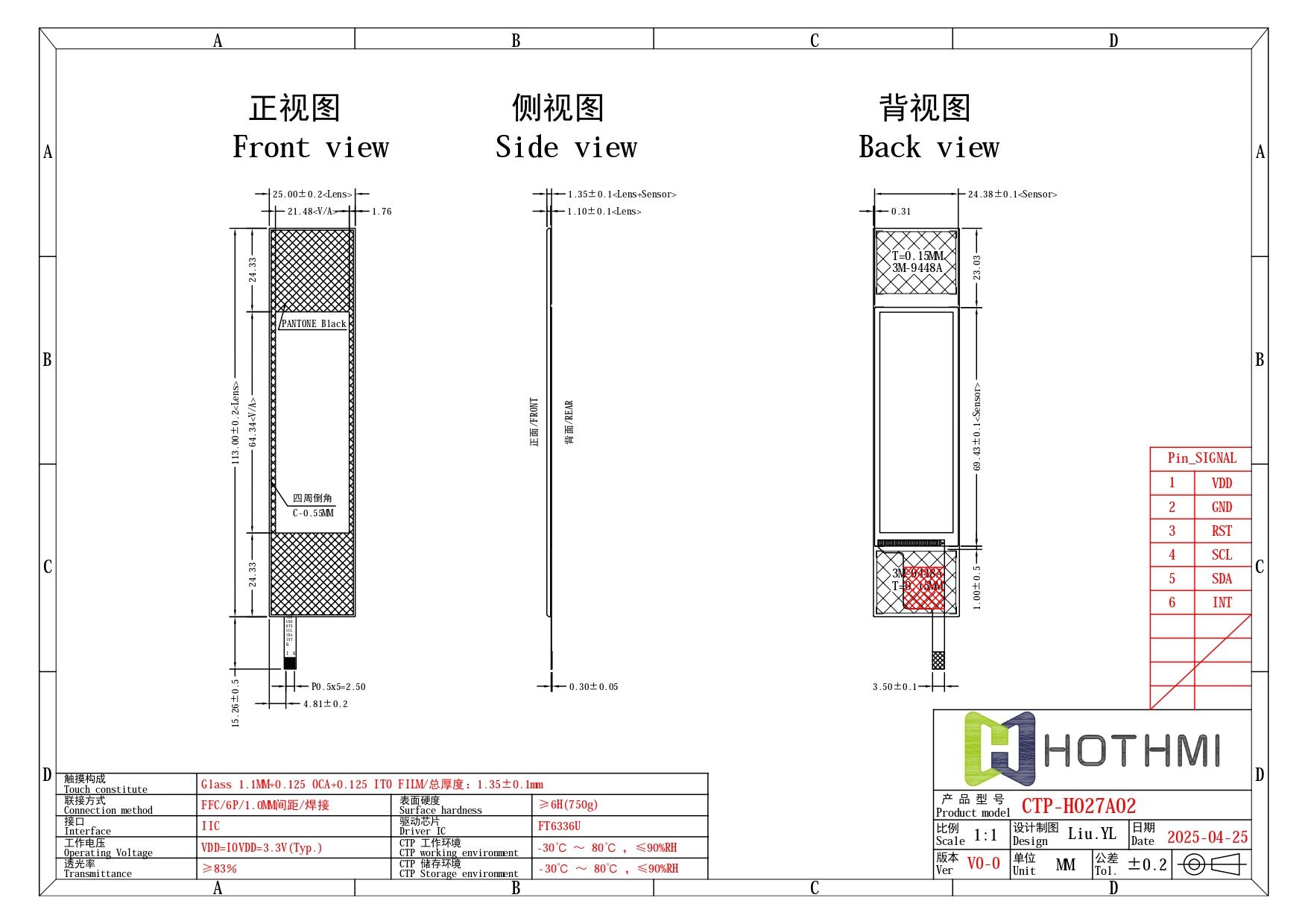

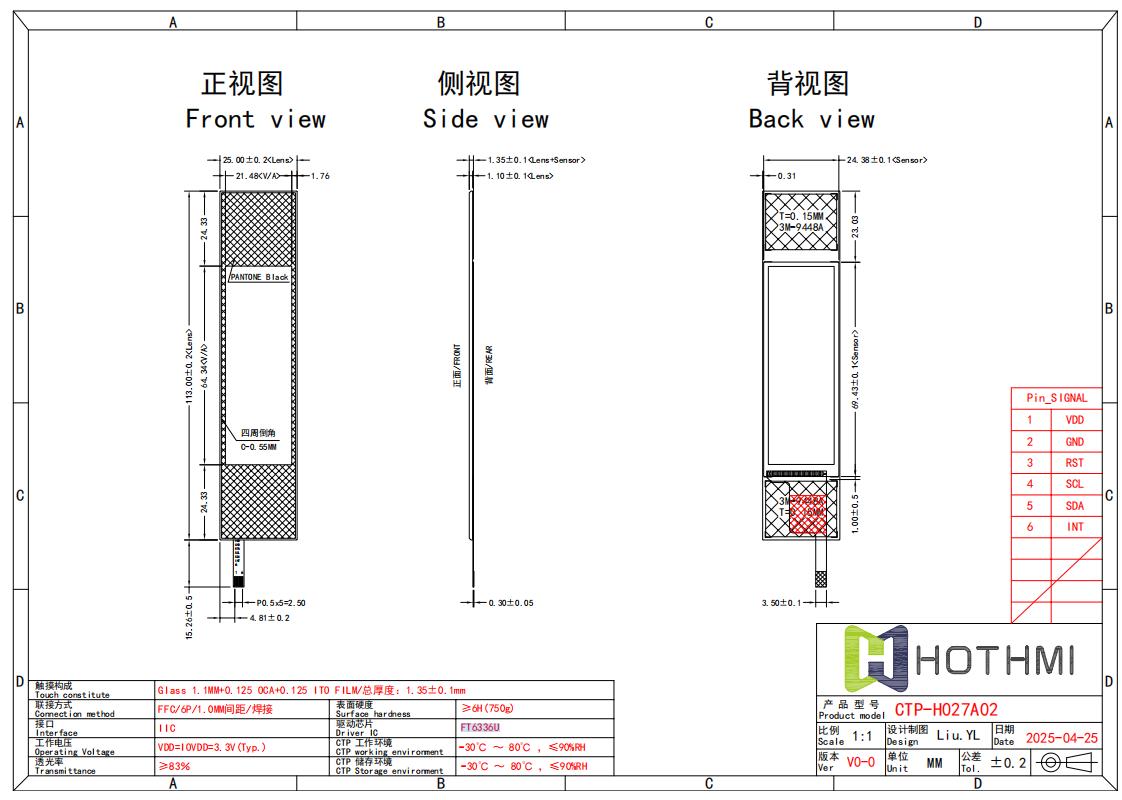

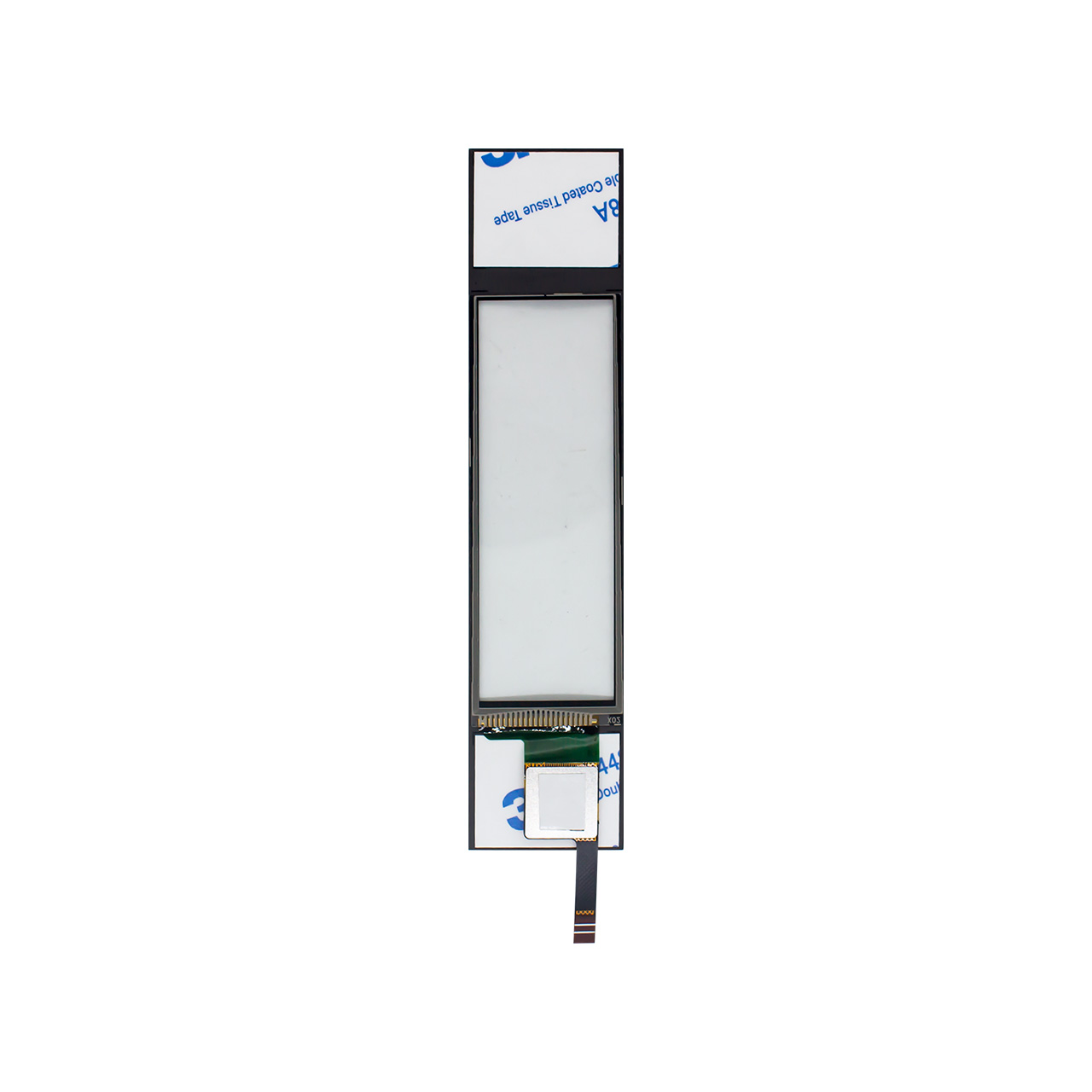

2.7-inch Capacitive Touch Panel With FT6336U For The TFT LCD Display

2.7-inch Capacitive Touch Panel With FT6336U For The TFT LCD Display

▶ Model：
CTP-H027A02

▶ Type: 2.7-inch capacitive touchscreen
▶ Dimensions (mm): 25.0 x 113.0 x 1.35
▶ Window Size (mm): 21.48 x 64.34
▶ Diagonal Size: 2.7"
▶ Touch Points: Multi-touch
▶ Control Chip: FT6336U
▶ Interface: I2C
▶ Connection Type: 6-pin FFC connector
▶ Manufacturing Process: G+G
▶ Cover Plate Shape: Large cover plate
▶ Hardness: 6H
▶ Light Transmittance: ≥85%
Product ConsultationDatasheets Download
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Product Description
Customized Services
Attributes

CTP-H027A02 | 2.7-inch Capacitive Touch Panel With FT6336U For The TFT LCD Display
Looking for a high-performance touch experience for your smart devices? This 2.7-inch Capacitive Touch Panel is the perfect choice. Thanks to its precise G+G process and 6H high-hardness design, it achieves a perfect balance between durability and touch sensitivity, ensuring long-term stable operation.

This 2.7-inch Capacitive Touch Panel features a large cover design, fully covering and exceeding the visible area of a standard 2.7-inch TFT screen, providing users with a more spacious and seamless touch interface. Whether swiping, zooming, or multi-touch operations, everything is smooth and uninterrupted. Combined with its high-transmittance material, the screen is clear and bright, and the touch response is precise and rapid.

We offer customization services, able to tailor a 2.7-inch Capacitive Touch Panel to fit your specific TFT LCD display dimensions, achieving a seamless match between the touch module and the display panel. Equipped with a high-performance control chip and a stable I2C interface, it is easy to install, highly compatible, and suitable for various embedded displays and interactive terminals.

Choose this reliable and flexible 2.7-inch Capacitive Touch Panel to enhance the human-computer interaction of your products and create more competitive smart devices.

Datasheet for Touch Panel,Controller↓

Name	Date	Size
2.7-inch Capacitive Touch Panel With FT6336U For The TFT LCD Display	January 01, 2026	44.04KB

Customized material: Customized touch cover of various materials: such as tempered glass (up to 7H), acrylic material, etc.

Customized special-shaped contour: Support special-shaped cutting/opening/edging (2.5D, 3D)/transmittance.

Cover color and logo silk screen customization: Supports silk screen printing in different colors (usually black or white); supports silk screen printing of logos in multiple colors.

Customized cover thickness: 0.55/0.7/1.0/1.1/1.8/2.0/3.0/4.0/5.0/6.0/8.0/10.0(mm)，etc.

Customized different transmittance: High light transmission efficiency, which directly affects the visual effect of the touch screen.

Opening service: Through holes with a diameter of ≤10mm can be opened.

Cover surface treatment: Optional touch screen surface treatment methods are available: AG anti-glare/AR anti-reflection/AF anti-fingerprint.

ITEM	Parameter description	Unit
CTP model	CTP-H027A02
Viewing window size (mm)	21.48x64.34	Mm
Appearance size (mm)	25.0x113.0x1.35	mm
Driver chip	FT6336U
Structure	G+G
Interface	I2C
Cover shape	uXTouch
Connection method	6 PIN FPC plug
Surface hardness	H6
Transmittance	≥85％
Operating voltage	+3.3V	V
Operating temperature	-30℃ ～ 80℃	℃

2.7-inch Capacitive Touch Panel With FT6336U For The TFT LCD Display

CTP-H027A02

CTP-H027A02 | 2.7-inch Capacitive Touch Panel With FT6336U For The TFT LCD Display

Datasheet for Touch Panel,Controller↓
