3.0-inch TFT LCD Capacitive Touch Panel With I2C Interface

3.0-inch TFT LCD Capacitive Touch Panel With I2C Interface

▶ Model: CTP-H030B07

▶ Type: 3.0-inch capacitive touchscreen
▶ Dimensions (mm): 35.0 x 141.35 x 1.35
▶ Window Size (mm): 24.62 x 72.5
▶ Diagonal Size: 3.0"
▶ Touch Points: 5 points-touch
▶ Control Chip: GT911
▶ Interface: I2C
▶ Connection Type: 6-pin FFC connector
▶ Manufacturing Process: G+G
▶ Cover Plate Shape: Large cover plate
▶ Hardness: 6H
▶ Light Transmittance: ≥85%
Product ConsultationDatasheets Download
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Product Description
Customized Services
Attributes

CTP-H030B07 | 3.0-inch TFT LCD Capacitive Touch Panel With I2C Interface
This high-performance 3.0-inch capacitive touch panel is engineered to deliver an exceptional user interface experience for a wide range of compact applications. The defining feature of this module is its optimal 3.0-inch capacitive touch panel size, offering a perfect balance between ample interactive space and efficient device integration. It boasts excellent optical clarity with high transmittance, ensuring vibrant display visibility through the 3.0-inch capacitive touch panel.
Durability is a cornerstone of this 3.0-inch capacitive touch panel. It features a surface hardness of up to 7H, providing remarkable resistance to scratches and daily wear. The panel supports multi-touch functionality (typically up to 5 points), enabling intuitive gestures like pinch and zoom on the responsive 3.0-inch capacitive touch panel surface. Its robust design ensures stable operation across an extensive temperature range, making it reliable in various environments.
Furthermore, this 3.0-inch capacitive touch panel offers superior sensitivity and fast response time, guaranteeing smooth and accurate touch feedback. It utilizes a projected capacitive (PCAP) technology, ensuring long-term stability and zero drift. The anti-glare and anti-fingerprint treatments available for the 3.0-inch capacitive touch panel significantly enhance readability and maintain a clean appearance under frequent use.
In summary, with its ideal form factor, rugged construction, and advanced touch performance, this 3.0-inch capacitive touch panel is an outstanding solution for portable consumer electronics, industrial controls, handheld devices, and smart home interfaces, promising both reliability and a premium tactile experience.

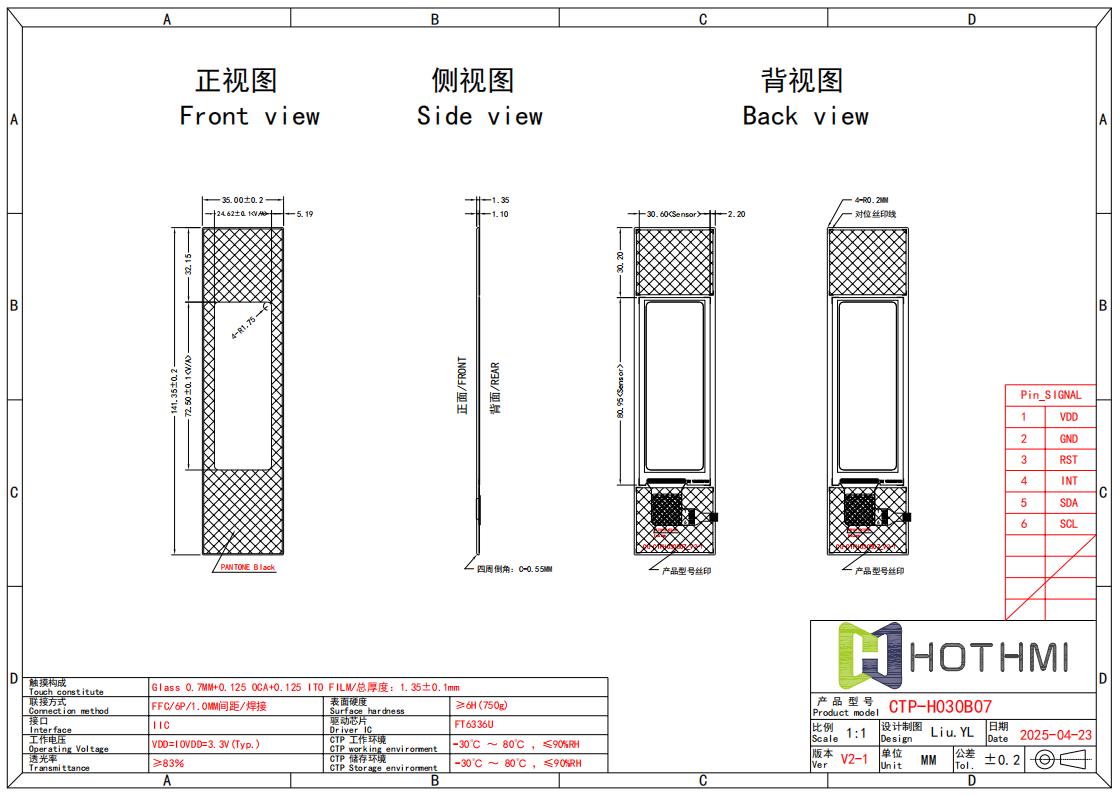

Specification of the 3.0-inch TFT LCD Capavitive Touch Panel

ITEM	Parameter description	Unit
CTP model	CTP-H030B07
Viewing window size (mm)	24.62 x 72.5	Mm
Appearance size (mm)	35.0 x 141.35 x 1.35	mm
Driver chip	GT911
Structure	G+G
Interface	I2C
Cover shape	ATouch
Connection method	6 PIN FPC plug
Surface hardness	H6
Transmittance	≥85％
Operating voltage	+3.3V	V
Operating temperature	-20℃ ～ 70℃	℃

Customized material: Customized touch cover of various materials: such as tempered glass (up to 7H), acrylic material, etc.

Customized special-shaped contour: Support special-shaped cutting/opening/edging (2.5D, 3D)/transmittance.

Cover color and logo silk screen customization: Supports silk screen printing in different colors (usually black or white); supports silk screen printing of logos in multiple colors.

Customized cover thickness: 0.55/0.7/1.0/1.1/1.8/2.0/3.0/4.0/5.0/6.0/8.0/10.0(mm)，etc.

Customized different transmittance: High light transmission efficiency, which directly affects the visual effect of the touch screen.

Opening service: Through holes with a diameter of ≤10mm can be opened.

Cover surface treatment: Optional touch screen surface treatment methods are available: AG anti-glare/AR anti-reflection/AF anti-fingerprint.
