Character LCD Modules |2X8 STN+ Gray Display with White Side Backlight 5.0V

Character LCD Modules |2X8 STN+ Gray Display with White Side Backlight 5.0V

▶ Model: HTM0802B-11W-T5P-V03

▶ Product type: Character LCD Modules
▶ Display content: 8x2 characters

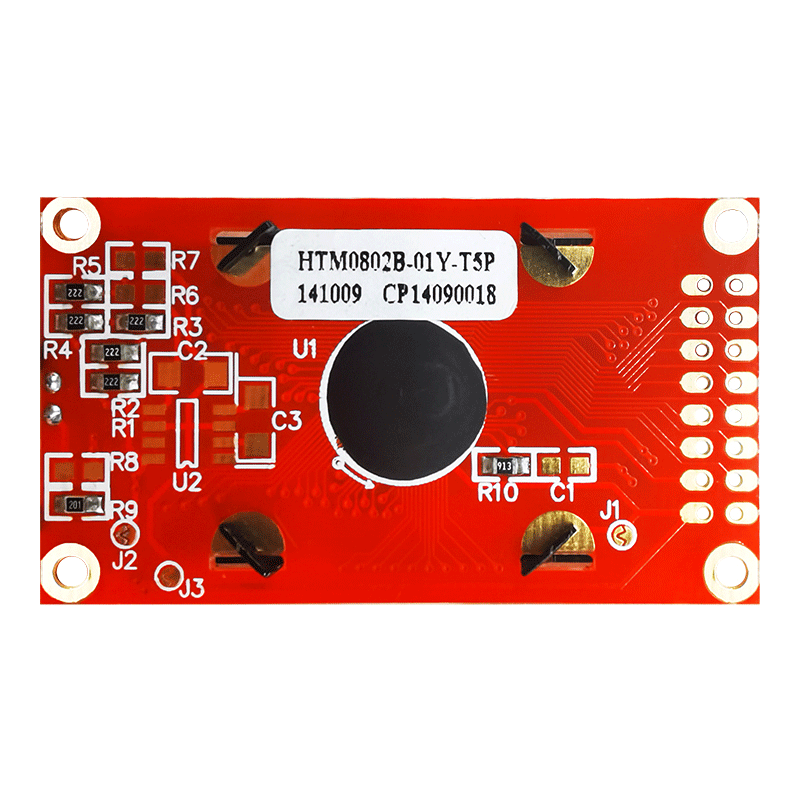

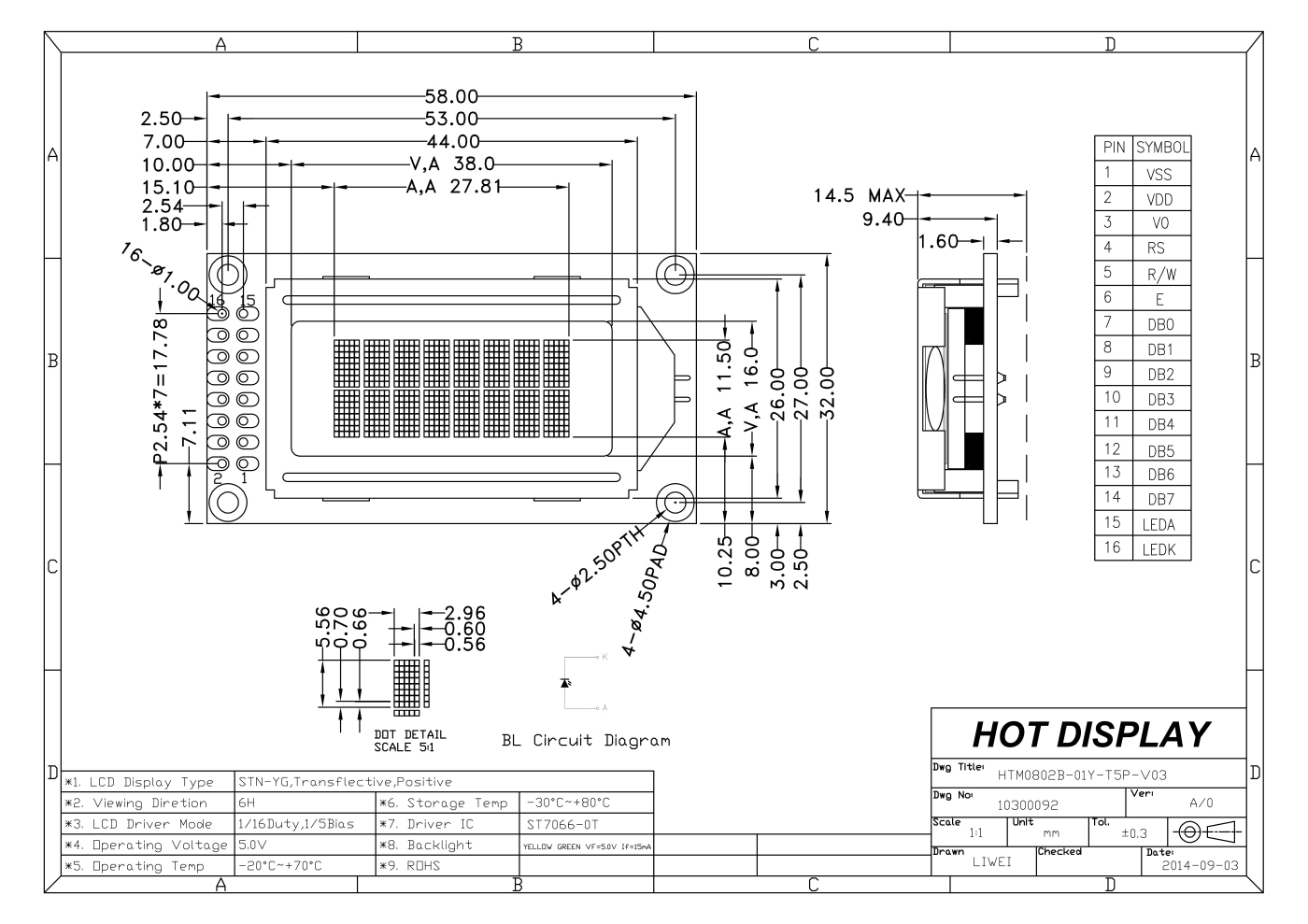

▶ Overall dimensions (mm): 58.0x32.0x10.3
▶ VA size (mm): 38.0x16.0
▶ AA size (mm): 27.81x11.5
▶ Point spacing mm: 0.6x0.7
▶ Product application: Instrumentation
▶ Viewing angle: 6H
▶ Backlight type or brightness: white
▶ Connection method PIN number: 16PIN
▶ Interface mode: MCU/8bit
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0v
▶ Driver chip: ST7066U
Product ConsultationDatasheets Download
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
Character graphic dot matrix module dedicated adapter board
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Customized Services
Attributes

Character LCD Modules |2X8 STN+ Gray Display with White Side Backlight 5.0V
Character LCD Modules | 8X2 Character Display | Transmissive LCD | Side White Backlight | STN(-) Gray LCD Display Arduino Display is an 8-character, 2-line character LCD that displays blue characters on a gray background. This transflective single-line display operates on a 5.0V supply voltage. Compact design, blue LCD display, with an optimal 6:00 viewing orientation to provide you with the best viewing experience. It has a wide operating temperature range, from as low as -20°C to as high as 70°C. It has a unique side white backlight that enhances visibility and readability in low-light environments. The LCD display has a built-in ST7066U controller, which guarantees high compatibility with a variety of interfaces and development boards such as Arduino.

Item	Parameter Description	Unit
name	HTM-0802B-11W-A5P
Number of dots	8word × 2line	dots
Module size	58.0 × 32.0 × 13.2 (MAX)	mm
Visual (VA) area	38.0（W） × 16.0（H）	mm
Valid (AA) area	27.81（W） × 11.5（H）	mm
Point (pixel) spacing	0.60 × 0.70mm	mm
IC	ST7066U driver chip
voltage	5.0V	V
back light	White backlight
display mode	STN postive gray
Drive mode (Duty)	1/16 duty cycle
type	Character LCD
characteristic	Transflective polarizer
