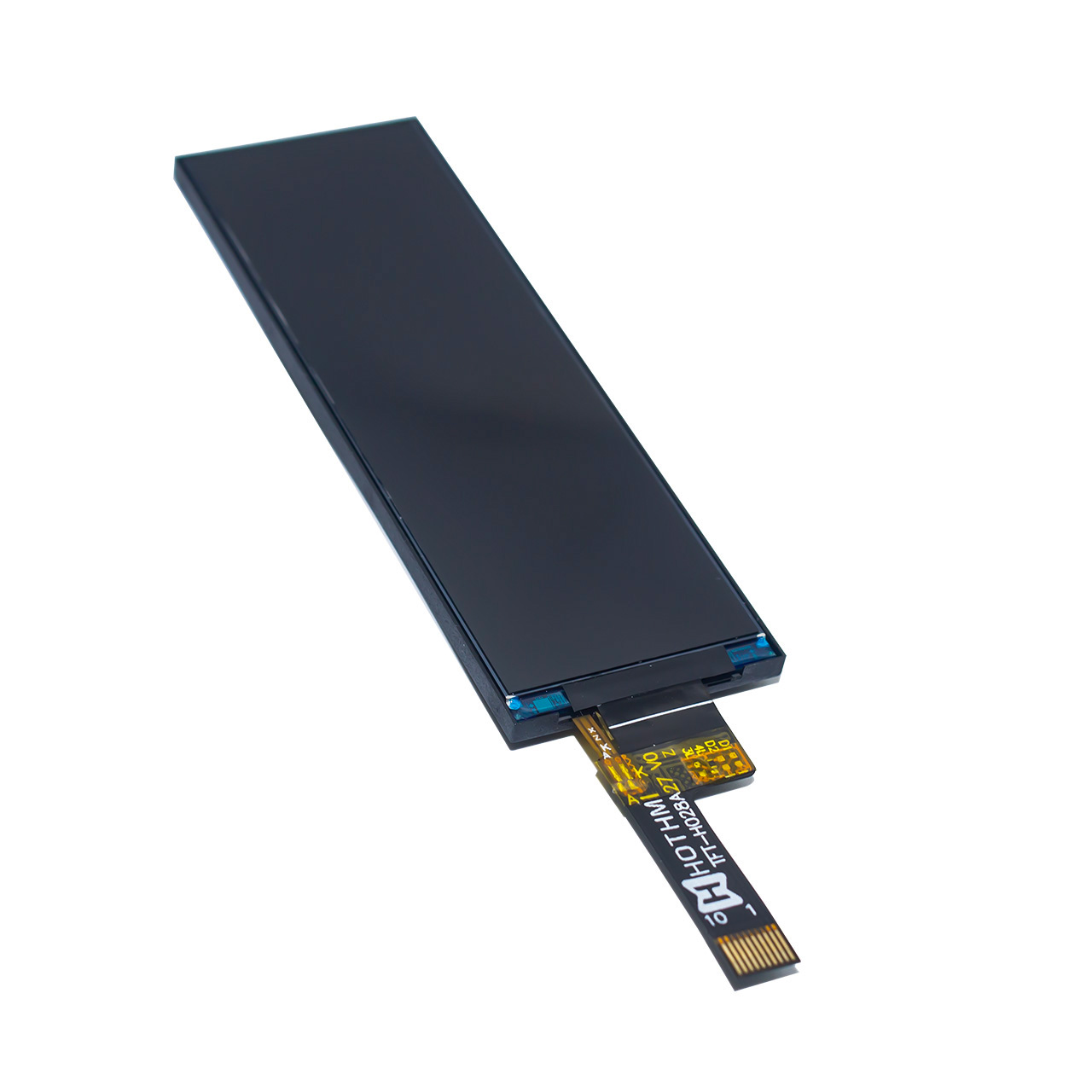

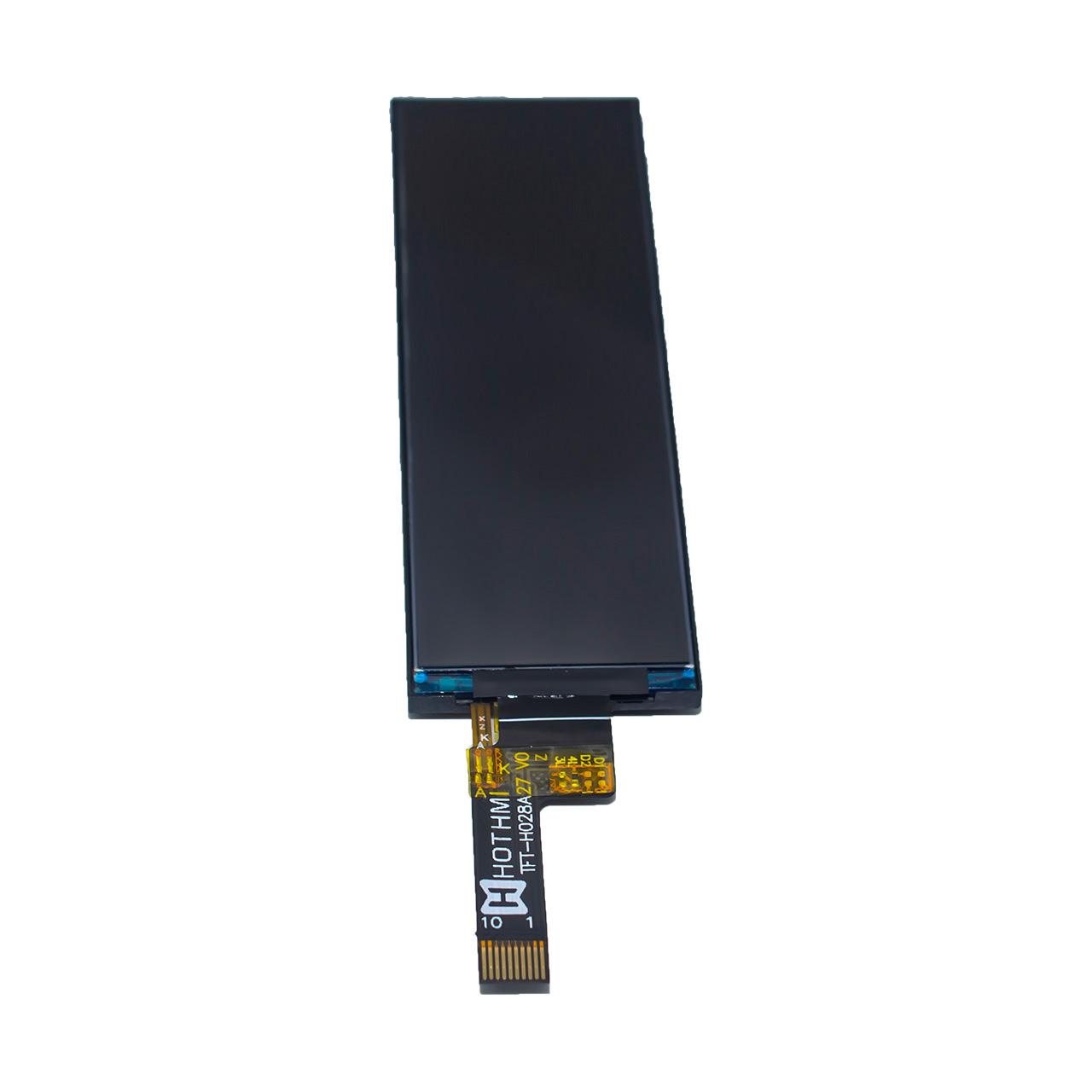

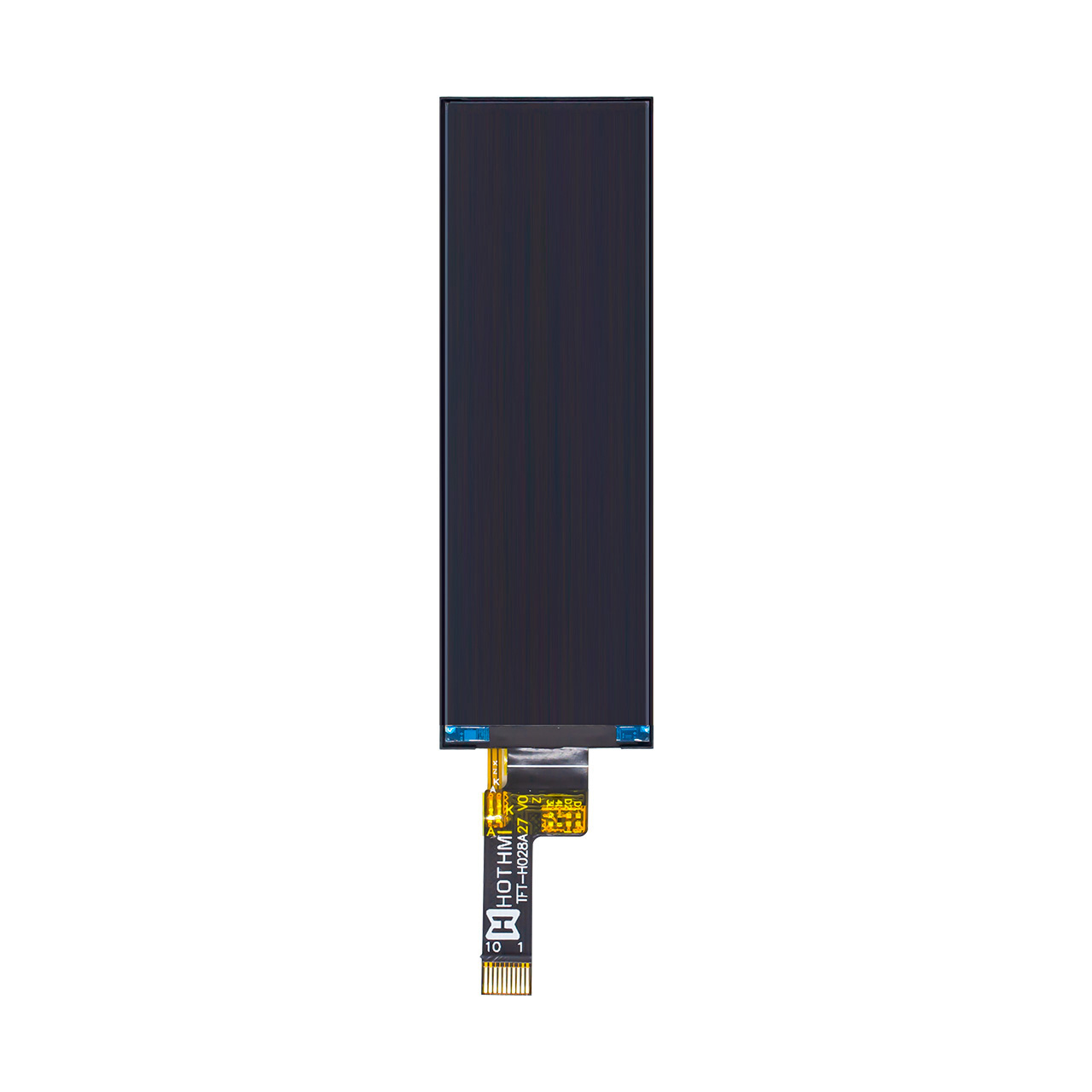

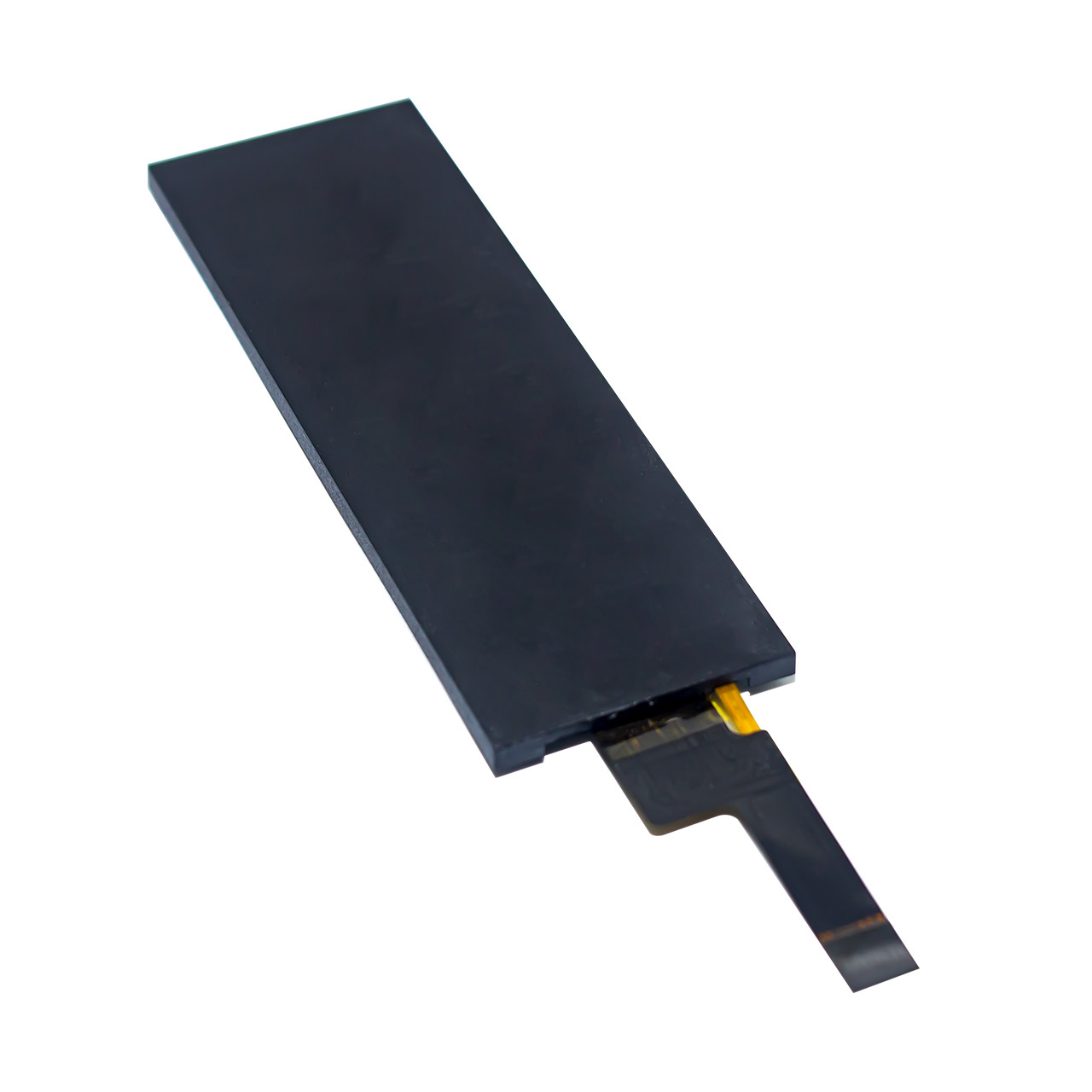

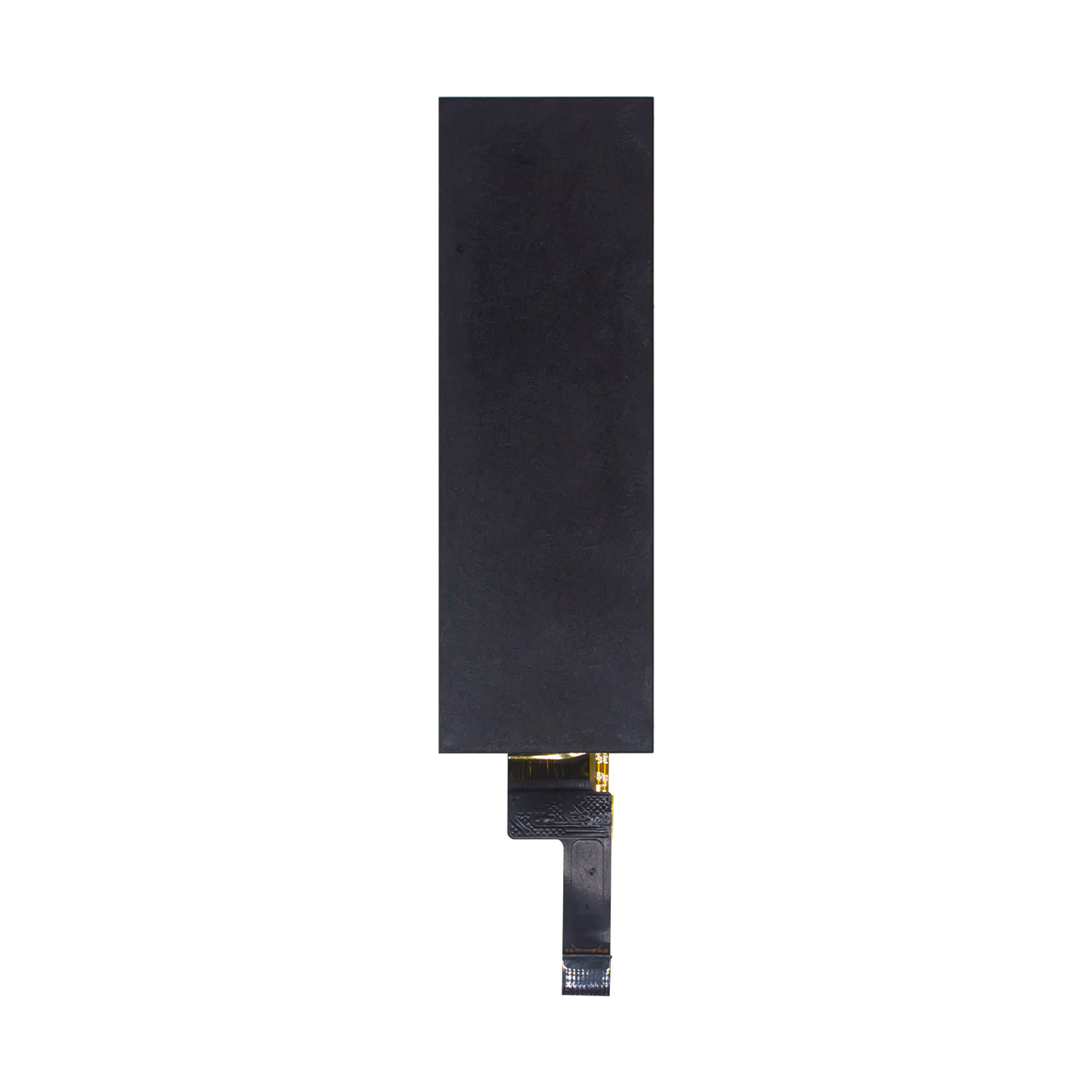

2.8 Inch Bar TFT LCD Display With SPI Interface and 200x648 Resolution

▶ Model: TFT-H028A27ZTIGC4N10

▶ Type: TFT standard display screen
▶ Display pixel: 200x648

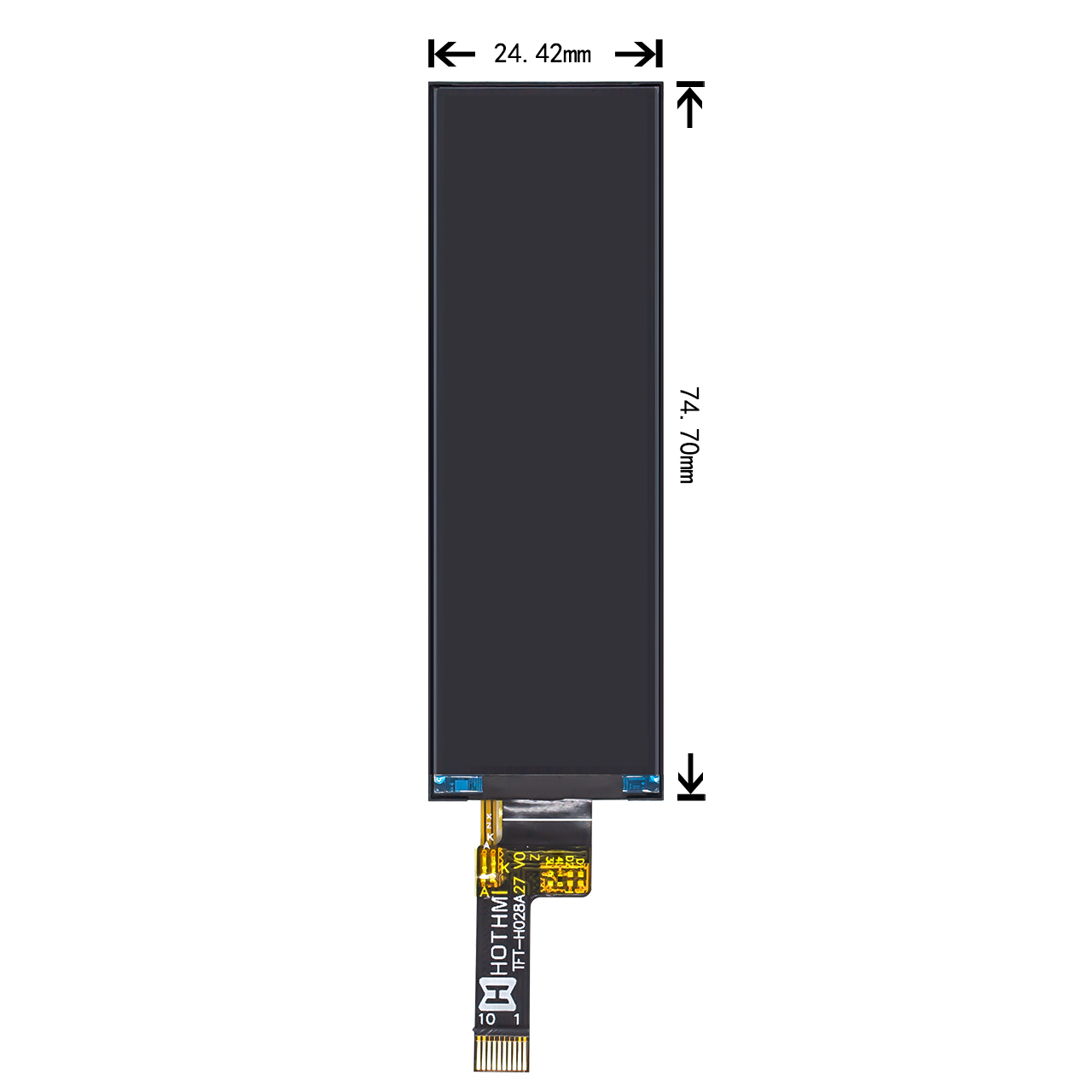

▶ Exterior dimensions: 24.42x74.7x2.42
▶ AA size (mm): 21.42x69.4
▶ Display inch: 2.8 inches
▶ Application: Medical equipment, central control system
▶ Perspective: IPS Full View
▶ Backlight/Brightness: 500cd/m2
▶ Pin: FPC-10 pin
▶ Interface method: SPI
▶ Special note: Anti static ESD 8KV
▶ Working temperature: -20~70 ℃
▶ Supply voltage: 3.3V
▶ Driver chip: GC9B72

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
COG Adapter Board

Product Description
Customized Services
Attributes

TFT-H028A27ZTIGC4N10 | 2.8 Inch Bar TFT LCD Display With SPI Interface and 200x648 Resolution
In the demanding fields of medical equipment and sophisticated central control systems, display performance is non-negotiable. Meet the solution: the advanced 2.8 inch Bar TFT LCD Display. Engineered for excellence, this screen is built to deliver unparalleled reliability and clarity in critical applications.
The cornerstone of this module is its superior IPS Full View technology, ensuring consistent, vibrant colors and a wide viewing angle from any orientation. The high brightness backlight guarantees perfect readability even in brightly lit environments, making every detail sharp and clear. For system integrators, the versatile 2.8 inch Bar TFT LCD Display offers seamless integration through its standard interface and a robust driver chip that ensures smooth, efficient performance.
Durability is a key feature. This display is designed to withstand challenging conditions, operating flawlessly across a wide temperature range. Its built-in protection against electrostatic discharge provides an extra layer of reliability, ensuring the unit's longevity in sensitive and industrial settings. The compact and slender exterior design of the 2.8 inch Bar TFT LCD Display maximizes the active viewing area without compromising on space, making it an ideal choice for modern, compact devices.
Whether it's for a life-saving medical monitor or a complex central control panel, the 2.8 inch Bar TFT LCD Display delivers the performance you can trust. Its low voltage requirement further enhances its suitability for a wide array of portable and fixed electronic systems. Choose the 2.8 inch Bar TFT LCD Display for a perfect blend of innovative technology, robust construction, and exceptional visual performance.

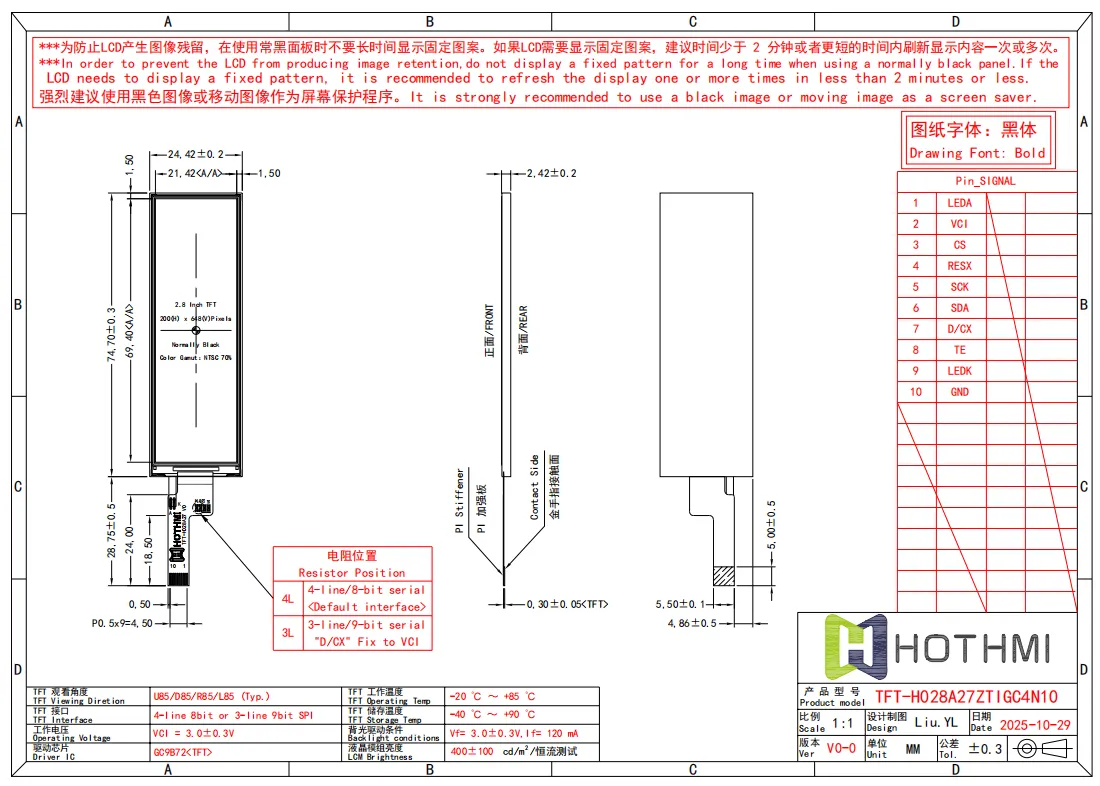

Datasheet for Touch Panel,Controller↓

Name	Date	Size
TFT-H028A27ZTIGC4N10	November 11, 2025	73.80KB

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection).

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H028A27ZTIGC4N10
Diagonal size	2.8”	Inch
Resolution	200x648	Dot
Dimensions	24.42x74.7x2.42	mm
Active area (AA)	21.42x69.4	mm
LCD type	2.8” TFT Module	mm
Display viewing angle	Full View
Aspect ratio	1：3
Backlight type	LED white
TFT driver IC	GC9B72
Brightness	500cd/m2	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
