128x64 Graphic LCD Module FSTN Background Display With ST7565R Driver Chip

▶ Model: HTM12864-140-30W-N3P-V01

▶ Type: Graphic LCD Display Module
▶ Display Pixels: 128x64
▶ Dimensions (mm): 44.55x25.0x5.3
▶ VA Dimensions (mm): 26.15x13.9
▶ AA Dimensions (mm): 23.02x11.5
▶ Dot Pitch (mm): 0.18x0.18
▶ Application: Industrial Control
▶ Viewing Angle: 6H
▶ Backlight: White
▶ Pins: 18PIN
▶ Interface: MCU
▶ Operating Temperature: -10~60℃
▶ Power Supply Voltage: 3.3V
▶ Driver Chip: ST7565R

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

No Back Next

Product Description
Customized Services
Attributes

HTM12864-140-30W-N3P-V01 | 128x64 Graphic LCD Module FSTN Background Display With ST7565R Driver Chip
The 128x64 Graphic LCD Display stands as a reliable display solution engineered by HOTdisplay, a manufacturer committed to perpetual production, ensuring this model remains consistently available. This versatile 128x64 Graphic LCD Display module is built to deliver stable performance in demanding applications.

This HOT Display 128x64 Graphic Chip-On-Glass (COG) LCD module features dark grey pixels on a bright white background. This precisely crafted semi-transmissive 128x64 Graphic LCD Display is optimized for superior visibility under diverse lighting conditions. In direct sunlight, the display utilizes a reflective layer to bounce ambient light toward the user, rendering the screen clearly legible. In darker settings, a powerful integrated backlight ensures high contrast and sharp graphics. This advanced display technology guarantees that the 128x64 Graphic LCD Display remains crisp and readable regardless of the ambient light.

Designed for seamless integration, this robust 128x64 Graphic LCD Display is fully compatible with platforms like Arduino/C8051 and connects effortlessly with other electronic systems, making it suitable for a wide array of uses. The product model is constructed to endure harsh operating environments, maintaining reliable operation across a broad temperature range. For optimal viewing, the 128x64 Graphic LCD Display is best viewed from the 6 o'clock direction. It operates on a low voltage supply and is manufactured in full compliance with RoHS standards, reflecting a commitment to both durability and environmental responsibility.

Ideal for industrial control systems and other critical applications, the 128x64 Graphic LCD Display exemplifies performance stability. HOTdisplay's promise of continuous manufacturing means users can depend on the long-term availability of this trusted 128x64 Graphic LCD Display for their current and future projects.

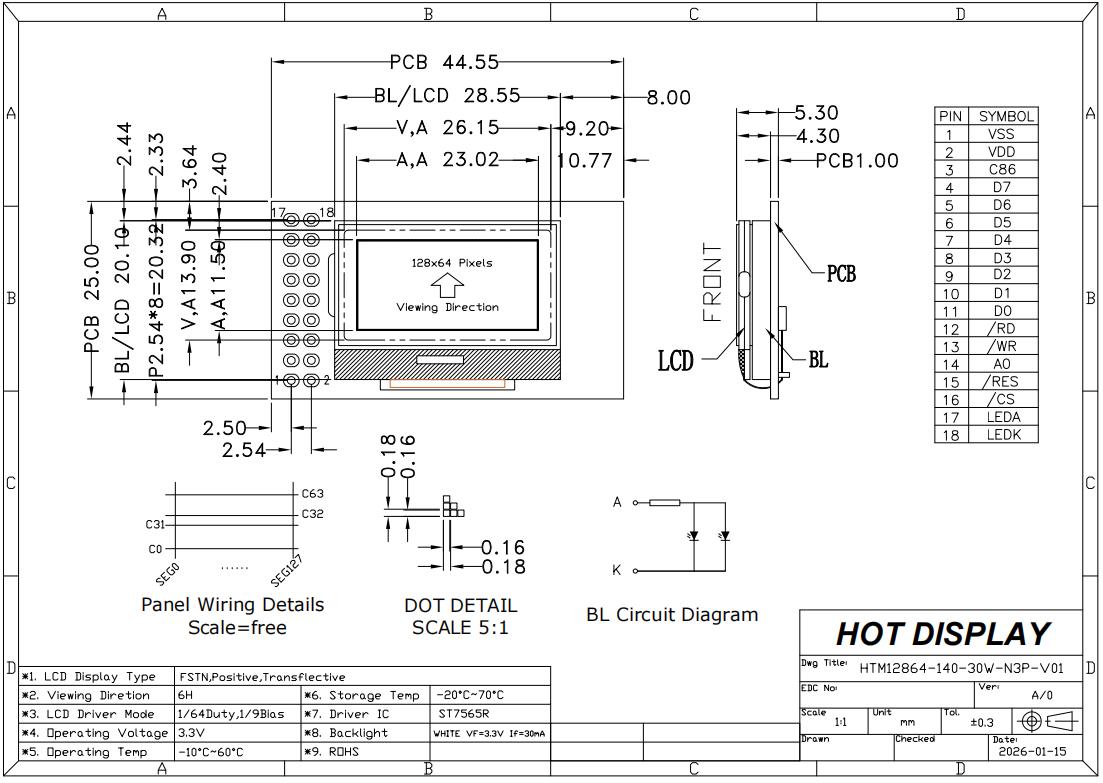

Sprcification of the 128x64 Graphic LCD Display Module

Datasheet for Touch Panel,Controller↓

Name	Date	Size
HTM12864-140-30W-N3P-V01 128x64 Graphic LCD Module FSTN Background Display With ST7565R Driver Chip	January 01, 2026	48.01KB

Connector customization: Easily modify any connector on the display to meet your application requirements. Our engineers can solder pin headers, box headers, right-angle connectors, and any other connectors your display may require.

PCB modification: Choose from a variety of changes to the PCB shape, size, pinout, and component layout to perfectly fit your application.

Backlight color customization: The module backlight has a variety of combinations to choose from, including no backlight or yellow-green/blue/white/amber/red/RGB backlight options, with up to 48 effects to choose from. Click on the customization page for reference.

Font Customization: A variety of font libraries are available, including English/Japanese, Western European, Eastern European, Scandinavian European, Cyrillic (Russian), Hebrew/Arabic, and more.

Cable Customization: Adjust cable length, position, and pinout, or add additional connectors. Get a precisely designed cable solution that streamlines and secures your connections.

Shape Customization: Supports customization of specific Graphic LCD display dimensions.

Function Customization: Integrate specific graphic LCD display ICs, sensors, or develop dedicated communication protocols.

ITEM	parameter	Unit
Name	HTM12864-140-30W-N3P-V01
Number of dots	128x64	dots

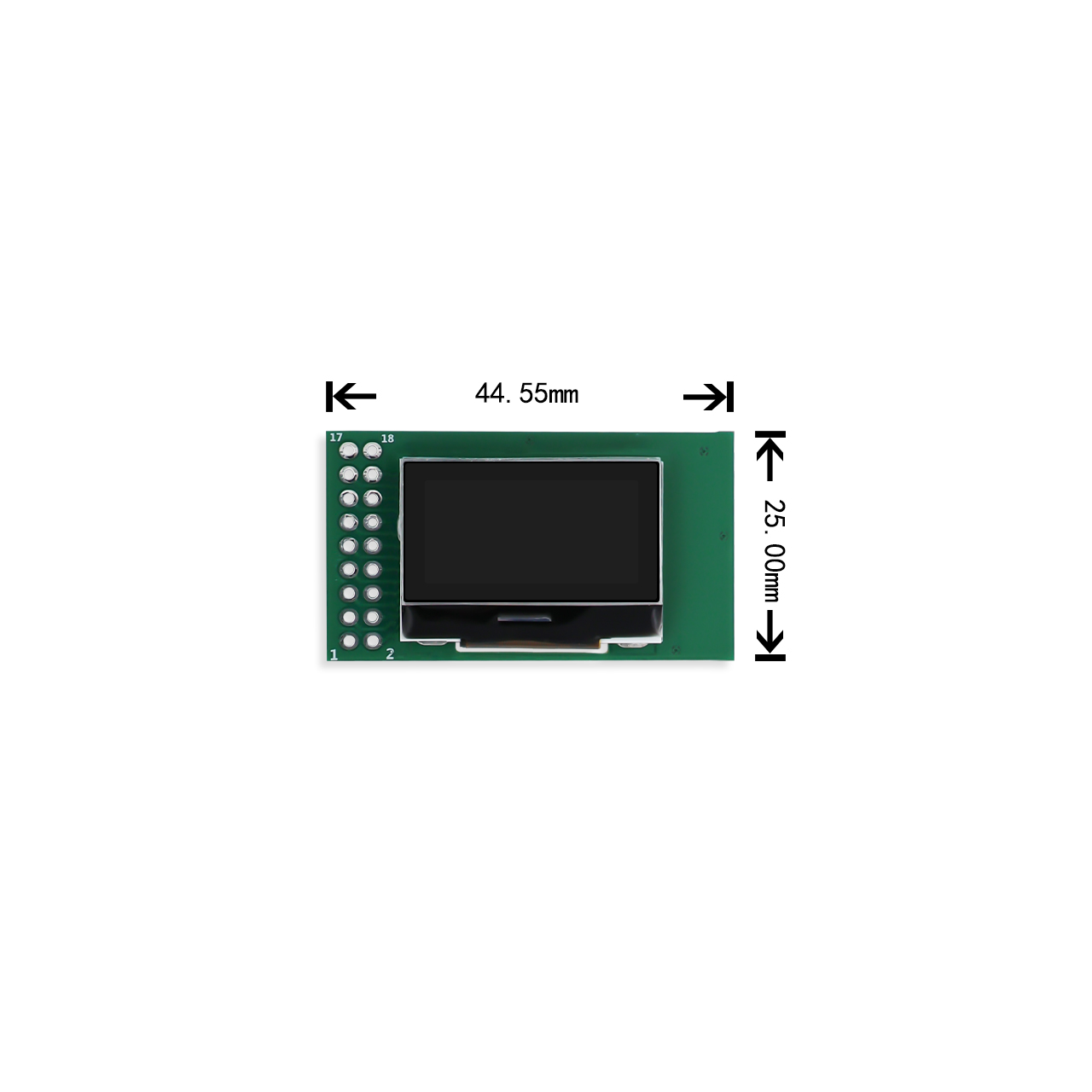

Module size	44.55x25.0x5.3	mm
VA size	26.15x13.9	mm
AA size	23.02x11.5	mm
Pixel pitch	0.18x0.18	mm
IC	ST7565R
Power supply voltage	3.3V	V
Backlight	White
Display mode	FSTN+
Drive mode (Duty)	1/64 duty cycle
Type	COG LCD
Features	Transflective
