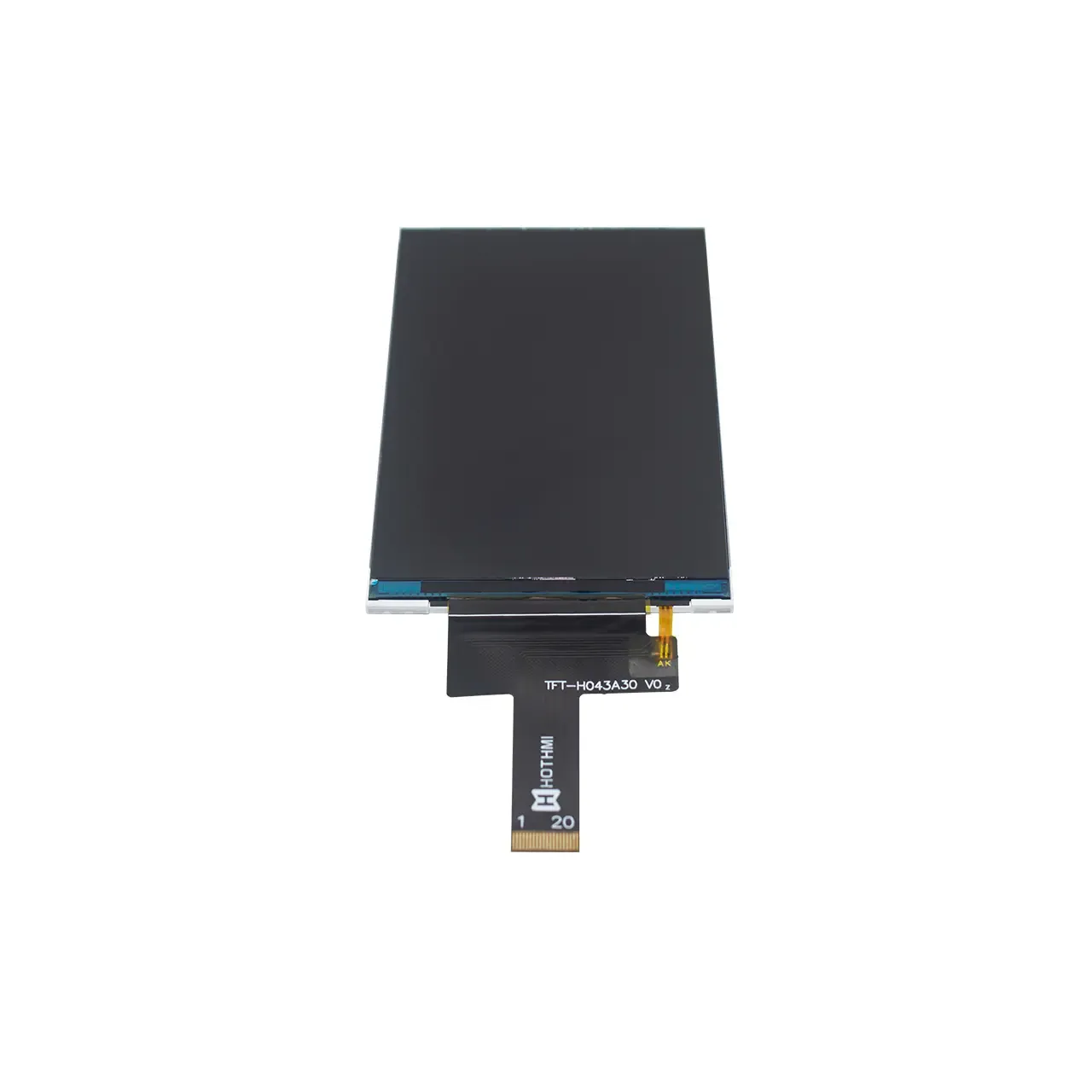

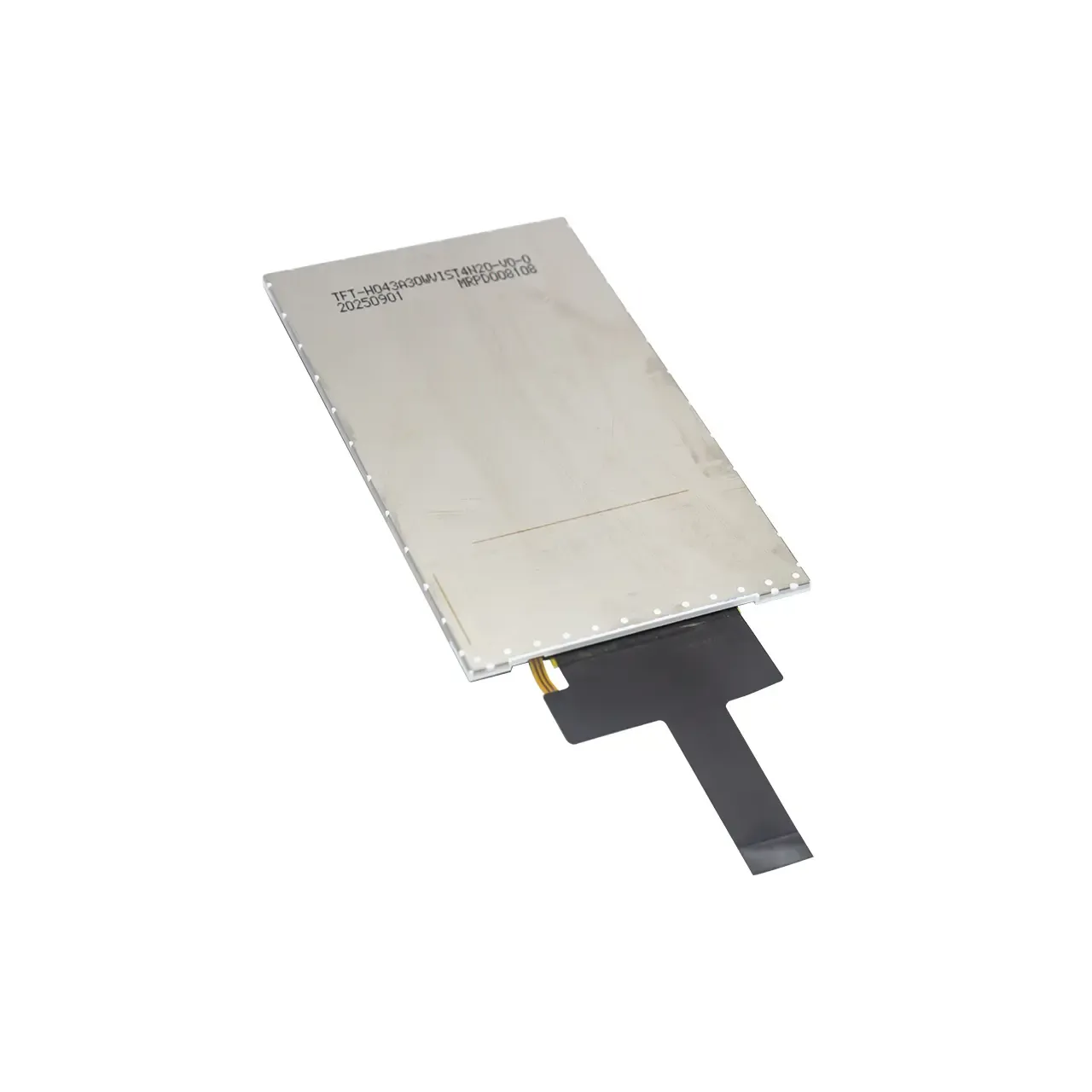

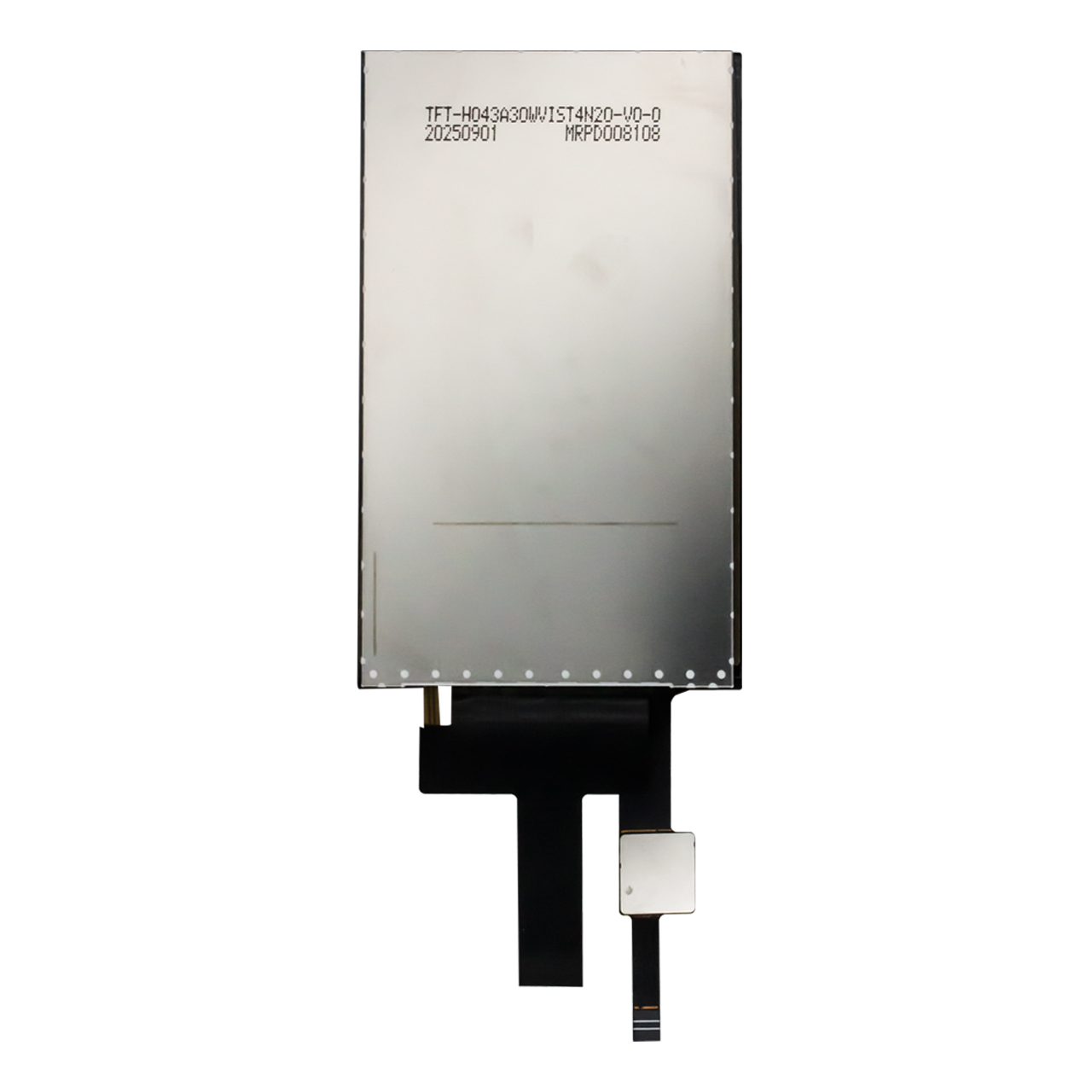

4.3 Inch 480x800 TFT LCD Display | MIPI Interface With ST7701S Driver Chip

▶ Model: TFT-H043A30WVIST4N20

▶ Type: 4.3-inch TFT Display
▶ Display Pixels: 480x800

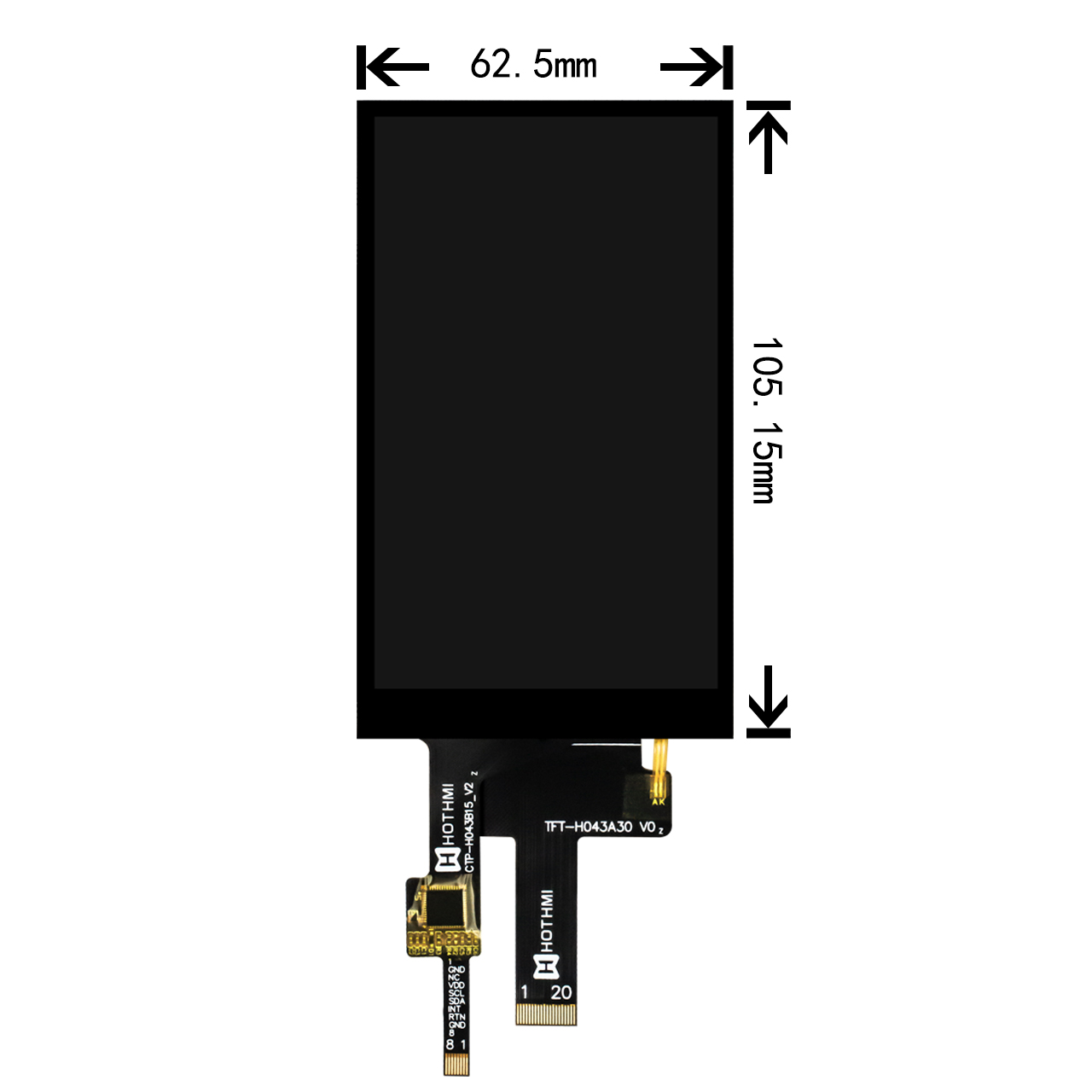

▶ Dimensions (mm): 60.0x104.25x2.25
▶ Active Dimensions (mm): 56.16x93.60
▶ Application: Industrial Controllers
▶ Viewing Angle: IPS Full Viewing Angle
▶ Brightness: 400cd/m²
▶ Interface: MIPI
▶ Pinout: 30-pin
▶ Special Instructions: ESD 8kV
▶ Operating Temperature: -20°C to 70°C
▶ Supply Voltage: 3.3V
▶ Driver IC: ST7701S

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

HI-MIPI-30pin universal adapter board

Product Description
Customized Services
Attributes

4.3 Inch 480x800 TFT LCD Display | MIPI Interface With ST7701S Driver Chip

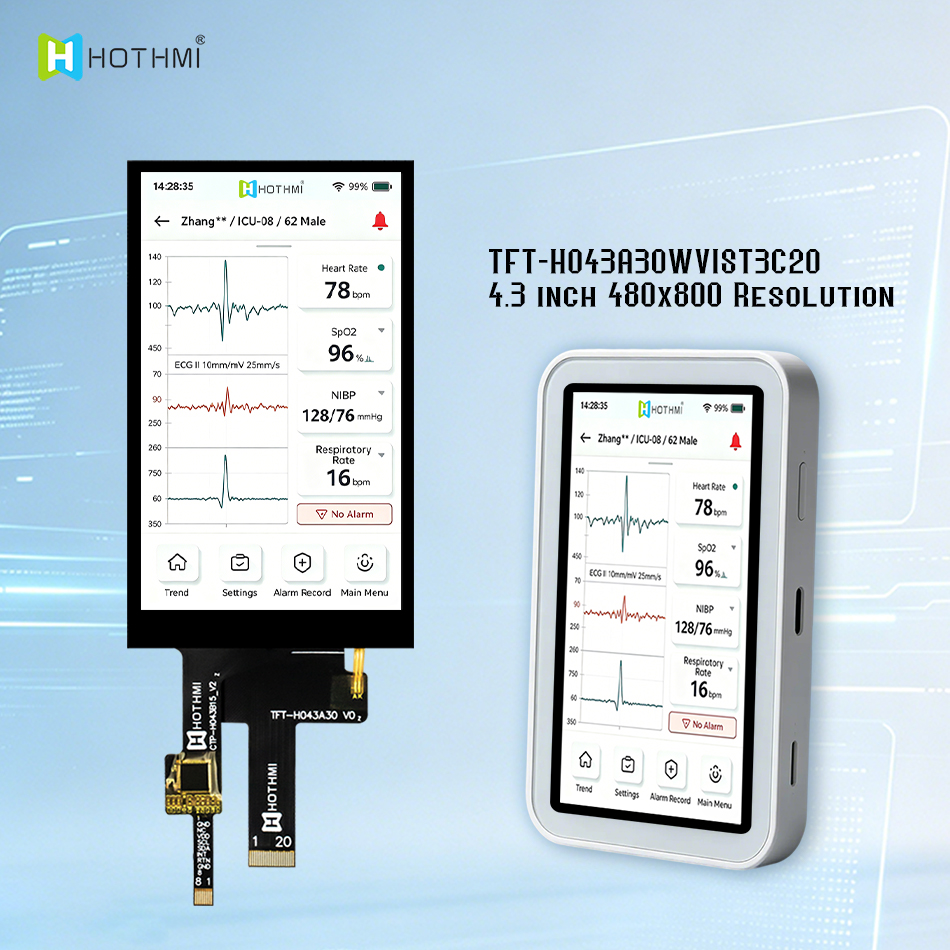

This 4.3-inch TFT LCD display module is engineered for high-performance industrial applications. With a resolution of 480×800 pixels and an advanced IPS panel, it delivers wide viewing angles and consistent color reproduction, making it ideal for industrial control systems, HMI interfaces, and embedded monitoring equipment.

Featuring a high brightness of 400 cd/m², the display ensures excellent readability even in brightly lit environments. Its robust design supports an operating temperature range of -20°C to 70°C, ensuring reliable performance under demanding conditions. The module incorporates ESD protection up to 8kV, enhancing durability in sensitive industrial settings.

The compact physical dimensions and an active area allow for efficient integration into space-constrained applications. It utilizes a modern MIPI interface with a 30-pin connector and is powered by a 3.3V supply voltage. The display is driven by the ST7701S IC, ensuring stable signal processing and smooth image output.

As a trusted TFT LCD manufacturer, we provide high-quality, reliable display solutions tailored for industrial use. This 4.3" TFT display combines durability, clarity, and versatile compatibility, making it an excellent choice for professional industrial displays.

Datasheet for Touch Panel,Controller↓

Name	Date	Size
TFT-H043A30WVIST4N20	September 09, 2025	2.32MB

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection).

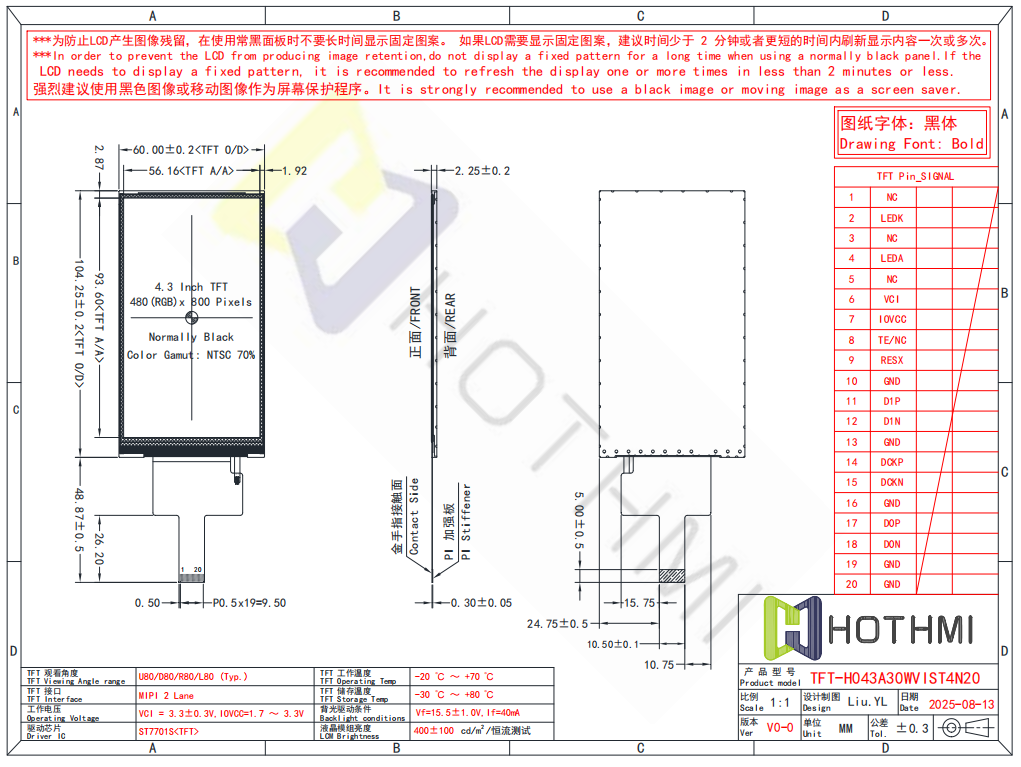

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H043A30WVIST4N20
Diagonal size	4.3”	Inch
Resolution	480x800	Dot
Dimensions	60.0x104.25x2.25	mm
Active area (AA)	56.16x93.60	mm
LCD type	4.3” TFT Module	mm
Display viewing angle	Full View
Aspect ratio	2：3
Backlight type	LED white
TFT driver IC	ST7701S
Brightness	400cd/m2	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
