3.5" TFT LCD Module 320x480 pixels SPI Arduino display

3.5" TFT LCD Module 320x480 pixels SPI Arduino display

▶ Model: HTM-H035A11-SPI-A05

▶ Type: TFT module with board
▶ Display pixels: 320x480 px
▶ Overall dimensions (mm): 57x104x5.6
▶ Display inch : 3.5"
▶ AA size (mm): 48.96x73.44
▶ Application: Instrumentation
▶ Viewing angle: 12H
▶ Backlight/brightness: 500cd/m2
▶ Pin: 40pin
▶ Interface mode: SPI
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Supply voltage: 3.3V
▶ Driver chip: ST7796
Product ConsultationDatasheets Download Shopping
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Product Description
Customized Services
Attributes

It can be used in any embedded system, industrial equipment, security and handheld devices that need to display high-quality and color images. It is a 4-wire serial Spi interface with pin header connections.

The 3.5-inch TFT display has a resolution of 320x480 pixels and has a bright LED backlight with a brightness of 500 Cd/M2. Visible in sunlight, the display offers stunning clarity at viewing angles of up to 70° thanks to the Multi-Domain Vertical Alignment (MVA) technology in this LCD monitor. While this transmissive LCD does not come with a touch screen, its compact size, 3.3V power supply, and impressive display quality make it an excellent choice for projects that require portrait mode visual output without touch functionality.

The 3/4-wire SPI serial interface improves communication efficiency between the Arduino/C8051 and the display. Experience lightning-fast data transfer and real-time updates for smoother animations and more dynamic visuals. The interface provides flexibility and compatibility with a variety of Arduino models, and the TFT LCD display is powered by the ST7796 controller, delivering superior performance and reliability. The controller optimizes the functionality of the monitor, ensuring smooth operation and accurate rendering of images and graphics. Our monitors are RoHS compliant and adhere to strict environmental and safety standards.

The Specification of the 3.5 inch TFT LCD display Module

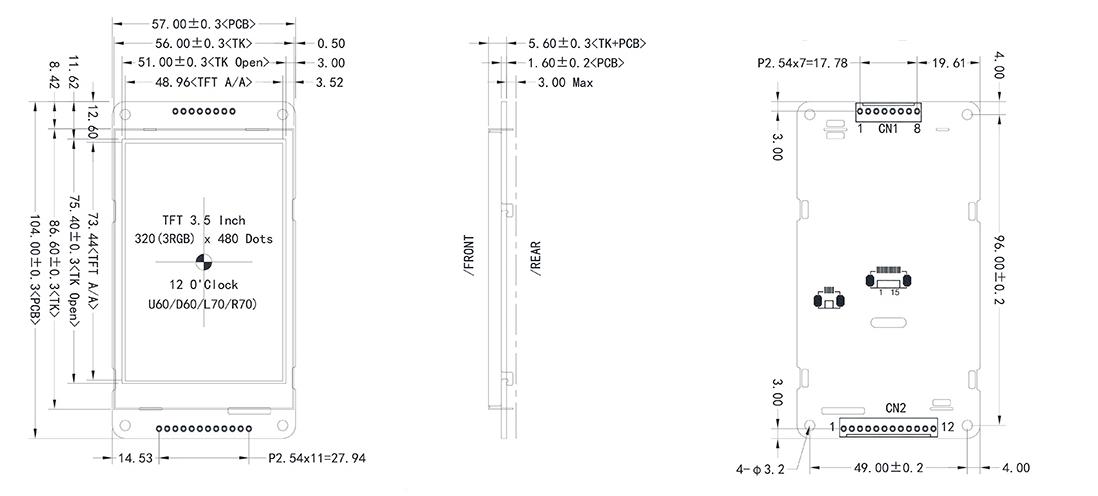

Specification of the 3.5 inch TFT LCD display module.jpg

Wiring instructions of the 3.5 inch TFT LCD display Module

This module model offers a choice between 3-wire and 4-wire SPI interfaces; users may select the appropriate option based on their specific requirements. Please refer to the following diagrams for detailed wiring instructions.

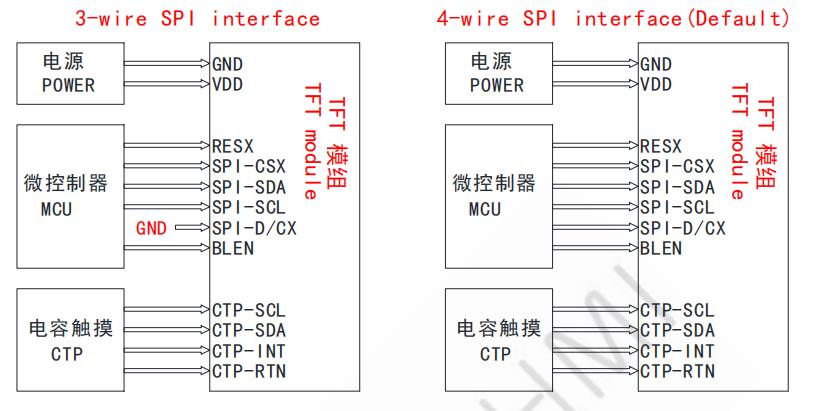

Wiring instructions of the 3 inch TFT LCD Modulejpg.jpg

LED back light specification of the 3.5 inch TFT LCD display Module

Item	Symbol	Condition	Min	Typ	Max	Unit
Forward voltage	VF	If = 3.2V / 20mA / 1-chip -	-	-	-	V
Forward current	IF	If = 3.2V / 20mA / 1-chip -	-	-	-	mA
Luminance (With LCD)	Lv	Without TP	-	500	-	cd/m²
Luminance (With LCD)	Lv	With TP	-	400	-	cd/m²
Operating lifetime	-	Without TP (25°C, IF=20mA)	20,000	-	-	Hour
Operating lifetime	-	With TP (25°C, IF=20mA)	30,000	-	-	Hour

Applications of the 3.5 inch TFT LCD display Module

The 3.5 inch TFT LCD display Module is designed for a wide range of embedded and industrial applications. Thanks to its high brightness (500 cd/m²) and MVA technology, this 3.5 inch TFT LCD display Module performs exceptionally well in outdoor or high-ambient-light environments such as portable handheld terminals and field diagnostic equipment. In the field of industrial control, the 3.5 inch TFT LCD display Module is ideal for HMI panels, PLC interfaces, and industrial automation monitors where stable vertical display output is required without touch interaction. Security devices also benefit from this 3.5 inch TFT LCD display Module, including access control systems, video intercoms, and surveillance equipment that demand reliable operation across extreme temperatures (-20°C to 70°C). Additionally, the 3.5 inch TFT LCD display Module is widely used in embedded systems powered by Arduino or C8051 microcontrollers, thanks to its efficient 3-wire/4-wire SPI interface. Other suitable applications include medical instrument displays, portable testing devices, consumer electronics, and rear-seat entertainment systems. With its ST7796 controller, RoHS compliance, and compact dimensions, the 3.5 inch TFT LCD display Module is a versatile choice for any project demanding high-quality color graphics in a space-saving, sunlight-readable, and touch-free form factor.
