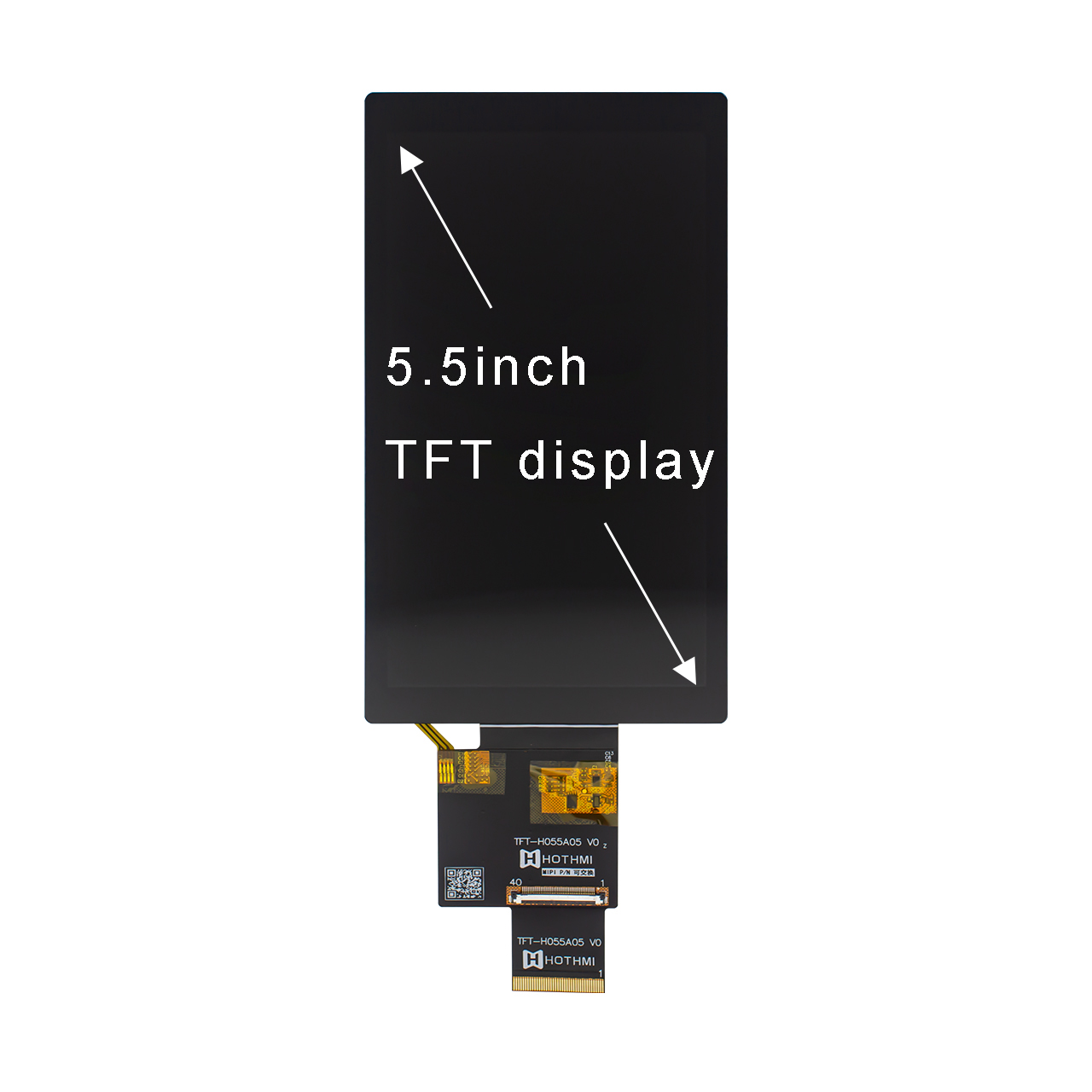

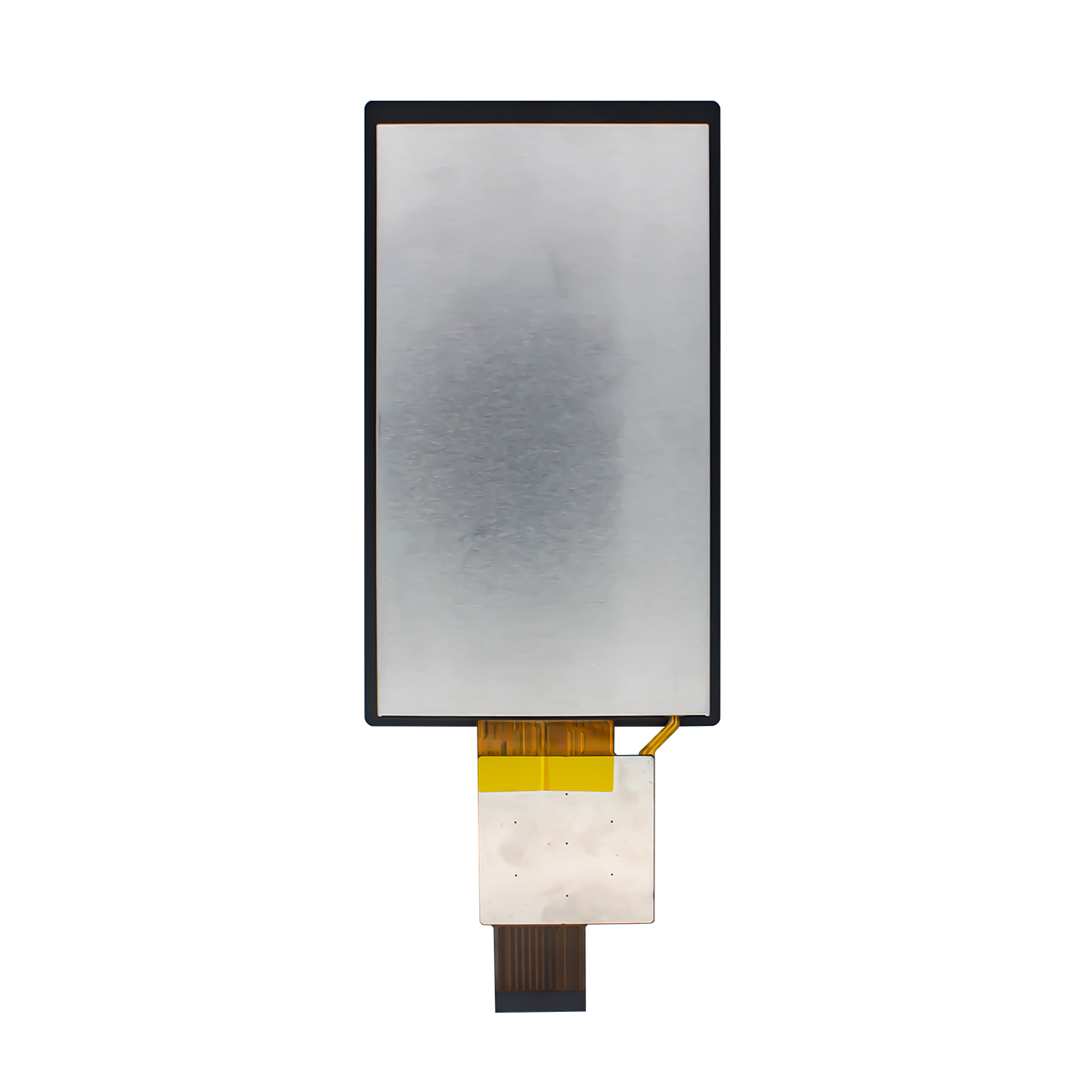

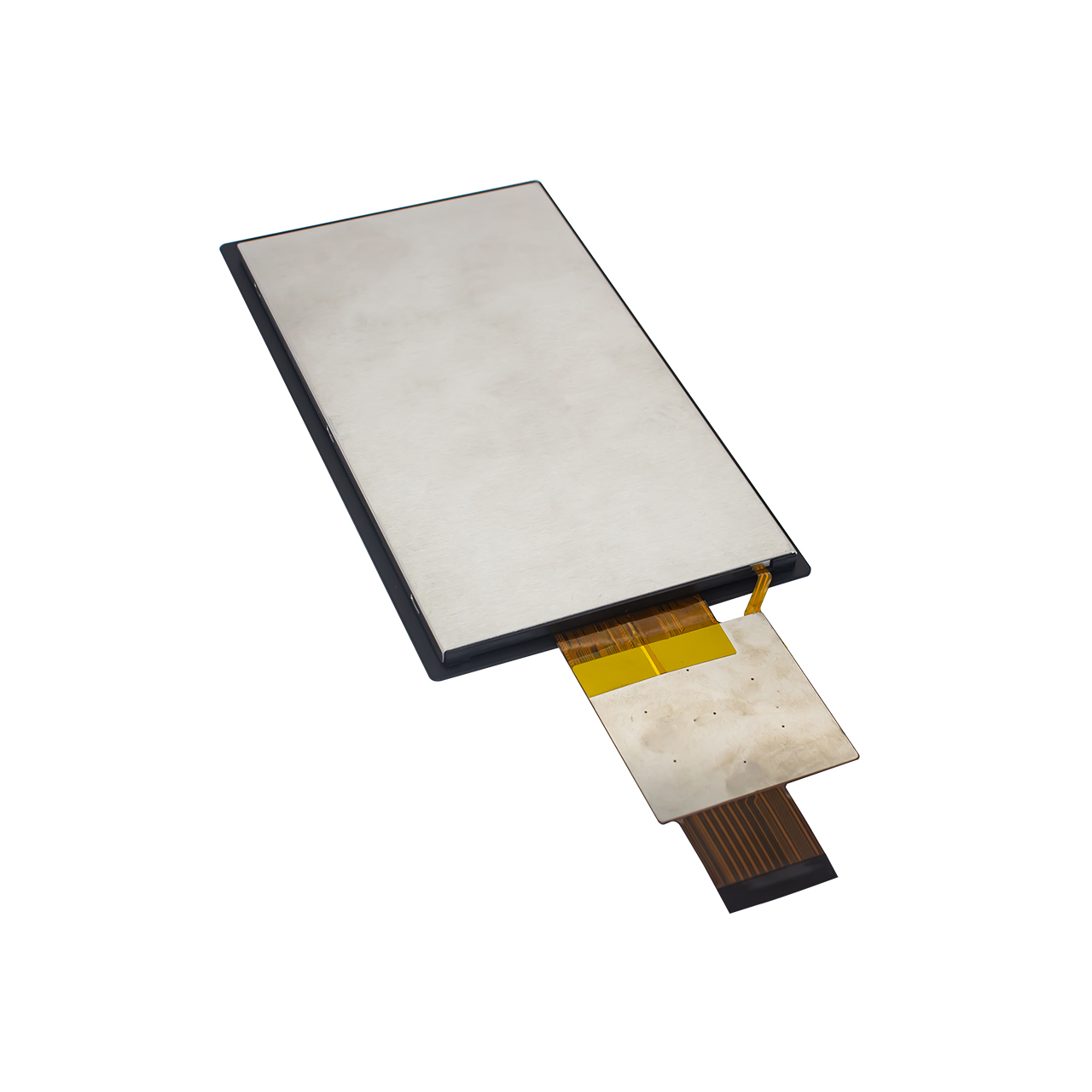

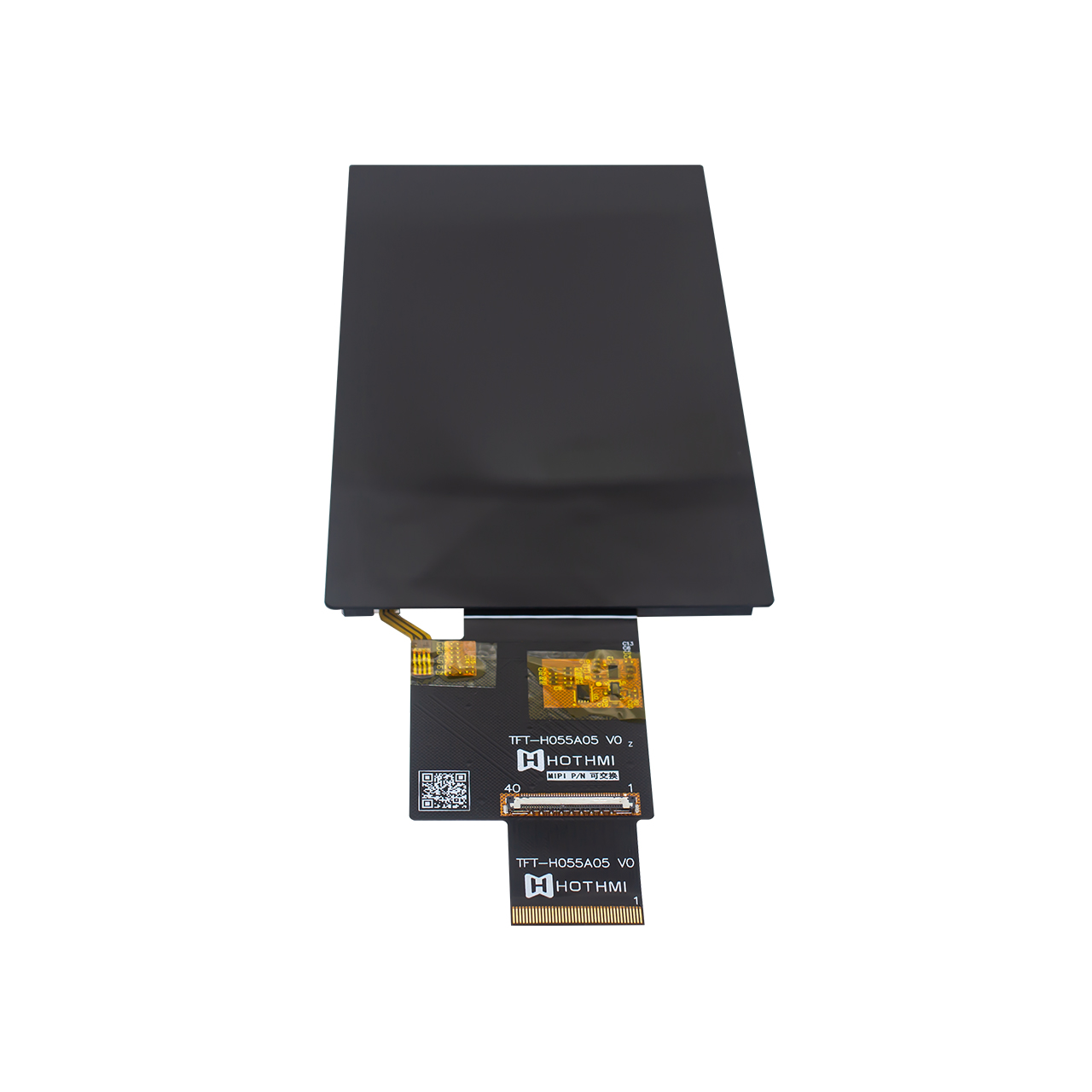

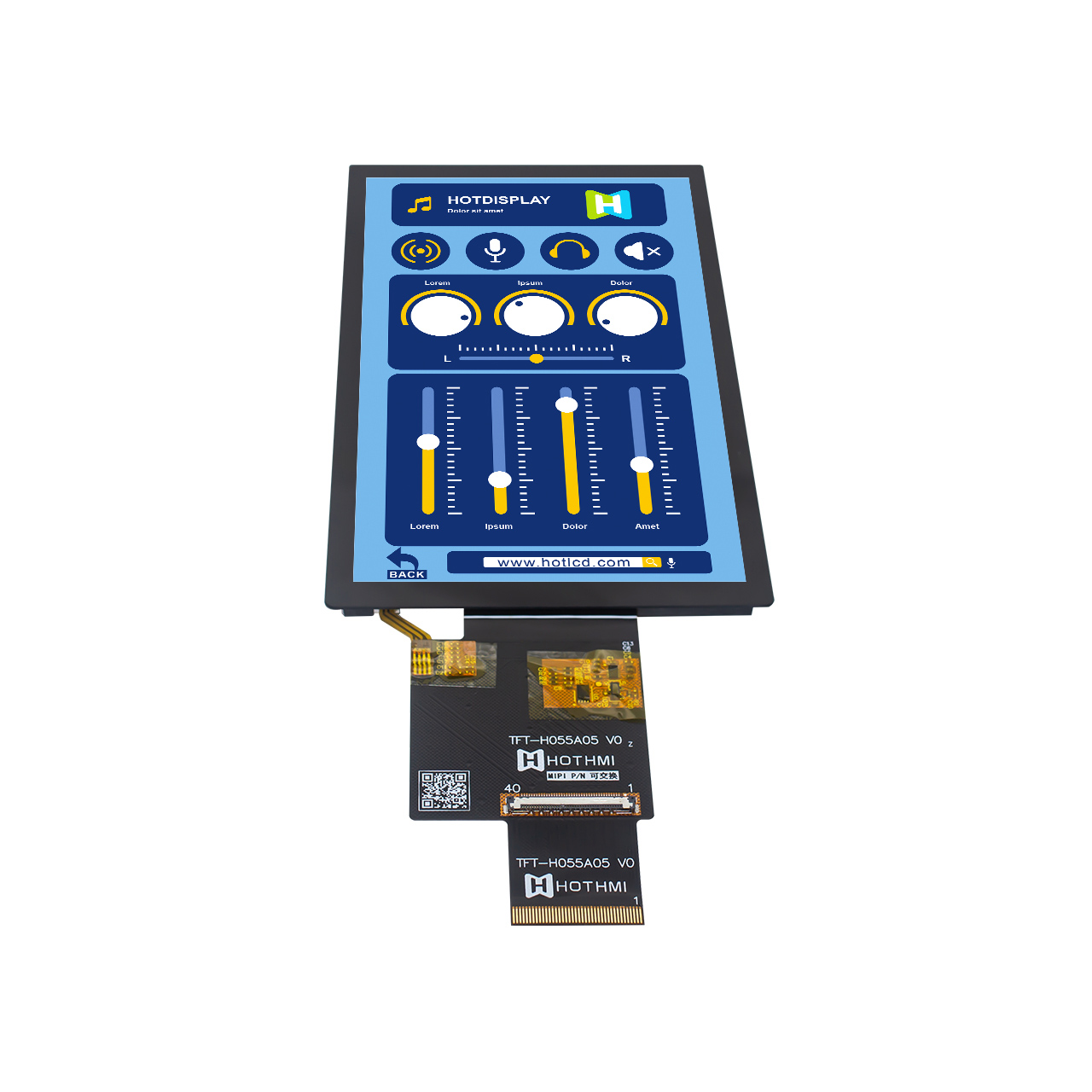

Incell 5.5 Inch TFT LCD Display Capacitive Touchscreen | 720x1280 Resolution With MIPI Interface

▶ Model: TFT-H055A05HDISTGN40

▶ Type: Standard TFT Display
▶ Display Pixels: 720x1280
▶ Dimensions: 72.0x129.75x3.77mm
▶ AA Size (mm): 67.932x120.768mm
▶ Display Inches: 5.5"
▶ Applications: Instrumentation, Portable Electronic Devices
▶ Viewing Angle: IPS Full Viewing Angle
▶ Backlight/Brightness: 450cd/m²
▶ Pinout: FPC-40 pin
▶ Interface: MIPI
▶ Special Instructions: ESD 8kV
▶ Operating Temperature: -20°C to 60°C
▶ Supply Voltage: 3.3V
▶ Driver IC: ST7121P <InCell TFT>

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Product Description
Customized Services
Attributes

TFT-H055A05HDISTGN40 | Incell 5.5 Inch TFT LCD Display | 720x1280 Resolution With MIPI Interface
This innovative design integrates capacitive touch sensors directly into the InCell Touch TFT LCD within the LCD display, eliminating the need for a separate touch layer. This integrated design offers significant user benefits: a thinner body (just 3.77mm thick), superior optical clarity, reduced glare, and enhanced touch sensitivity for a more intuitive and responsive experience.

The display features a vibrant IPS panel with a 720x1280 HD resolution, ensuring wide viewing angles and consistent color at all angles. Its high brightness of 450 cd/m² ensures clear viewing even in bright lighting conditions. Powered by the ST7121P InCell TFT chip, it features a MIPI interface and a 40-pin FPC connector, providing a modern, efficient, and reliable solution. 8KV ESD protection and a standard operating temperature range of -20°C to 60°C further enhance its durability.

The outstanding visual performance, rugged reliability, and sleek form factor enabled by InCell technology make it ideal for advanced portable electronics, industrial instrumentation, and other space-sensitive applications.

Datasheet for Touch Panel,Controller↓

Name	Date	Size
TFT-H055A05HDISTGN40	September 09, 2025	2.83MB
IC Datasheet	September 09, 2025	5.22MB
ST7121P Driver Chip Guidance Documents	September 09, 2025	256.08KB

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection).

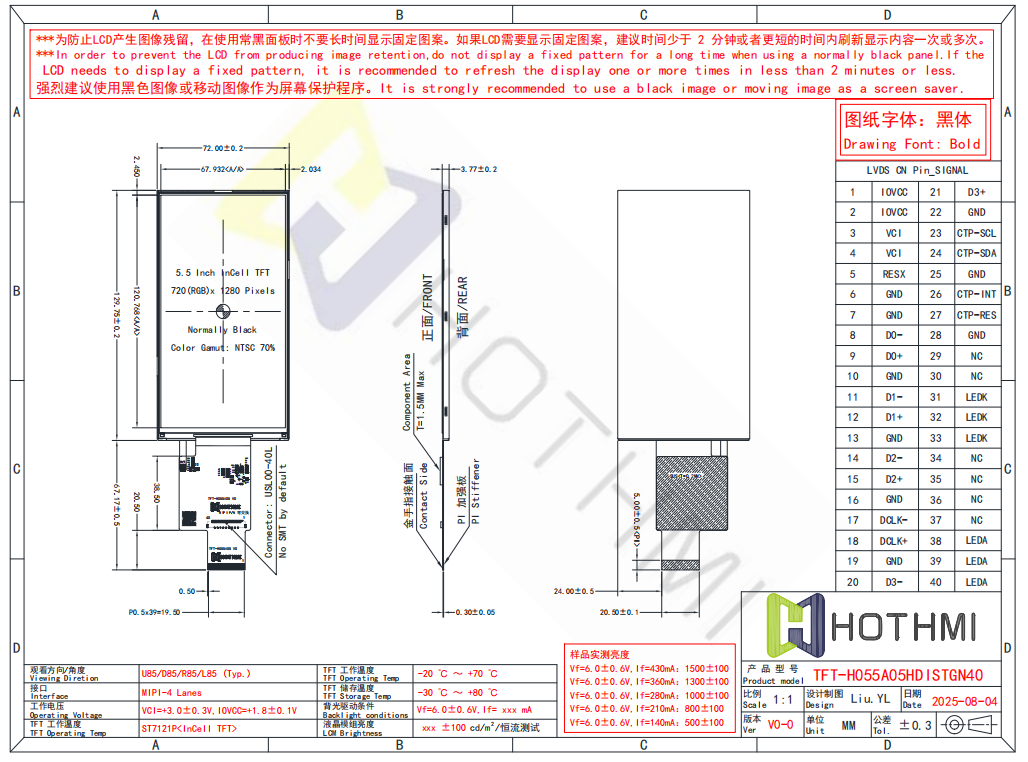

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H055A05HDISTGN40
Diagonal size	5.5”	Inch
Resolution	720x1280	Dot
Dimensions	72.0x129.75x3.77	mm
Active area (AA)	67.932x120.768	mm
LCD type	5.5” TFT Module	mm
Display viewing angle	Full View
Aspect ratio	3：2
Backlight type	LED white
TFT driver IC	ST7121P <InCell TFT>
Brightness	450cd/m2	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
