3.4" 240X160 Graphic COG LCD | White on Blue | STN- | MCU | ST7529

3.4" 240X160 Graphic COG LCD | White on Blue | STN- | MCU | ST7529 | Arduino

▶ Model：
HTG240160C-25W

▶ Type: COG graphic lattice
▶ Display pixels: 240x160

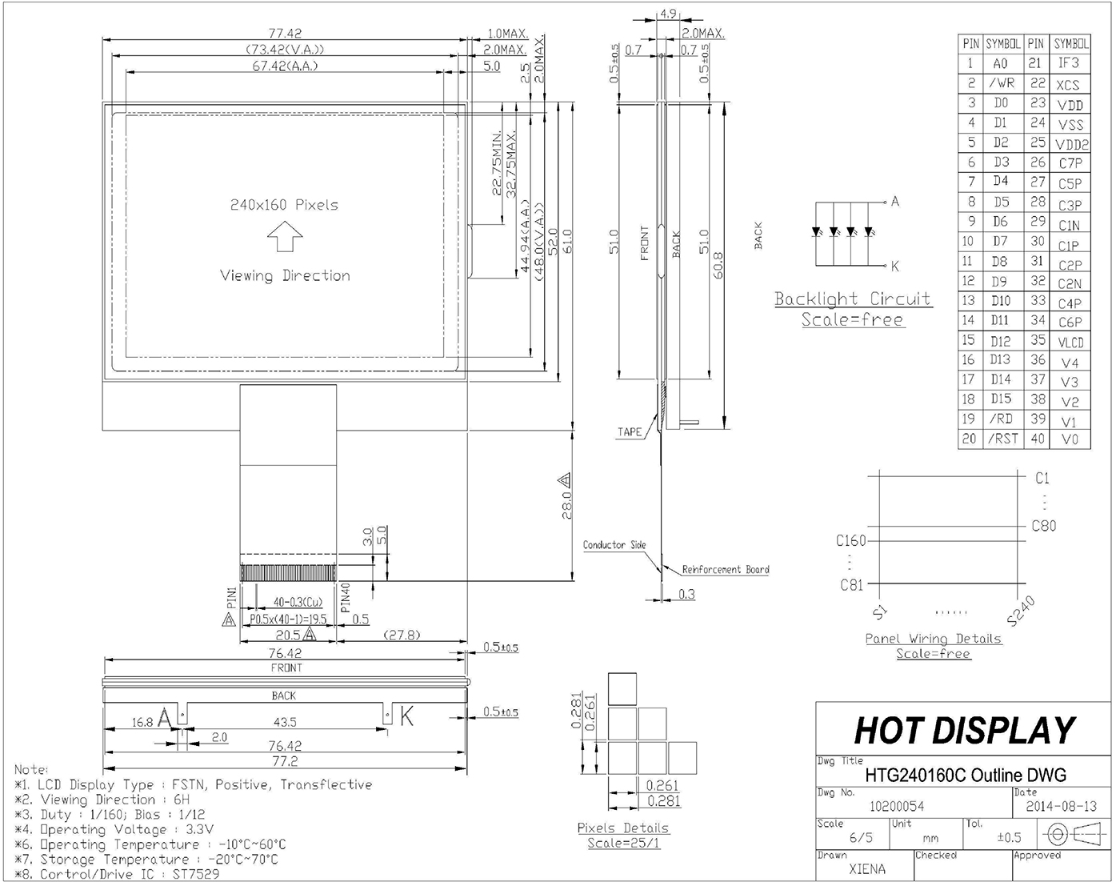

▶ Overall dimensions (mm): 79.82x63.4x4.2
▶ Display inches: 3.4"
▶ VA size (mm): 73.42x48.0
▶ AA size (mm): 67.42x44.94
▶ Point spacing (mm): 0.261x0.261
▶ Application: Industrial Control
▶ Viewing angle: 6H
▶ Backlight/brightness: white light
▶ Pin: FPC-40PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Supply voltage: 3.3v
▶ Driver chip: ST7529
Product ConsultationDatasheets Download
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
COG Adapter Board

Product Description
Customized Services
Attributes

3.4" 240X160 Graphic COG LCD | White on Blue | STN- | MCU | ST7529 | Arduino

This HOTDisplay 240x160 Graphic Chip on Glass (COG) LCD module displays white pixels on a blue background. This transflective LCD display is engineered to provide optimal visibility in a variety of lighting conditions in many different environments. In bright sunlight, the display uses its full transparency to allow the backlight to pass through completely, increasing the brightness of the display and making the screen easy to read. In darker environments, the LCD has a strong backlight built in to provide high contrast and display clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions.

This graphic LCD display module is fully compatible with Arduino/C8051 and can be seamlessly connected with other electronic systems for a variety of applications. The HTG240160C model is designed to withstand harsh operating conditions and operates abnormally when used in a temperature range of -20 to 70 degrees Celsius. The optimal viewing angle of this LCD is 6:00, operates at 3.3V, and is RoHS compliant.

Custom LCD Size:

Combined with the product structure, determine the required LCD size, screen type, etc. Mold manufacturing, according to the design, manufacture LCD molds, this process requires precise manufacturing technology and equipment. Support customization within 396*345mm.

Customize the number of dots and display icon content:

Supports customization of display content within 640*320 dot matrix, and icon style can be customized according to customer needs.

Backlight color and structure customization:

There are many combinations of module backlight to choose from, without backlight or with yellow-green / blue / white / amber / red / RGB backlight, up to 48 effects to choose from, please click on the customization page for reference.

Customized interface: Provide multiple interface options, SPI \ 8080 \ I2C, etc.

Driver board customization:Supports adjustment of driver board size, component sorting, interface type, etc.

Parameter	Specification content	Unit
Model	HTG240160C-25W
Resolution	240 x 160	dots
Module size	79.82（W） × 63.4 （H） × 4.2 （T）	mm
Viewable (VA) area	73.42 x 48.0	mm
Active (AA) area	67.42（W） ×44.94（H）	mm
Pixel pitch	0.261（W） × 0.261（H）mm	mm
IC	ST7529
Applied voltage	3.3V	V
Backlight	White
Display mode	STN(-)
Drive mode	1/160 duty cycle
Product type	Graphic LCD
Features	Transmissive
