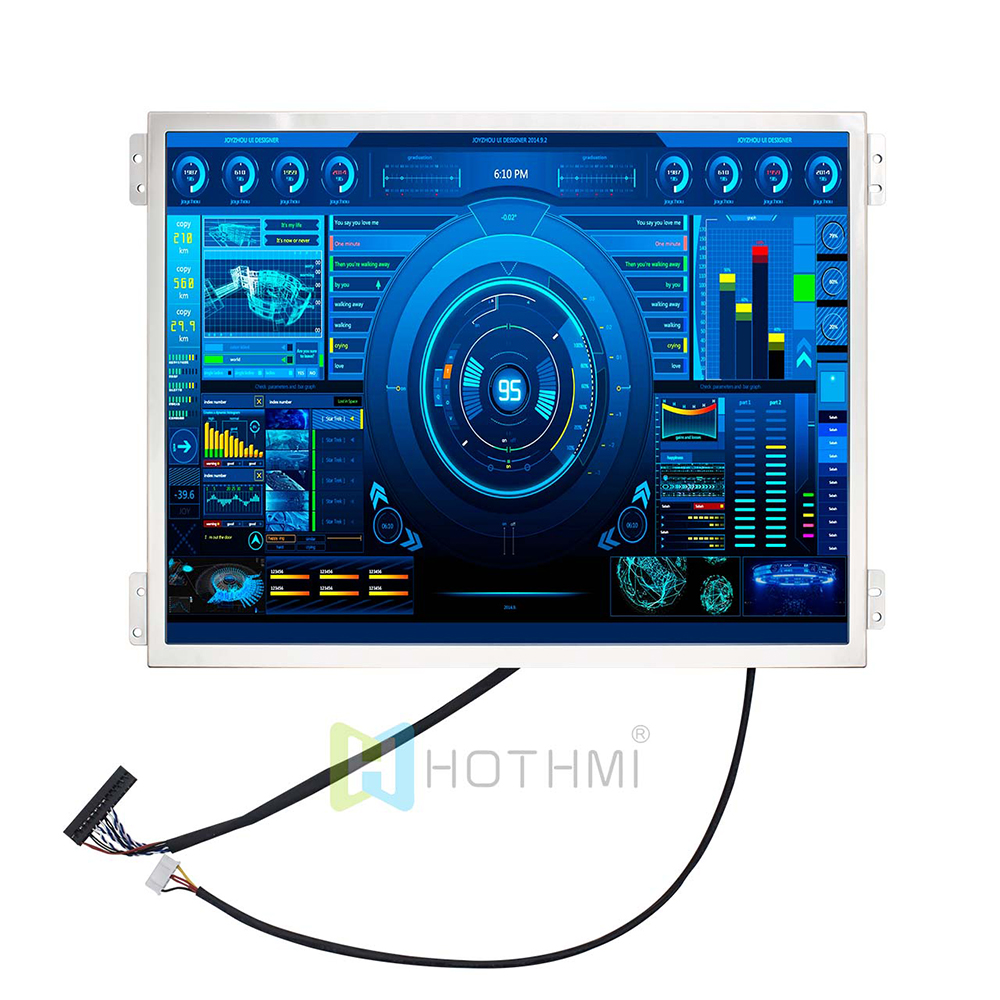

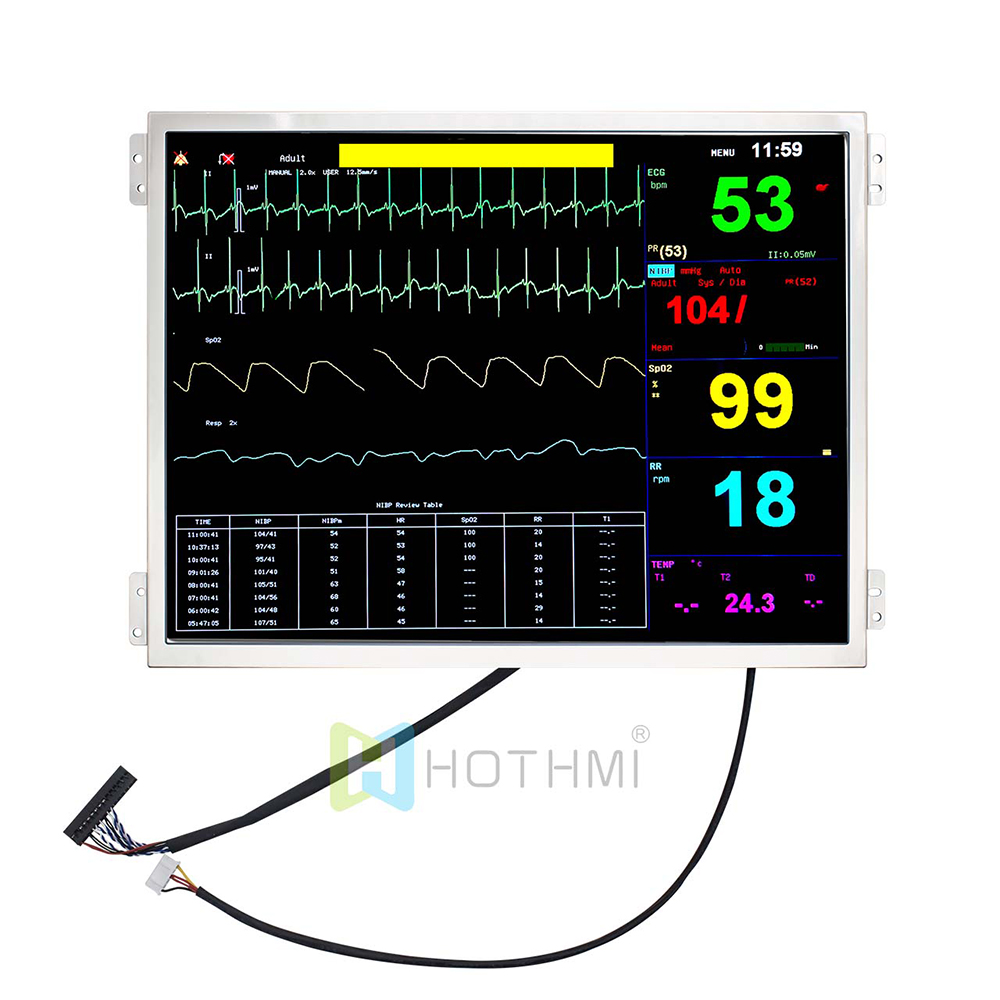

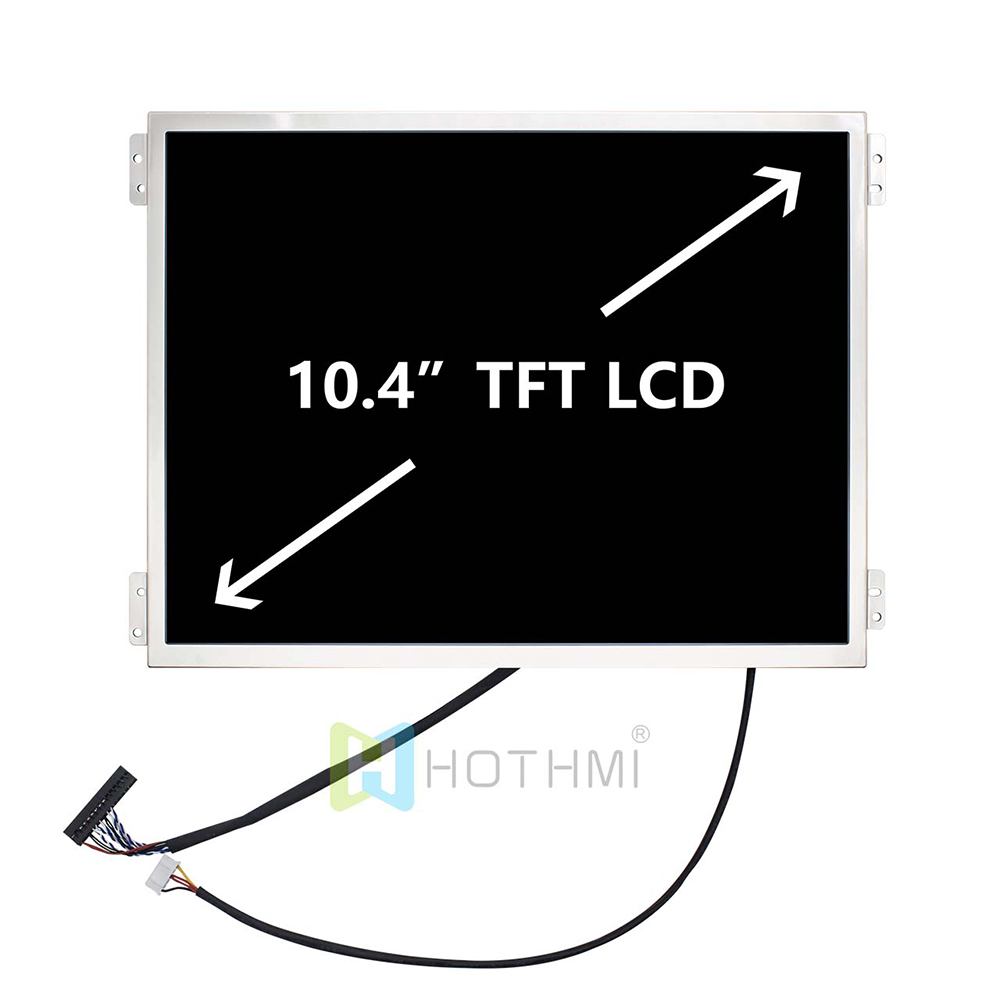

10.4-inch 1024x768 resolution full-view full-transparent TFT color display | LVDS interface | Linux system motherboard
This is a 10.4-inch transmissive TFT liquid crystal display module, using amorphous silicon thin film transistors (a-Si TFT) technology, with a resolution of 1024×768 pixels and supports 256K/16.7M color display. The module adopts RGB stripe arrangement, with a color gamut covering NTSC 60%, a brightness of up to 500 cd/m², a contrast ratio of 1000:1, a response time of ≤30ms, and a wide viewing angle (CR≥10 @ R/L/U/D 80°/80°/80°).

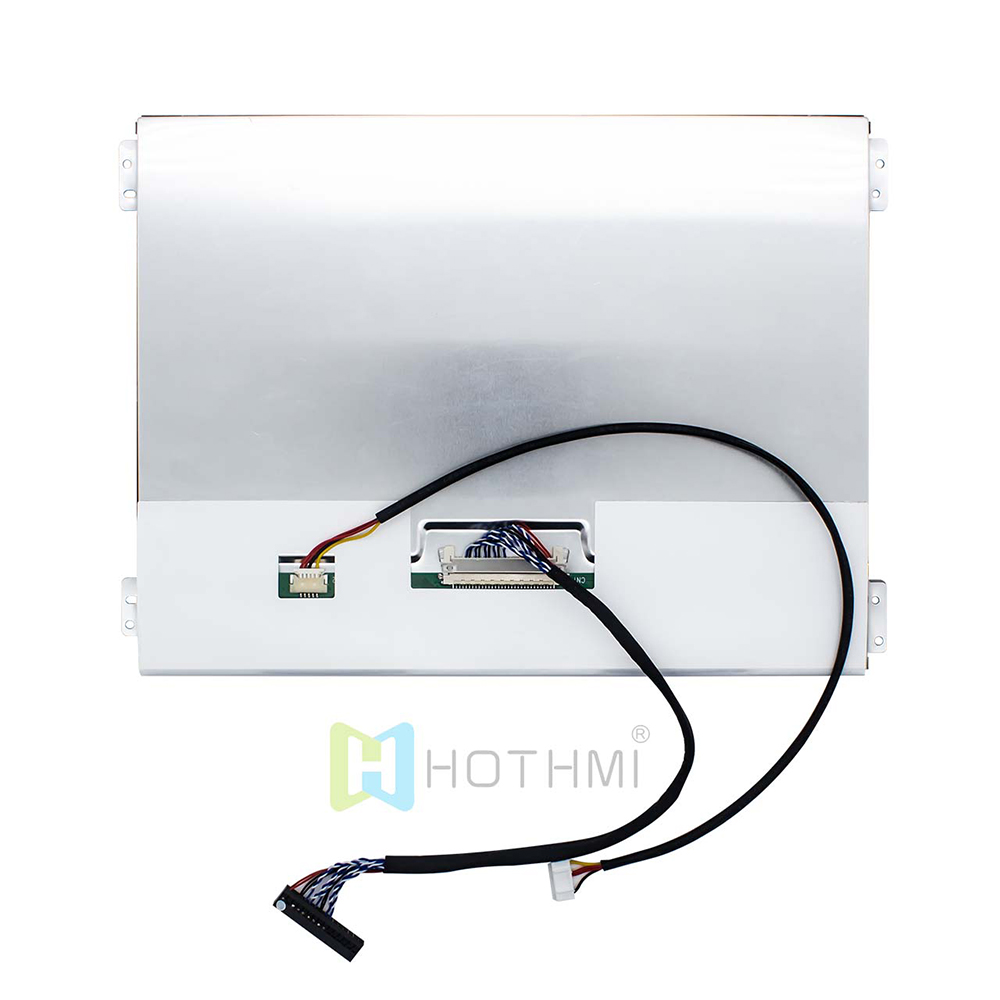

The module has an operating temperature range of -30℃～85℃ and a storage temperature of -30℃～85℃, which is suitable for harsh environments such as industrial control, medical equipment and embedded systems. The interface uses LVDS signal transmission, supports 6-bit or 8-bit data input mode, the backlight drive voltage is 12V, and the power consumption is as low as 250mA (all-white screen).
Core features:
High brightness and high contrast, suitable for outdoor or high-light environments.
Wide temperature operation, adaptable to extreme temperature conditions.
Provides a variety of interface options and strong compatibility.
Usage suggestions:
Avoid displaying static images for a long time. It is recommended to refresh the content every 2 minutes or enable black/dynamic screen saver to prevent image retention. Suitable for scenes such as industrial control panels, medical equipment, portable terminals, etc., with high reliability and visual expression.
