2.4 Inch Transflective TFT LCD Display | 240x320 For Sunlight Readable

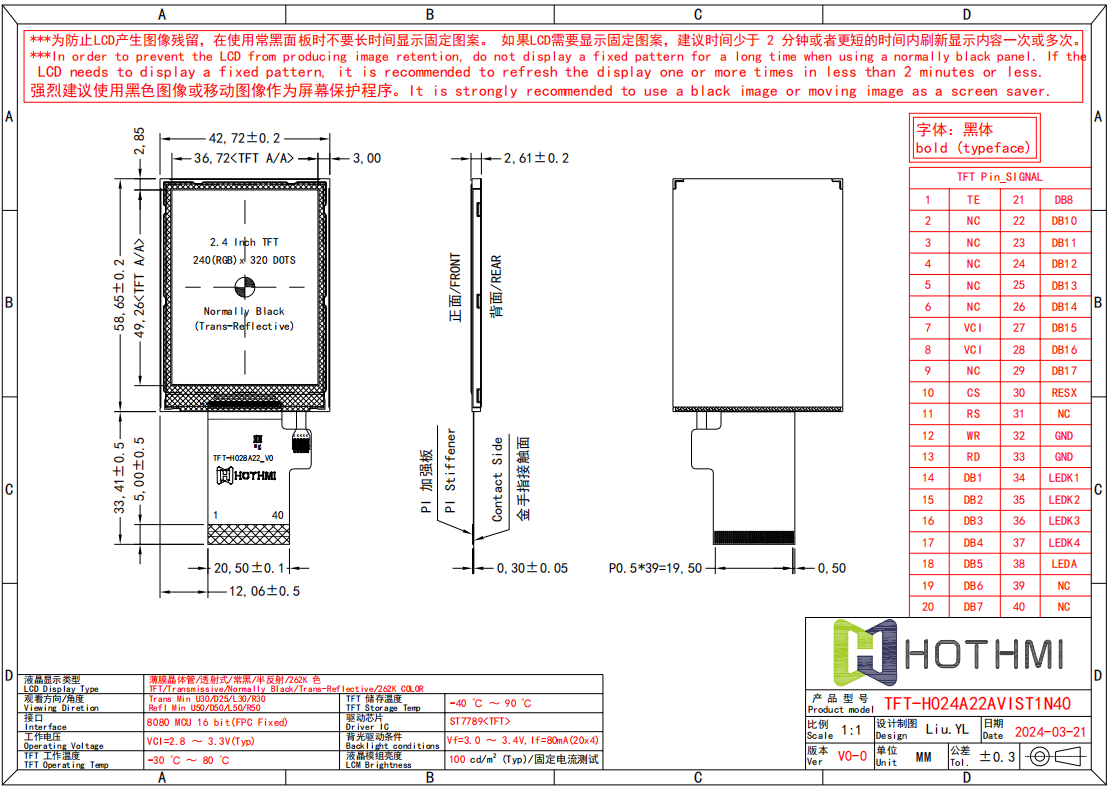

TFT-H024A22AVIST1N40 is a 2.4 inch TFT full-viewing LCD display with a resolution of 240x320 pixels. It uses ST7789 display driver IC and plug-in FPC, which can be used with connectors. The TN technology used in this monitor offers wide viewing angles and excellent color reproduction, allowing you to easily view from all angles without distortion. The display features a high contrast ratio of 500:1, delivering deep blacks and vibrant colors. Can be read in sunlight. Comply with ROHS standards.
Transflective technology has significant advantages over traditional fully transparent display technology, especially in outdoor applications. This technology combines transmissive and reflective display modes to improve the readability of the display by utilizing ambient light in bright light while reducing the use of backlight, thereby reducing power consumption and extending battery life. The following are its main advantages and application areas:
Main advantages:
Clear readability in sunlight: Transflective technology enhances the brightness of the display by utilizing ambient light reflection, maintaining clear readability even under strong sunlight. This is very important for outdoor use.
Reduced power consumption: This technology significantly reduces the energy consumption of the display, extending the device's battery life by reducing the need for backlighting in bright light environments.
Energy saving and environmental protection: Reducing energy consumption not only helps to improve the battery life of the equipment, but also reduces energy consumption, helps save energy and reduce carbon, and meets environmental protection requirements.
Application areas:
Outdoor handheld terminal devices: such as PDAs, navigation equipment, etc. for outdoor operations. These devices need to be able to display information clearly under sunlight.
Motorcycle information display: Motorcycle instrument panels usually need to be clearly visible under strong light. Semi-transparent and semi-reflective technology can ensure that riders can read information under any lighting conditions.
Bike information display: Smart display devices on bikes, such as navigation and speedometers, can also benefit from this technology, making it easier for riders to view data in bright light.
ITEM
PARAMETER DESCRIPTION
UNIT
TFT series
TFT-H024A22AVIST1N40
Diagonal size
2.4”
Inch
Resolution
240x320
Dot
Dimensions
42.72x58.65x2.61
mm
Active area (AA)
36.72x49.26
mm
LCD type
TFT LCD Display
mm
Display viewing angle
TN
Aspect ratio
2:3
Backlight type
LED white
TFT driver IC
ST7789
Brightness
100
cd/m2
Operating temperature
-30~80℃
℃
Storage temperature
-40~90℃
℃
