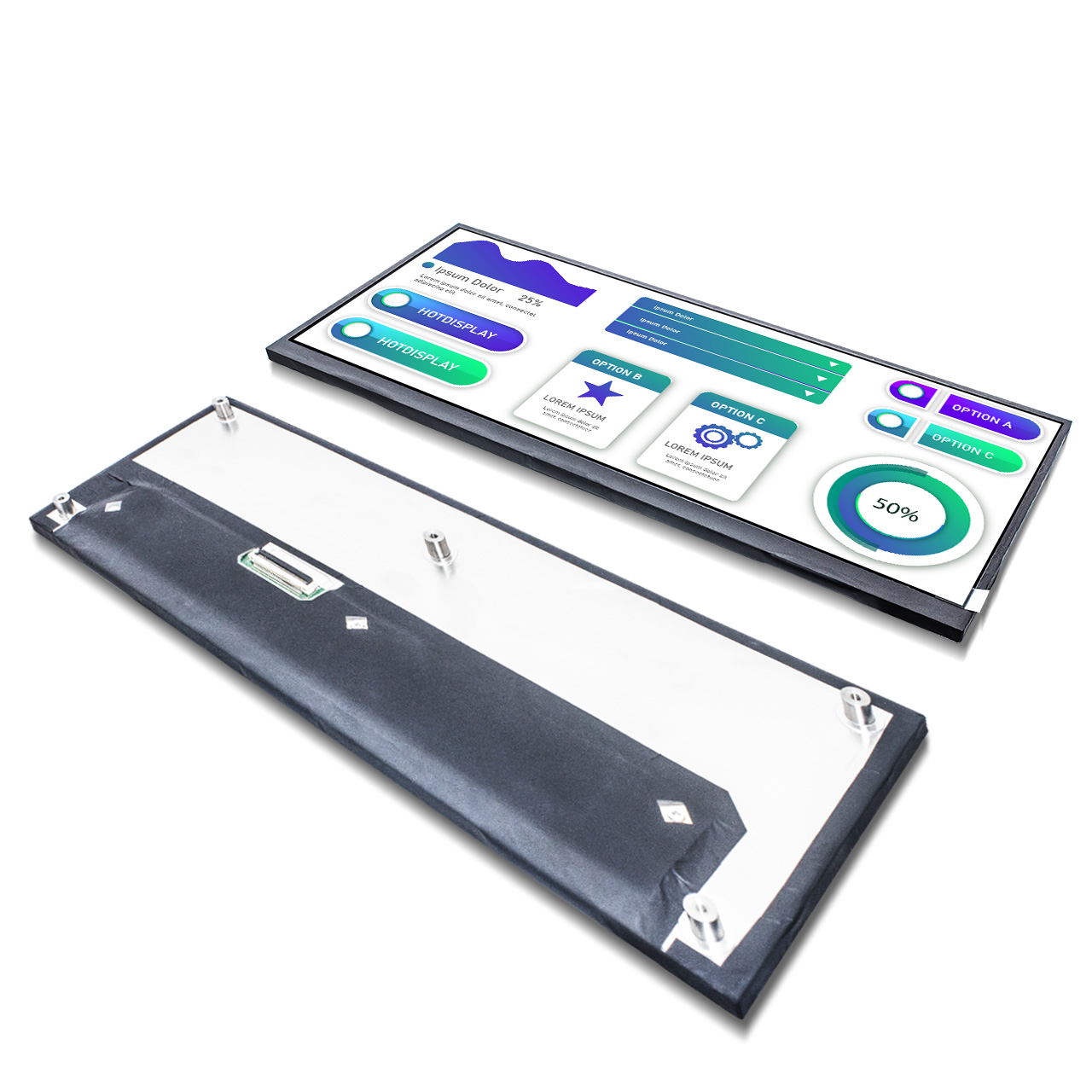

12.3 Inch TFT Display Screen | 1920x720FHD With LVDS Interface

12.3 Inch TFT Display Screen | 1920x720FHD With LVDS Interface

▶ Model: TFT-H123A1ZEIWZ8N50

▶ Type: 12.3 inch TFT display Screen
▶ Display pixels: 1920x720
▶ Dimensions (mm): 302x125.4x13.7
▶ Display inches: 4.3"
▶ Effective size (mm): 292.032x109.512
▶ Application: Instrumentation
▶ Viewing angle: full view
▶ Brightness: 850cd/m2

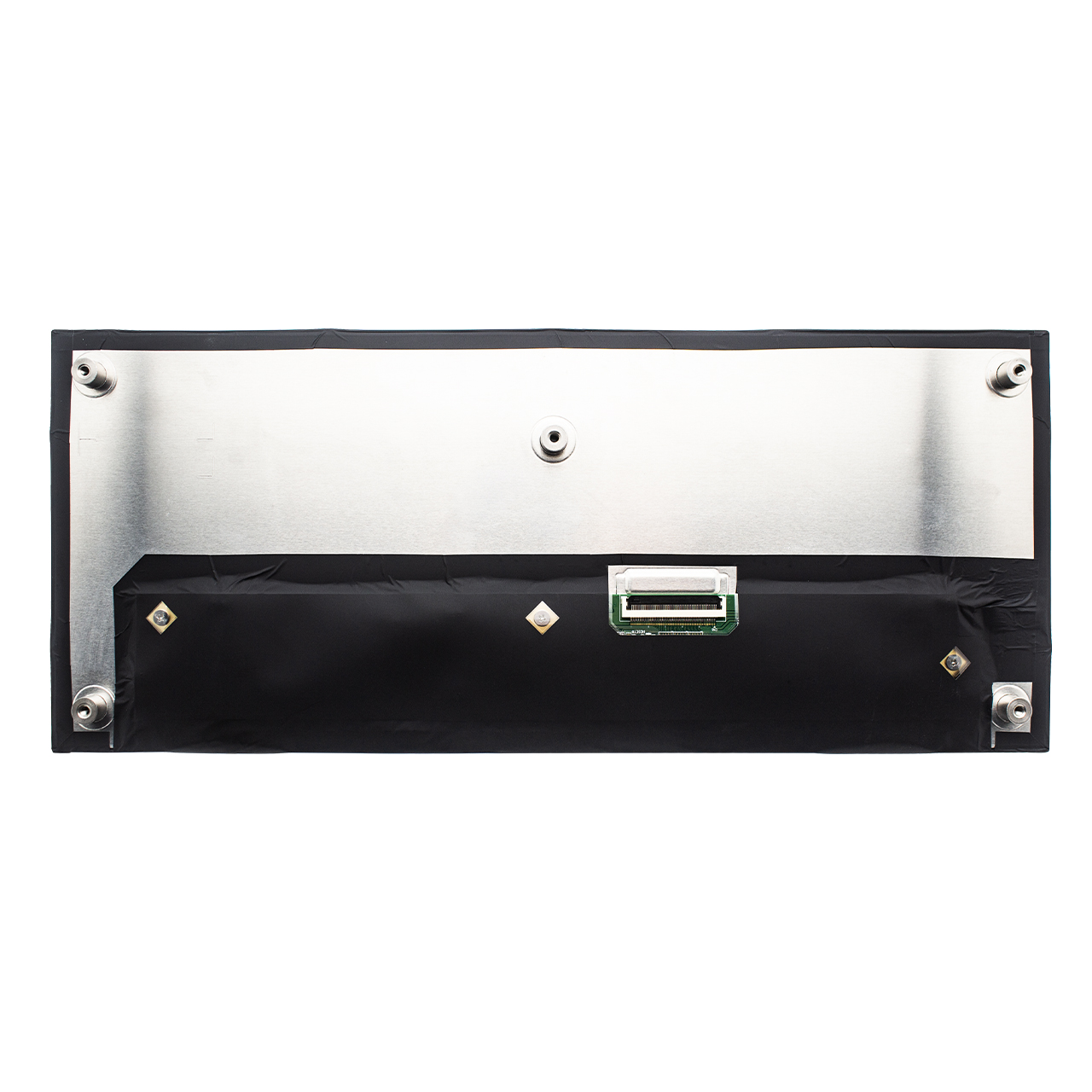

▶ Pin: FPC-50PIN
▶ Interface: LVDS
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -30~80℃
▶ Power supply voltage: 3.3V
▶ Driver chip: T.B.D
Product ConsultationDatasheets Download
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

EZUI-C driver board/MIPI/LVDS/RGB (800*480 or above)
typ-c data cable T-port charging data cable/COB adapter board/COG adapter board

Product Description
Customized Services
Attributes

12.3 inch TFT display Screen | 1920x720 LVDS TFT LCD | T.B.D
Product model: TFT-H123A1ZEIWZ8N50
This is a 12.3 inch TFT display Screen with a transmissive normally black design, supporting 16.7M colors, a resolution of 1920×720, and is suitable for high-definition display scenarios. Its full viewing angle (U85/D85/R85/L85) feature ensures clear images from different viewing angles, with a brightness of up to 850 cd/m², suitable for outdoor or high-light environment applications.

The 12.3 inch TFT display Screen has an operating voltage of 3.3V and supports wide temperature operation (-30℃ to 80℃) and storage (-40℃ to 90℃), meeting the harsh environmental requirements of industrial or vehicle-mounted equipment. The backlight uses 44 LED lights, configured as 11 series and 4 parallel, combined with a 48-bit LVDS dual-channel interface to ensure data transmission stability. Built-in touch chip GT928 supports efficient interaction.

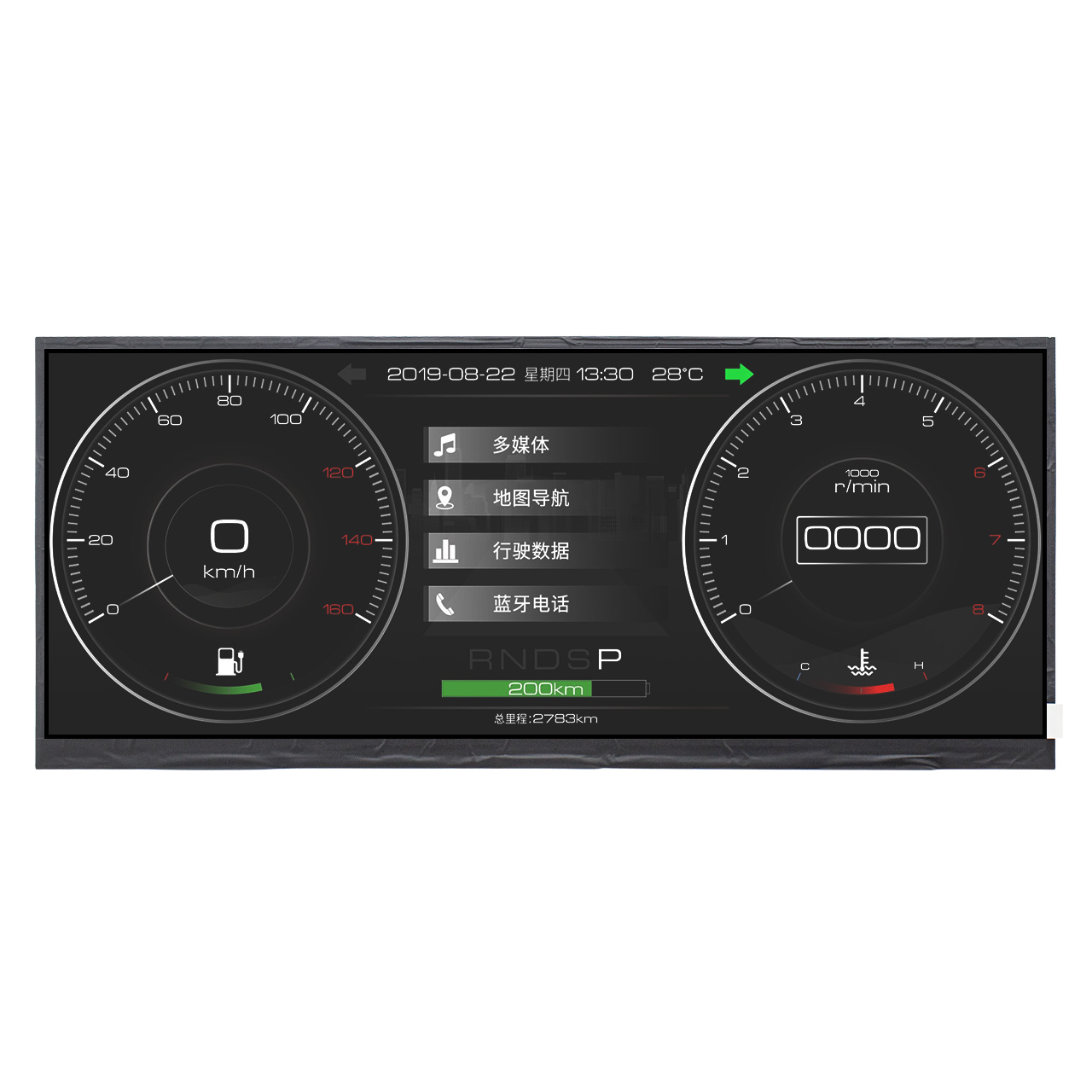

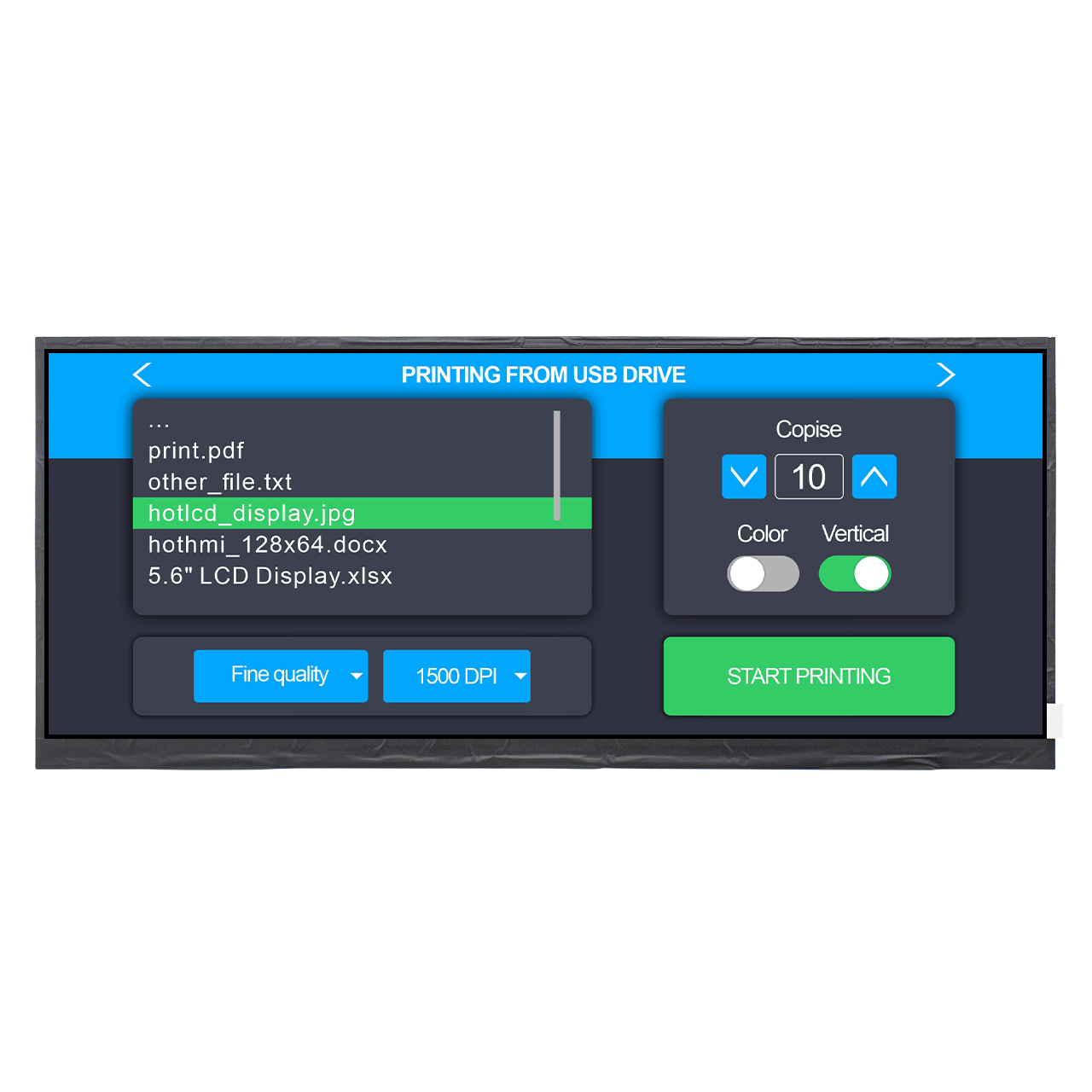

Usage suggestions: To avoid image retention, do not display static images for a long time. It is recommended to refresh the content every 2 minutes or enable black/dynamic screen saver. Suitable for vehicle-mounted central control, industrial control panel and professional display equipment, with high reliability and visual expression.

Datasheet for Touch Panel,Controller↓

Name	Date	Size
TFT-H123A1ZEIWZ8N50	March 03, 2025	88.73KB

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H123A1ZEIWZ8N50

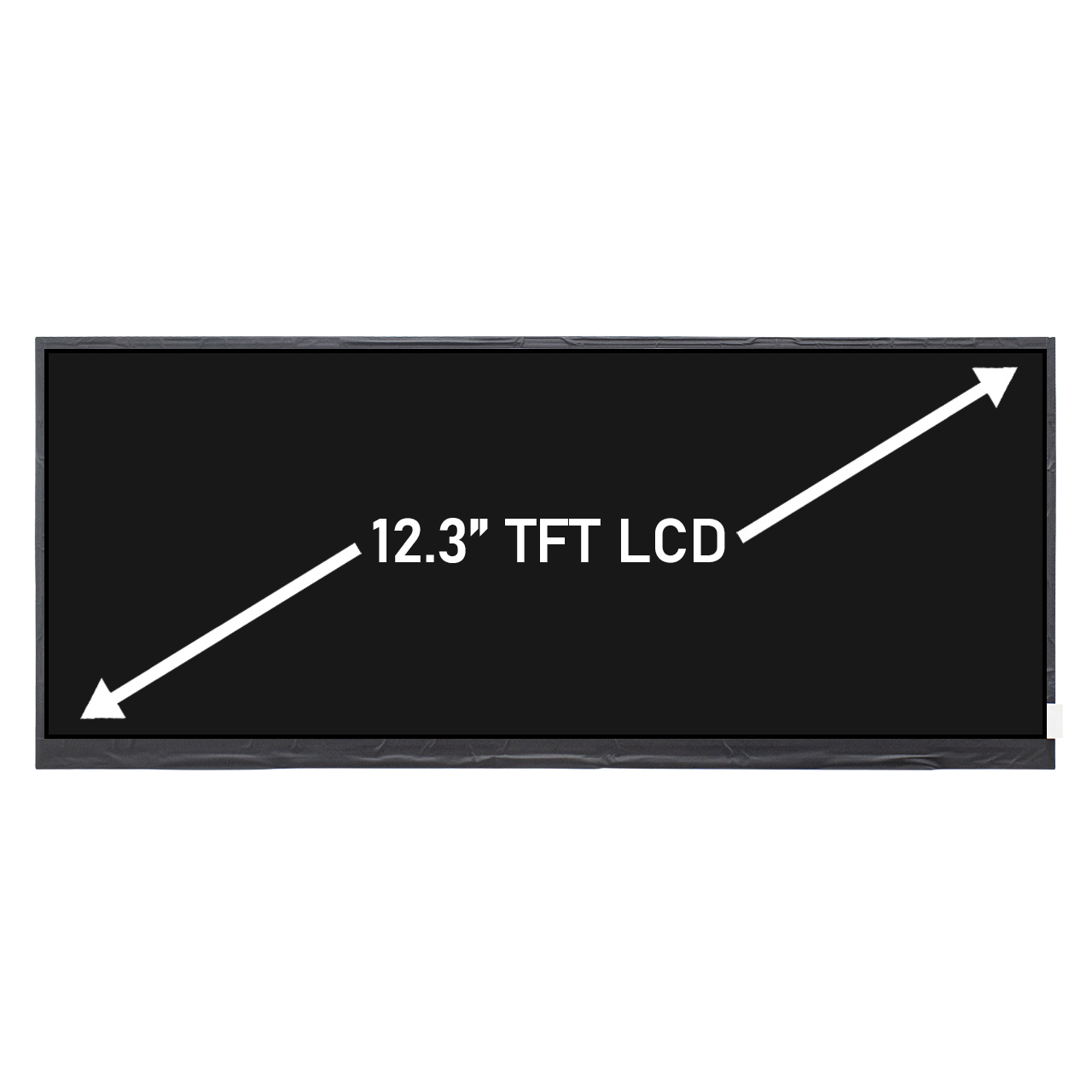

Diagonal size	12.3”	Inch
Resolution	1920x720	Dot
Dimensions	302.0x125.4x13.7	mm
Active area (AA)	292.032x109.512	mm
LCD type	TFT LCD Display	mm
Display viewing angle	Full View
Aspect ratio	3:2
Backlight type	LED white
TFT driver IC	T.B.D
Brightness	850	cd/m2
Operating temperature	-30~80℃	℃
Storage temperature	-40~90℃	℃
