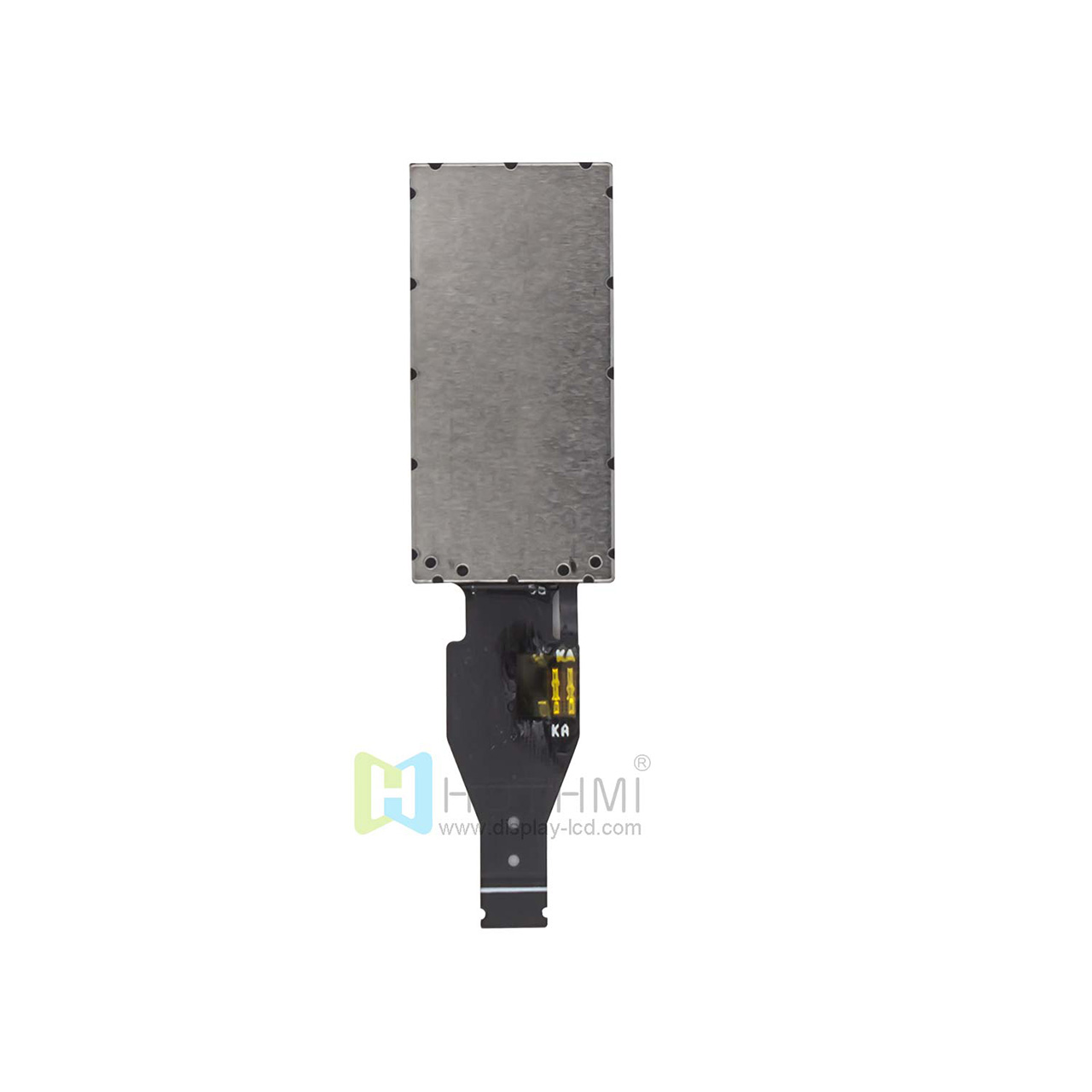

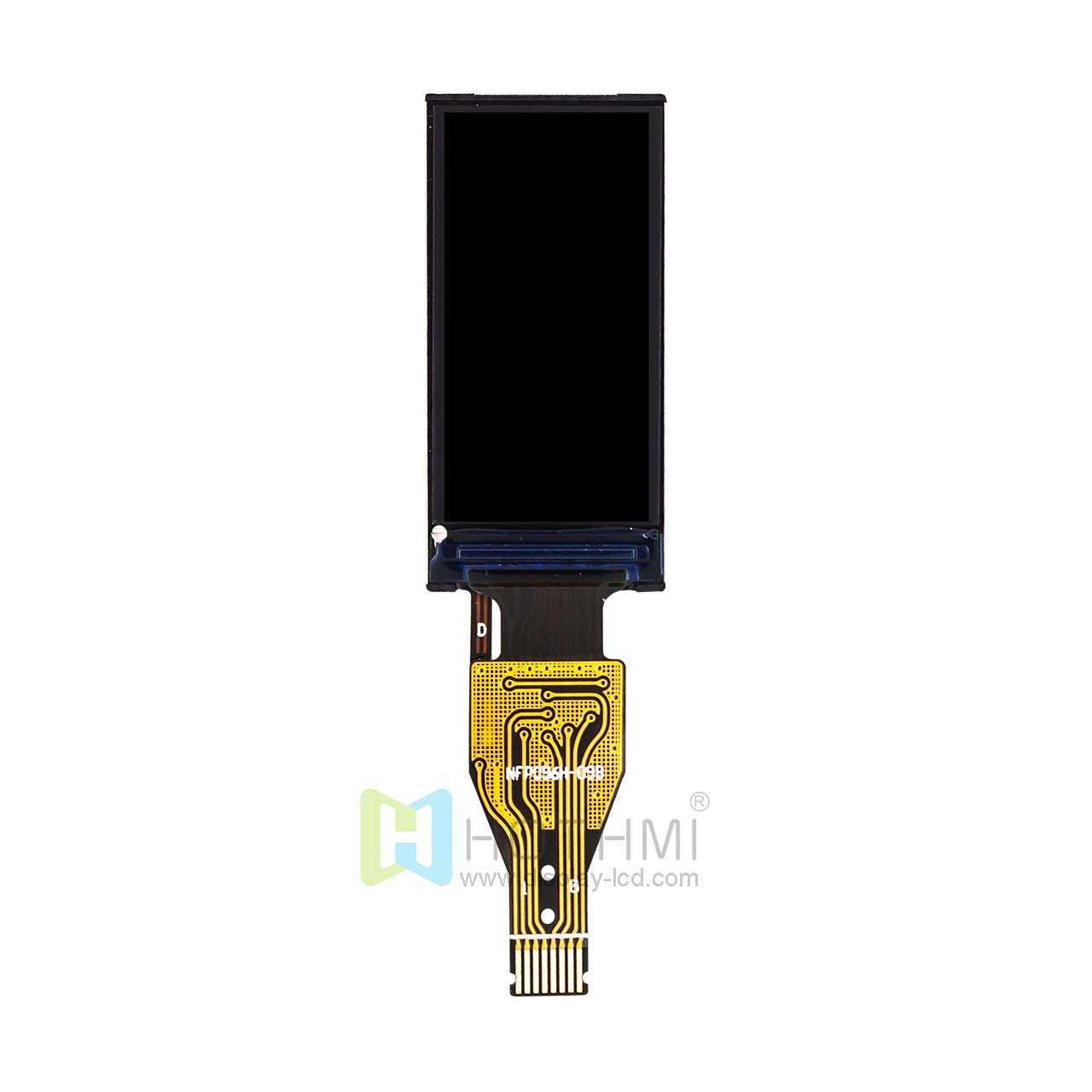

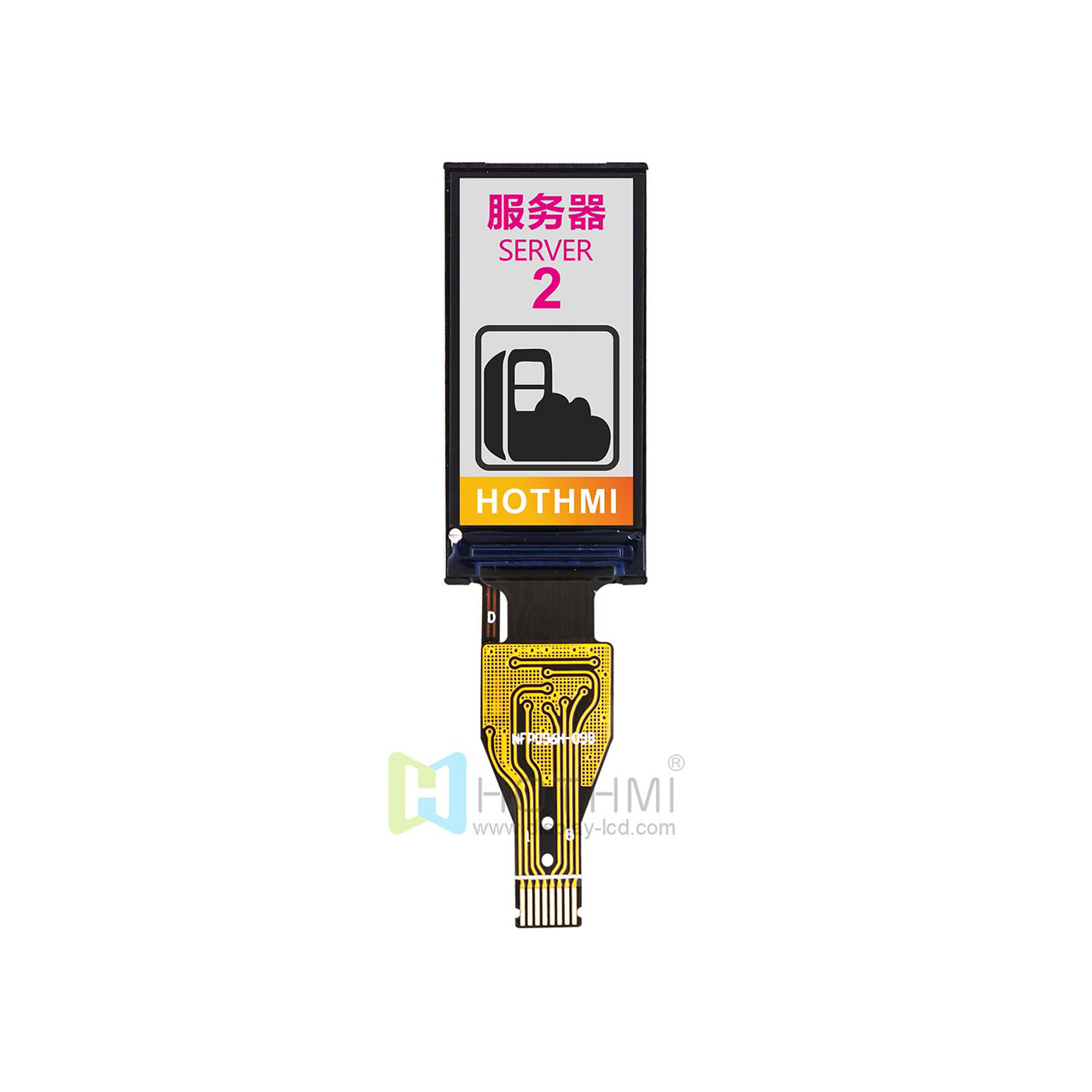

TFT-H010W21AIST4N8 | 0.96" TFT LCD Display Module with ST7735S Driver - Arduino/Raspberry Pi
The 0.96" TFT LCD display is an IPS TFT-LCD with a resolution of 80x160 pixels. This 0.96-inch mini TFT LCD uses an IPS panel in portrait mode. Despite its compact size, its high resolution and moderate 400cd/m² brightness ensure a high-quality image regardless of viewing angle. This TFT module incorporates an ST7735S controller chip and supports a four-wire SPI interface, making it compatible with various platforms including Arduino, Raspberry Pi, and LVGL.

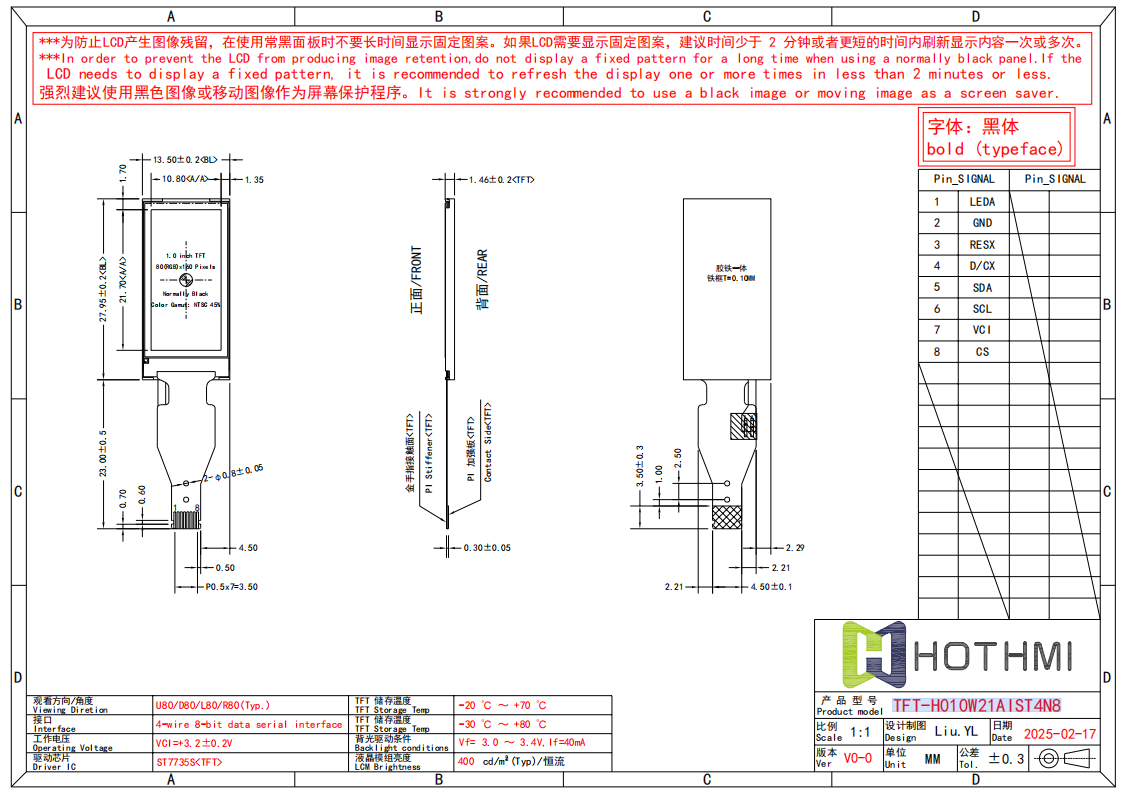

In terms of structure, this 0.96-inch TFT LCD... The display comes with an easy-to-plug FPC, allowing users to plug it directly into a development board with a connector or solder it directly to a driver board. We support customization of the surface cover, allowing users to customize its shape, size, silkscreen pattern, color, and surface finishes such as AR/AF/AG based on the product's intended use. We also offer customized FPCs and communication interfaces.
This model does not include a driver board, allowing developers to develop their own based on their needs. In the same series, we also provide the 10-pin model SPEC-H010A11AIST4N10.Lack of experience? No problem! We also offer a UART smart display in the same series with the EZUI driver board, offering easy operation. Click the link HTM-H010A1-UART-A01 for more information about this module. We also provide references to EzUI development software.
This module is ideal for applications such as wearables, medical devices, and mini home appliances. It has an operating temperature range of -20°C to +70°C and a storage temperature range of -30°C to +80°C. The industrial-grade display is stable and reliable, and all products are ROHS compliant.
