2.2-inch 128x64 graphic dot matrix COG LCD display/FSTN+red, green and blue backlight display/ST7567 controller/Arduino/3.3V

2.2-inch 128x64 graphic dot matrix COG LCD display/FSTN+red, green and blue backlight display/ST7567 controller/Arduino/3.3V

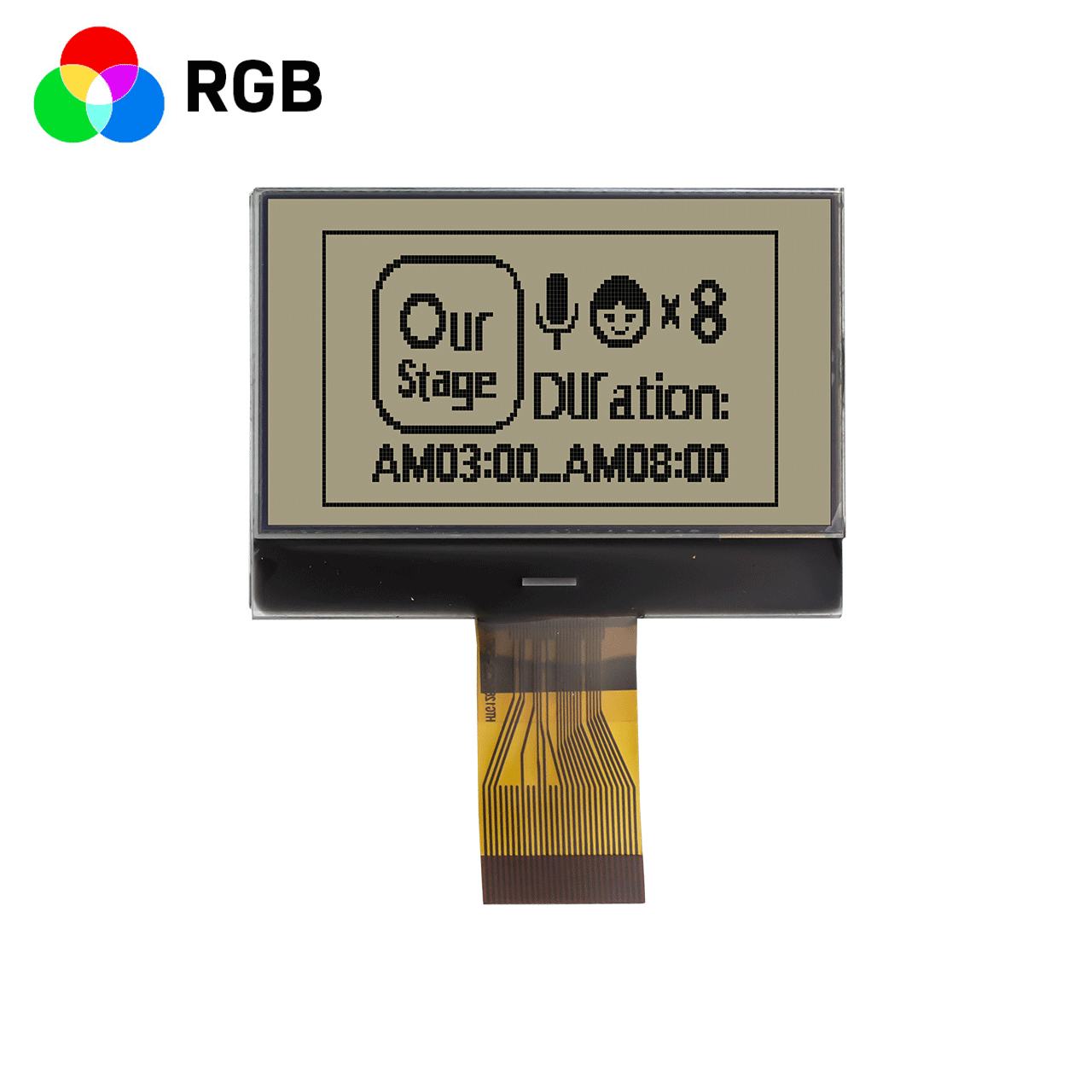

▶ Model: HTG12864-20C-35S

▶ Type: COG graphics module
▶ Display pixels: 128x64
▶ Dimensions (mm): 53.2x37.8x2.8
▶ VA size (mm): 49.2x27.0
▶ AA size (mm): 40.92x24.28
▶ Dot spacing (mm): 0.38x0.32
▶ Application: Instrumentation
▶ Viewing angle: 6H
▶ Backlight/brightness:red green blue light
▶ Pin: FPC-28PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 3.3V
▶ Driver chip: ST7567
Product ConsultationDatasheets Download
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
COG Adapter Board

Product Description
Customized Services
Attributes

2.2-inch 128x64 graphic dot matrix COG LCD display/FSTN+red, green and blue backlight display/ST7567 controller/Arduino/3.3V

HOT DISPLAY 2.2-inch 128×64 COG LCD display uses FSTN positive display technology to display dark pixels on a red, green and blue background, with excellent visual effects.
Product features:

Datasheet for Touch Panel,Controller↓

Name	Date	Size
HTG12864-20C-35S-28C05-V05	February 02, 2025	883.84KB

Item	Parameter Description	UNIT
Name	HTG12864-20C-35S
Number of dots	128x64	dots
Module size	53.2x37.8x2.8	mm
VA size	49.2x27.0	mm
AA size	40.92x24.28	mm
Pixel pitch	0.38x0.32	mm
IC	ST7567
Power supply voltage	3.3V	V
Backlight	Y-G
Display mode	FSTN+
Drive mode (Duty)	1/64 duty cycle
Type	Graphic COG
Features	Transmissive
