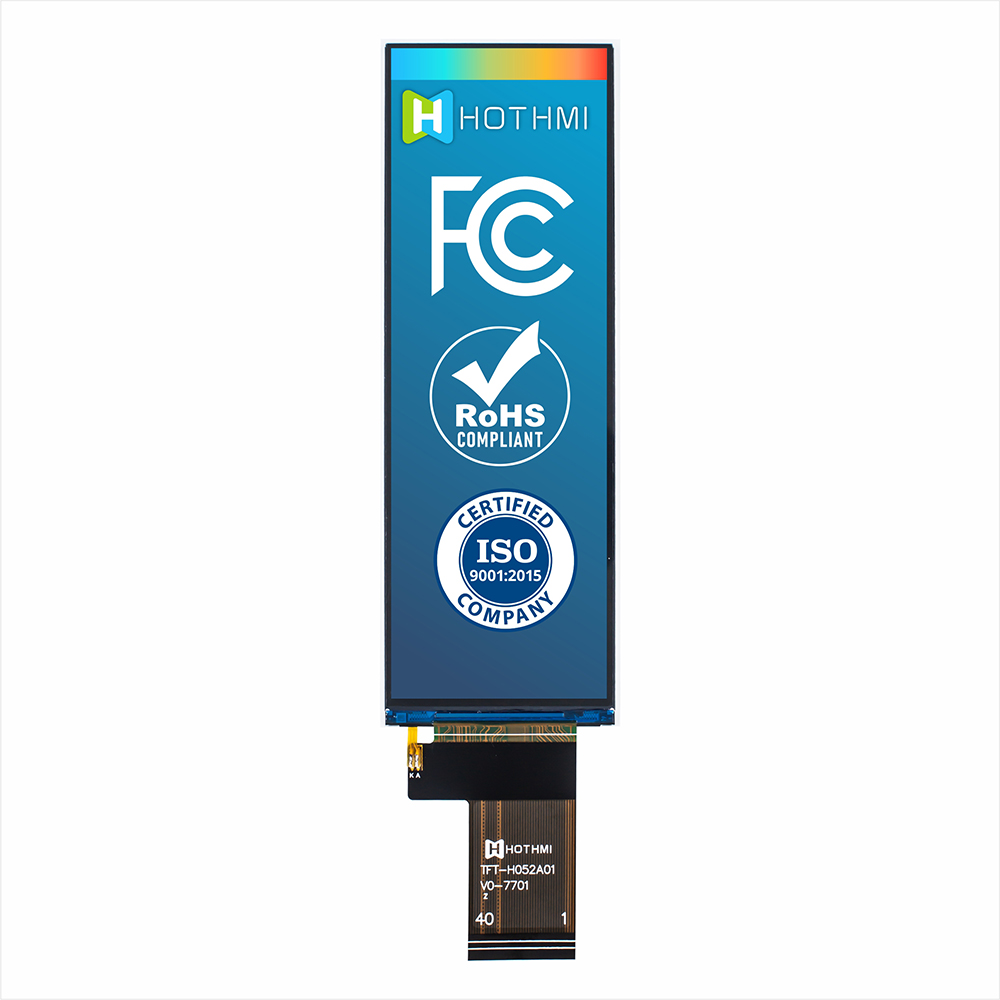

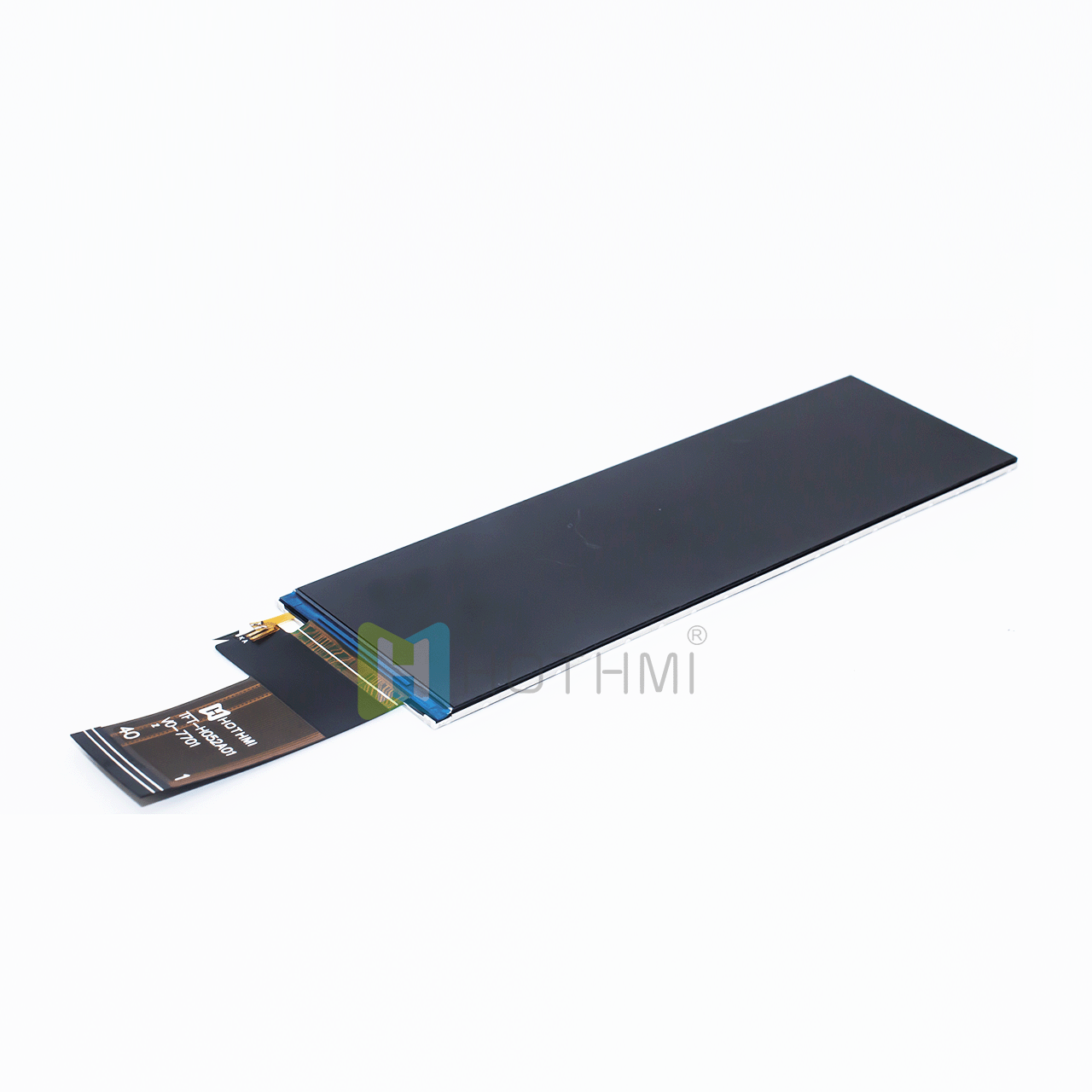

5.2-inch 416x1280 resolution TFT full-color LCD display | RGB interface | STM32/RK series display
TFT-H052A01ZAIST5N40 is a high-performance 5.2-inch normally black TFT LCD display module with a resolution of 416 (RGB) × 1280 pixels, supporting 24-bit/pixel RGB interface, and color expression up to NTSC 70% color gamut. The product adopts ST7701S driver chip, with an operating voltage of 3.0~3.3V and a brightness of up to 500 cd/m². It is suitable for harsh environments and has an operating temperature range of -30℃ to +80℃.
Core features:
High reliability: wide temperature operation and storage (-30℃~+80℃), suitable for industrial and automotive scenarios.
Backlight performance: constant current drive (Vf=15.0~16.0V, If=40mA) to ensure stable brightness.
Interface design: 24-bit RGB interface, supports high-precision color reproduction.
Mechanical specifications: precise dimensional tolerance (such as contact surface tolerance ±0.05mm), strong compatibility.
Usage suggestions:
To prevent image retention and avoid displaying static patterns for a long time, it is recommended to refresh the content every 2 minutes or use a black/dynamic screen saver.
The maximum height limit of the component is 1.5mm, and attention should be paid to the installation space design.
This module is suitable for industrial control, medical equipment, car display and other fields. It takes into account high image quality and durability, and is an ideal choice for small and medium-sized display solutions.
