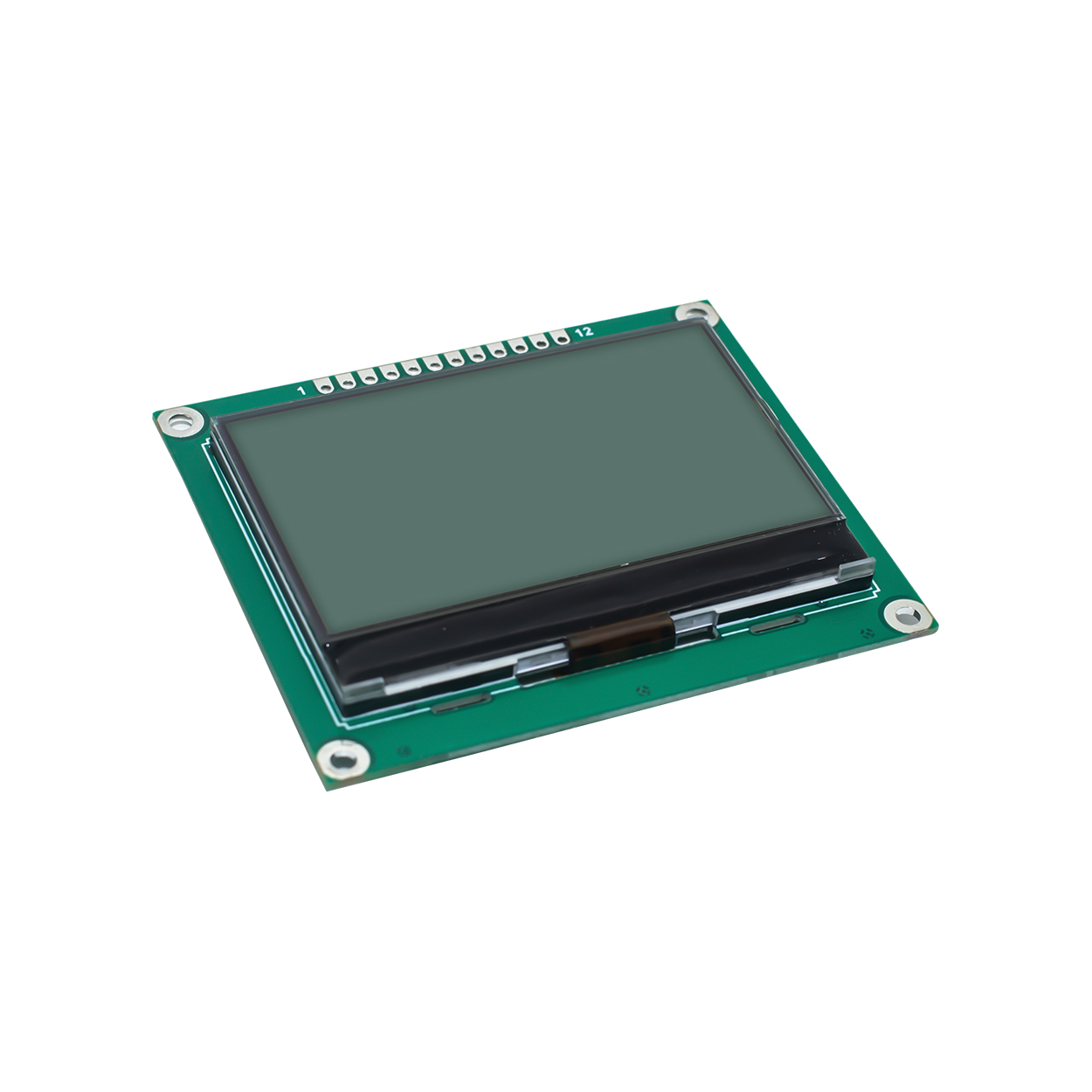

Graphic LCD Module | STN+ | 2.4" 132x64 Display Blue on Gray | ST7567 | SPI | Arduino

Graphic LCD Module | STN+ | 2.4" 132x64 Display Blue on Gray | ST7567 | SPI | Arduino | 3.3V

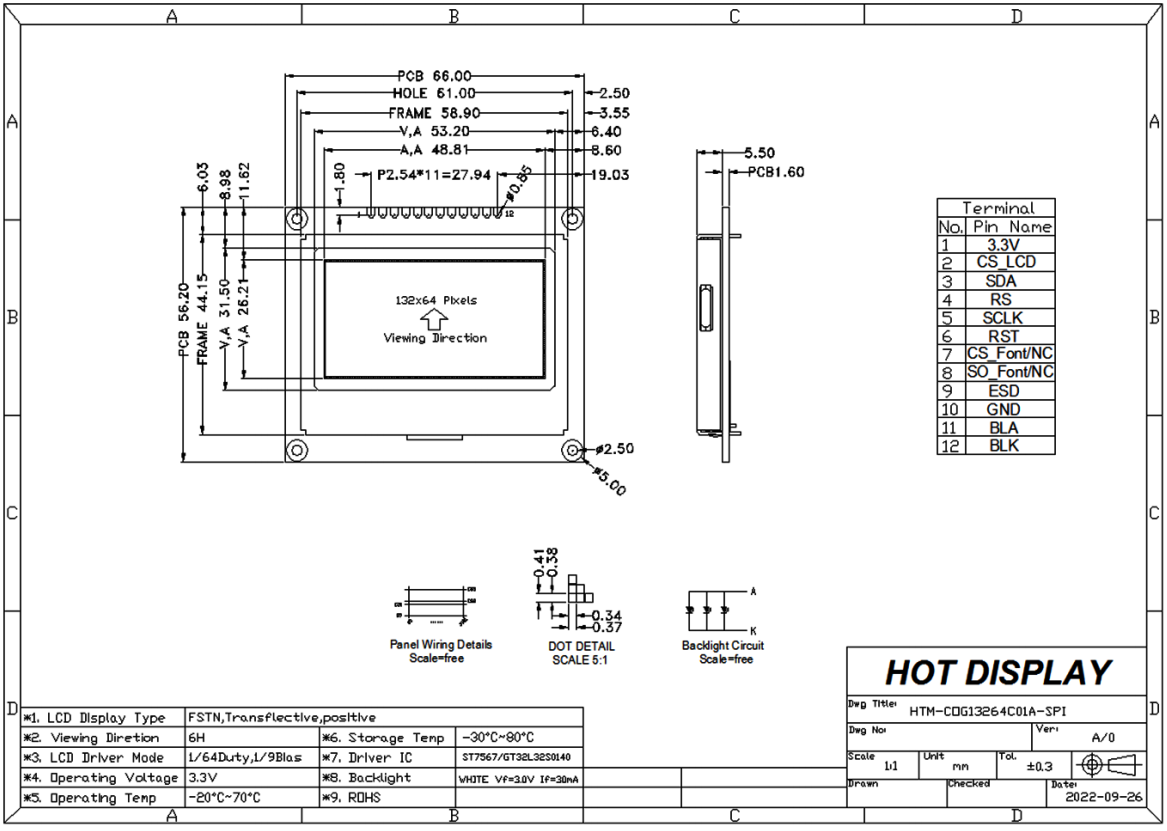

▶ Model: HTM-C0G13264C01A-11W-SPI

▶ Type: Graphic LCD Module
▶ Display pixels: 132x64
▶ Dimensions (mm): 66.0x56.2x5.5
▶ VA size (mm): 53.2x31.5
▶ AA size (mm): 48.81x26.21
▶ Pixel pitch (mm): 0.41x0.37
▶ Application: Industrial control
▶ Viewing angle: 6H
▶ Backlight/brightness: white light
▶ Pin: 12PIN
▶ Interface: SPI
▶ Operating temperature: -20~70℃
▶ Supply voltage: 3.3V
▶ Driver chip: ST7567

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
Character graphic dot matrix module dedicated adapter board
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

Graphic LCD Module | STN+ | 2.4" 132x64 Display Blue on Gray | ST7567 | SPI | Arduino | 3.3V

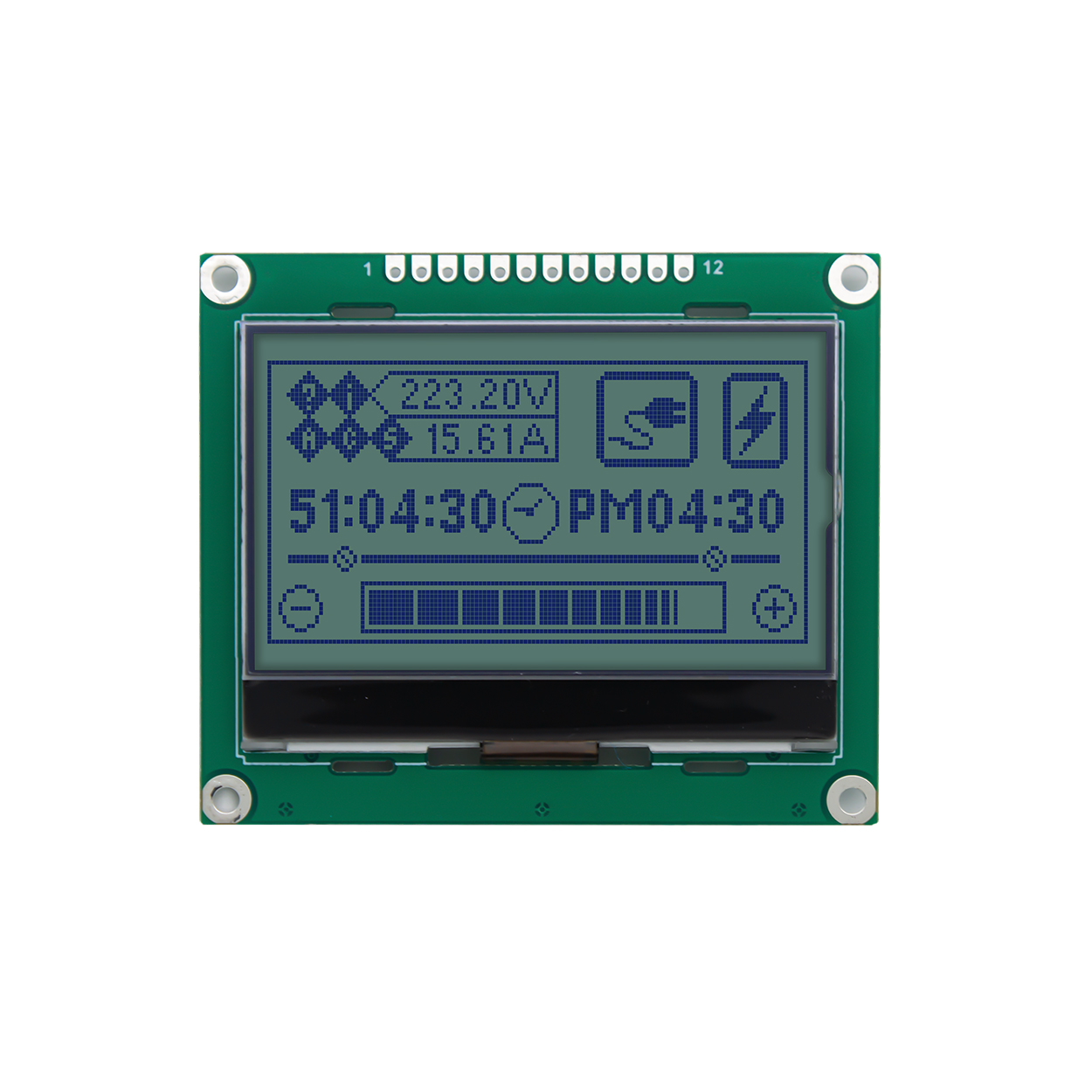

This Graphic LCD Module 132x64 Graphic LCD Display Module displays dark blue pixels on a gray background. This translucent LCD display is engineered to provide optimal visibility in a variety of lighting conditions in a variety of different environments. In bright sunlight, the display uses its reflective properties to reflect the image back to the viewer, making the screen easy to read. In darker environments, the LCD has a strong backlight built in to provide high contrast and display clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions.
This Graphic LCD Display Module is created with a built-in negative voltage and comes with a built-in ST7567 controller. It is also fully compatible with Arduino/ C8051 and can be seamlessly connected with other electronic systems for a variety of applications. This product model is designed to withstand harsh operating conditions and operates abnormally when used in a temperature range of -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 6:00, operates at 3.3V, and is RoHS compliant.

Item	Specification content	Unit
Name	HTM-C0G13264C01A-11W-SPI
Graphic display	132 × 64	dots
Dimensions	66.0 x 56.2 x 5.5 (MAX)	mm
VA size	53.2 x 31.5	mm
AA size	48.81 x 26.21	mm
Pixel pitch	0.41 x 0.37	mm
Driver chip	ST7567
Applied voltage	3.3V	V
Backlight illumination	White
Display mode	STN(+)
Drive mode	1/64 duty cycle
Product type	Graphic LCD Module
Polarizer type	Transflective
