High-definition borderless, sensitive touch control

2.1-inch In-Cell Round TFT LCD Display

Model: TFT-H021A04ZUIAX5G40 | Core Configuration: 540×540 resolution | IPS wide viewing angle | In-Cell embedded touch | AXS15260D driver chip

Product details link：TFT-H021A04ZUIAX5G40

I. Product Overview

Hotdisplay’s TFT-H021A04ZUIAX5G40 is a 2.1-inch In-Cell Round TFT LCD Display designed for smart terminals, smart home devices, automotive instrument clusters, and the DIY digital market. This product deeply integrates In-Cell embedded touch technology, IPS full-viewing-angle display technology, and a modern circular design, combining a slim profile, high-definition image quality, precise touch control, and industrial-grade environmental reliability. It stands as a premium choice for small-to-medium-sized circular interactive displays.

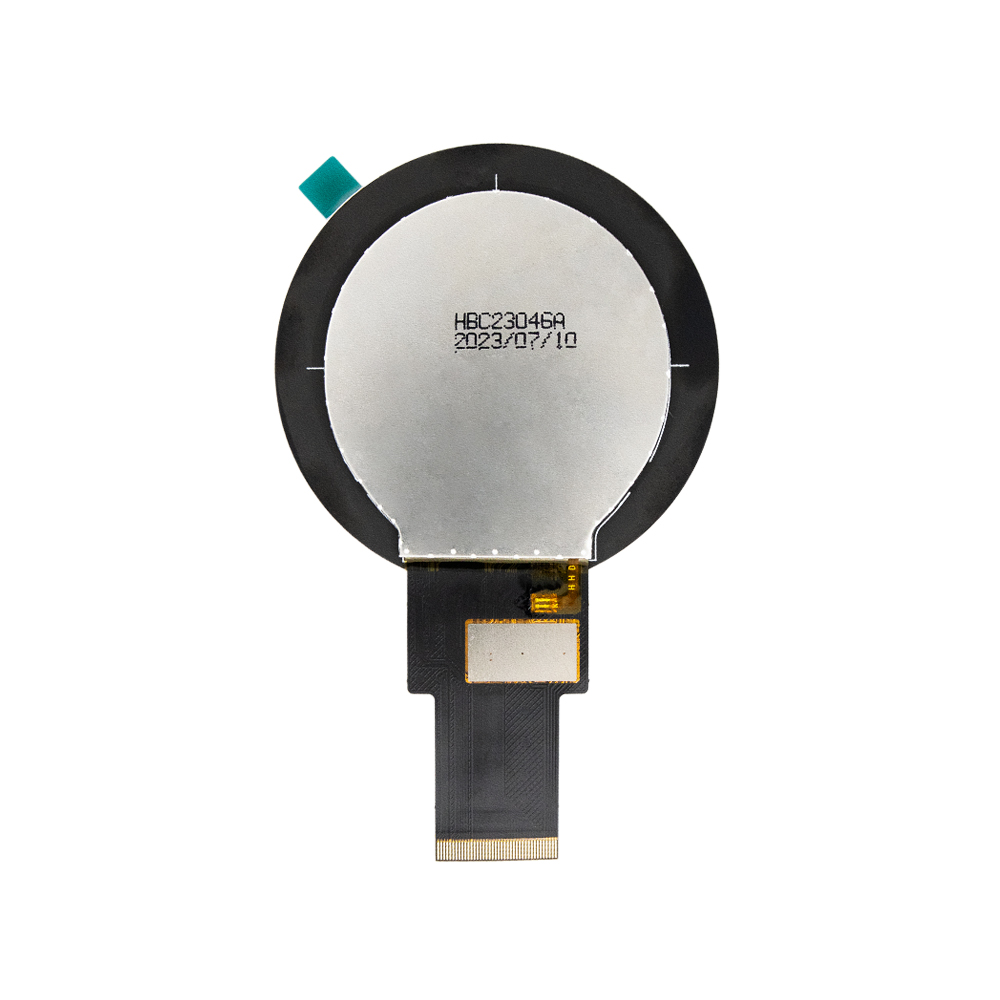

▲ Product photos: In-Cell integrated circular screen, combining a slim structure with a precise touch experience.

The conventional touchscreen generally adopts a structure where the touch layer and the display layer are separated, whereas this product integrates the touch sensing unit directly into the liquid crystal panel, truly achieving a 2-in-1 display and touch function. Compared to discrete and On-Cell touch solutions, the 2.1-inch In-Cell Round TFT LCD Display delivers comprehensive improvements in overall module thickness, optical transmittance, touch response speed, and electromagnetic immunity. Featuring a 540×540 high-definition resolution and stringent industrial-grade protection standards, the 2.1-inch In-Cell Round TFT LCD Display operates stably in complex conditions such as indoor, semi-outdoor, high-temperature, and low-temperature environments, making it widely applicable to smart home appliances, automotive instrument clusters, water-cooling monitoring screens, and various other scenarios.

II. Core Technology: In-Cell Embedded Touch Technology

In-Cell embedded touch is a high-end integrated technology in the field of small and medium-sized touch displays, and it is also the core competitiveness of this 2.1-inch In-Cell Round TFT LCD Display. This technology breaks the traditional design concept that displays and touch are independent of each other, and completes the functional integration from the bottom layer of the panel.

2.1 Technical Principles

The 2.1-inch In-Cell Round TFT LCD Display fundamentally differs from conventional touch products, which require an additional independent touch sensor layer attached to the outside of the LCD panel. In-Cell technology embeds the touch sensing electrodes and signal lines directly between the color filter and the TFT driver backplane of the LCD panel. This product reuses the original electrodes of the LCD panel, using a time-division multiplexing (TDM) mechanism to perform image display and capacitive touch signal detection in a time-division manner. Thanks to these features, engineers increasingly prefer the 2.1-inch In-Cell Round TFT LCD Display because it is equipped with a dedicated AXS15260D driver chip—a single chip that simultaneously handles display driving and touch signal acquisition, eliminating the need for an additional touch controller and achieving deep hardware integration.

2.2 Core Advantages of In-Cell Technology

• Ultra-thin and streamlined structure
  The 2.1-inch In-Cell Round TFT LCD Display features an ultra-thin and streamlined structure: eliminating the need for a separate touch panel and multiple layers of optical adhesives, the overall module thickness is only 3.16±0.3mm (including TFT panel + OCA adhesive + external lens). This significantly reduces thickness compared to layered touchscreens of the same specifications, and the accompanying FPC cable is narrower, effectively simplifying the internal structure and wiring design of terminal products.

• Significantly optimized optical performance
  Engineers choose the 2.1-inch In-Cell Round TFT LCD Display for its significantly optimized optical performance: reducing light refraction and reflection losses caused by multiple layers significantly improves panel transmittance. Combined with a 500 cd/m² high brightness design, it virtually eliminates visual parallax caused by the layered structure. With an IPS wide viewing angle and a 70% NTSC high color gamut panel, the picture is clear and color reproduction is accurate.

•  Comprehensively upgraded touch experience
  In terms of touch experience, the 2.1-inch In-Cell Round TFT LCD Display delivers comprehensively upgraded performance: relying on the panel's built-in touch sensing network, coupled with an I2C communication interface and TP-INT interrupt triggering mechanism, touch response is rapid and positioning accuracy is high. It perfectly supports multi-touch, and interactive actions such as clicking, swiping, and long pressing are recognized sensitively and smoothly.

• Integrated structure for enhanced durability
  Finally, the 2.1-inch In-Cell Round TFT LCD Display offers an integrated structure for enhanced durability: the overall module is highly integrated, making internal components less prone to loosening and dust accumulation. Combined with an industrial-grade wide-temperature design, its overall stability and lifespan are superior to traditional layered screens in environments with significant vibration and temperature differences.

III. Basic Hardware Parameters and Display Performance

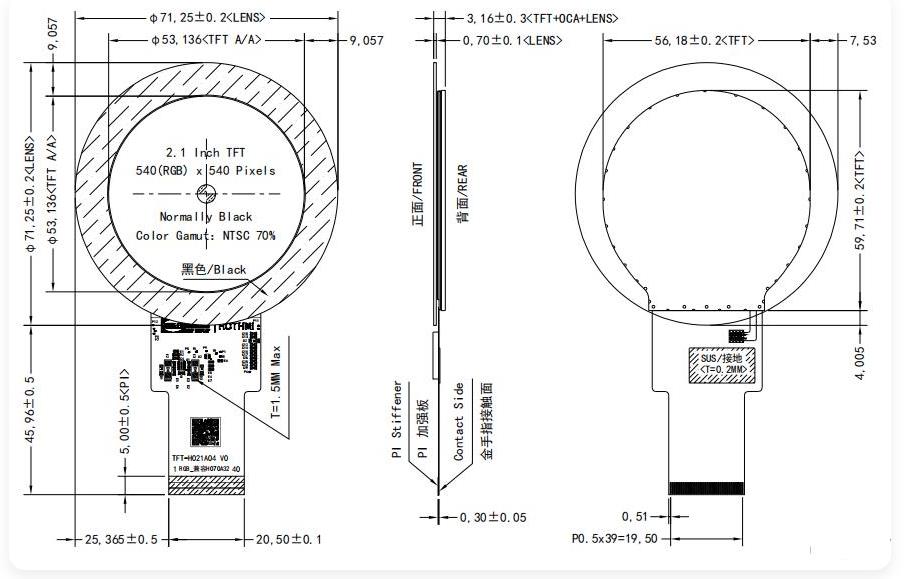

3.1 Dimensions and Physical Specifications

3.2 Displaying core parameters

3.3 Electrical Parameters

3.4 Environmental adaptability (industrial grade standard)

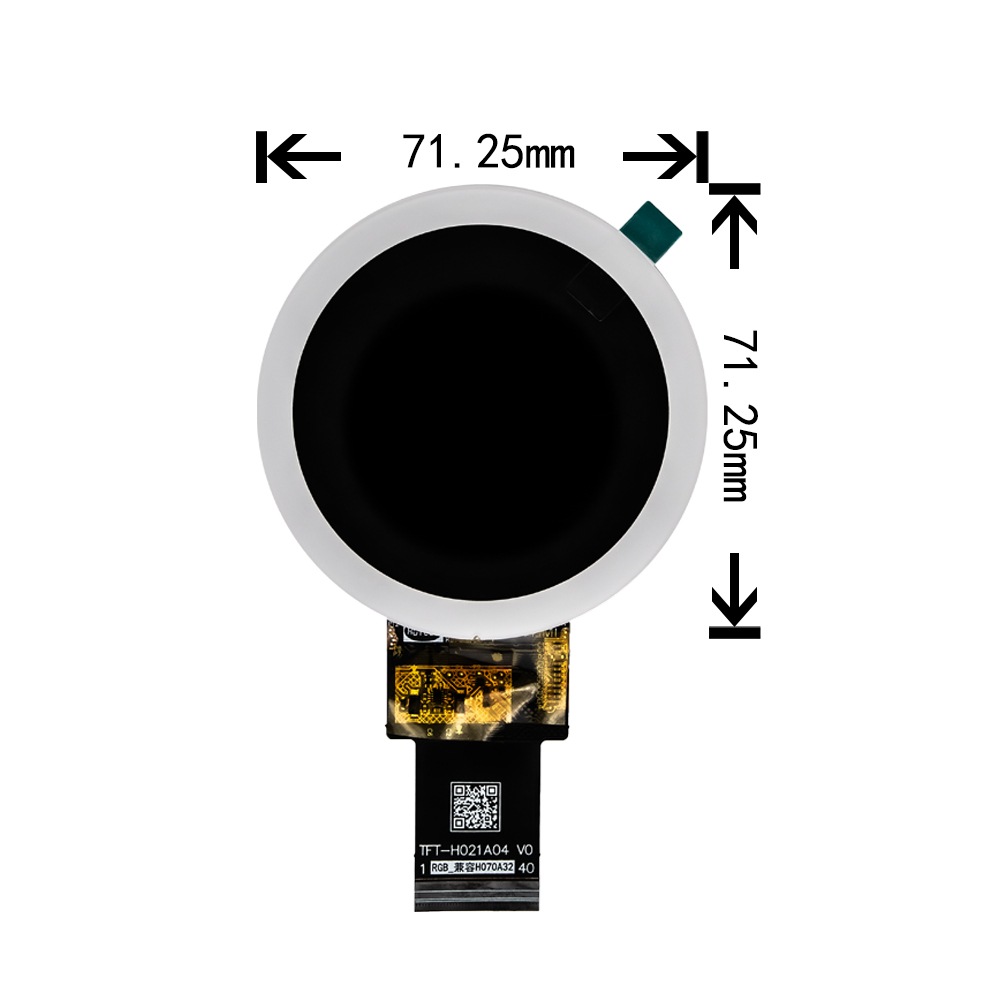

▲ 产品硬件接口与规格展示图

IV. Interface Scheme

This 2.1-inch In-Cell Round TFT LCD Display features an independent dual-interface design, which carries display data transmission and touch signal communication respectively. The protocol is universal and easy to connect, greatly reducing the difficulty of hardware development.

4.1 Display Interface: 24-bit Standard RGB Interface

The 2.1-inch In-Cell Round TFT LCD Display adopts an industry-standard 24-bit parallel RGB interface, which can directly interface with mainstream host controllers such as MCU, ARM, and FPGA. Image data is transmitted in real time without latency, ensuring a high refresh rate and smoothly rendering dynamic UIs, animations, and video content. The red, green, and blue primary colors each occupy 8-bit signals, achieving 16.77 million full-color display with rich and delicate color gradation.

4.2 Touch Interface: I2C Interface

The touch function of the 2.1-inch In-Cell Round TFT LCD Display is realized via TP-SCL and TP-SDA pins for standard I2C communication, and is equipped with a TP-INT interrupt trigger pin. This protocol uses few pins and provides stable communication, enabling fast and accurate recognition of various touch operations such as tapping, sliding, and long pressing, resulting in a smooth and coherent interactive experience.

V. Summary of Core Product Highlights

• In-Cell integrated touch architecture: The 2.1-inch In-Cell Round TFT LCD Display adopts a high-end embedded touch solution that balances thinness, high transmittance, low signal interference, and precise touch control, delivering comprehensive performance far superior to traditional layered touch screens.

• Ultra-high pixel density: With a 540×540 resolution on a 2.1-inch screen, the 2.1-inch In-Cell Round TFT LCD Display achieves a pixel density of approximately 363 PPI, ensuring sharp text and icons with no jagged edges, and outstanding display clarity.

• Single-chip integrated control: The AXS15260D 2-in-1 driver chip integrates display and touch driving functions, simplifying peripheral circuits and reducing the overall module size.

• IPS wide viewing angle + high color gamut & high brightness: The 2.1-inch In-Cell Round TFT LCD Display delivers no color shift when viewed from any angle, and its integrated structure produces clear and sharp visual effects, offering excellent visual performance.

• Industrial-grade protection capability: With a wide operating temperature range of -20℃ to +70℃ and built-in 8KV ESD protection, it is suitable for complex environments such as smart homes, automotive, outdoor applications, and industrial controls.

• Standardized universal interface: The 24-bit RGB + I2C touch dual-interface is compatible with most mainstream control platforms, improving project development and deployment efficiency.

• Round aesthetic design: The integrated circular visual form perfectly matches round UI designs and rotary control devices, presenting a simple and modern appearance.

VI. Main Application Scenarios

Leveraging In-Cell core technology, circular structural design, and industrial-grade reliability, the 2.1-inch In-Cell Round TFT LCD Display is widely applicable across various smart terminal scenarios:

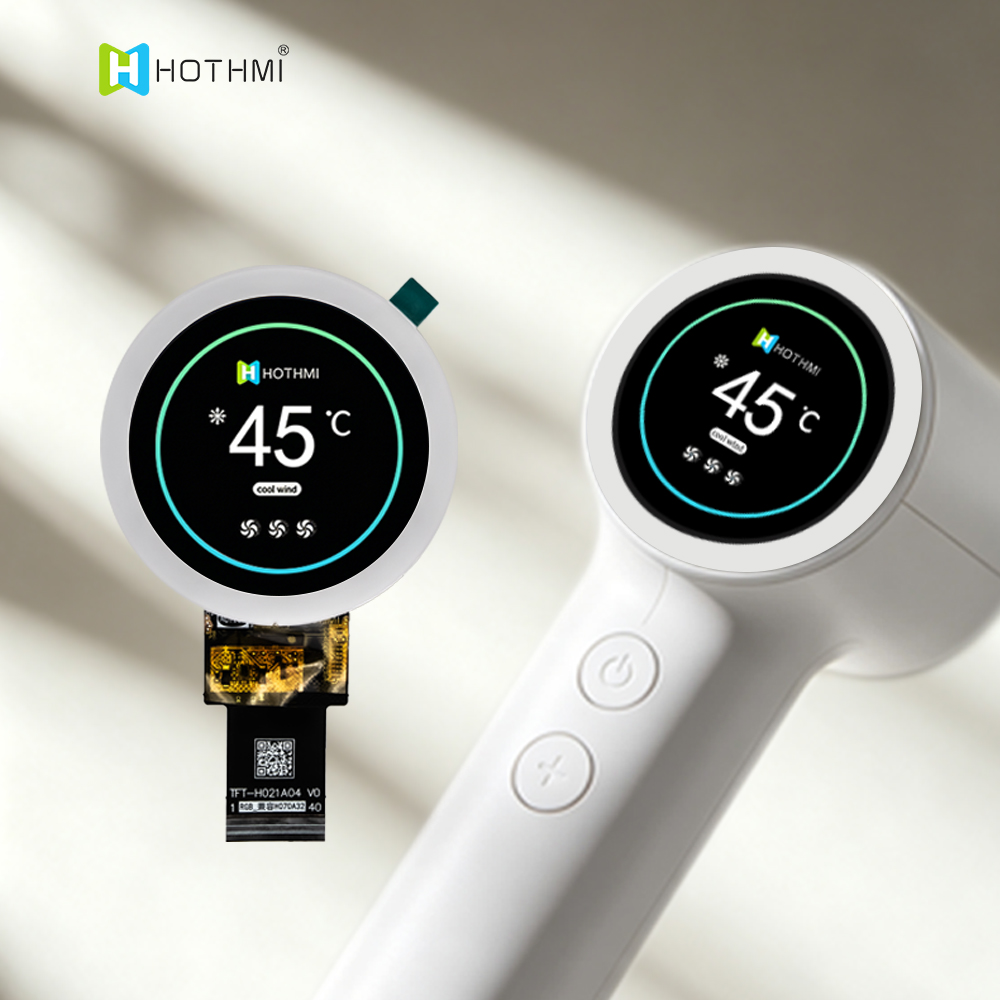

Smart Home & Smart Appliances: Smart thermostats, microwave ovens, oven status displays, and top interactive panels for robotic vacuum cleaners — combining aesthetics with practical functionality.

DIY PC Liquid Cooling Monitoring Screen: A dedicated circular monitoring screen for water cooling systems, capable of real-time CPU temperature and fan speed monitoring, with support for custom animations and graphic/text display.

Automotive & Two-Wheeler Instrument Panels: Electric motorcycle circular dashboards, car central control rotating auxiliary screens — featuring wide temperature tolerance, vibration resistance, and high reliability, suitable for demanding automotive environments.

VII. Conclusion

The 2.1-inch In-Cell Round TFT LCD Display, model TFT-H021A04ZUIAX5G40, takes In-Cell embedded touch technology as its core advantage. Combined with 540×540 high-definition resolution, IPS wide viewing angle, industrial-grade protection, and standardized general-purpose interface, it thoroughly resolves the pain points of traditional round screens such as poor image quality, touch layer separation, bulky thickness, and weak adaptability. In terms of appearance design, it aligns with the mainstream aesthetics of current consumer electronics, smart home devices, and automotive equipment. In hardware performance, it achieves comprehensive upgrades in thinness, optics, touch responsiveness, and anti-interference capability through In-Cell integration technology. In practical applications, the wide temperature range, high protection level, and general-purpose interface effectively reduce customers' R&D and adaptation costs. Whether for consumer smart terminals or industrial and automotive professional equipment, this display is a high-quality solution for small to medium-sized round interactive display scenarios.
