New Product Launch - 4.2-inch TFT LCD 1280×960 4:3: A New Benchmark for Industrial-Grade TFT Displays

In the field of industrial displays, factors such as size, aspect ratio, brightness, and environmental adaptability often determine whether a display module can truly meet the demands of complex scenarios. For a long time, there has been a significant gap in the small-size industrial display market for 4:3 LCD Display products: 3.5-inch screens offer limited display area, while 5.7-inch and larger solutions tend to be bulky, power-hungry, and complex to integrate.

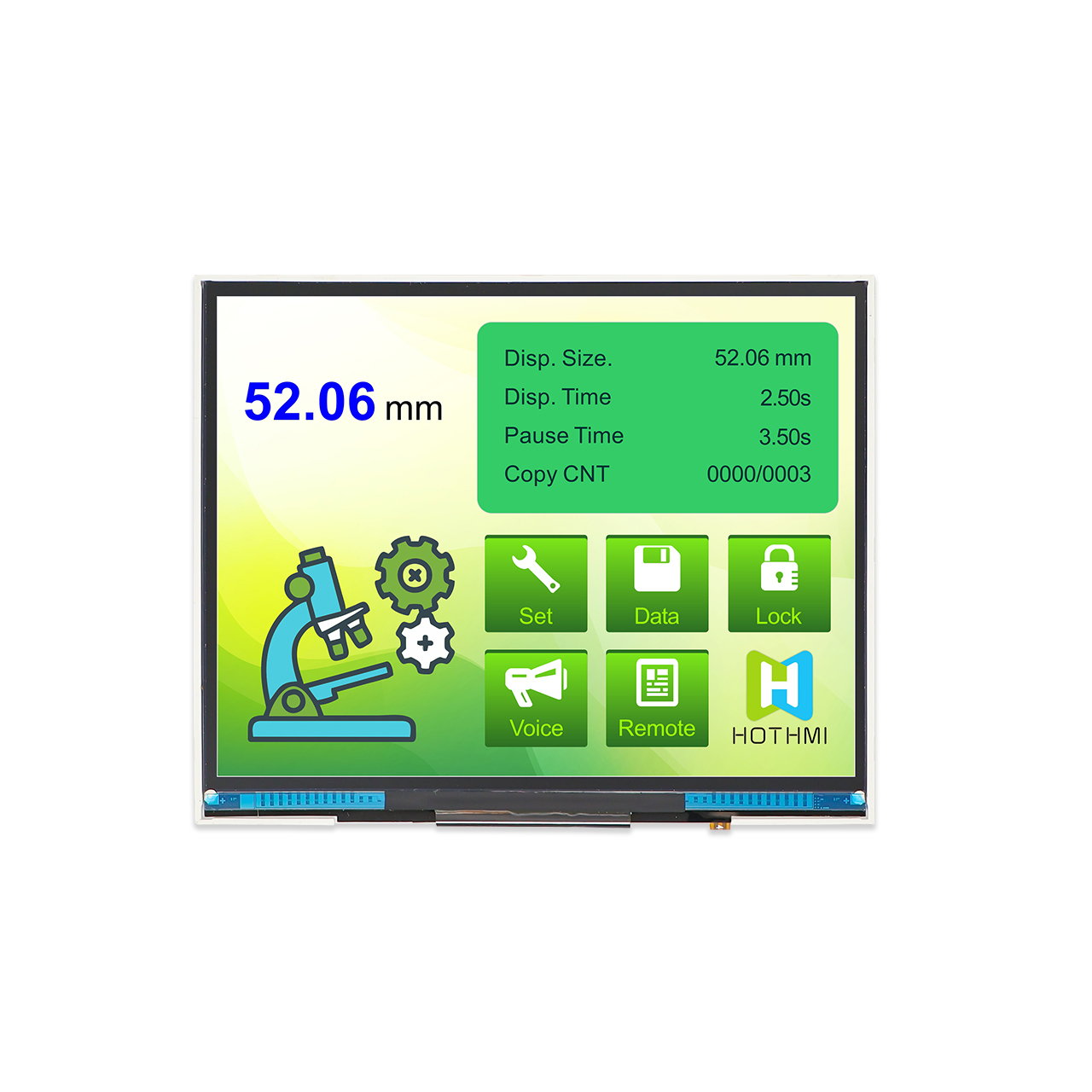

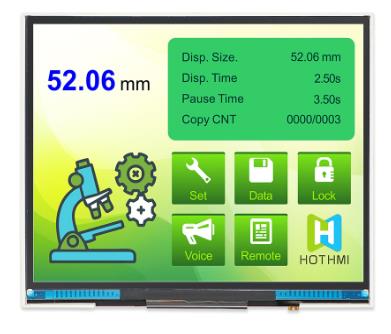

Now, Hotdisplay's model TFT-H042A01WXIGHKN30 — a 4.2-inch high-definition IPS TFT LCD module — features a precise 4:3 aspect ratio, a "fully domestic component" strategy, wide color gamut with high color fidelity, 1200 nits of ultra-high brightness, and a wide operating temperature range of -30°C to +85°C. This 4:3 LCD Display brings a truly "golden size" solution to the industrial display market, balancing performance and practicality.

I.4.2 inches: The perfect size for an industrial display

In industrial controls, medical devices, automotive dashboards, and portable terminals, display size not only affects visual experience but also directly determines product structural design, power management, and user interaction efficiency.

The compact 3.5-inch screen, while small, often shows clear limitations in modern high-information-density interfaces:

• Overcrowded UI elements

• Incomplete charts and graphics

• Insufficient touch operation space

• Visual fatigue after prolonged use

On the other hand, larger 5.7-inch or even 7-inch solutions bring:

• Increased device volume

• Shorter battery life

• More complex thermal management

• Higher mold and structural costs

The 4.2-inch size of the TFT-H042A01WXIGHKN30 exactly fills this market gap. This 4:3 LCD Display provides a sufficiently large active area to clearly present complex graphics, waveform curves, and industrial data, while maintaining the compact form factor required for portable devices. This 4:3 LCD Display offers engineers a remarkably well-balanced solution. For applications demanding a reliable 4:3 LCD Display, it delivers without compromise.

II.Native 4:3 aspect ratio: the best adaptation solution for traditional industrial systems

In the current market, the vast majority of consumer-grade LCD panels have fully shifted to 16:9 or wider aspect ratios. However, in the fields of industrial control, medical equipment, and instrumentation, the 4:3 LCD Display still holds irreplaceable value.

The reasons are simple:

• A large number of legacy industrial software interfaces are developed based on 4:3 layouts

• Instrument panels rely on vertical display space

• Medical images are better suited to a nearly square display structure

• Legacy system upgrades require compatibility with existing UI logic

The TFT-H042A01WXIGHKN30 features a native 4:3 aspect ratio, avoiding the common issues caused by widescreen solutions, including:

• UI stretching and distortion

• Wasted display area

• Software re-engineering costs

• Icon and font rearrangement problems

For industrial equipment upgrade projects, this means engineers can directly achieve a higher-resolution, brighter, and more stable display upgrade—without redesigning the entire interface system. That is the practical advantage of choosing a true 4:3 LCD Display. When reliability and compatibility matter most, this 4:3 LCD Display delivers.

III.Optical and display performance of the 4:3 LCD Display: High-fidelity, high-color-gamut imaging in high definition across all viewing angles

As a 4.2-inch display module, the TFT-H042A01WXIGHKN30 features a sharp 1280×960 resolution on a 4:3 LCD Display.

This means:

• Finer text rendering

• More accurate data and graphic presentation

• Sharper edge details

• Higher information-carrying capacity

In industrial applications, high resolution means more than just "clearer" — it means:

• Higher data reading efficiency

• Lower probability of misjudgment

• Better human-machine interaction experience

This is especially critical in scenarios like medical monitoring waveforms, precision instrument charts, industrial control curves, and map/navigation interfaces, where high pixel density significantly improves information readability.

Meanwhile, its IPS full-view technology delivers all-angle visibility (U85/D85/R85/L85), ensuring consistent color and contrast from front, side, or tilt. Combined with NTSC 70% wide color gamut and normally black technology, the display achieves approximately sRGB 98% equivalence. This has real value for industrial HMIs — distinguishing similar warning colors (e.g., deep red vs. orange-red) and avoiding misjudgment due to insufficient gamut.

IV. 1200 nits ultra-high brightness: truly sunlight-readable

For outdoor equipment, the biggest pain point of ordinary LCDs is often not resolution, but: "Can't see clearly in daylight." Many traditional industrial screens offer only 300–500 nits, making them nearly unusable in strong outdoor light.

The TFT-H042A01WXIGHKN30 delivers 1200 cd/m² (1200 nits) — ensuring clear visibility even under direct sunlight.

This is critical for:

• Outdoor charging stations

• Construction machinery displays

• Agricultural machine control systems

• Smart bus equipment

• Outdoor testing instruments

• In-vehicle control screens

V. -30°C to +85°C ultra-wide temperature range: true industrial-grade reliability

Consumer-grade LCDs typically operate stably only between 0°C and 50°C. Industrial environments are far harsher:

• Winter low temperatures in northern regions

• Summer outdoor exposure

• Enclosed high-temperature cabinets

• High-humidity environments

• High-dust environments

• Long-duration continuous operation

The TFT-H042A01WXIGHKN30 uses industrial-grade wide-temp LCD materials and a highly reliable backlight structure, achieving:

• Operating temperature: -30°C ~ +85°C

• Storage temperature: -30°C ~ +85°C

This enables stable use in outdoor industrial terminals, in-vehicle equipment, special machinery, drone control terminals, medical mobile devices, military and energy equipment — maintaining steady display performance even in extreme conditions.

VI. "Fully domestic" component strategy

This module follows a fully domestic supply chain design, with major materials sourced from qualified local suppliers. Engineering benefits include:

• Shorter procurement cycles — avoiding risks from imported chip lead time fluctuations

• Compliance with industry-specific access requirements (e.g., domestic rail transit, power grids, military support where self-sufficiency is mandatory)

• Controllable costs — lower cost than imported solutions at equivalent performance

VII. Slim mechanical design for greater system integration flexibility

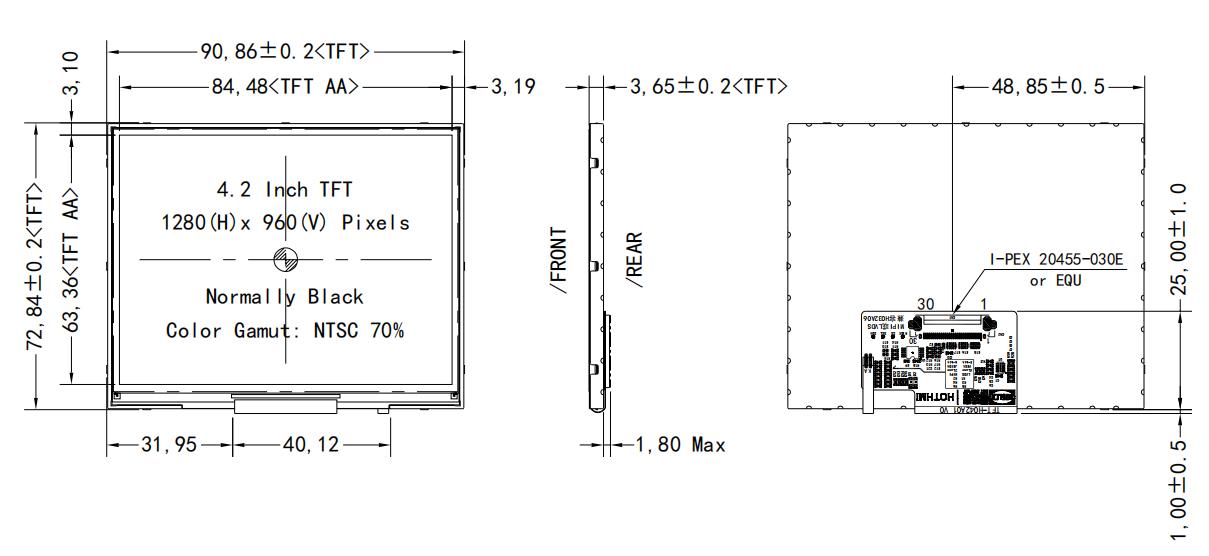

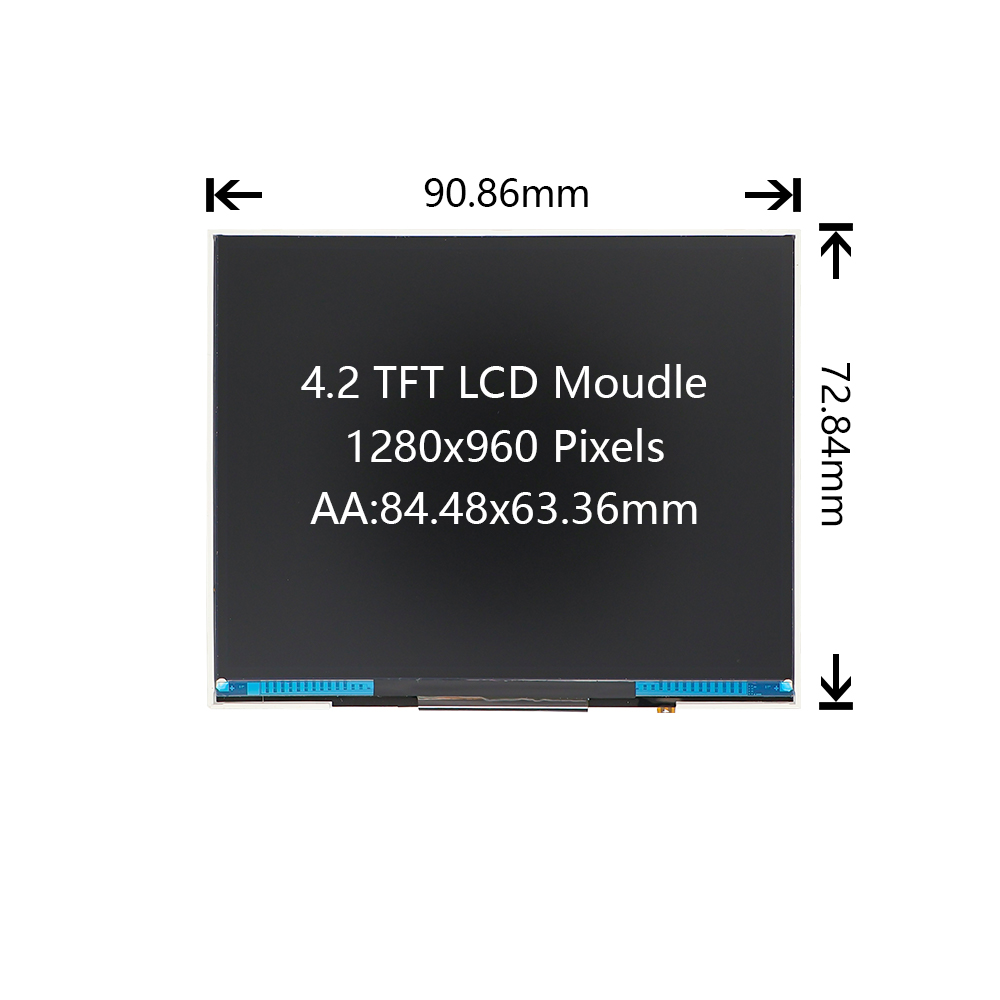

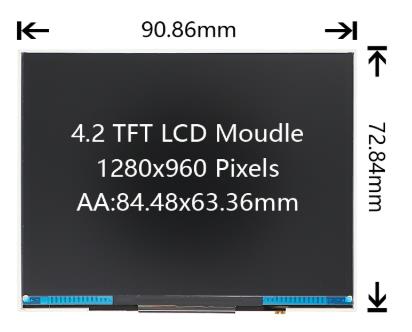

Overall module dimensions: 90.86 × 72.84 × 3.65 mm. Advantages of the slim design:

• Easier integration into compact devices

• Reduced overall system thickness

• Optimized internal space

• Better suited for portable products

For the modern industrial trend toward lightweight and miniaturized products, this structural design offers significant value.

VIII. Typical application scenario analysis

1. In-vehicle and specialty vehicles

• Motorcycle/scooter instrument clusters — 4.2" width fits instrument hood openings, high brightness counters sunlight reflection, wide temp adapts to winter riding

• Construction machinery displays — excavators and loaders need large fonts and shock resistance; the 4:3 ratio helps separate status bars from working areas

• Agricultural machinery — dust/waterproof housing combined with this module can meet IP65 front-side requirements

2. Industrial HMI

• CNC machine operation panels — 1280×960 can simultaneously display G-code editing windows and toolpath simulations

• Smart grid monitoring units — full-angle viewing facilitates data observation from multiple positions

• Automated test equipment — the 4:3 ratio perfectly adapts to legacy test program layouts, eliminating UI redevelopment

3. Outdoor smart terminals

• Charging station displays — must start at -30°C and remain readable under direct sunlight; 1200 nits is the essential threshold

• Smart locker/vending machines — upgrade from 3.5" screens for better QR guidance and ad display

• Handheld testing terminals — weight and power sensitive; 4.2" is easier for one-handed operation than 5.7"

4. Medical and diagnostic equipment

• Portable ultrasound — high PPI reveals small lesion details; full-angle viewing accommodates different operator positions

• Blood analyzers — waveforms and statistical data displayed simultaneously with classic 4:3 layout

• Telemedicine terminals — color gamut coverage meets basic skin tone reproduction requirements

VIIII.Why does this 4.2-inch 4：3 LCD Display have strategic market value?

The true value of the TFT-H042A01WXIGHKN30 4.2-inch 4：3 LCD Display lies not only in its specifications. Its significance lies in:

"Precisely filling the long-standing gap in the industrial 4:3 mid-size segment market."

Competitor comparison based on publicly available information

It is neither as cramped as a small screen, nor as bulky as a large one. This 4:3 LCD Display achieves:

• Balance between size and portability
• Balance between brightness and power consumption
• Balance between high-definition imaging and structural space
• Balance between industrial reliability and cost control

Conclusion: This module significantly outperforms traditional 3.5-inch solutions in brightness, resolution, and wide-temperature performance, while being far superior to 5.7-inch solutions in power consumption and physical footprint. It represents the optimal balance of performance and cost for 4:3 LCD Display applications.

When you choose this 4:3 LCD Display, you are choosing the sweet spot where engineering meets economy.

VV.Conclusion

As industrial intelligence, vehicle electronics, and outdoor digitalization continue to advance, the market is seeing rapidly growing demand for high-reliability, high-brightness, wide-temperature, and compact industrial displays.

The TFT-H042A01WXIGHKN30 is redefining the performance standard for mid-sized industrial TFT modules with:

• 4.2-inch golden size

• Native 4:3 LCD Display aspect ratio

• 1280×960 HD resolution

• 1200 nits ultra-high brightness

• -30°C to +85°C wide-temperature operation

• IPS full viewing angle

• Ultra-high color gamut (NTSC 70%)

• Fully domestic component strategy

This is more than just a display — it's a professional 4:3 LCD Display solution built for future industrial terminals. For engineers and equipment manufacturers seeking the perfect balance among display performance, environmental reliability, size compatibility, and cost control, this 4:3 LCD Display delivers unmatched value.
