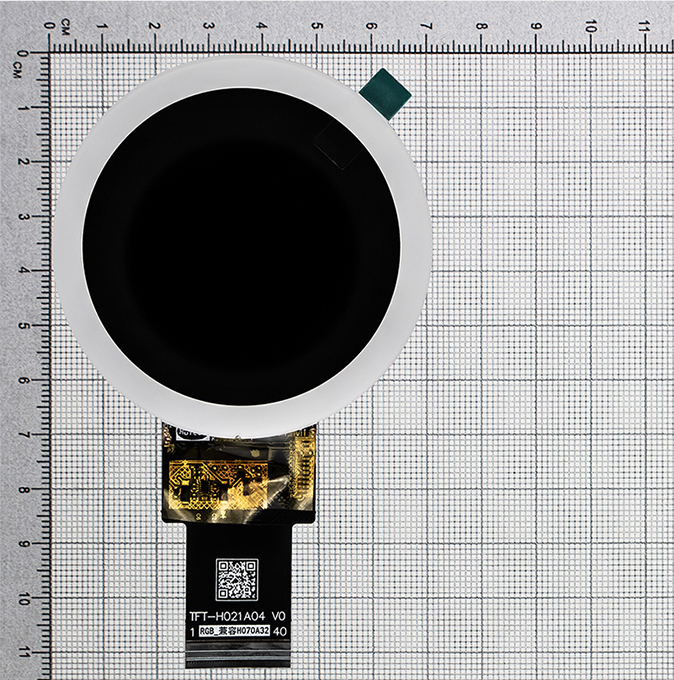

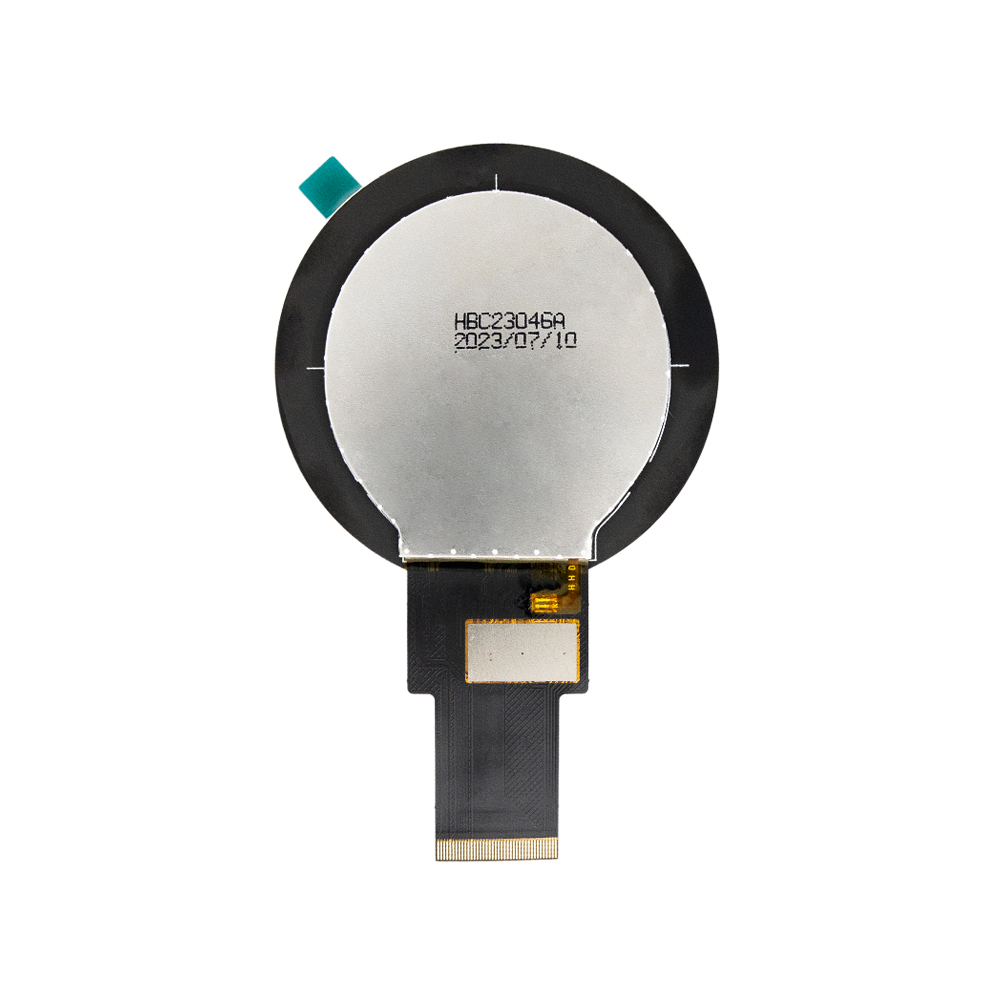

2.1-inch In-cell Round TFT LCD 540x540 round display AXS15260D

2.1-inch In-cell Round TFT LCD 540x540 round display AXS15260D

▶ Model: TFT-H021A04ZUIAX5G40

▶ Type: In-cell TFT LCD
▶ Display Resolution: 540 x 540 Pixels

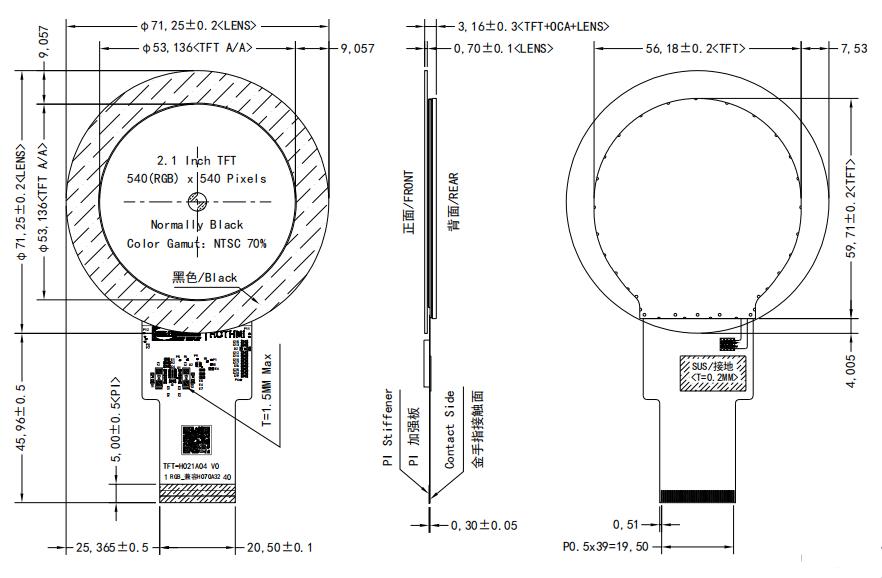

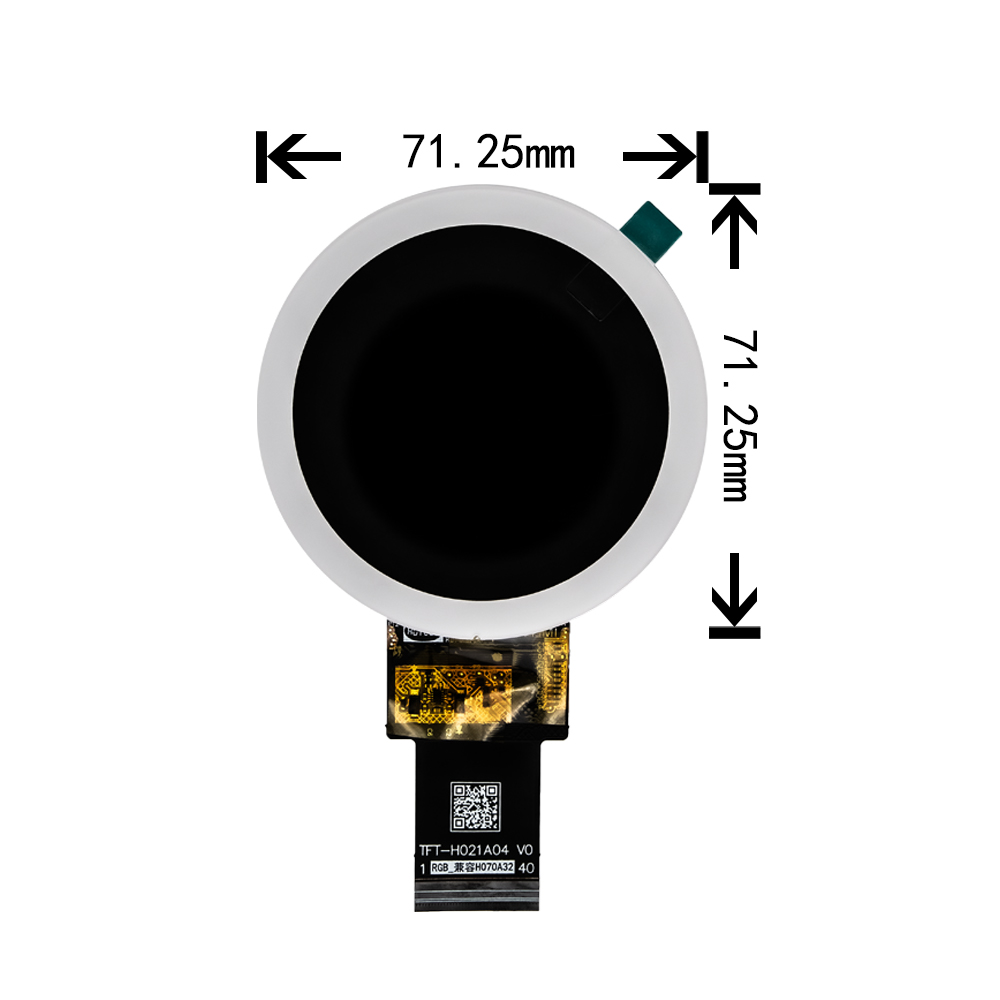

▶ Outline Dimensions (mm): 71.25 x 71.25 x 3.16
▶ Active Area (mm): 53.136 x 53.136
▶ Display Size: 2.1"
▶ Applications: Smart Home Appliances, Robotic Vacuums
▶ Viewing Angle: IPS Full Viewing Angle
▶ Brightness: 500 nits
▶ Pins: FPC-40PIN
▶ Interface: RGB
▶ Special Feature: Anti-static (ESD) 8kV
▶ Operating Temperature: -20°C to 70°C
▶ Power Supply Voltage: 3.3V
▶ Driver IC: AXS15260D
Product ConsultationDatasheets Download
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

No Back Next

Related Accessories

TFT universal accessories
ESP32-P4 Motherboard For RGB LCD Display

Product Description
Customized Services
Attributes

TFT-H021A04ZUIAX5G40 2.1-inch In-cell Round TFT LCD 540x540 round display AXS15260D
The 2.1-inch In-cell Round TFT LCD delivers a perfect fusion of advanced touch integration and circular design aesthetics, tailored for smart home appliances and robot vacuums. By embedding touch sensors directly into the LCD layer, the In-cell technology eliminates the need for a separate touch panel. This results in superior optical clarity, reduced thickness, and enhanced touch responsiveness—making the 2.1-inch In-cell Round TFT LCD exceptionally sleek and durable. The integrated structure also improves sunlight readability and minimizes parallax, ensuring crisp visuals from any angle.

With a full IPS viewing angle and 540×540 resolution, this circular display offers a natural, borderless viewing experience. The round form factor eliminates unused corners, creating a harmonious and modern interface that aligns perfectly with circular UI designs. Whether for control panels or status indicators, the 2.1-inch In-cell Round TFT LCD provides intuitive, edge-to-edge interaction.

Built with ESD protection up to 8KV, an operating temperature range of -20~70℃, and 450 cd/m² brightness, it ensures reliable performance in diverse environments. The RGB interface and AXS15260D driver chip guarantee seamless integration. Experience the advantages of In-cell integration and circular elegance with the 2.1-inch In-cell Round TFT LCD—where form meets function.

Specification of the 2.1-inch In-cell Round TFT LCD

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection).

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H021A04ZUIAX5G40
Diagonal size	2.1”	Inch
Resolution	540x540	Dot
Dimensions	71.25x71.25x3.16	mm
Active area (AA)	53.136x53.136	mm
LCD type	2.1” TFT Module	mm
Display viewing angle	Full View
Aspect ratio	1：1
Backlight type	LED white
TFT driver IC	AXS15260D
Brightness	450cd/m2	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
