New product: 4.3-inch high-definition capacitive touch TFT display

HOTDISPLAY Masterfully Crafted 480x800 Resolution RGB Interface IPS Full View Industrial Wide-Temperature Design

In today's rapidly evolving smart hardware landscape, display quality and interactive experience have become core factors determining product competitiveness. The TFT-H043B32WVIST3C45, a 4.3-inch high-definition capacitive touch TFT display masterfully crafted by HOTDISPLAY, combines high resolution, industrial-grade reliability, and a sleek integrated design. It is perfectly suited for precision applications such as instrumentation and portable electronic devices that demand both superior performance and aesthetic refinement, offering an ideal display solution that delivers exceptional visual quality and smooth touch responsiveness for a wide range of smart terminals.

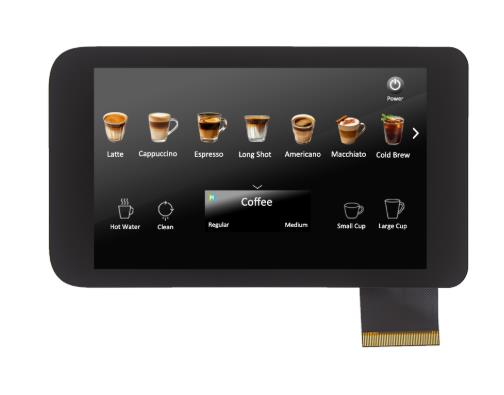

Product display image

Product Video：4.3-inch high-definition capacitive touch TFT display

I. Golden Size & High-Definition Display – Delivering the Ultimate Visual Experience

This 4.3-inch high-definition capacitive touch TFT display features a 480×800 resolution, achieving a precise balance of pixel density at the optimal screen size. The image is sharp and free of graininess, whether displaying complex instrumentation data, intricate UI interfaces, or high-definition graphics – all presented with crystal-clear visual fidelity.

Equipped with IPS full-view display technology, the module delivers excellent color reproduction with an NTSC color gamut coverage of 60%, faithfully rendering rich and delicate color gradations. Meanwhile, the pure black panel provides an exceptionally high static contrast ratio – deep, pure blacks and bright, transparent whites create striking contrast, ensuring clear readability even under complex lighting conditions. With a screen brightness of 350±100 cd/m², users can easily read on-screen content in various environments.

II. Golden Dual-Chip Combination – Crafting a Fluid Touch Experience

The TFT-H043B32WVIST3C45 adopts the optimal combination of the ST7701S LCD driver chip and the GT911 capacitive touch controller, achieving a perfect balance between display performance and touch responsiveness.

The ST7701S driver chip boasts powerful image processing capabilities and supports ultra-high frame refresh rates, ensuring seamless screen transitions without motion blur – particularly suitable for dynamic data and video content. The GT911 capacitive touch controller offers high-sensitivity, high-precision multi-touch support with fast response and accurate touch recognition, even when operating with thin gloves. The synergistic collaboration of these two chips delivers an exceptionally smooth and intuitive interactive experience.

III. Advanced Surface Technology & Customized Design – Balancing Durability and Aesthetics

To enhance practicality and visual appeal, this 4.3-inch high-definition capacitive touch TFT display has undergone comprehensive optimization in surface treatment and structural design. The cover glass features dual anti-glare (AG) and anti-fingerprint (AF) coatings, significantly reducing ambient light reflections, eliminating mirror effects that interfere with visibility, while effectively preventing grease and sweat stains from daily use – keeping the screen clean and reducing maintenance frequency.

The product incorporates a customized glass cover with rounded-edge design, offering a sleek and elegant appearance that seamlessly integrates with various device enclosures. The tailored touch cover enables flush mounting with the equipment, creating a seamless, unified look that emphasizes modern sophistication and premium quality, avoiding the gaps and misalignment issues common with conventional displays. The smooth, continuous surface not only enhances visual consistency but also improves grip and operational feel. Moreover, it integrates protective and touch functionalities into a single unit, eliminating the need for additional protective glass, simplifying the assembly process for end products, and reducing R&D and production costs. The touch module and display panel are deeply matched for stable, coordinated operation with excellent anti-interference performance.

IV. Industrial-Grade Wide-Temperature Operation – Adapting to Harsh Environments

As a display product designed for industrial and portable applications, the TFT-H043B32WVIST3C45 demonstrates outstanding environmental adaptability. Its operating temperature ranges from -20°C to +70°C, with a storage temperature range of -30°C to +80°C, ensuring stable performance under extreme climatic conditions – meeting the demands of industrial sites, automotive electronics, outdoor equipment, and other rigorous application scenarios.

In addition, the product features 8KV electrostatic discharge (ESD) protection, effectively safeguarding circuits against static damage and significantly enhancing device reliability and service life. With an overall thickness of just 4.20±0.3mm, the slim and compact design allows for easy integration into space-constrained portable devices.

V. Wide Range of Applications – Empowering Diverse Smart Terminals

With its integrated high-end appearance, IPS ultra-clear wide-view display, sensitive and accurate capacitive touch, industrial-grade stable performance, and highly adaptable interfaces, this 4.3-inch high-definition capacitive touch TFT display has been widely adopted across various smart hardware sectors:

• Smart Home Central Control Panels – wall-mounted whole-home smart control hubs, smart thermostats, video doorbell indoor units, etc.

• Industrial HMI Instruments – CNC machine operation terminals, high-end medical diagnostic instruments, automated production line monitoring systems.

• New Energy Terminal Equipment – DC/AC charging piles for new energy vehicles, portable outdoor energy storage devices.

• High-End Handheld Smart Terminals – thermal imaging cameras, industrial PDAs, logistics barcode scanners, network test analyzers.

VI. Standardized RGB Interface – High Compatibility for Easy Development and Integration

To reduce development and integration complexity, the TFT-H043B32WVIST3C45 utilizes the highly versatile RGB standard interface, offering stable signal transmission and high data transfer rates. It quickly matches mainstream driver chips and development motherboards, ensuring broad compatibility with most industrial control boards, microcontrollers, and embedded development platforms. The simple wiring method and mature adaptation solutions help shorten product development cycles, lower the barrier for screen integration in embedded devices and smart terminals, and effectively meet the project development needs of small-to-medium enterprises and R&D teams.

VII. Detailed Technical Specifications

• Optical Performance

• NTSC 60% | High-contrast pure black IPS panel

• Touch Technology

• GT911 capacitive | Quick response | Supports AG+AF coating

• Environmental Protection

• Industrial wide temperature range (-20~70℃) | 8kV ESD | Robust construction

• Seamless Integration

• Custom rounded corner cover | Flush fit | Modern appearance

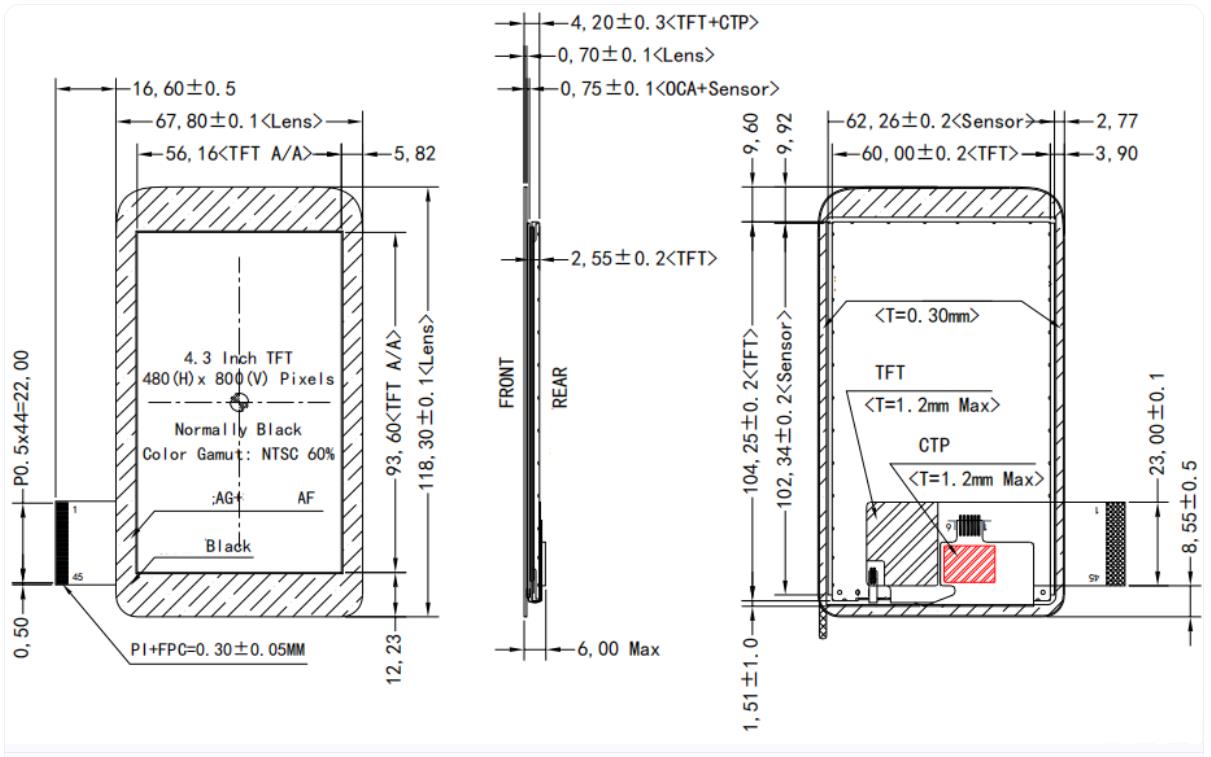

Product Specifications Display Image

VIII. Product Summary

Taken as a whole, the TFT-H043B32WVIST3C45 is not merely a display module with outstanding specifications, but a complete human-machine interaction solution. From highly sensitive touch response to industrial-grade wide-temperature reliability, from AG+AF anti-glare and anti-fingerprint treatment to the standardized RGB interface – every detail provides solid support for instrumentation, smart home systems, industrial HMIs, new energy terminals, and high-end handheld devices. It comprehensively meets the demanding requirements of premium precision electronic equipment, striking an optimal balance among aesthetics, practicality, and cost-effectiveness. This 4.3-inch high-definition capacitive touch TFT display is not only the ideal choice for terminal products pursuing an integrated sleek design, but also a one-stop display and touch solution that delivers both high performance and high stability – empowering and upgrading a wide range of precision electronic devices.
