What TFTs are suitable for Raspberry Pi?

Looking for a display solution for Raspberry Pi? HOT Display has an experienced technical team and has designed a variety of sizes and touch screen displays for Raspberry Pi. Whether you are looking for a small 2.4-inch resistive touch screen TFT or a 10.1-inch driver-free display, we can meet your needs. For these displays, just plug them into our accessory connector and you can start using them.

This chapter will bring you a series of driver-free TFT displays for Raspberry Pi.

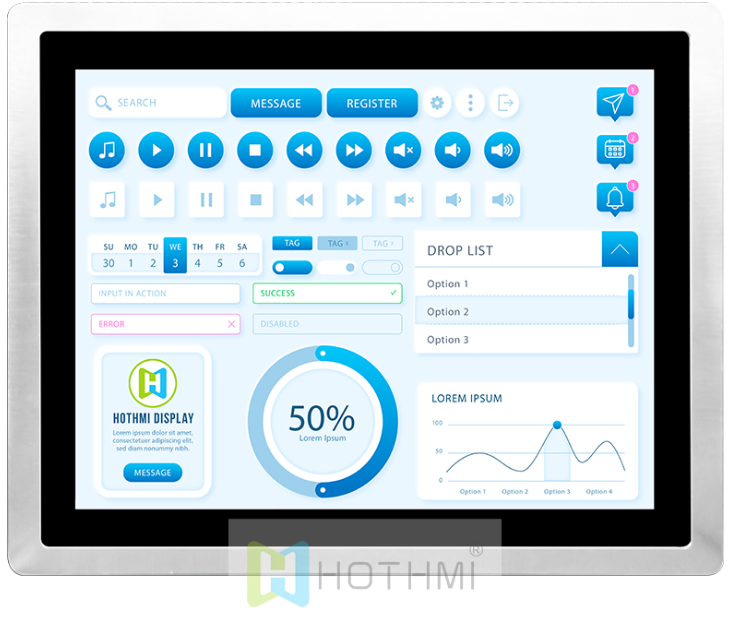

15 inch  IPS full viewing angle 1024x768 pixel TFT color LCD module with HI driver board/capacitive touch/custom iron frame

▶ Model: TFT-150T71XGHDVUSDC

▶ Type: HI driver-free module

▶ Display pixels: 1024x768 Px

▶ Dimensions (mm): 376x298x52

▶ Display inches: 15.0"

▶ AA size (mm): 303x226

▶ Application: Industrial computer

▶ Viewing angle: IPS full viewing angle

▶ Backlight/brightness: 350cd/M2

▶ Interface: HI/VGA

▶ Special instructions: Anti-static ESD 8KV

▶ Working temperature: -30~80℃

▶ Supply voltage: 9V～24V

▶ Read more

8-inch  1024x768 px TFT color LCD display module with HI driver board/optional touch function

▶ Model: LCM-TFT080T61SVHDVNSDC

▶ Type: HI with board module

▶ Display pixels: 1024x768 Px

▶ Dimensions (mm): 203x161x21.8

▶ Display inches: 8.0"

▶ AA size (mm): 162.05x121.54

▶ Application: Charging pile, electrical equipment, medical detector

▶ Viewing angle: 12H o'clock

▶ Backlight/brightness: 300cd/M2

▶ Interface: HI

▶ Special instructions: Anti-static ESD 8KV

▶ Working temperature: -20~70℃

▶ Power supply voltage: 9V～24V

▶ Read more

10.1 inch IPS full viewing angle high brightness 1280x800 pixel TFT color LCD module with HI driver board/capacitive touch

▶ Model: HTM-H101D13-HI-A05C

▶ Type: HI with board module

▶ Display pixels: 1280x800 Px

▶ Dimensions (mm): 258.0x150.4x9.5

▶ Display inches: 10.1"

▶ AA size (mm): 216.96x135.6

▶ Application: Charging piles, electrical equipment, medical detectors

▶ Viewing angle: IPS full viewing angle

▶ Backlight/brightness: 500cd/M2

▶ Interface: HI

▶ Special instructions: Anti-static ESD 8KV

▶ Working temperature: -20~70℃

▶ Power supply voltage: 9V～12V

▶ Read more

12.3 inch high brightness 1920x720 pixel TFT color LCD module with HI driver board/capacitive touch

▶ Model: LCM-TFT123T61FHHDVUSDC

▶ Type: HI board module

▶ Display pixels: 1920x720 Px

▶ Dimensions (mm): 328.128x142.128x17.1

▶ Display inches: 12.3"

▶ AA size (mm): 292.032x109.512

▶ Application: Charging pile, electrical equipment

▶ Viewing angle: IPS full viewing angle

▶ Backlight/brightness: 750cd/M2

▶ Pin: 49pin

▶ Interface mode: HI/VGA

▶ Special instructions: Anti-static ESD 8KV

▶ Working temperature: -20~70℃

▶ Supply voltage: 12V～24V

▶ Read more

12.3 inch high brightness 1920x720 pixel TFT color LCD module with HI driver board/optional capacitive touch

▶ Model: LCM-TFT123T61FHHDVNSDC

▶ Type: HI board module

▶ Display pixels: 1920x720 Px

▶ Dimensions (mm): 302x125.4x15.3

▶ Display inches: 12.3"

▶ AA size (mm): 292.032x109.512

▶ Application: Charging pile, electrical equipment

▶ Viewing angle: IPS full viewing angle

▶ Backlight/brightness: 850cd/M2

▶ Pin: 49pin

▶ Interface: HI/VGA

▶ Special instructions: Anti-static ESD 8KV

▶ Working temperature: -20~70℃

▶ Supply voltage: 12V～24V

▶ Read more

5.0 inch IPS full viewing angle/800x480px/high brightness/TFT color LCD display module/with HI driver board/Raspberry Pi

▶ Model: LCM-TFT050T61SVHDVNSDC

▶ Type: HI driver-free module

▶ Display pixels: 800x480 Px

▶ Dimensions (mm): 140.00x 95.00x21.10

▶ Display inches: 5.0"

▶ Effective size (mm): 108x64.8

▶ Application: Industrial computer

▶ Viewing angle: IPS full viewing angle

▶ Brightness: 600cd/M2

▶ Interface: HI/VGA

▶ Special instructions: Anti-static ESD 8KV

▶ Working temperature: -30~80℃

▶ Power supply voltage: 5.0V

▶ Driver chip: T.B.D

▶ Read more

4.3-inch IPS full viewing angle/800x480/high brightness/TFT color LCD display module/with HI driver board/can be used with Raspberry Pi

▶ Model: LCM-TFT043T6SVHDVN20Z

▶ Type: HI driver-free module

▶ Display pixels: 800x480 Px

▶ Dimensions (mm): 120x68.20x5.20

▶ Display inches: 4.3"

▶ Effective size (mm): 95.04x53.86

▶ Application: Instrumentation

▶ Viewing angle: IPS full viewing angle

▶ Brightness: 500cd/M2

▶ Pin: FPC-20PIN

▶ Interface: HI/VGA

▶ Special instructions: Anti-static ESD 8KV

▶ Operating temperature: -30~80℃

▶ Power supply voltage: 5.0V

▶ Driver chip: T.B.D

▶ Read more

5.6 inch  IPS640x480 px HI TFT LCD module for industrial computer/Raspberry Pi with driver board

▶ Model: HTM-H056A01-HI-A01

▶ Type: HI driver-free module

▶ Display pixels: 640x480

▶ Dimensions (mm): 163.5x102x20.7

▶ Viewing window size (mm): 5.6"

▶ Display size (mm): 5.6"

▶ Effective size mm: 112.9x84.67

▶ Product application: home appliances, medical, industrial control

▶ Viewing angle: full viewing angle

▶ Brightness: 200cd/m2

▶ Interface: HI/VGA

▶ Special instructions: Anti-static ESD 8KV

▶ Working temperature: -10~60℃

▶ Supply voltage: 9V～12V

▶ Read more

8 inch IPS HI TFT module without touch screen TFT color Display

▶ Model: HTM-H080A2-HI-A03

▶ Product type: TFT module with board

▶ Display content: 1024x768

▶ Dimensions (mm): 203x161x23.5

▶ Viewing window size (mm): 8.0

▶ Display size (mm): 8.0

▶ Effective size mm: 163x122.5

▶ Product application: automotive, medical, industrial control

▶ Viewing angle: 12H

▶ Backlight type or brightness: 800cd/m2

▶ Connection method PIN number: 22pin

▶ Interface method: HI

▶ Special instructions: Anti-static ESD 8KV

▶ Working temperature: -20~70℃

▶ Supply voltage: 12.0V

▶ Read more

Please contact us directly for more details!
