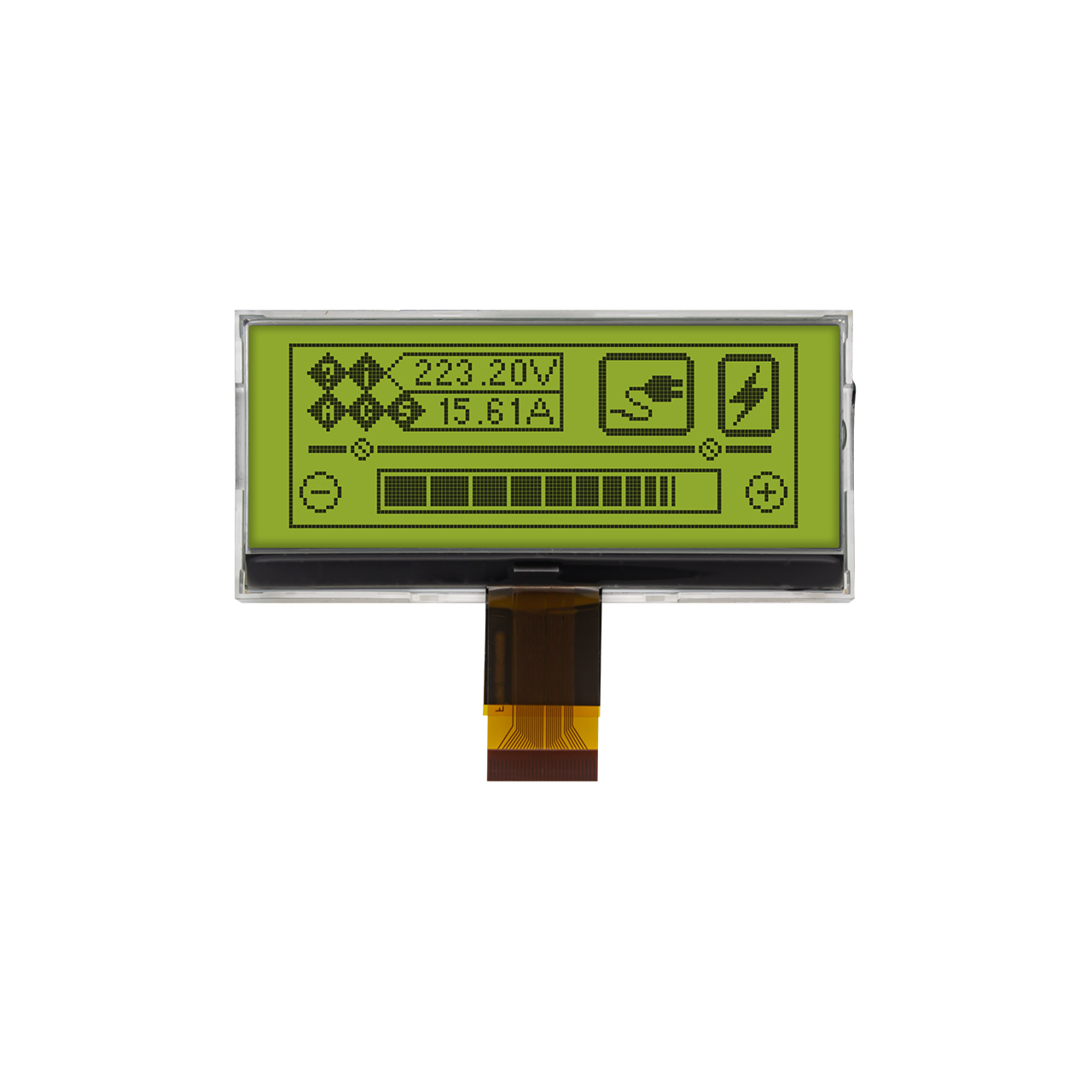

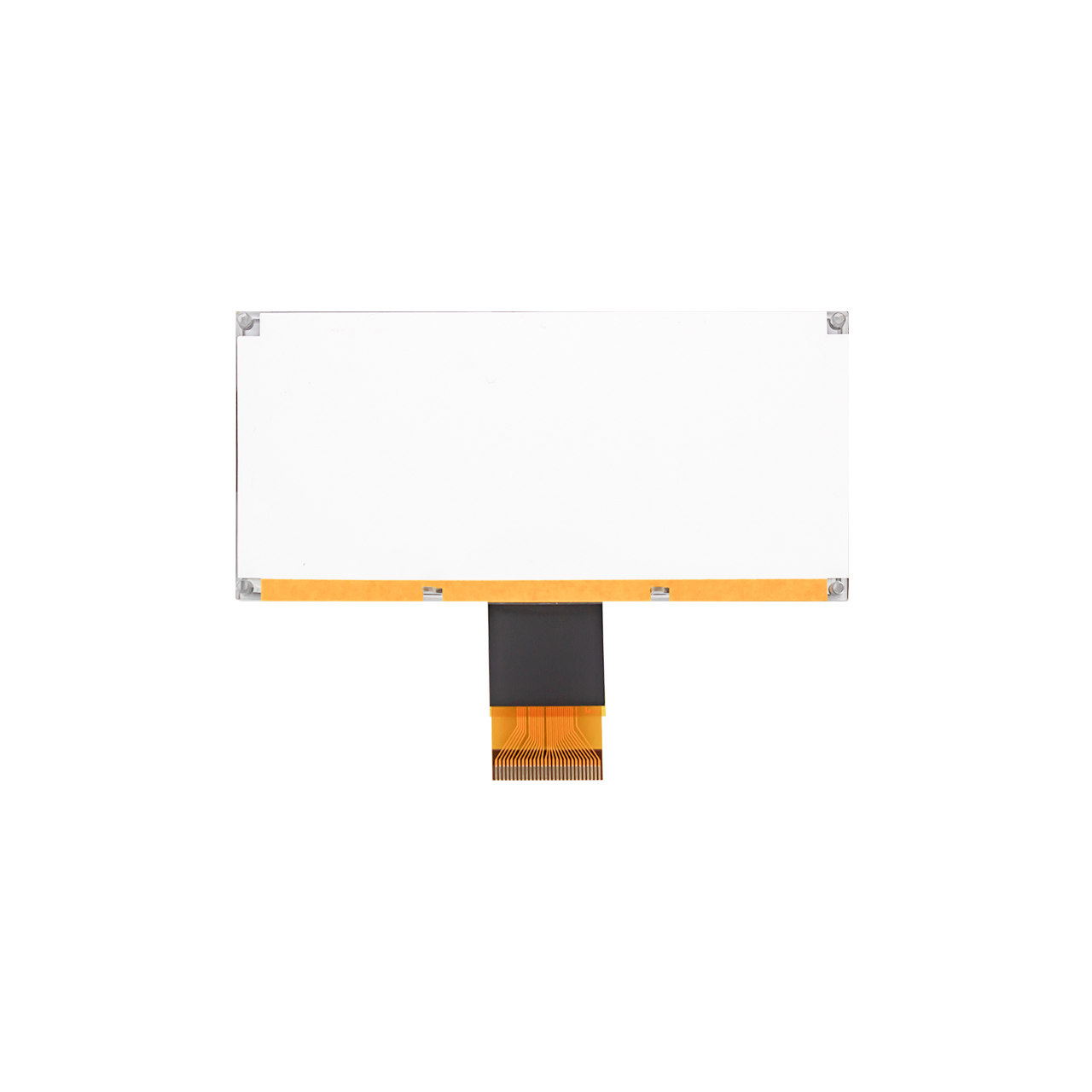

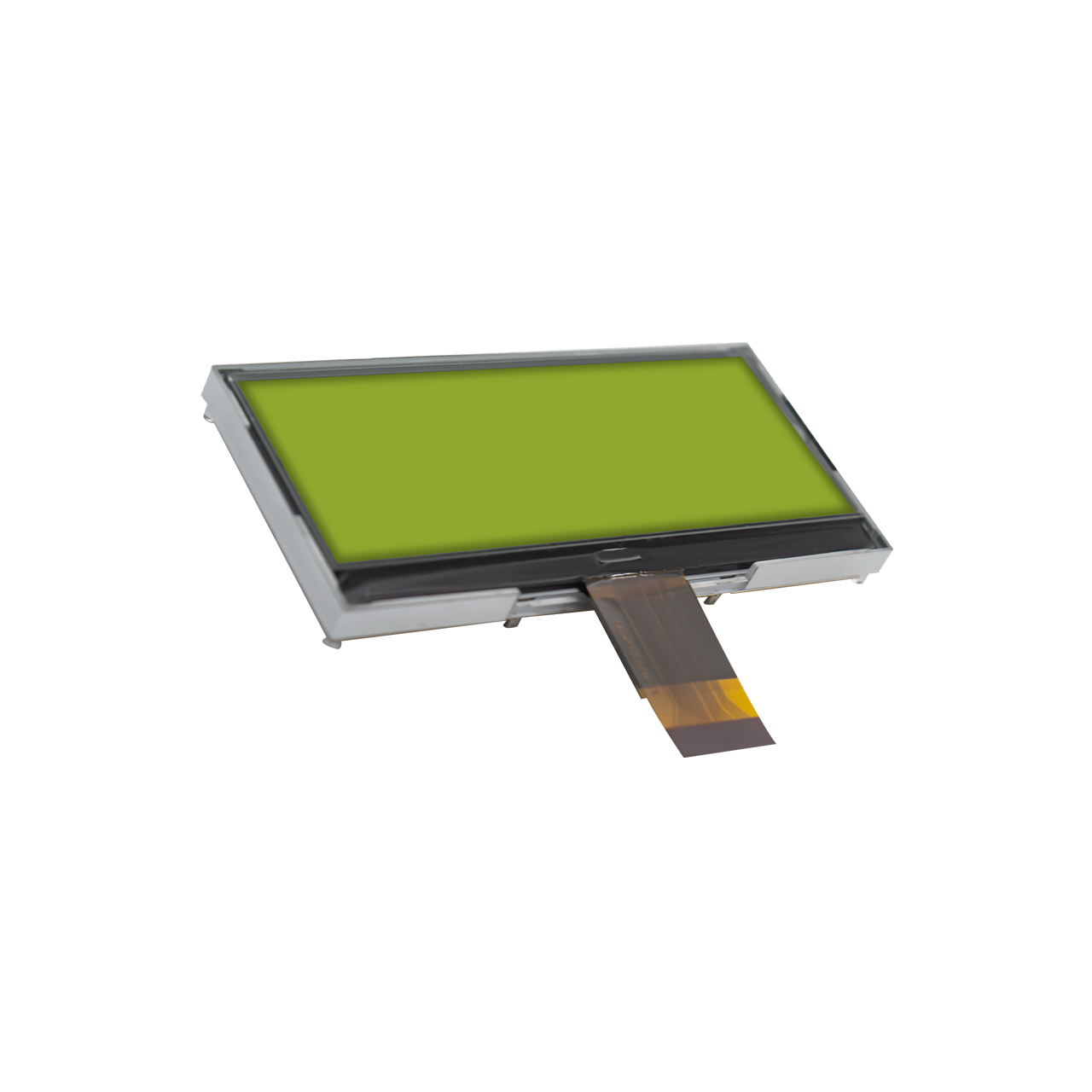

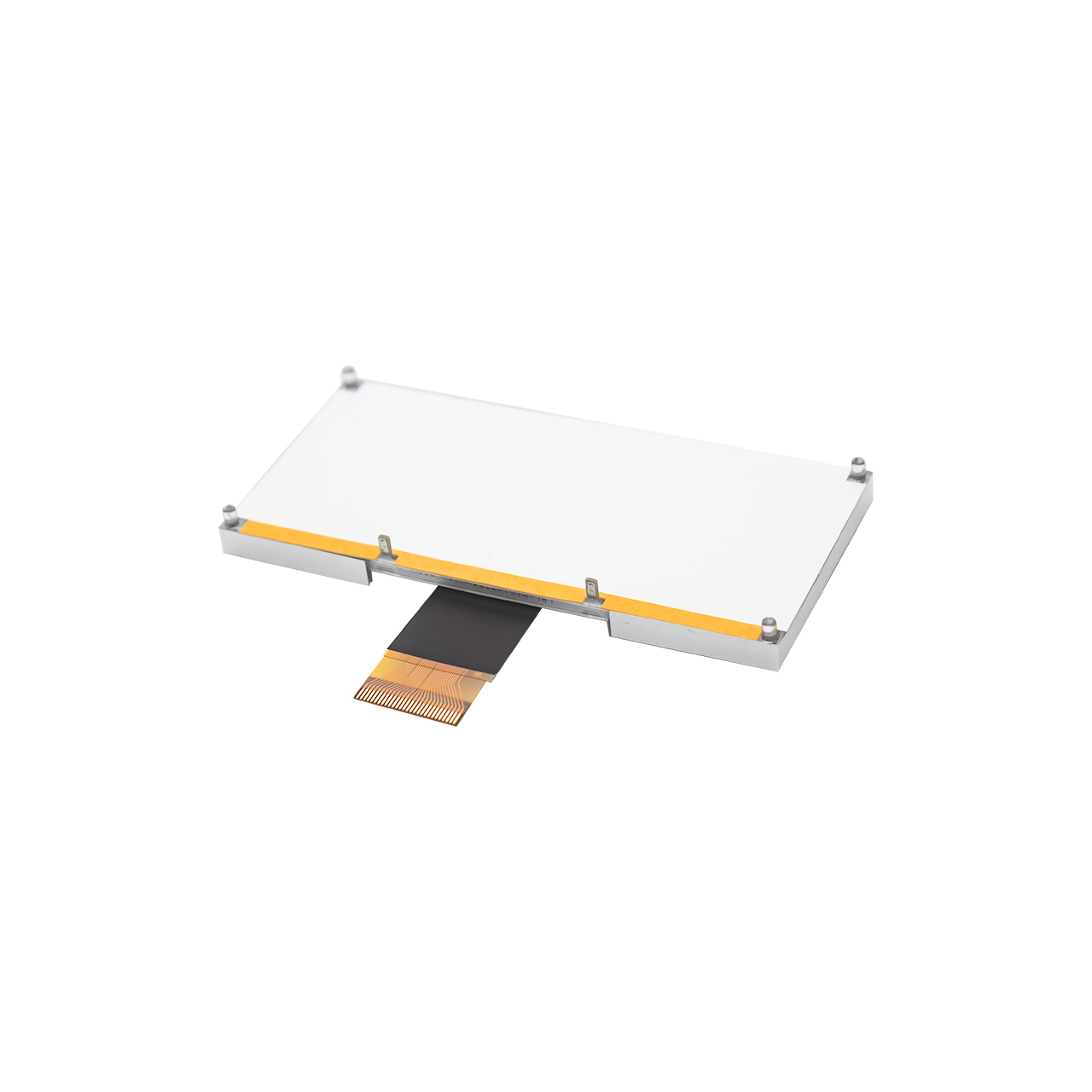

3.1" 128X48 Graphic Dot Matrix COG | STN+ | Display with Yellow-Green Backlight | MCU | ST7565R

Graphic Dot Matrix COG3.1" 128X48 | STN+ | Display with Yellow-Green Backlight | MCU | ST7565R | Arduino

▶ Model: HTG12848A-01Y

▶ Type: Graphic Dot Matrix COG
▶ Display pixels: 128x48

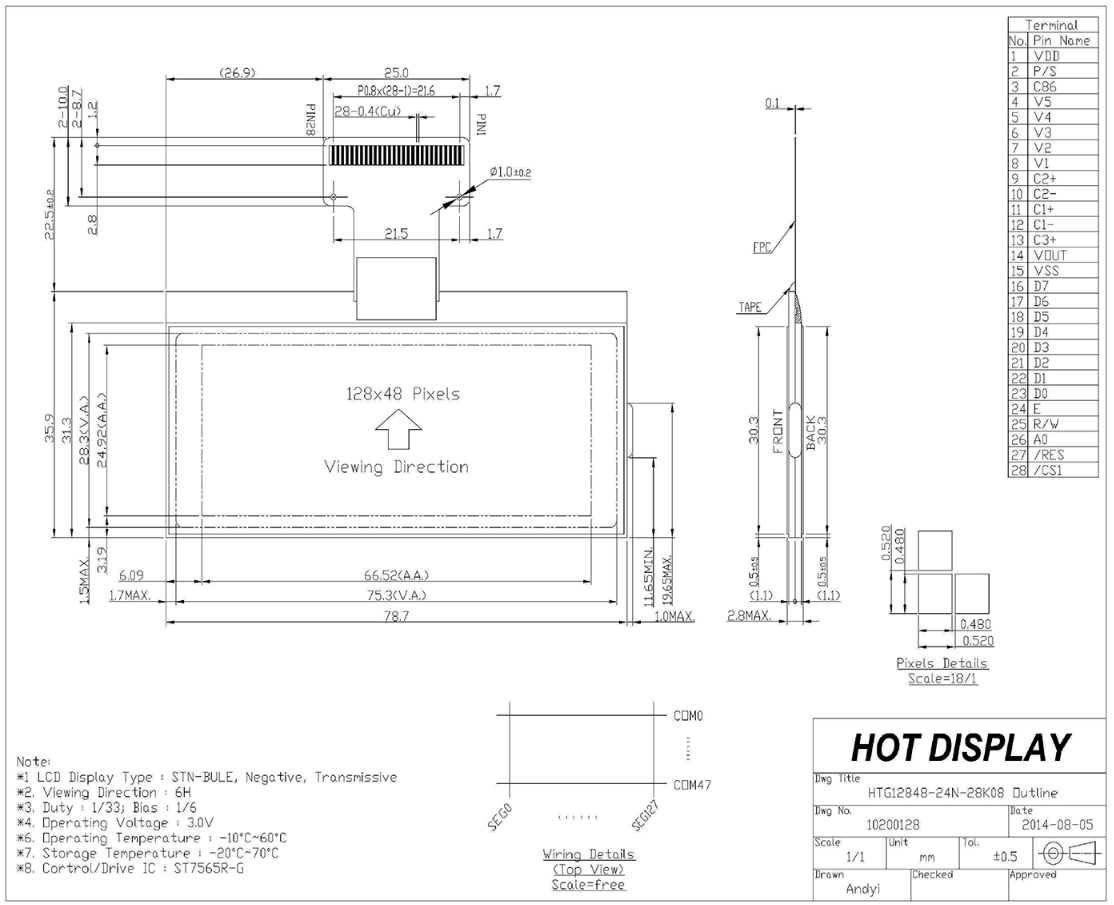

▶ Overall dimensions (mm): 81.1x38.3x4.9
▶ Display Inch: 3.1"
▶ VA size (mm): 75.3x28.3
▶ AA size (mm): 66.52x24.92
▶ Point spacing (mm): 0.52x0.52
▶ Application: Internet phone
▶ Viewing angle: 6H
▶ Backlight/brightness: yellow-green light
▶ Pin: FPC-28PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20-70℃
▶ Supply voltage: 3.3V
▶ Driver chip: ST7565R
Product ConsultationDatasheets Download
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
COG Adapter Board

Product Description
Customized Services
Attributes

3.1" 128X48 Graphic Dot Matrix COG | STN+ | Display with Yellow-Green Backlight | MCU | ST7565R | Arduino
This HTG12848A-01Y-28K08 Graphic Dot Matrix COG bright dark pixels on a vibrant yellow-green background. This transmissive LCD display is designed to provide optimal visibility and impressive colors when used in darker environments. The display has a powerful built-in backlight to provide high contrast and ensure readability of all graphics on the screen.
The display of this graphic LCD display module is fully compatible with Arduino/C8051 and can be seamlessly connected with other electronic systems for a variety of applications. This model is designed to withstand harsh working conditions and operates abnormally when used in a temperature range of -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 6:00, an operating voltage of 3.3V, and is RoHS compliant.

PARAMETER	SPECIFICATION CONTENT	UNIT
Name	HTG12848A-01Y
Graphic display	128 × 48	dots
Dimensions	81.1 x 38.3 x 4.9 (MAX)	mm
VA size	75.3 x 28.3	mm
AA size	66.52 x 24.92	mm
Pixel pitch	0.52 x 0.52	mm
Driver chip	ST7565R
Applied voltage	3.3V	V
Backlight illumination	Yellow-green
Display mode	STN(+)
Drive mode	1/48 duty cycle
Product type	Graphic COG
Polarizer type	Transflective
