2.0 inch TFT LCD display module with 240x320 RGB Interface for sunlight readable

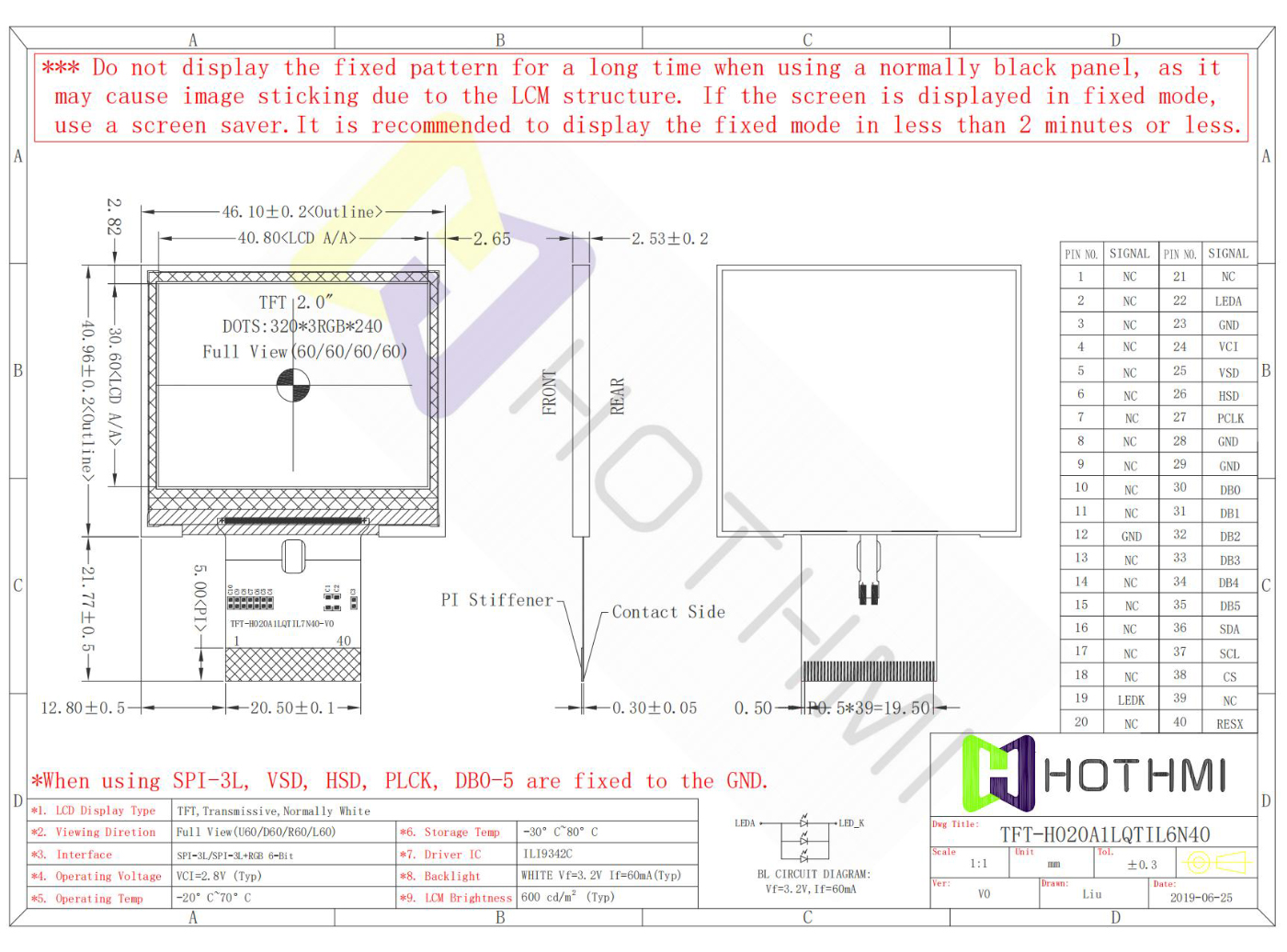

The product model TFT-H020A1LQTIL40N40 is a 2.0-inch TFT LCD display module with a resolution of 320 (RGB) x 240 pixels and a color gamut covering 60% of NTSC. The module is equipped with ILI9342C driver chip, supporting RGB interface mode, with a working voltage of VCI=2.8V (typical value), white LED backlight, driving conditions of Vf=3.2V, If=60mA (typical value), typical brightness of 600cd/m ², supporting full viewing angle (U60/D60/R60/L60), working temperature range of -20 ℃~70 ℃, and storage temperature range of -30 ℃~80 ℃. The product supports 18/16/6-bit RGB parallel interfaces, with a minimum serial clock cycle (write) of 100ns and a minimum data creation time (write) of 30ns. To prevent image residue, it is recommended to avoid displaying fixed patterns for a long time. If fixed display is required, it is recommended to refresh the content or use a screensaver every 2 minutes.
This 2.0 inch TFT LCD display module features a unique FPC (customizable connector) that is convenient and quick for users to use. Additionally, we offer 2.0 inch versions with resolutions of 176x220 and 170x320. We also support customizing glass cover plates, display interface UI, resistive or capacitive touch screens, and matching driver boards for display screens. All products comply with ROHS standards and have passed ISO9001:2015 certification. For the same size, we also provide the SPI-10pin version TFT-H020A05QVIST7N10 and the model with MIPI interface TFT-H020A3QVIFT2N15 ,If the user needs a version with a driver board, they can choose the TFT display module with board HTM020A01 .
