4X40 Character LCD Modules | STN+ With Yellow-Green Backlight ST7066U

▶ Model: HTM4004B-11Y-A5P

▶ Type: 4X40 character LCD modules
▶ Display content: 40x4 characters

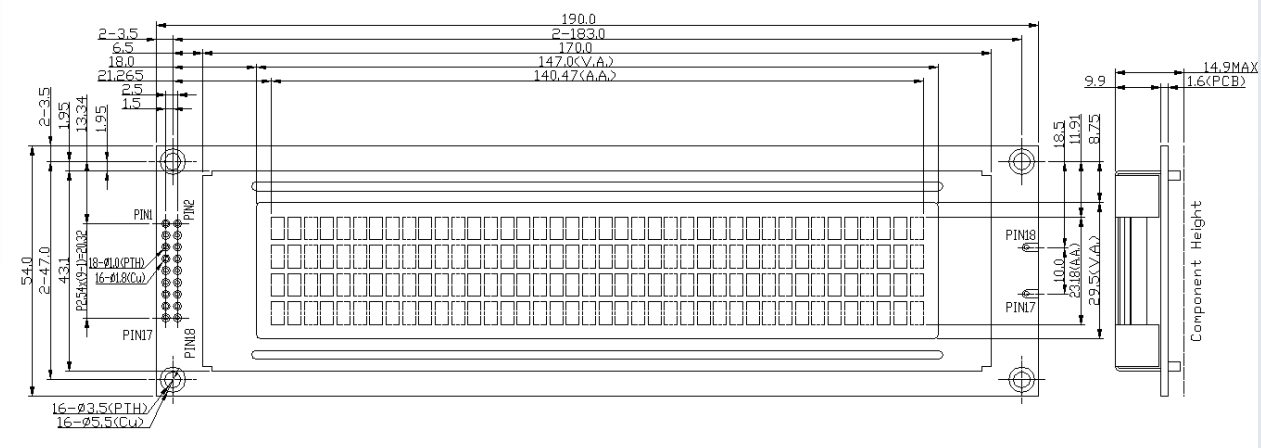

▶ Dimensions (mm): 190.0 x 54.0 x 14.9
▶ VA size (mm): 147.0 x 29.5
▶ AA size (mm): 140.47 x 23.18
▶ Pixel pitch mm: 0.57 x 0.62
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight type: yellow/green light
▶ Number of PINs: 16PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 5.0V
▶ Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
Character graphic dot matrix module dedicated adapter board
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Customized Services
Attributes

4X40 character LCD modules | monochrome display STN positive display | with yellow-green backlight | Arduino display | ST7066U

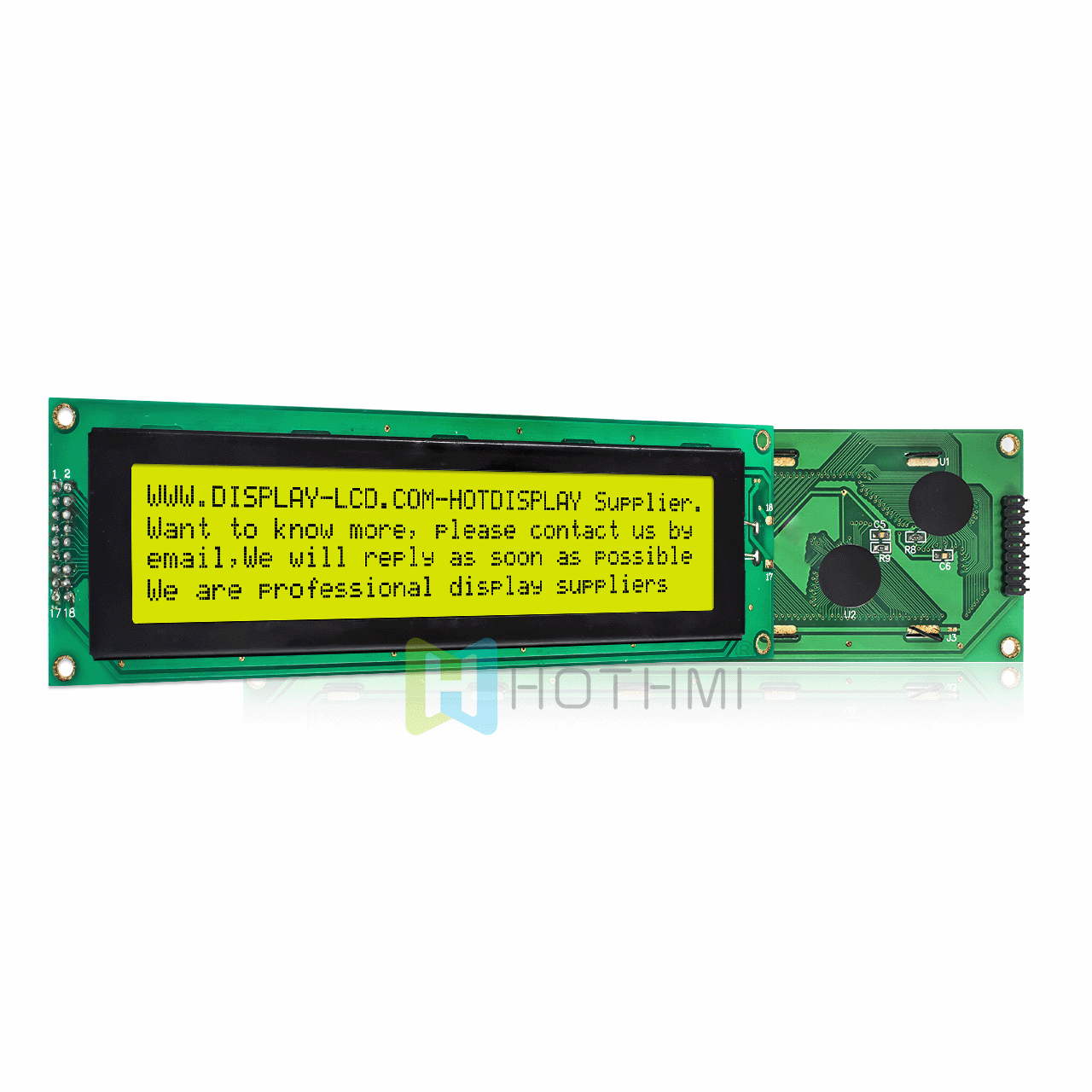

4X40 character LCD modules HTM - 4004B - 11Y features a 40 character, 4 line panel that displays dark pixels on a yellow-green background. This see-through LCD screen can be viewed in ambient or low light conditions and features a yellow-green LED light. This high contrast STN LCD screen operates over a wide temperature range and operates from either 3.3V or 5.0V. An optimal viewing angle at the 6 o'clock position ensures the screen is clearly visible from all angles. It features temperature compensation circuitry and a built-in ST7066U controller.

parameter	Specifications	unit
Name	HTM4004B-11Y-A5P
CharacterDisplay Lines	40 words× 4 rows	dots
Dimensions	190.0 x 54.0 x 14.9 (MAX)	mm
VA Size	147.0 x 29.5	mm
AA Size	140.47 x 23.18	mm
Pixel Pitch	0.57 x 0.62	mm
Driver Chip	ST7066U
Applied Voltage	5V	V
Backlight Illumination	Yellow/green
Display Mode	STN(+)
Drive Mode	1/16 duty cycle
Product Type	Character LCD Module
Polarizer Type	Transflective
