character LCD module/20X2 DFSTN (-) /white characters on black background/ST7066U controller/Arduino

▶ Model: HTM2002B-47W-A5P

▶ Type: character LCD module
▶ Display content: 20x2 characters
▶ Overall dimensions (mm): 180.0x40.0x11.0
▶ VA size (mm): 149.0x23.0
▶ AA size (mm): 142.8x20.64
▶ Point spacing mm: 1.22x1.22
▶ Product application: industrial control
▶ Viewing angle: 12H
▶ Backlight type: white backlight
▶ Number of PINs: 16PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -10~60℃
▶ Supply voltage: 5.0V
▶ Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
Character graphic dot matrix module dedicated adapter board
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Customized Services
Attributes

character LCD module/20X2 DFSTN (-) /white characters on black background/5.0V/ST7066U controller/Arduino
character LCD module HTM2002B-47W-A5P is a 20 character wide, 2 line character LCD module, ST7066U controller, contains white single LED backlight, easily dimmable by resistor or PWM, DFSTN negative display, white characters on black background, high contrast, working Wide temperature range, wide viewing angle, RoHS compliant, built-in character set supports English/Japanese/Russian text, and for the complete character set, please refer to the "Product Introduction" ST7066U linked data sheet. Choice of pin header connections, 5V or 5.0V power supply, and I2C adapter board for arduino.
It can be easily controlled through 8051, ARDUINO, and other MCUs. It can be used in any embedded system, industrial equipment, security, medical and handheld devices.

We support customization and flexible customization content

Item	Specification content	Unit
name	HTM2002B-47W-A5P
Number of dots	20 x 2	dots

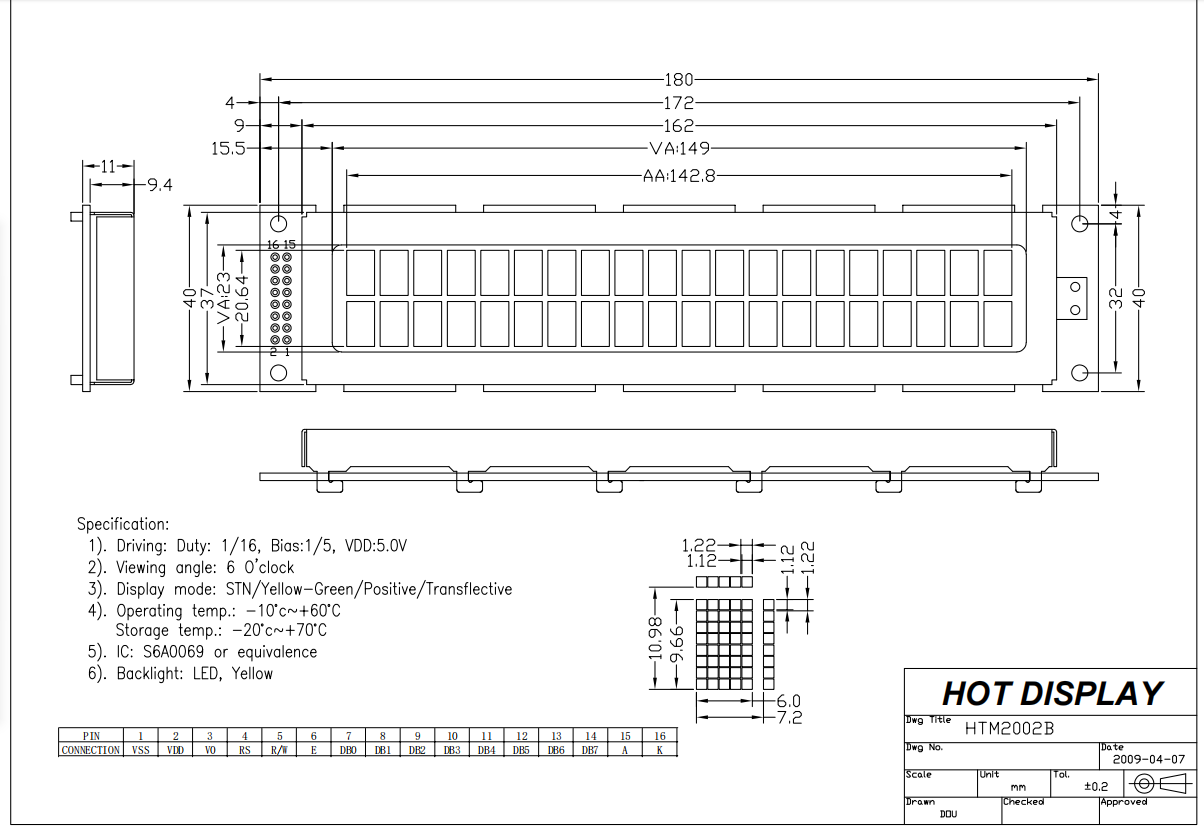

Module size	180.0（W） × 40.0（H） × 11.0 （T）	mm
Visual (VA) area	149.0 × 23.0	mm
AA size	142.8（W） × 20.64（H）	mm
Point (pixel) spacing	1.22（W） × 1.22（H）mm	mm
IC	ST7066U driver
Applied voltage	5.00V	V
back light	White
model	DFSTN(-)
Drive mode (Duty)	1/16 duty cycle
type	Character LCD
Polarizer type	Transmissive
