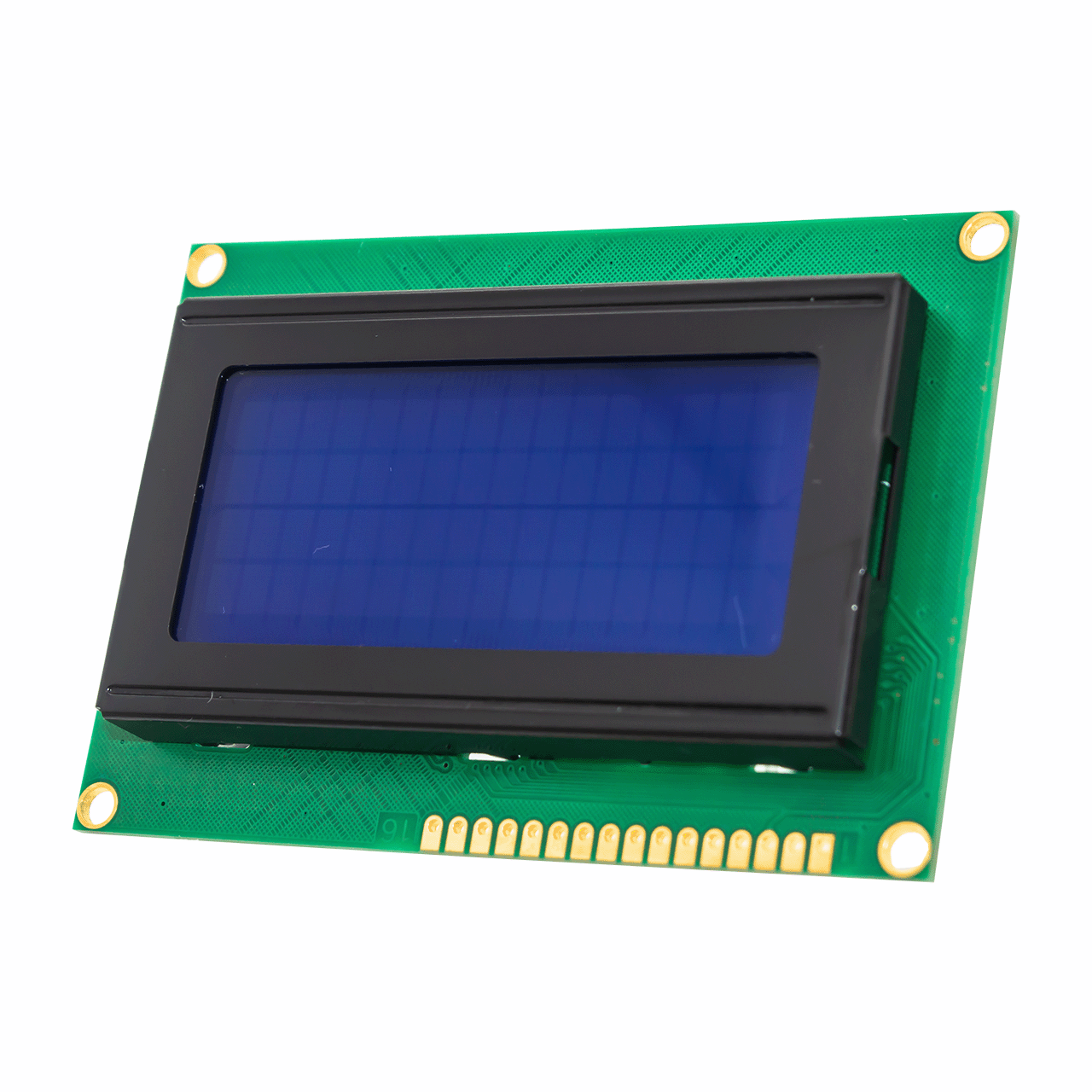

4x16 Character LCD Module | STN(-) With White Backlight ST7066U

4x16 Character LCD Module | STN(-) With White Backlight ST7066U

▶ Model: HTM1604B-25W-A5P

▶ Type: character LCD Module
▶ Display content: 4x16 characters
▶ Overall dimensions (mm): 87x60x10.4
▶ VA size (mm): 62x27.2
▶ AA size (mm): 56.2x20.8
▶ Point spacing mm: 0.6x0.6
▶ Product application: Instrumentation
▶ Viewing angle: 6H
▶ Backlight: white
▶ Connection method PIN number: 16pin
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Supply voltage: 5.0V
▶ Driver chip:ST7066U
