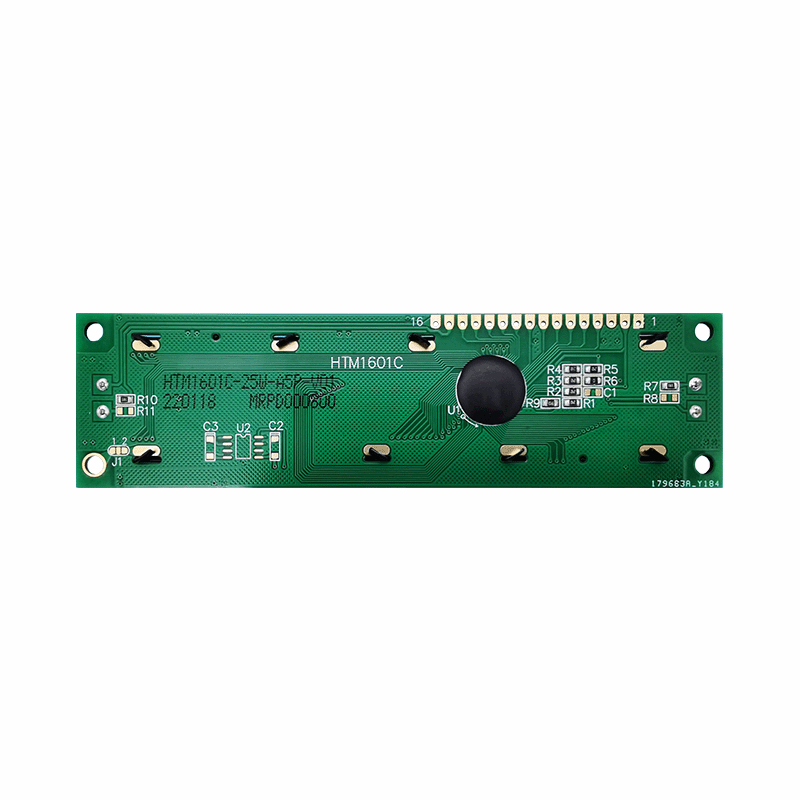

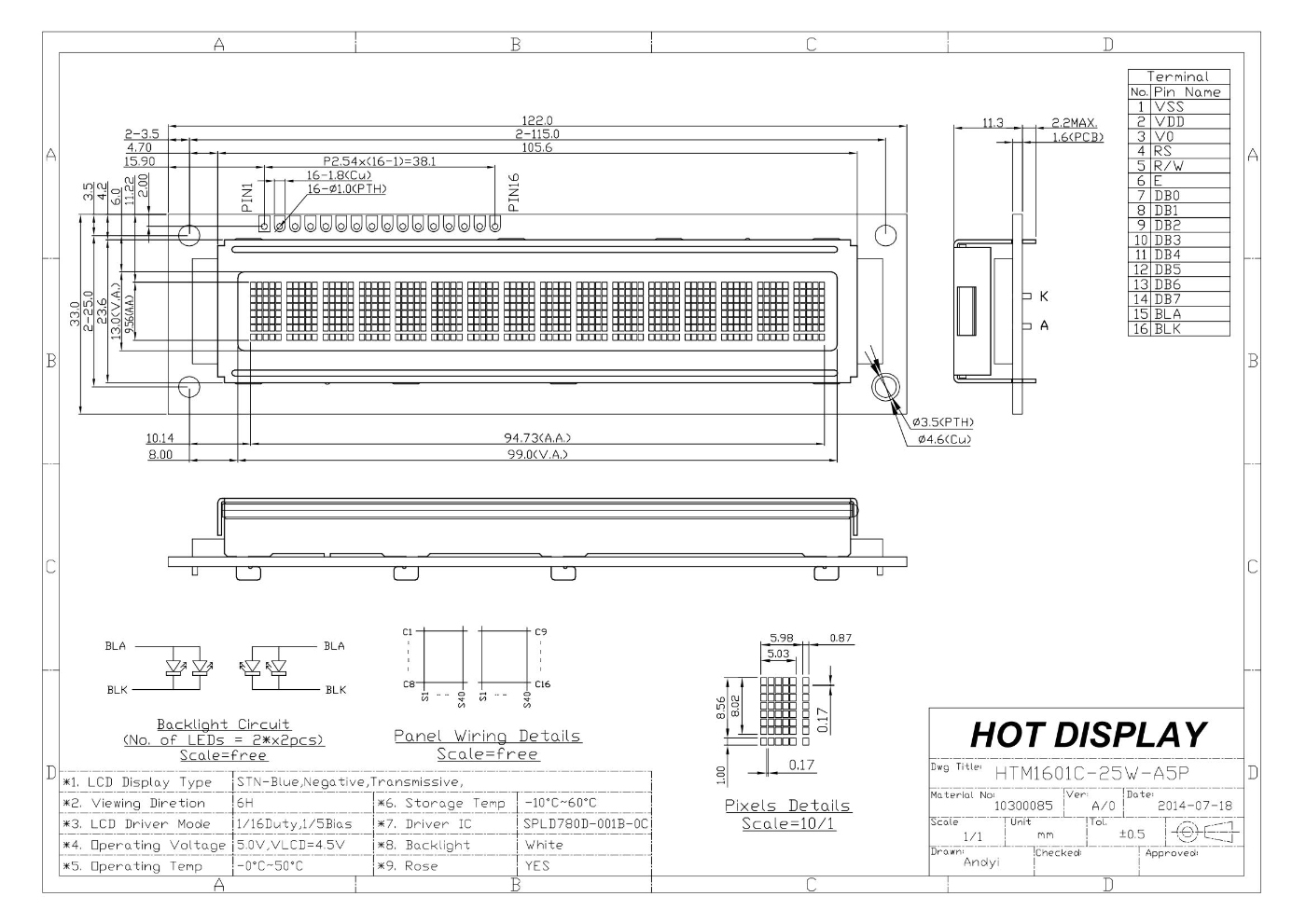

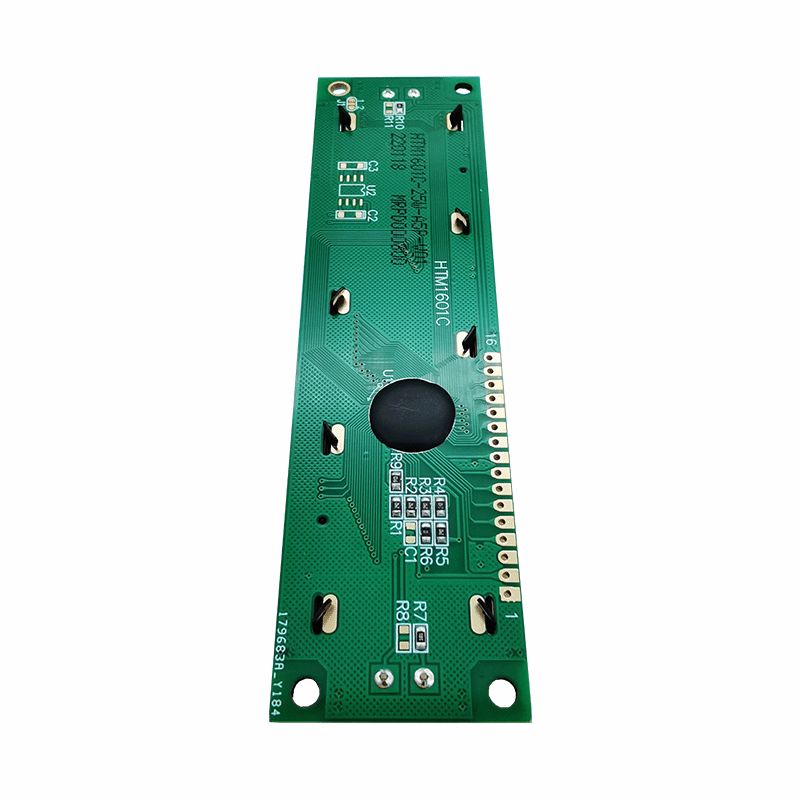

HTM1601C-25W-A5P |1X16 Character LCD Display| STN(-)+ Blue Background with White Backlight-Arduino
HOT DISPLAY Model HTM1601C-25W-A5P is a 1x16 character LCD with a white display and backlight. It is a reflective LCD, which means it can be seen both in ambient light and in poor lighting conditions when the backlight is turned on for better visibility. The monitor has a wide operating temperature range of -20 to 70 degrees Celsius, making it suitable for different applications.
The characters on the display are dark pixels on a bright blue background. The backlight is a white LED. The display communicates via parallel communication, operates on a 5V supply voltage, and has an internal ST7066U control chip. This high quality RoHS compliant display module is RoHS compliant and can be used in Arduino projects and is compatible with other development boards. The HTM1601C-25W-A5P display module has undergone rigorous quality testing to ensure its durability and performance under various conditions.
Connector Customization: Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require. |
PCB Modifications: Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application. |
Backlight color customization: The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference. |
Font library customization: Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc. |
Cable Customization: Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure. |
