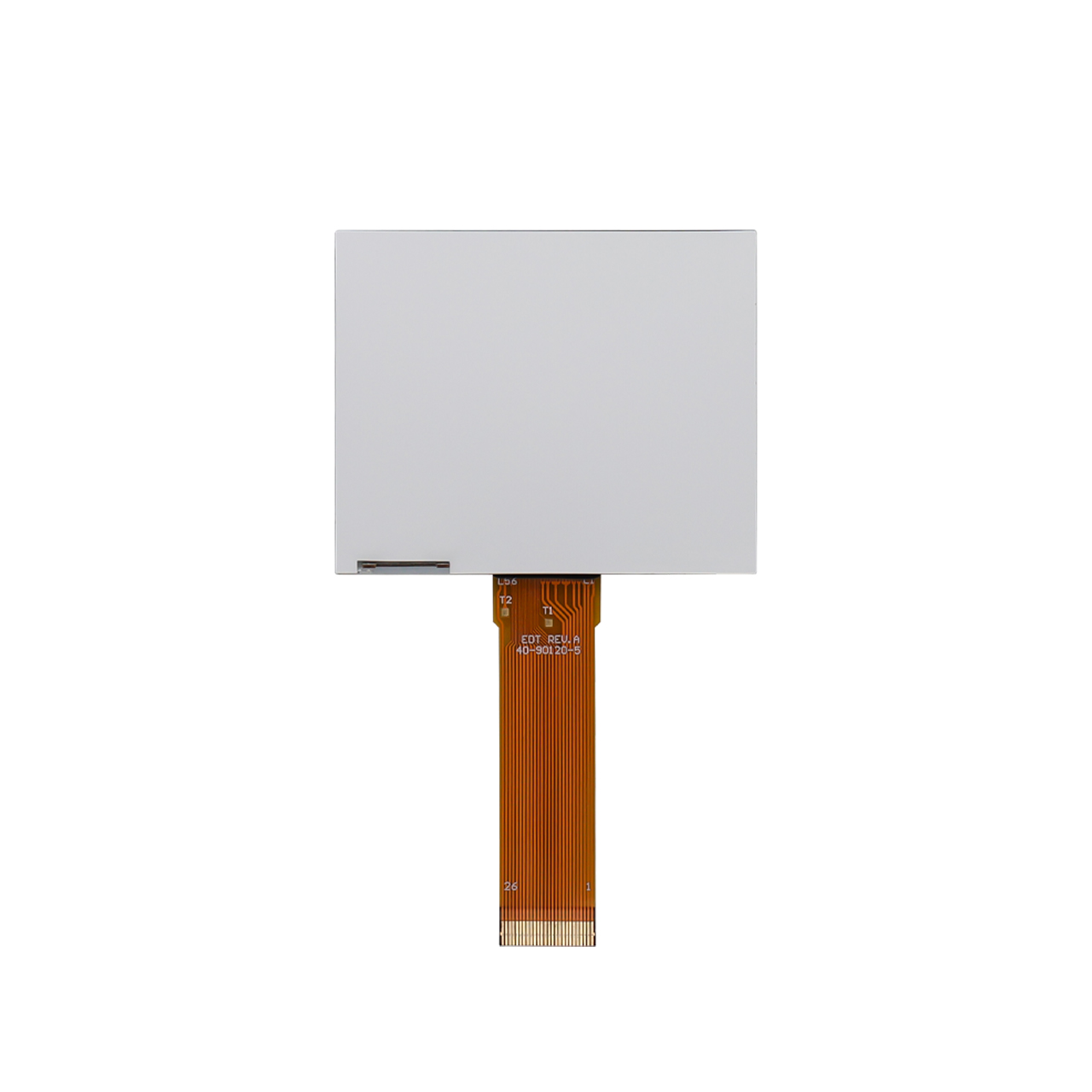

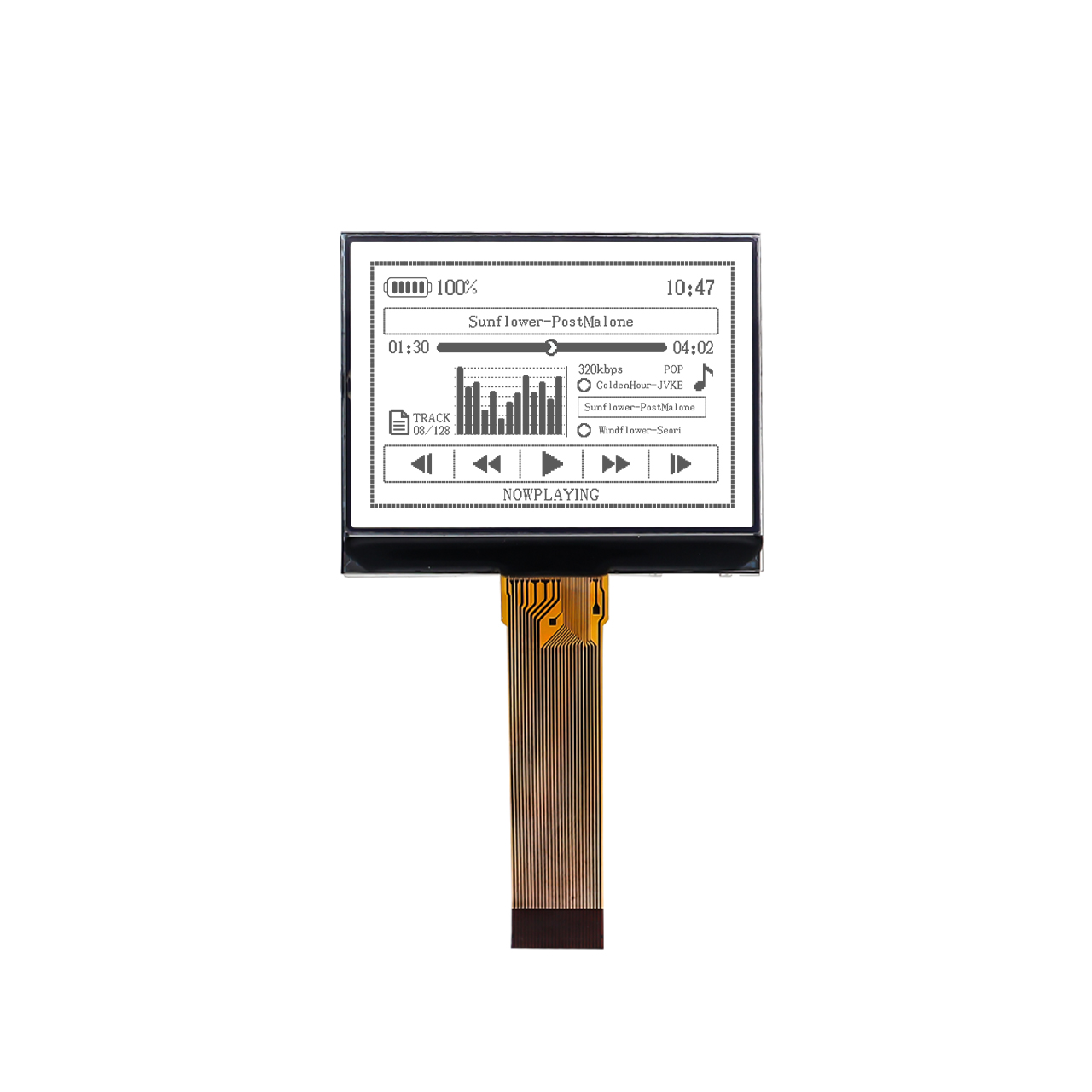

The 240x160 COG LCD Module represents a sophisticated display solution engineered specifically for instrumentation applications where readability and reliability are non-negotiable. This Chip-on-Glass (COG) module integrates the driver IC directly onto the glass substrate, delivering an ultra-compact form factor that saves valuable PCB real estate while enhancing overall system reliability.
At the heart of this display lies a transflective LCD technology—a hybrid design that combines the best attributes of transmissive and reflective modes. Unlike conventional displays that compromise performance in either bright sunlight or dimly lit rooms, this 240x160 COG LCD Module excels across the full lighting spectrum. In high-ambient-light conditions such as direct sunlight or brightly illuminated factory floors, the built-in reflector efficiently utilizes external light to produce exceptionally crisp, high-contrast imagery without straining the backlight. Conversely, when darkness falls or the equipment is operated in low-light control rooms, the integrated white backlight activates to deliver uniformly bright, clear readability. This dual-mode capability ensures that critical instrumentation data—whether numerical readings, graphical trends, or system status indicators—remains instantly discernible around the clock.
Optically, the module features a 12 o'clock viewing direction, optimized for standard instrument panel mounting where operators typically view the screen from a slight downward angle. The 26-pin MCU interface provides straightforward connectivity with most microcontroller architectures, simplifying integration and accelerating development cycles. Powered by a standard 3.3V supply voltage, the 240x160 COG LCD Module maintains modest power consumption—an essential attribute for portable or energy-conscious instrumentation.
Robustness is engineered into every layer of this module. The driver chip, ST7586S, has been thoroughly validated for stable operation across the entire temperature range of +30℃ to +80℃, accommodating diverse deployment environments from climate-controlled laboratories to industrial settings with elevated ambient heat. Furthermore, the module incorporates 8KV electrostatic discharge (ESD) protection on all critical signal lines, offering superior immunity against static discharges that commonly occur during handling, assembly, or in electrically noisy industrial environments. This built-in resilience minimizes field failures and extends service life, reducing total cost of ownership for end customers.
Whether you are designing next-generation medical monitors, industrial control panels, or precision test equipment, the 240x160 COG LCD Module delivers the optical versatility, electrical compatibility, and mechanical durability that demanding instrumentation applications require. Available with comprehensive technical documentation and engineering support to streamline your product development journey.

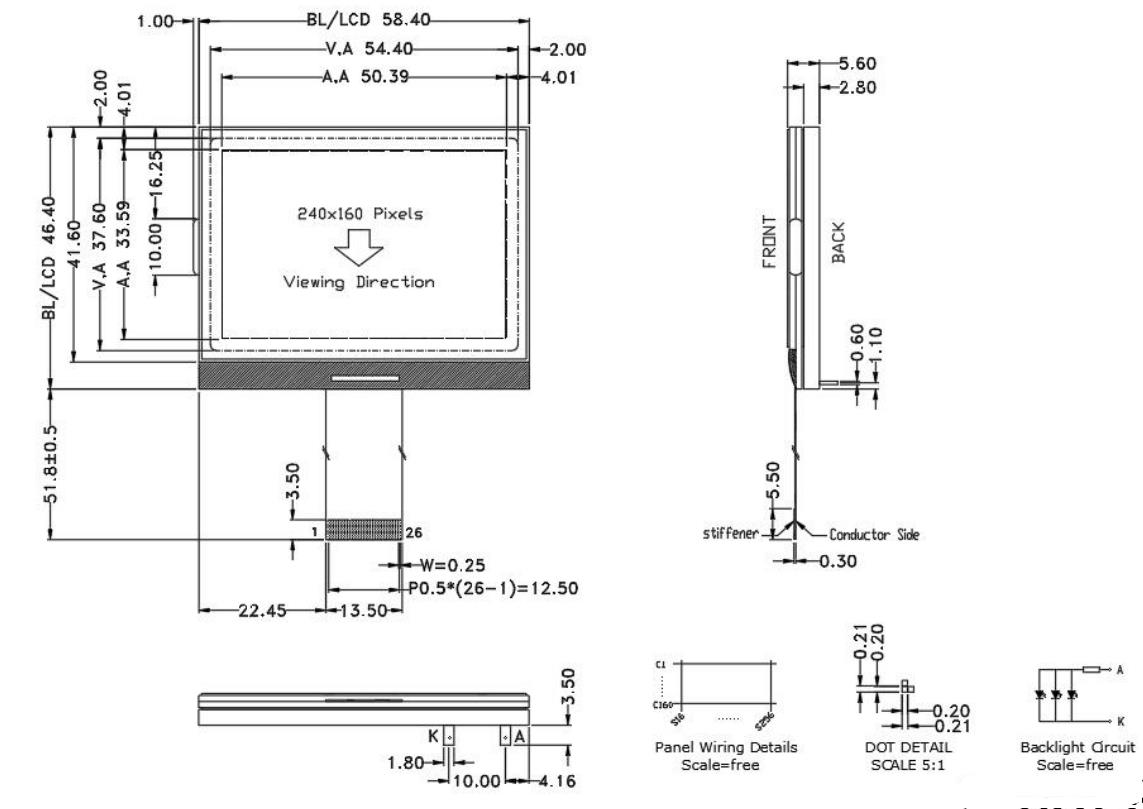

240x160 COG LCD Module Ultra-thin Embedded Display Specification Sheet
